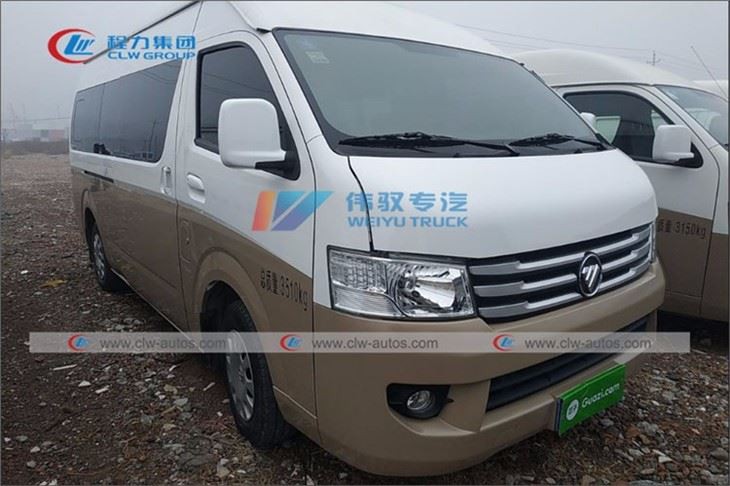

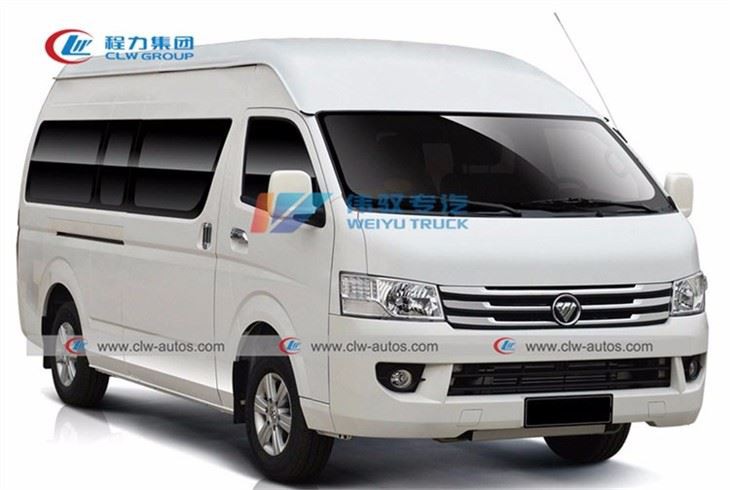

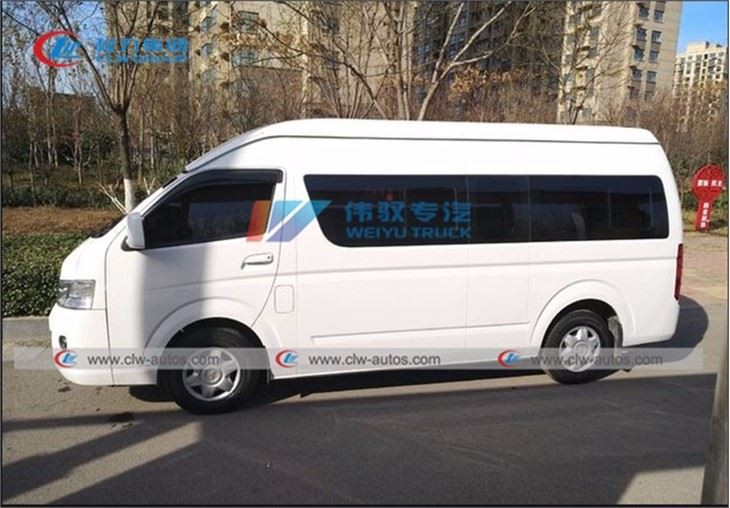

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 16 seats foton mini bus in China. If you're going to buy high quality 16 seats foton mini bus, welcome to get more information from our factory. For price consultation, contact us.
--Bus(also called Autobus.) is used for Long-haul and Short-haul passenger transporting.
--Bus can be divided into various types as follows,
1) according to truck brands, there are dongfeng, asiastart and JMC for optional.
2) according to seat capacity: 8 seats 10 seats 12seats 14seats 16seats 20 seats, 28 seats, 30 seats, 40 seats, 48 seats, 50 seats, 55 seats, 58 seats and 60 seats etc.
3) according to purpose: Long-haul and Short-haul passenger transporting bus.
--Powerful engine: Four-cylinder, water cooled, turbocharged, after cooled, diesel engine.
--Heavy duty mechanical suspension system
SpecificationVehicle |
Overall length (mm) |
5380 | Engine | Engine model | BJ493ZQ | |
Overall width (mm) |
1920 | |||||
Overall height (mm) |
2285 |
Manufacturer |
Beijing Foton | |||
Wheelbase (mm) |
3110 |
Position/Fuel |
Diesel | |||
Front/rear overhang (mm) |
1190/1080 |
Max. power (kW) |
68 | |||
Min. turning radius (mm) |
6250 |
Max. torque (N.m) |
202 | |||
Min. ground clearance (mm) |
≥170 |
Displacement (ml) |
2771 | |||
Wheel track (mm) |
1655/1650 |
Max. speed (km/h) |
≥120 | |||
Max. GVW (kg) |
3400 |
Curb weight (kg) |
2275 | |||
Rated passenger capacity | 16 |
Seat layout |
3+3+3+3+4 | |||
Item |
Standard Configuration | |
Chassis | Transmission | ZM001AJD, manual mechanical 5 speed transmission |
Clutch | Single, dry type, diaphragm spring clutch, hydraulic control | |
Front axle | / | |
Rear axle | Banjo type housing, speed ratio 4.556; load rating (kg): 1800 | |
Basic composition |
Cab | Wide and high roof |
Bus body | Unibody, standard and bright window | |
Trim | Half pack (fiber board) inner decoration, PVC+ nonwoven molding celling | |
Window | front electric window + remote control lock | |
Rear view system | electric adjust and manual fold rear-view mirror manual+ anti-glare inner rear-view mirror | |
Paint | Plain solid paint | |
Others | / | |
