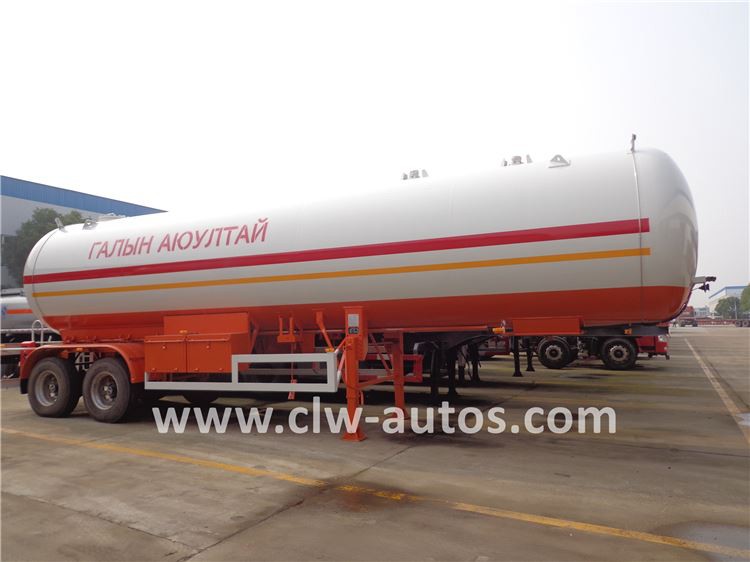

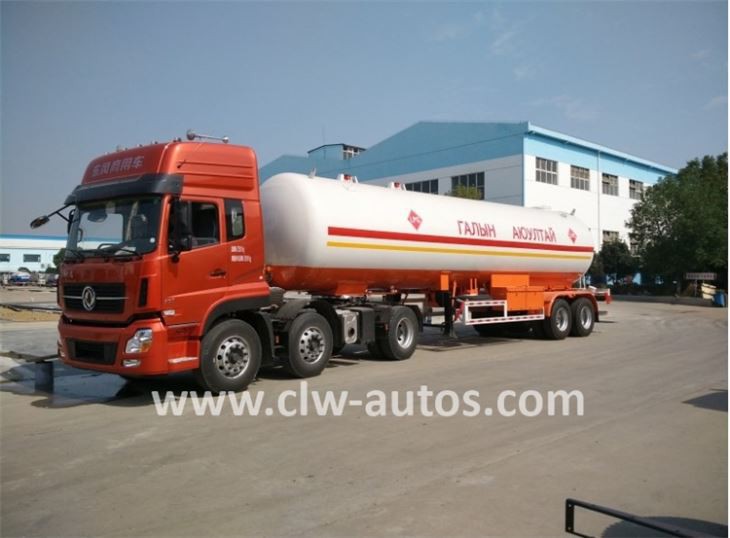

18MT LPG Tanker Trailer
8MT lpg tanker trailer is used to transport liquid petroleum gas in large quantity and in long distance from depot or terminal station to smaller lpg stations in other cities.
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 18mt lpg tanker trailer in China. If you're going to buy high quality 18mt lpg tanker trailer, welcome to get more information from our factory. For price consultation, contact us.
Product Description
1) 18MT lpg tanker trailer is used to transport liquid petroleum gas in large quantity and in long distance from depot or terminal station to smaller lpg stations in other cities. We can offer lpg semi trailers from 40cbm to 60cbm and from 20tons to 30tons.
2) Manufacturing standards : GB-150, ASME, U STAMP, CCC, ISO9001 : 2008
3) Optional accessories :ROCHESTER level gauge,flow meter,sun shelter,lpg pump,lpg dispenser machine,filling hose
4) Available tanker trailer capacity:18mt,18t,20mt,20tons,22mt, 22tons, 25mt, 25tons, 30mt, 30tons
5) Material: Q345R,Q370R,Q420R
Specification
Tanker Essential Information | |
Volume of Tank (cbm) | 40.5 |
Overall Dimensions(L*W*H)(mm) | 11324*2500*3730 |
Tank Dimensions(Inner Diameter*thickness*Length) | 2200*12*11044 |
Estimated Tare Weight (kg) | 13415 |
Payload(kg) | 17010 |
Total Weight(kg) | 30425 |
Wheelbase(mm) | 6720+1320 |
Shell of Tanker | |
Products | Liquefied Petroleum Gas (propane) |
Fluid Property | Flammable |
Design Temperature(ºC) | 50ºC |
Design Pressure(MPa) | 1.61 |
Corrosion Allowance(mm) | 1.00 |
Weld Joint Factor | 1 |
Major Materials of Bearing Pressure | Tanker body:Q345,12mm, |
| End plate:Q345R,12mm | |
| Main beam:16Mn | |
Detection | |
Heat Treatment | Overall treatment in a furnace,600ºC to 640 ºC |
Flaw Detection | 100% Flaw detection |
Test Pressure(MPa) | 1.61 |
Hydraulic Test(MPa) | 2.1 |
Magnaflux Inspection | Aim at welding place that flaw detection can not cover |
Manhole (As Customer's Requirement) | |
Quantity | 1;on top |
Size | DN450 |
Safety Valve(As Customer's Requirement) | |
Quantity | 2 |
Location | On the top of tanker |
Size | DN80 |
Level Gauge | |
Type | Manuel Switch type |
Location | At the rear of the end dish |
Running System | |
Axles | 2*13T BPW |
Tire | 12R22.5 Tubeless tire ,8 with one spare tire |
Landing leg | JOST |
King Pin | #50 or #90 |

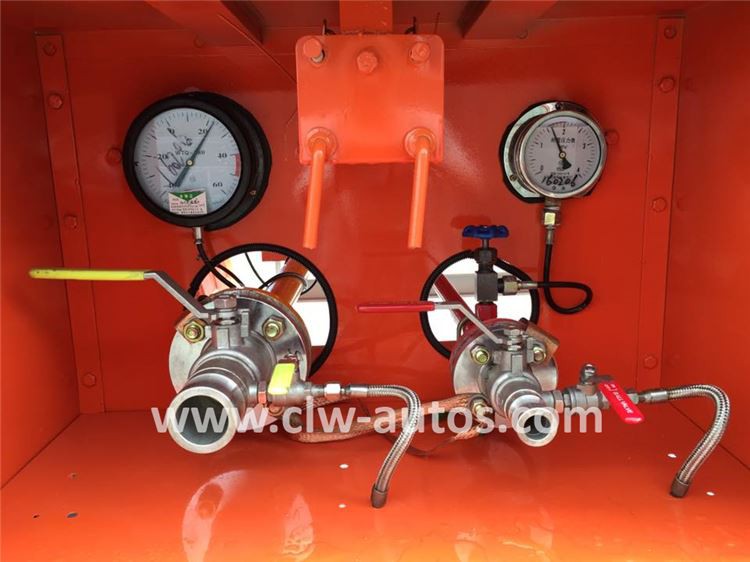

Control System | |
Emergency Cut-off Valves | 2 or 3 |
Ball Valve | 4 or 6 |
Liquid Gauge | 1 |
Pressure Indicating Thermometer | 1 |
Pressure Gage | 1 |
Detail
Production Process
Steel plate cutting
Tank rolling
Longitudinal welding
Circle welding
Baffle welding
X-ray testing for every welding line and ensure 100% qualified;
Heat treatment at 620 ℃
Hydraulic testing at pressure 2.21Mpa
Sandblasting before painting
Two layers of Anti-corrosion painting before final painting
Assembly of lpg tank and running system
Successful case
FAQ:
Q1: What is your product name?
A: 18tons lpg semi trailer,also called 18tons lpg tanker trailer,18tons lpg truck trailer,18tons lpg bridger truck.
Q2: What size of lpg semi trailer can you supply?
A: We can supply lpg semi trailer from 40.5cbm to 61.9cbm,the most popular size is 49.6cbm, 56cbm, 59.52cbm which is 25tons,28tons and 30tons accordingly.
Q3: What’s the production standard of your lpg semi trailer ?
A: GB-150.1~4-2011 or optional for ASME VIII Division I U STAMP
Q4: Where is your factory located? Can we visit your factory?
A: Our factory is located in Suizhou City,Hubei Province,central China,which is famous for special vehicles.You can take high speed train to Wuhan railway station,Hankou railway station or Wuhan Tianhe International Airport.
Q5: What’s your payment term?
A: 40% deposit by T/T and balance by T/T before shipment.
Q6: How many days can I get my the lpg semi trailer after paying deposit?
A: Only 10 working days is needed when material is ready.Usually our delivery time is 20~25 days.
Q7: What warranty do you supply for lpg semi trailer?
A: The life time of lpg semi trailer body is 15 years and one year free warranty for axles.
Q8: What axle brand do you use for lpg semi trailer?
A: BPW,FUWA,L1,YORK and other famous Chinese brands.
