4x4 FWD 5Ton FAW Tiger V Dump Truck
The Tiger V is equipped with an engine from Yuchai, a veteran manufacturer, with a maximum power of 150 horsepower. At 1300-1600 rpm, it can output a peak torque of 600 Nm, and the specific fuel consumption of the engine is 197g/kW.h. A small dump truck that focuses on rural infrastructure.
It is matched with the 8JS85E transmission of the big-name manufacturer Fast. The first gear ratio is 10.36, which meets the requirements of heavy-duty start of the dump truck. The highest gear ratio is 0.78 and it runs fast enough.
In terms of chassis configuration, the front axle of this Tiger V adopts the products of Haitong Axle, with 10 leaf springs.
The rear axle is a 7-ton 1080 axle provided by Pengxiang Automobile, with 10 main springs and 8 auxiliary springs, which fully meets the load requirements of the truck’s 10 tons of total mass, and the rear axle speed ratio is 6.5.
4x4 FAW Full Wheel Driving Dump Truck | |||
Model No. | CA2040P40K8E5A93 | Traction | 4x4 |
Wheel Base | 3450mm | Engine | Yuchai-YC4D150-50 |
Gearbox | FAST,8JS85E | Rear Axle Speed Ratio | 6.578 |
Truck Length | 5998mm | Truck Width | 2280mm |
Truck Height: | 2900mm | Front Wheel Track | 1780mm |
Rear Wheel Track | 1670mm | Tare Weight | 4850kg |
Loading Weight | 5200kg | Gross Weight: | 10,000kg |
Truck Type | Light Truck | Approaching Angle: | 35 degres |
Departure Angle | 20 degree | Truck Speed Ratio: | 5.262 |
Engine | |||
Model | YC4D150-50 | Brand: | Yuchai |
Cylinder | 4 | Oil Type: | Diesel |
Displacement: | 4.214L | Emission | EURO 5 |
Hose power: | 150HP | Power: | 110kW |
Max Torque | 500N·m | Mac Torque Speed | 1400-1800rpm |
Rated Speed | 2800rpm | Type: | Cylinder, Vertial, 4 Stroke, water cooling |
Box | |||
Box Length | 4000mm | Box Width | 2100mm |
Box Height | 800mm | Box Type | Self Discharging |
Cabin | |||
Cabin | Single Row, with A/C | ||
Gearbox | |||
Model | 8JS85E | Brand | FAST |
Forward | 8 | Reverse | 1 |
Tire | |||
Tire Volume | 8.25-16LT 6PR,8.25R16LT 6PR | Tire Quantity | 6Unit |
Fuel Tank | |||
Material: | Aluminum | Volume | 150L |
Chassis Date | |||
Front Axle | 4000kg | Rear Axle | 700kg |
Speed Ratio | 6.578 | Leaf Spring | 11/9+10 |

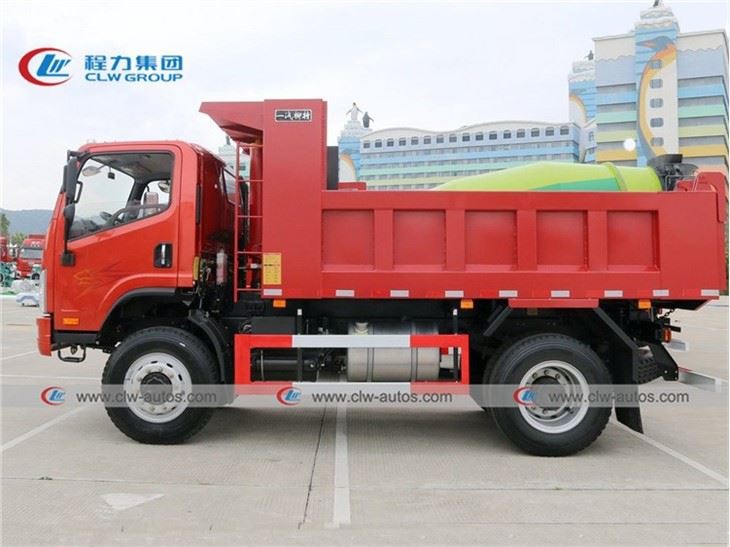

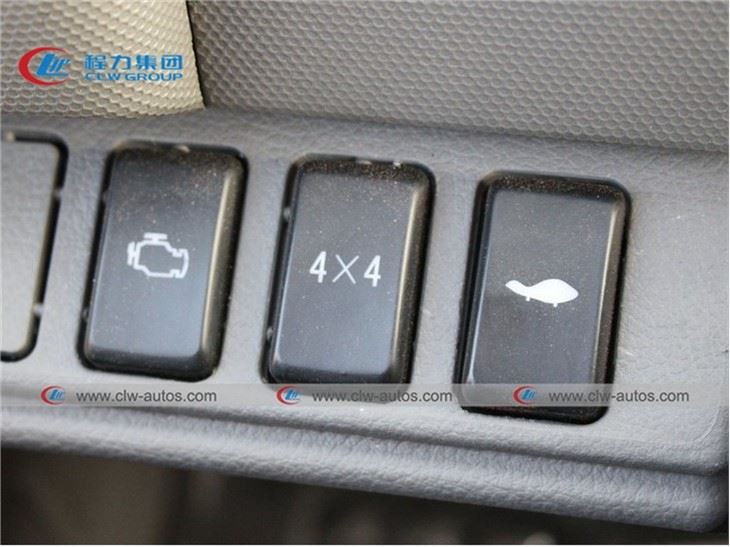

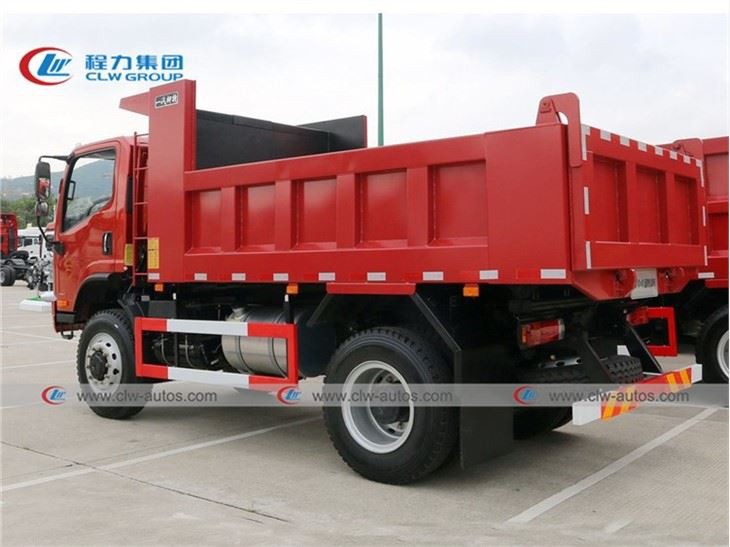

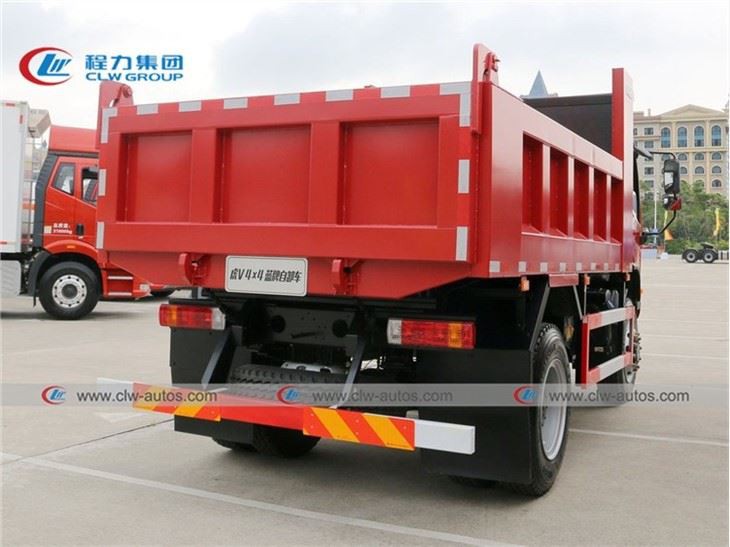

Photo Details:
