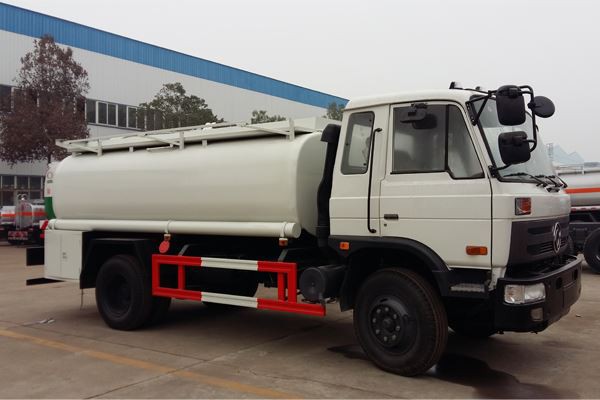

10m3 Fuel Tank Truck
Purpose: Refilling Fuel for vehicle or equipment in rural and construction area. Fuel Retail selling
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 10m3 fuel tank truck in China. If you're going to buy high quality 10m3 fuel tank truck, welcome to get more information from our factory. For price consultation, contact us.
Product Description
1. Purpose: Refilling Fuel for vehicle or equipment in rural and construction area. Fuel Retail selling
2. Carbon Steel tank material, optional Mobile Fuel Dispenser & 15Meter Rubber Hose.
3. Tank shape of fuel delivery truck: square shape, round,ellipse
4. Several baffles inside the tank.
Specification
|
Item No. |
Parameters |
|
Overall Dimension |
8600x2260x3100mm |
|
Driving Model |
left hand drive |
|
Gross Vehicle Weight |
10000 kg |
|
Curb Weight |
3500 kg |
|
Loading Weight |
6500 Kg |
|
Wheel Base |
3950 mm |
|
Front/rear Suspension |
1032/1658 mm |
|
Approach/Departure Angle |
19/14 degree |
|
Front Axle |
2920 kg |
|
Rear Axle |
4380kg |
|
Engine |
|
|
Engine horsepower |
140 HP EURO III, Cummins Diesel Engine |
|
Displacement |
3856mL |
|
Max Driving Speed |
85 km/h |
|
Cabin |
2~3 Passengers allowed |
|
Tire |
8.25-20 tire, 7 pieces including one spare tire |
|
Fuel Tank |
|
|
Tank Volume |
10000Liters |
|
Tank Size |
According to design drawing |
|
Tank Material |
5mm Q235B |
|
Compartment no. |
1 |
|
Dispenser |
Optional, From Shanghai Bolai Machinery Co., Ltd,showing unit price and filling volume |
|
Filling gun |
Optional, One with 15 meters filling hose |
|
Pump |
Optional, 1pc |
|
LOGO |
Company Logo or any advertisement can be printed on the tank according to the customer's design |

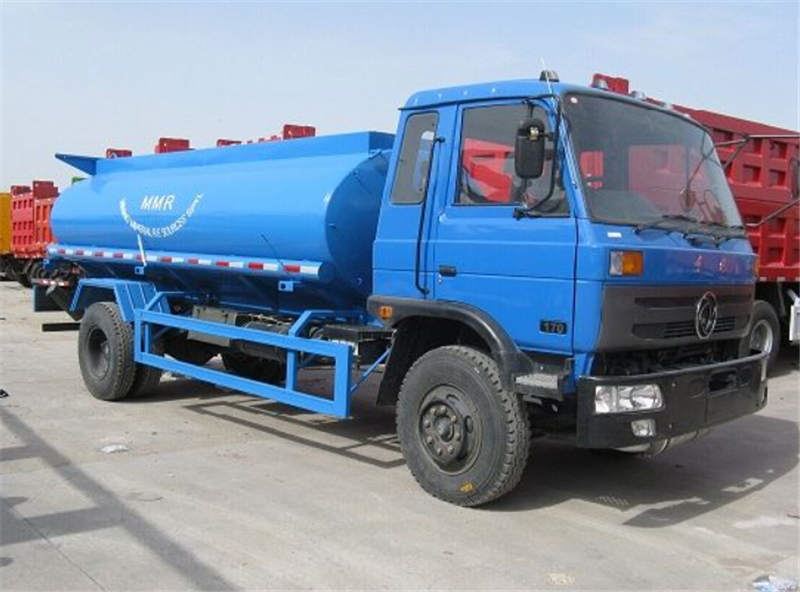

Reference Picture
Successful Case
Customer Inspection
Overseas Exhibition
Sales Service
1. One year quality warranty for axles, engine, transmission;
2. All spare parts would be supplied at cost prices;
3. We can product truck accroding the customer's requirments(color,size,logo and so on)
FAQ
Q1: What is your production standard of fuel tanker truck?
A: China GB local standard.
Q2: How do you control the quality of the fuel tank truck?
A: Our Factory has standard production workshop,gets ISO CCC certificates,our workers are well trained. Every unit of fuel tanker truck undergoes a rigorous inspection process.
Q3: How about the delivery time?
A: If specially ordered , normally we need around 30 days for production.
