Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of prisoner transport truck inmate van truck in China. If you're going to buy high quality prisoner transport truck inmate van truck, welcome to get more information from our factory. For price consultation, contact us.

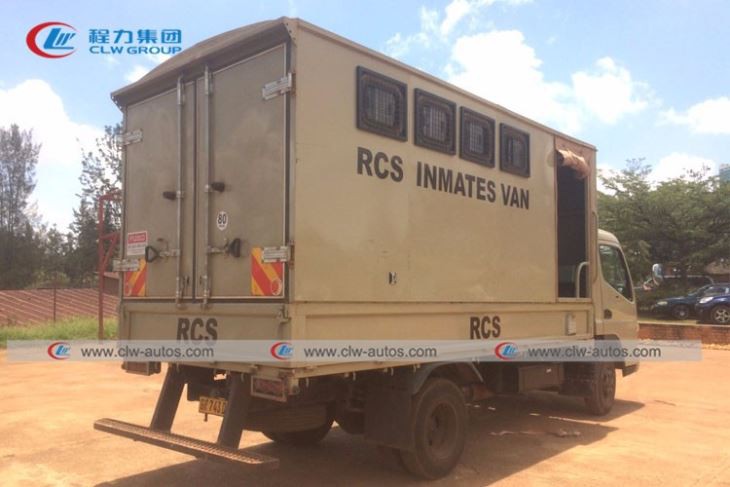

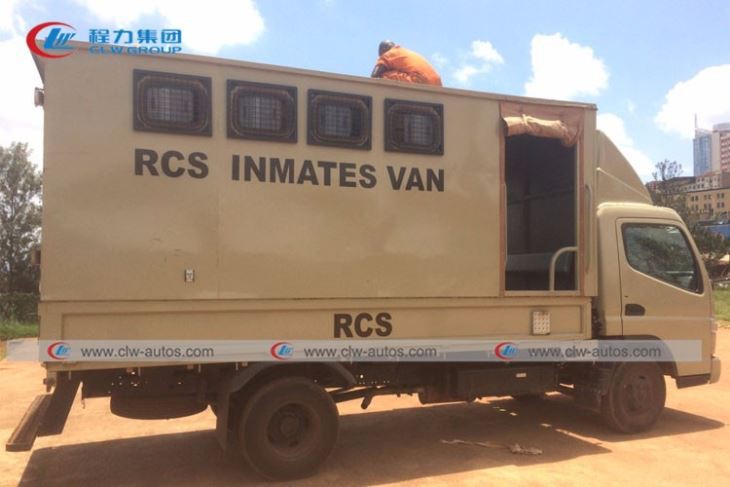

--Inmate Van Truck(also called Inmate Carrier, Prisoner Carrier, Inmate transport truck and Prisoner transport truck.) is used for transporting Inmate/Prisoner.
--Inmate Van Truck can be divided into various types as follows,
1) according to truck brands,there are ISUZU, Dongfeng, JAC, JMC, Foton, Forland and FAW Inmate Van Truck;
2) according to driving model: 4X2, 4X4, 6X4 and 6X6 Inmate Van Truck;
--International brand ISUZU truck chassis, top quality and easy to do future maintainance;
--Most competitve price compare with mini bus;
SpecificationCondition | New condition/Left hand drive/4x2 | ||
Chassis | Brand | ISUZU | |
Model | QL | ||
Curb weight(kg) | 3400 kg | ||
Wheelbase(mm) | 3360 mm | ||
Dimensions(mm) | 6350*2070*2960 mm | ||
Front/Rear axle loading(kg) | 2000/4000 kg | ||
Front/Rear overhang(mm) | 1015/1615 mm | ||
Wheel track (front/rear) (mm) | 1504/1425 mm | ||
Approach/Departure angle(°) | 24/16 ° | ||
Max. driving speed(km/h) | 110 km/h | ||
Clutch | Reinforced diaphragm clutch | ||
Brakes | Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake | ||
Steering Gear | Power steering, hydraulic steering with power assistance | ||
Tire | Quantity | 6pcs with one spare tire | |
Specifications | 7.00R16 | ||
Transmission | Manual type, 5 Forwards and 1 reverse | ||
Cabin | Single row seat, Tiltable. It can accommodate three people. With air conditioner. With Air deflector(Air curtain) | ||
Engine | Brand | ISUZU | |
Model | 4JB1CN | ||
Fuel type | |||
Displacement(ml) | 2771 ml | ||
Power(kw) | 73 kw | ||
Horsepower(HP) | 98 HP | ||
Cylinder number | 4 pcs | ||
Emission standard | Euro 4 | ||
Upper | |||
Box | Size(mm) | 4500*1800*1800 mm Escorting officers size: 400*1800*1800 mm Inmates box size:4100*1800*1800 mm | |
