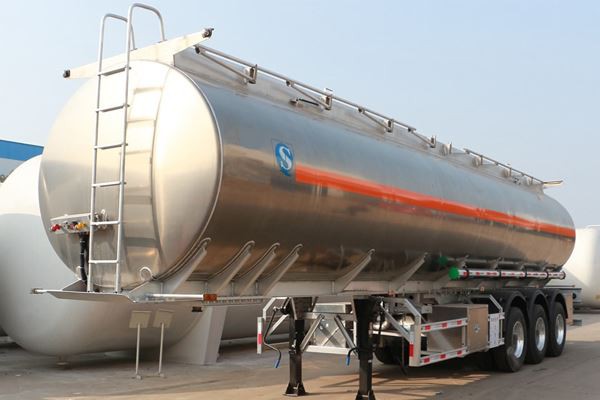

50000 Liters Fuel Tank Trailer
With safety devices: the manhole is an explosion-proof large cover. The bottom outlet of the tank is equipped with an emergency shut-off valve.
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 50000 liters fuel tank trailer in China. If you're going to buy high quality 50000 liters fuel tank trailer, welcome to get more information from our factory. For price consultation, contact us.
Product Description
1. With safety devices: the manhole is an explosion-proof large cover. The bottom outlet of the tank is equipped with an emergency shut-off valve.
2. Our tanker body is longitudinally welded. Ensure the safety of the tanker and increase the service life.
3. Water filled test equipment Water tank: To ensure the high sealed of tank body and avoid the leaks oil.
4. The waved board reduces the impact of the liquid on the tanker.
5. We adopt famous brand parts for our tank trailer, it save costs & ensure long-time service.
Specification
Overall Size | 11500 x 2500 x 3900 mm | ||
Overall Trailer Weight | 11,000 kg | ||
Tanker | Tanker Shape | Elliptical Shape | |
Material | 5mm Carbon Steel Q235B | ||
Capacity | 50 Cubic Meters | ||
Compartment | 4Piece, 8+16+16+8cbm | ||
Manhole | 4 Sets, 500mm Manhole with Breather Valve, Overfill Sensor. | ||
Bottom Valve | 4 Sets Bottom Valve for Emergency Cut-off | ||
Discharging Filling Valve | 4 set ∮100mm discharging valves | ||
| |||
Frame | High Tension Frame Steel Q345B, in 8mm side frame & 10mm main frame | ||
Axle | 3 Axles Fuwa 12T | ||
Suspension | 1 Set Mechanical Leaf Spring Suspension | ||
Brake | WABCO Air Brake | ||
Kingpin | 1 Piece JOST, 2” or 3.5” Bolted | ||
Landing Gear | 1 Unit JOST 28T | ||
Tire | 12 Pieces with 1 Spare 12R22.5 Tubeless Tire, Aeolus Brand | ||
Ground Wires | Anti-Static Ground Wires | ||
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint | ||
Extinguisher Holder | 2 Pieces | ||
Tool Box | 1 Standard Tool Box | ||

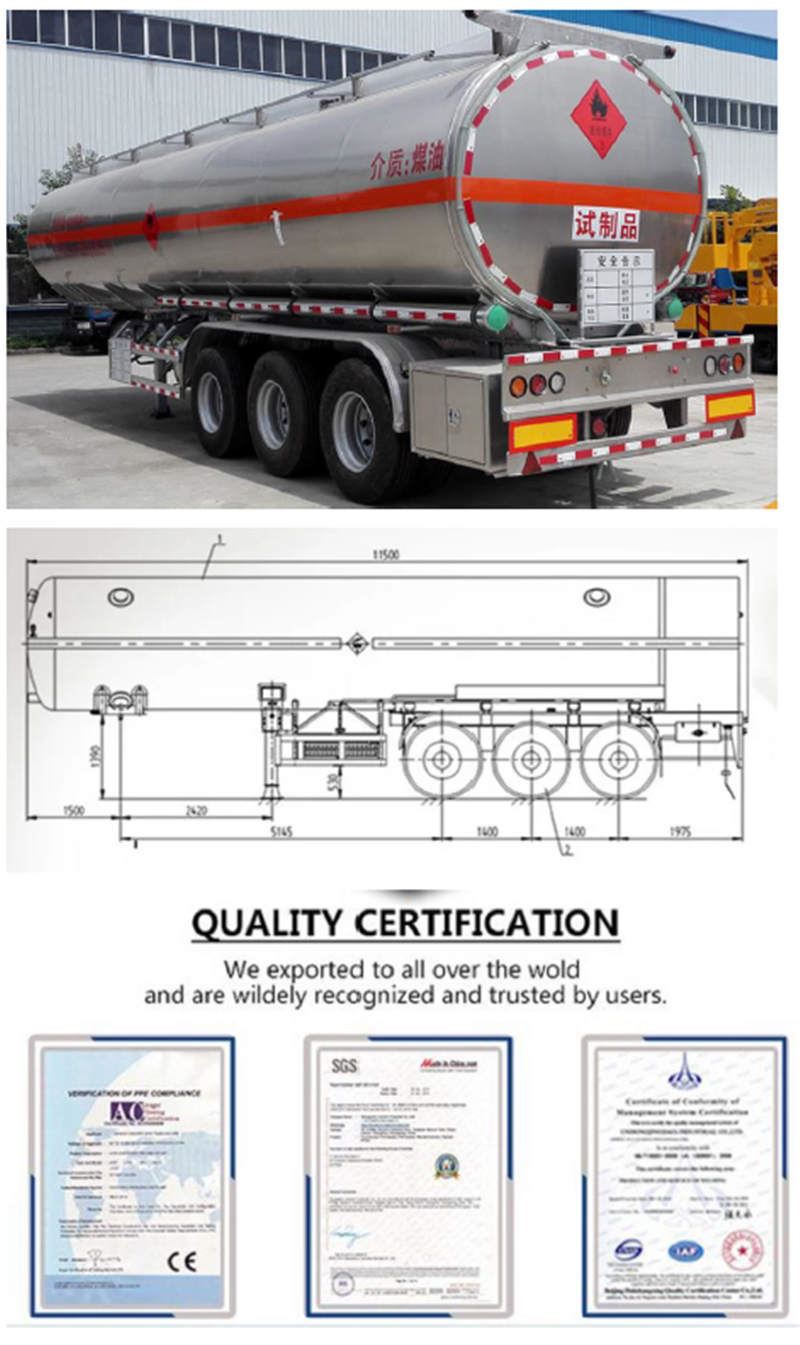

Reference Picture

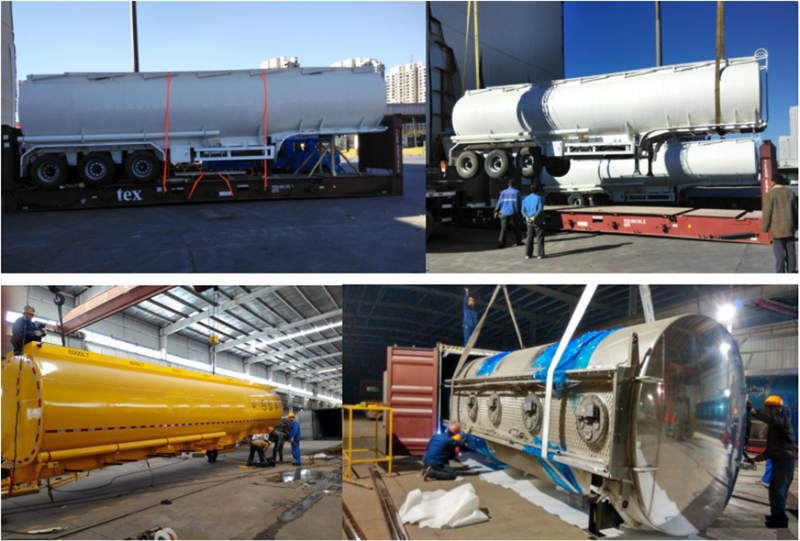

Packing and Shipping
Nude and wax, shipped in bulk cargo ship, flat deck or RO-RO
(1)Wax:
Do wax spray process to against the trailer body suffer seawater corrosion during shipping
(2)Package:
Stable fixing with steel wire,to protect the trailer during shipping
(3)Shipping:
Reliable logistic service from famous freight supplier makes transport process safely and promptly.
Production Process
1.Steel auto cutting
2.End plate bulging machine makes end plate more accurate
3.Canning machine makes tanker body more beauty and tight
4.Tanker body auto welding
5.Chassis welding by experienced worker
6.Dust-free painting
Customer Inspection
Overseas Exhibition
Our Service
1, Satisfied products with international standard;
2, Full aspect service from order to shipping;
3, Most suitable advice when customer has special needs;
4, Find a better shipping and lower the cost of shipping.
FAQ
Q1: What's you delivery time for the fuel tank trailer?
A: 25-30days after advance deposit.
Q2: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q3: What kinds of fuel tank trailer I can order from your company?
A: There are various sizes of fuel trailer with different functions,you can contact us and tell your request.We will recommend you suitable product.
