Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 21m3 v-type concentrated sulfuric acid tank trailer in China. If you're going to buy high quality 21m3 v-type concentrated sulfuric acid tank trailer, welcome to get more information from our factory. For price consultation, contact us.

Product Description:

1. Chemical tank trailer, aslo called corrosive liquid tank trailer, is specially designed and produced to transport acid, alkali, asphalt and other corrosive goods or chemical liquid.

Acid: hydrochloric acid, sulfuric acid,nitric acid, sodium carbonate, nitric acid.

Alkali: sodium hydroxide, potassium hydroxide.

Others:liquid asphalt.

2. Our product capacity:

Available in 10 cubic meters~60 cubic meters capacity, 4x2/4x4/6x2/6x4/6x6/8x2/8x4/2 axle trailer/3 axle trailer to different option(red marked are our hottest wheel drive chemical liquid vehicles models)

3. Material and craft:

a. high strength Q235 steel lined with plastic tank

b. stainless steel tank

c. aluminum tank

d. pure plastic tank

e. other materials.

According to different volume and medium, the thickness is different but will be in line with chemical tank manufacturer standard and our designs to keep tank body high quality. The curb weight of the strength of whole tank are the most important we need to balance.

Commonly speaking, the thickness of out layer carbon steel is 2mm~6mm, inner plastic lined layer is 14mm~26mm.

4. Pipe and valve:

All plastic material.

5. Manhole and manhole cover:

All surface which is possible contacting with corrosive liquid will be lined with plastic. The manhole and manhole cover are all lined with plastic.

6. Other:

FUWA 13T axle, 2 manhole, top walk protect fence, side fence, rear fence, rear ladder, 1 tool box, JOST outrigger, JOST kingpin, 2 fire extinguisher racks, 1 spare tire, anti-static belt, light, warning light, warning signs, reflective stickers,

7. Option:

Multiple compartment, BPW axle, 2 tool box, burner machine(like the transport of liquid asphalt), etc.

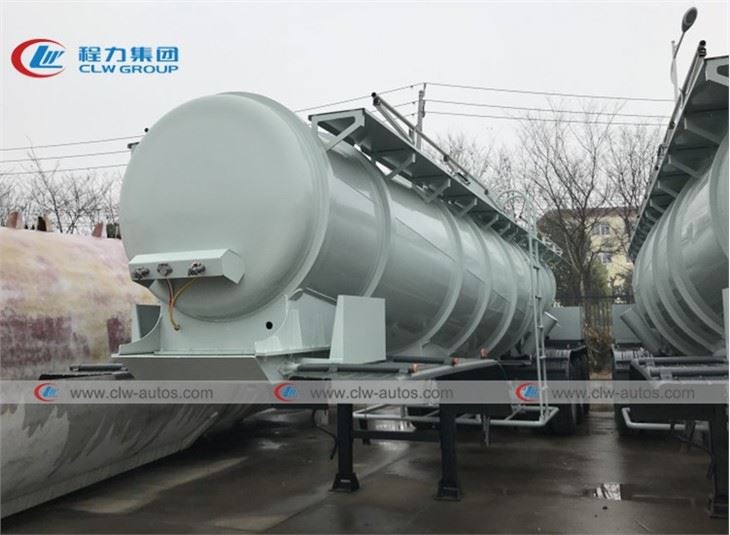

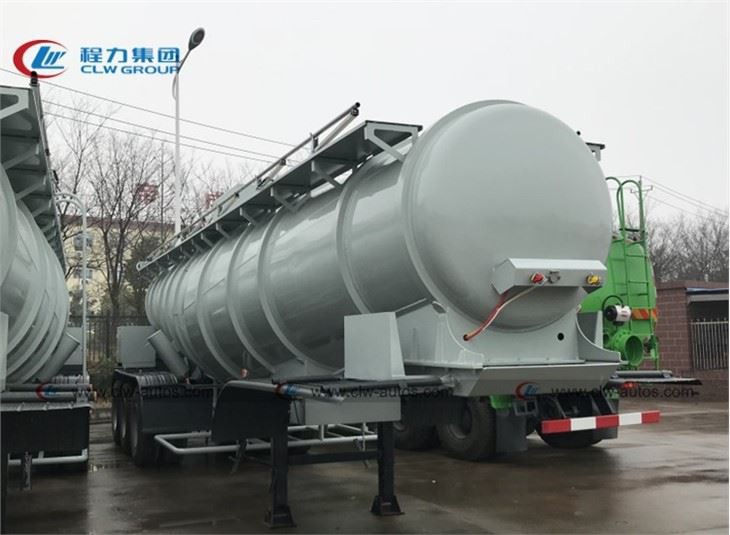

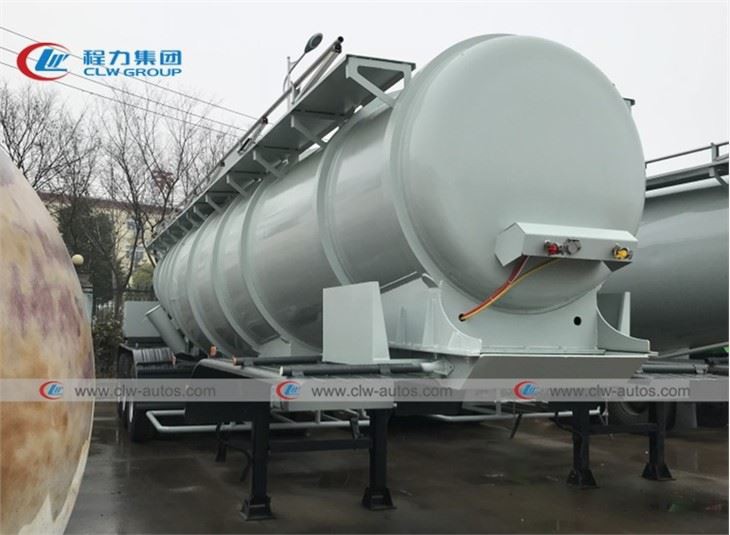

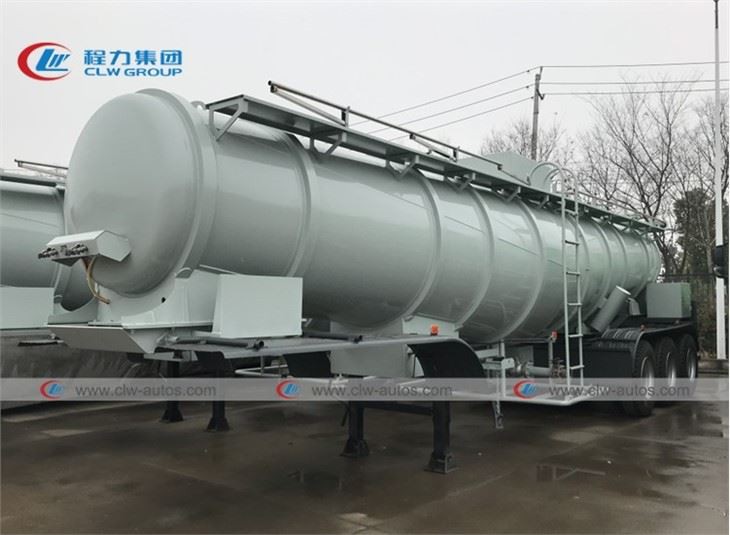

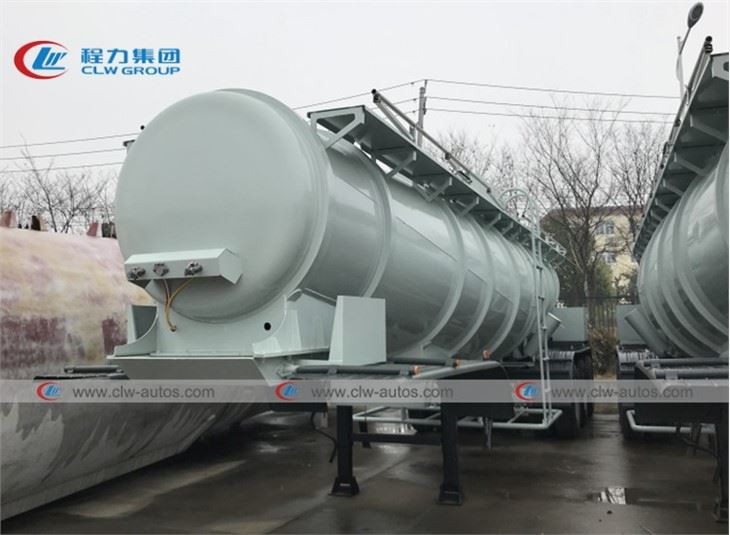

Detailed Specification for 21M3 V-Type Concentrated Sulfuric Acid Tank Trailer:

Main Dimensions
Overall Length	11700mm
Overall Height	3270mm
Overall Width	2500 mm
Tare Weight	8000 KGS
Loading Capacity	38000 kgs
Tank Body
Shape		V shape
Total Volume（m3）		21 CBM
Tanker Body Material		Carbon Steel Q235B, 6 mm
End plate		Carbon Steel Q235B, 6 mm
Compartment		One per tank
Manhole		DN500mm
Ladder		1 per tank right side
Bottom discharge		Gravity
Discharging valve		Stainless steel material
Chassis
Axle		3 axles
		BPW 13 ton
Landing Gear		JOST brand Two-speed, manual operating, heavy duty landing gear
King Pin		JOST brand 2” bolt-in king pin
Suspension		Heavy duty type mechanical suspension
Pneumatic Braking System		WABCO RE 4 relay valve; T30/30+T30 Spring brake chamber; 40L air tanks.
Wheel rim		9.0-22.5 wheel rim, 14 pieces
Tire		12R22.5 tubeless tire with two spare tire, 14 pieces
Spare wheel carrier		2 per tank
Mudguards		Carbon steel with flaps
Painting		Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Taillights		Anti theft Top LED wonder lights
Number plates		Make provision for mounting 2 x 520 x110mm number plates
Accessories		One standard tool box
