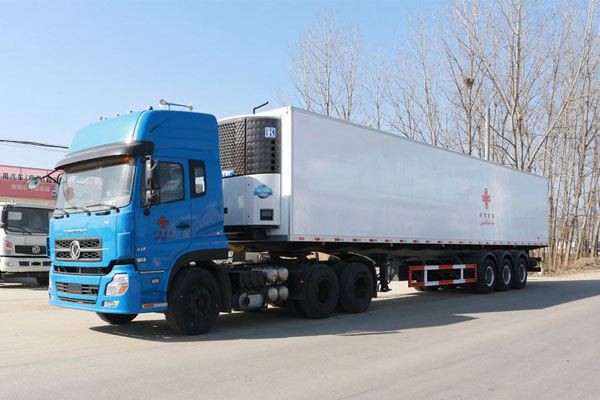

30 Tons Refrigerated Trailer
Light weight - the inner and outer skins of glass fiber reinforced plastic and polyurethane insulation layer are both lightweight materials, which can effectively improve the loading quality.
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 30 tons refrigerated trailer in China. If you're going to buy high quality 30 tons refrigerated trailer, welcome to get more information from our factory. For price consultation, contact us.
Product Description
Features:
Light weight - the inner and outer skins of glass fiber reinforced plastic and polyurethane insulation layer are both lightweight materials, which can effectively improve the loading quality.
High strength - full plastic and fully enclosed composite box panels are pressed on imported Italian special hot press equipment; the connection between each box panel uses high-strength special glue and bolts, and the box body has extremely high strength as a whole.
Good thermal insulation - Germany Bayer rigid polyurethane foam is used as heat insulation material, the technology is imported from Germany, and the production equipment is imported from Italy. The thermal insulation material has high stability, no secondary aging occurs inside the box board, and the box body does not change shape. Thermal insulation performance exceeds national industry standards QC / T450-2000 A-level indicators.
Light weight - the inner and outer skins of glass fiber reinforced plastic and polyurethane insulation layer are both lightweight materials, which can effectively improve the loading quality.
High strength - full plastic and fully enclosed composite box panels are pressed on special hot press equipment; the connection between each box panel uses high-strength special glue and bolts, and the box body has extremely high strength as a whole.
Good thermal insulation - The thermal insulation material has high stability, no secondary aging occurs inside the box board, and the box body does not change shape.
Specification
| |
Refrigerated body size (mm) | 13820*2340*2410 |
Gross Vehicle Weight (kg) | Appro × 49530 |
Net weight (kg) | Appro × 10400 |
Loading (kg) | Appro × 39000 |
Wheel base (mm) | 7350+1310+1310 |
Front/Rear overhang (mm) | - / 2030 |
Approach/departure angle (°) | - / 12 |
Standard configuration | 1) Equipped with America CARRIER brand independent refrigeration unit,keep the refrigerated body -18ºC . |
| |
Main beam | Heavy duty and extra durability design,opting high tensile steel A345B,welded by automatic submerged-arc processes |
Axle | FUWA axle, |
Landing gear | China famous brand JOST brand 28T |
King pin | 50# |
Suspension | FUWA brand mechanical tandem suspension |
Lights and wire | - 24V 7-pin socket |
Tire model | 11.00R20 |
No.of tires | 12pcs |

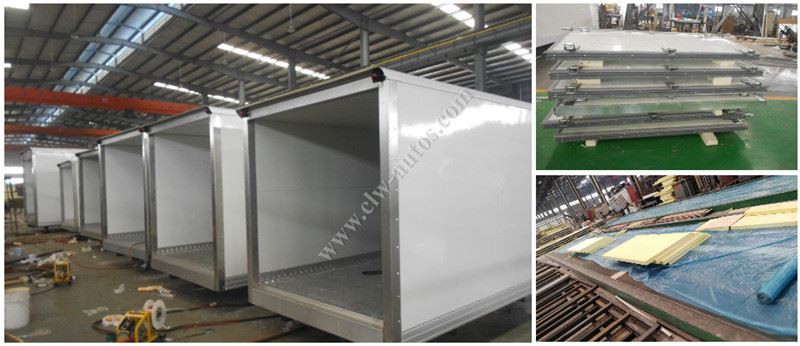

Reference Picture
Here are some reference photos of the container in production.
Our Advantage
1. It is made of GRP and PU foam with all-closed structure that the GRP (Glass Reinforced Plastic Fiber) outside
and PU foam in the core.
2. Non-corrosion, non-pollution, anti-brine, acid and soda-resisting.
3. The thermal insulation layer is 100mm thick, which offers a very good thermal insulation performance.
4. Length of Cargo body: 10-40 inch; Capacity of Cargo body: 5-70CBM.
5. Refrigeration unit Brand Optioanl: American CARRIER, THERMO KING. South Korea hanya, Chinese brand hanxue, etc. The Temperature range can be 0° C ~ -20° C.
Customer Inspection
Overseas Exhibition
Sales Service
1.Professional engineering and production team
2.Related Accessories and spare parts offered at factory price
3.Regular customer after-sale visiting
4.Free technical staff training and guidance
One year quality warranty for key parts such as axles, engine, transmission;
· All spare parts would be OEM and supplied at cost prices;
· Overseas service center to ensure efficent after-sales service;
· Regular after-sales visit to collect information about the vehicle's working status and feedback from customers.
FAQ
Q: How many degrees of refrigeration temperature the refrigerated trailer can reach?
A: The Temperature range can be 0° C ~ -20° C.
Q: What loading weight refrigerated trailer I can order from your company?
A: There are 2 axles and 3 axles 30tons to 60tons refrigerated trailer for optional.
Q: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
A: Yes, we have 100% test before delivery.
Q: How do you control the quality of product?
A: Our Factory is standard production workship,got ISO CCC BV Certification,our workers are well trained. Our very product under goes a scrutinizing inspection process.
Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
