Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 3,000l sludge suction truck isuzu in China. If you're going to buy high quality 3,000l sludge suction truck isuzu, welcome to get more information from our factory. For price consultation, contact us.

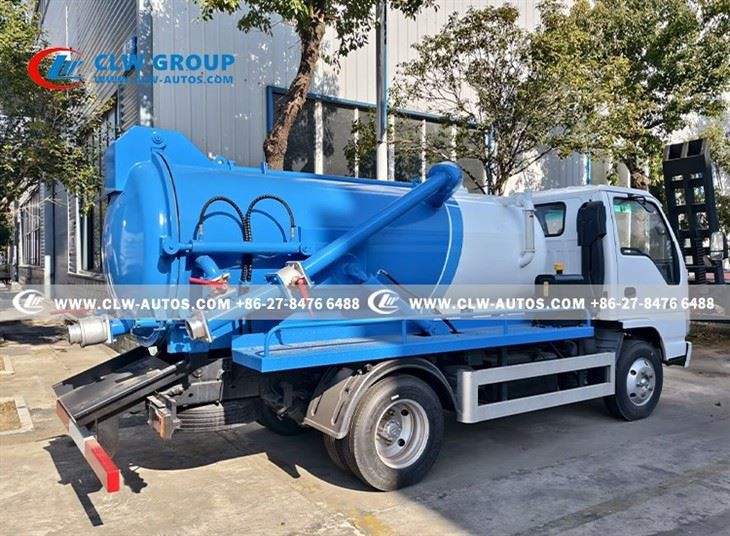

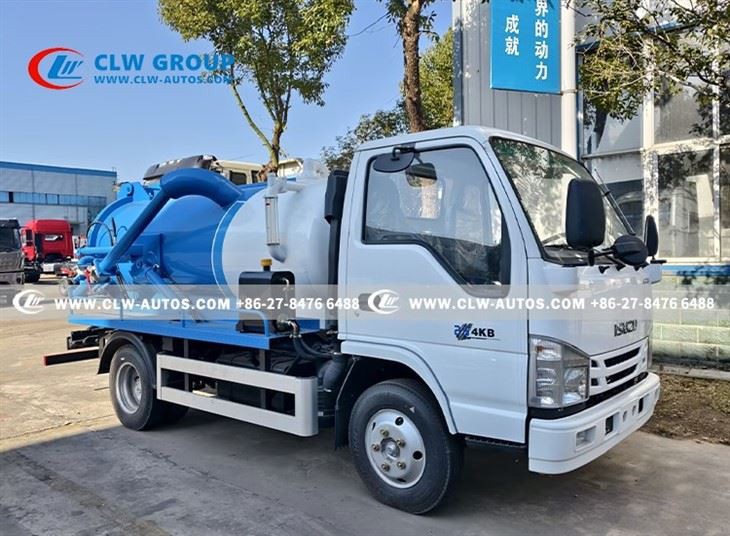

ISUZU 3,000L Vacuum Sewage Tank Truck | 4×2 Sludge Suction Truck

We are professional sewage vacuum truck manufacturer in China since 2004

Products Description

Isuzu sewage tank truck is equipped with sk-6 Water-circulating vacuum pump, which has strong air pumping capacity. The maximum air pumping capacity reaches 800 cubic meters/hour and the maximum vacuum degree can reach 93%, providing strong support for efficient sludge treatment. . In addition, it is equipped with a heavy-duty spiral sewage suction pipe with a diameter of 4 inches and a length of 3 meters. It is equipped with quick-connect joints and male and female couplers to facilitate sewage suction operations.

Main specification

The Isuzu vacuum tank truck is also equipped with an anti-backflow device to effectively prevent sludge backflow and ensure operational safety. Overall, this Isuzu NKR vacuum tank truck is an efficient, stable and safe sludge treatment equipment suitable for various sewage treatment scenarios.

✔ Original ISUZU chassis – stable and reliable
✔ Strong suction capacity up to 800 m³/h
✔ 3,000L reinforced sludge tank (6mm thickness)
✔ Compact size for narrow streets and residential areas
✔ Anti-backflow safety protection
✔ Easy operation and maintenance
✔ Competitive export price

Key Specifications

Chassis: ISUZU 100P
Drive Type: 4×2 Left-Hand Drive
Engine: ISUZU 2.999L Turbocharged Diesel
Power: 130HP (94kW)
Emission: Euro 5
Transmission: 5 Forward + 1 Reverse (Manual)
Tank Capacity: 3,000 Liters
Overall Dimensions: 5,900 × 1,950 × 2,400 mm
GVW: 4,495 kg

For quick Inquiry

Wechat/Whatsapp: +86 15037170872

Email: Laura@clw-autos.com

Products Parameters

GENERAL
Brand	ISUZU
Drive Type	4×2 Left-Hand Drive
Overall Dimension(L x W x H)	5,900×1,950×2,400 (mm)
Gross Vehicle Weight	4,495kg
Curb Weight	3,720kg
Wheelbase	3,360mm
Chassis Designed	ISUZU 100P
Cabin	Hydraulic power steering type.1 driver+2 passengers
Drive wheel(Tires )	4+2 and one spares (total of 7 wheels)
Tire Size	7.00R16
ENGINE
Brand	ISUZU
Type	4 cylinders in line, 4 strokes direct injection, water cooling, Intercooled Turbocharged
Displacement	2.999L
Nominal Power	130HP (94kw)
Peak Torque	290N.m@1,700rpm
Emission Standard	Euro 5
TRANSMISSION
Make / Model	ISUZU/MSB
Type	Diesel
Operation	Manual
Number of Speeds	5F+1R
CONSTRUCTION	ISUZU chassis; Body; Tailgate (rear hopper); Ejection/discharging Plate; Compaction Plate; Slide Plate
CAPACITY	3,000L
Sludge Tank
Tipping	The tank is mounted with an arrangement for the rear tipping
Thickness	6mm

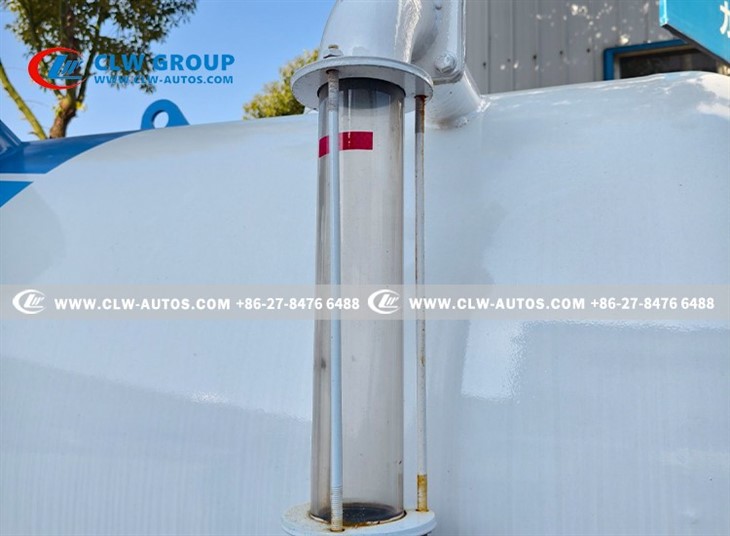

Level Indicators	Material: Transparent acrylic tubing with thick wall

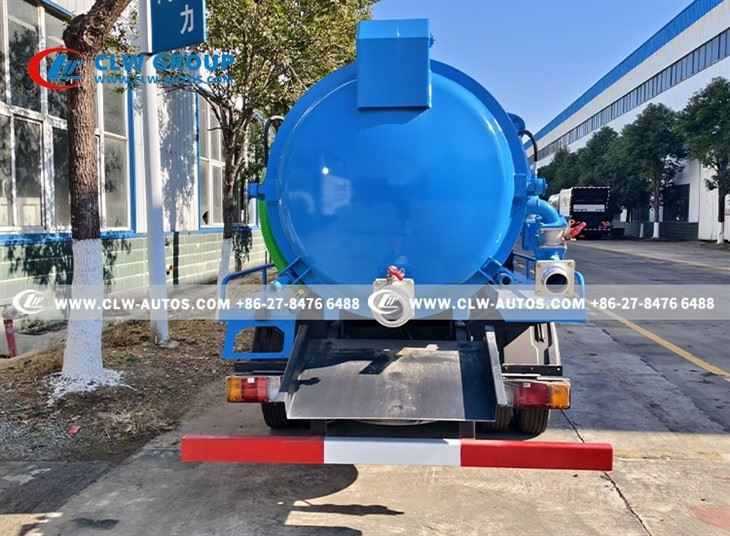

Rear Door	Fully open-able type It is reinforced for structural integrity. Raised to the angle of 80°to the vertical. Locking and sealing (no leakage) are done by hand wheel-operated bolts, which are a robust design located circumferentially on the tank's rear end of the shell. The liquid is tight by means of a self-compensating seal and is locked by means of manual latches.

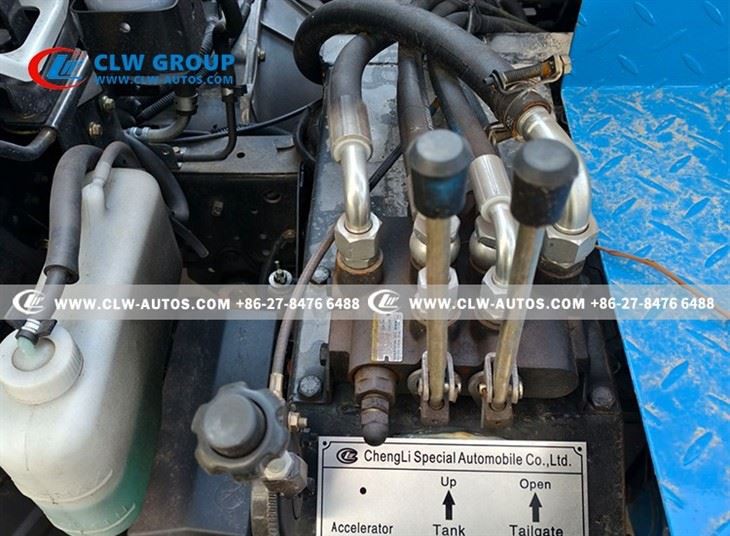

Vacuum Pump
Make/Model	Sk-6 Water-circulating vacuum pump Chinese well-known brands
Pump Capacity	800m3/h
Speed	1460r/min
Maximum Vacuum	93%
Type	Water-cooled vacuum pump, heavy duty/multi-cylinder type, strong high-pressure, continuous duty.
Max. Exhaust Power	<=11kw
Hose
Heavy Duty Spiral Suction Hoses	Provided with five heavy Duty spiral suction hoses, 4″ diameter. The hose is 3 meters in length with aluminum or galvanized steel light and easy-to-handle PVC hose along with quick-connect fittings on each end and provided with male-female couplings for the suction application
Safety Device	Equipped with anti-flow devices
