Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of HOWO 12m³ Concrete Mixer Truck in China. If you're going to buy high quality HOWO 12m³ Concrete Mixer Truck, welcome to get more information from our factory. For price consultation, contact us.

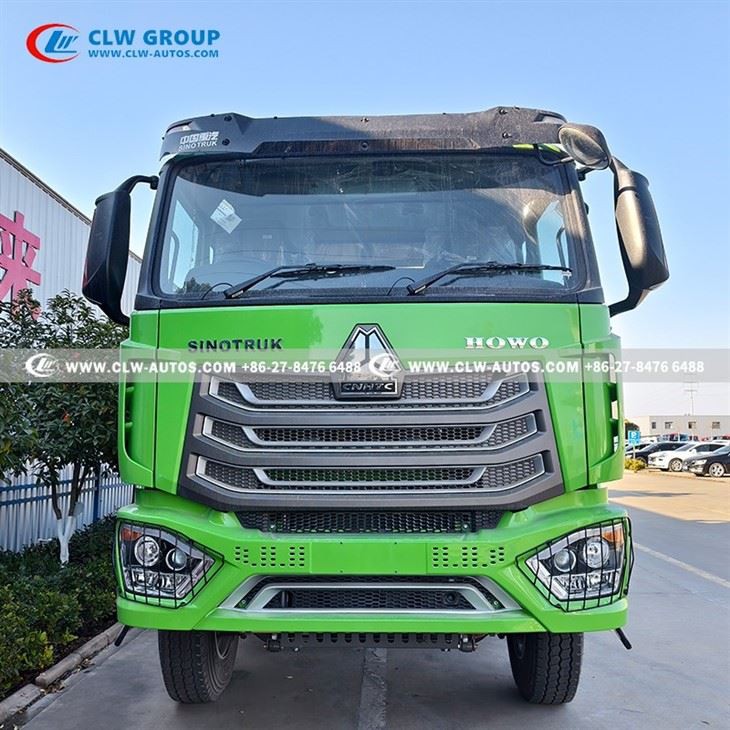

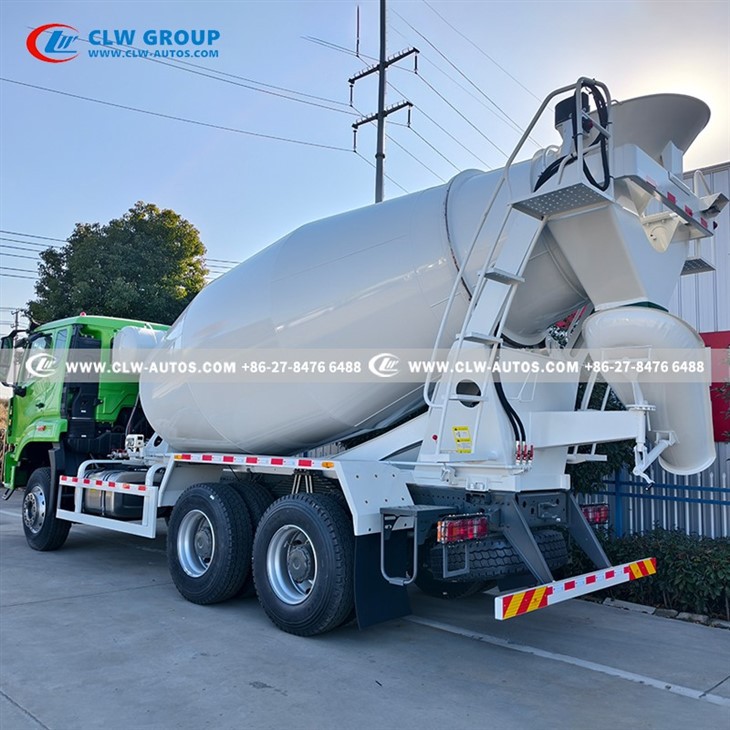

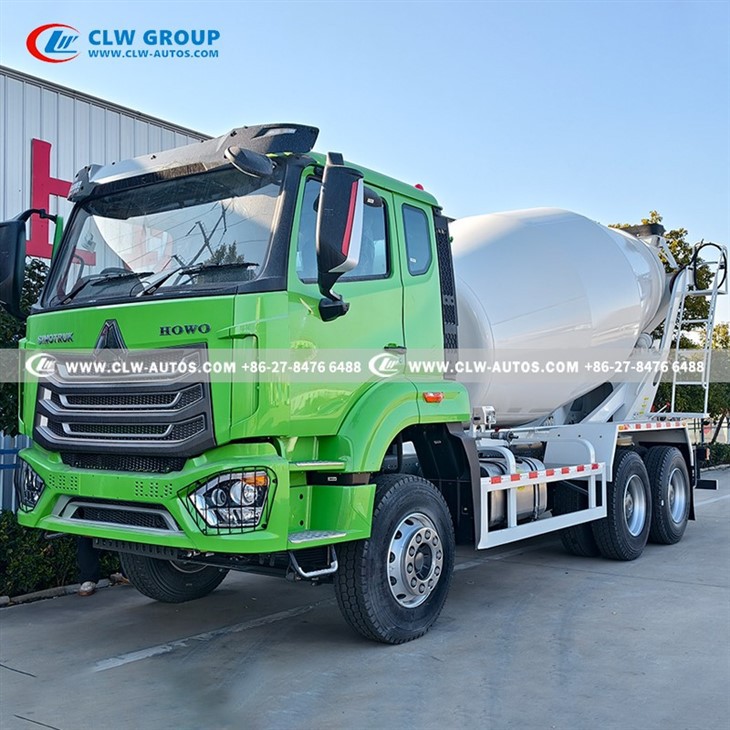

Heavy-Duty 6X4 HOWO 12m³ Concrete Mixer Truck
Heavy Duty Series has been conceived with a robust design to meet most demanding jobsite requirements in terms of reliability, high payload capacity and ease of use!
Robust Chassis & Powertrain
Built on a reliable SINOTRUK HOWO 6x4 chassis, this mixer truck is powered by a robust WD615.47 engine delivering 371 horsepower. It ensures strong performance and durability for heavy-duty transit and construction site operations.
High-Strength Mixing Drum
The core mixing drum is constructed from wear-resistant Q345 manganese steel with a 12-cubic-meter capacity. It features high-thickness walls and blades, reinforced wear-protection knives, and a drum anti-rebound device for stable, efficient mixing and long service life.
Premium Hydraulic & Drive System
Equipped with fully imported Italian-brand components-including the hydraulic pump, hydraulic motor, and gear reducer-the system guarantees high torque, smooth operation, and exceptional reliability. The heavy-duty high-torque reducer and adjustable hydraulic pump mount ensure optimal power transmission and easy maintenance.
Practical Water System & Cleaning
Includes an 400L stainless steel water tank (or 450L for larger models) with a hand-washing device, hose, and pipe connectors. A gear-driven water pump and two cleaning nozzles (ground-level quick-connect and platform-mounted) enable efficient drum cleaning and job-site convenience.
Operator-Focused Design
The cab features a spacious sleeper configuration, air conditioning, and an air-suspension driver's seat. The mixing drum is controlled via an intuitive lever positioned next to the driver's seat, offering convenience and safety.
Key Features:
12m³ Q345 Manganese Steel Drum / Imported Italian Hydraulic System/ 371HP WD615.47 Engine / Robust 6x4 HOWO Chassis / 400L Stainless Water Tank with Cleaning Kit /Cab Drum Controls / Drum Anti-Rebound & Wear Protection
Overall Dimensions: 8500×2498×3650 mm
Brand: SINOTRUCK HOWO / RHD
Cab: Single row and half cabin, 3 seats with one sleeper
Wheelbase: 3800+1350 mm
Engine: WD615.47
Horsepower: 371HP
Emission standard: Euro II
Gearbox: 10 Forwards and 2 reverse
Gross Vehicle Weight: 25000 kg
Curb weight: 12650 kg
Loading weight: 12350 kg
Front/Rear Axle loading: 9.5t / 2x16t
Tires: 12.00R20 18PR, 10 pcs with one spare
Fuel Tank: 400L Aluminum alloy material
|
Mixing Drum |
|
|
Drum Full Capacity |
12 CBM |
|
Drum Size |
Diameter: ⌀2300mm Length: 4730mm |
|
Material |
Q345 High quality wear-resistance steel |
|
Thickness |
Drum body is 5mm, shell head is:6mm |
|
Feeding Speed (m³/min) |
≥2.8 m³/min |
|
Discharging Speed (m³/min) |
≥2 m³/min |
|
Discharging Residual(%) |
≤0.5 % |
|
Mixing Tank Rotating Speed (r/min) |
0-17 r/min |
|
Discharging Chute |
Add an 40cm extended auxiliary chute , and rotate 180°in the horizontal direction |
|
Color & Logo |
Customized according to customer requirements |
|
Driving system |
|
|
Hydraulic Pump |
Interpump, Italian Brand |
|
Hydraulic Motor |
Interpump, Italian Brand |
|
Reducer |
PMP Reducer, Italian Brand |
|
Radiator |
KLMAKE 18L, China local brand |
|
Water supply system |
|
|
Water Tank Capacity (liters) |
400L |
|
Water supply type |
Pneumatic water supply |
|
Key Features & Advantages
|
1.Fast feeding: Streamlined hopper body, conical expansion technology, new structure for fast loading |
|
2.Two washing nozzles (one at ground level by quick joint and one on ladder platform) |
|
|
3.Two manholes on the drum and two safety drum locking systems |
|
|
4.The three-stage blades can provide an efficient discharge angle |
|
| 5.Lightweight and high loading capacity: Without a sub-frame structure, reducing weight | |
Cement mixer truck will remain mixing drum rotation to ensure the delivery of concrete not being solidified!

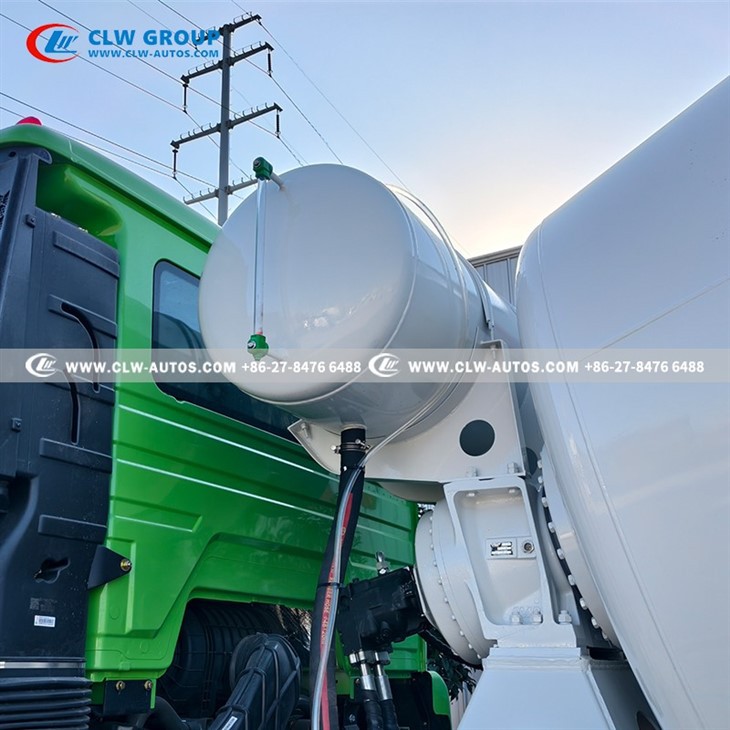

water tank
400L stainless steel
With handwashing facility,water pipe connection
Two washing nozzles (one at ground level by quick joint and one on ladder platform)
control lever
Rear Dual-Control Levers
Triple-Point Control System
All points enable drum rotation control
Manage drum rotation direction and speed for precise loading
New type of ladder structure
Optimized Ladder Layout
Direct access between chassis and upper ladder, eliminating mudguard transition for convenient drum access
Outward-tilted upper ladder with internally mounted handrail ensures ample clearance and prevents contact with roller track
Extension slot

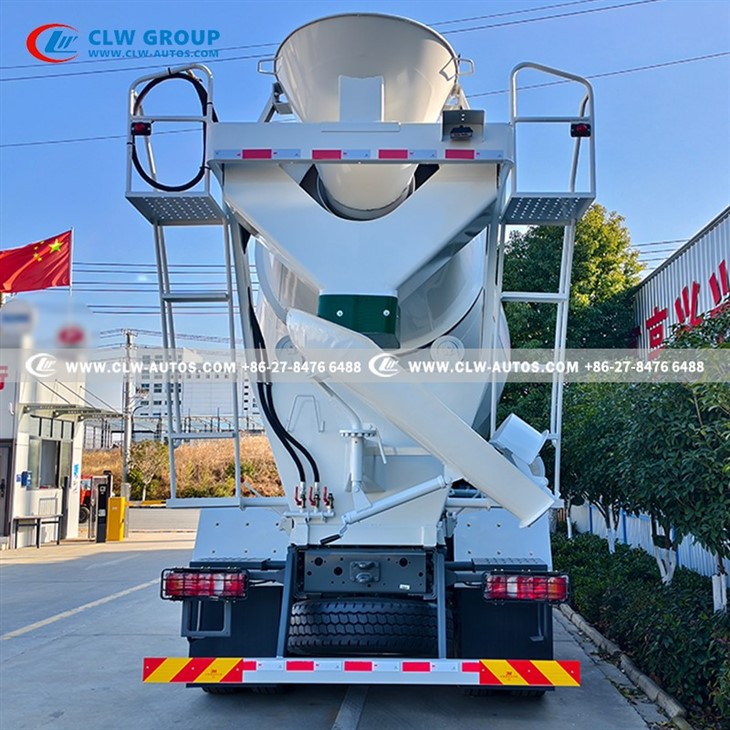

Rear Feed Hopper
Prevents concrete spillage during transit for enhanced environmental performanceg
Extendable Discharge Chute
Enables precise concrete placement in hard-to-reach or restricted parking areas
Do not save cost on them. It will affect the work performance of the truck mixer in the future
Concrete Mixer Truck has a wide range of application!
Construction Site Delivery
Transports concrete to building sites
Road Construction Support
Supplies concrete for road paving
Bridge Construction Application
Delivers concrete for bridge structures
High-Rise Building Project
Provides concrete for skyscraper construction
There are various modes of transportation for you to choose from!
