Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of dongfeng 6x6 awd off road fuel tank truck in China. If you're going to buy high quality dongfeng 6x6 awd off road fuel tank truck, welcome to get more information from our factory. For price consultation, contact us.

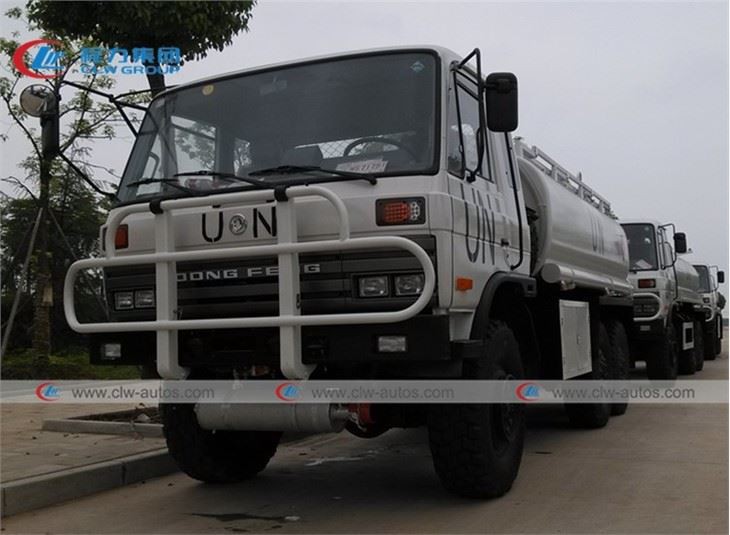

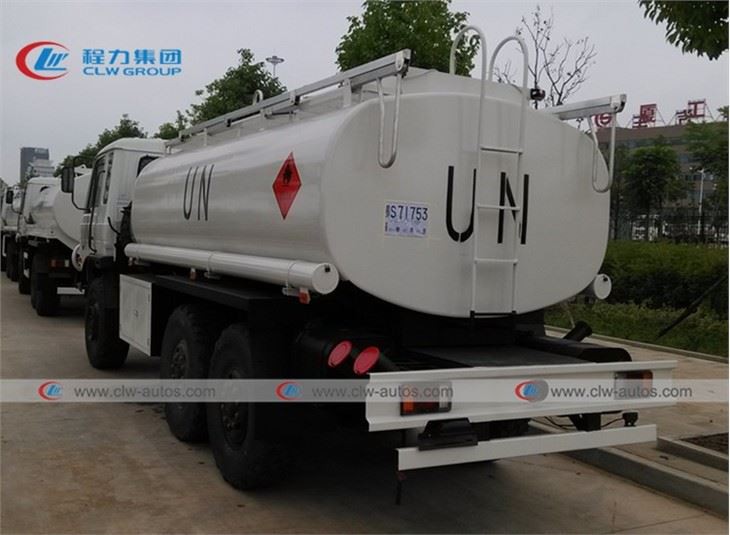

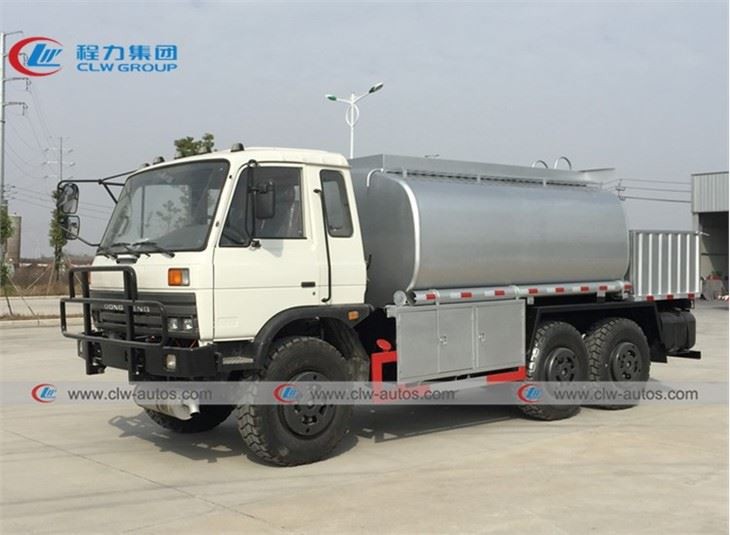

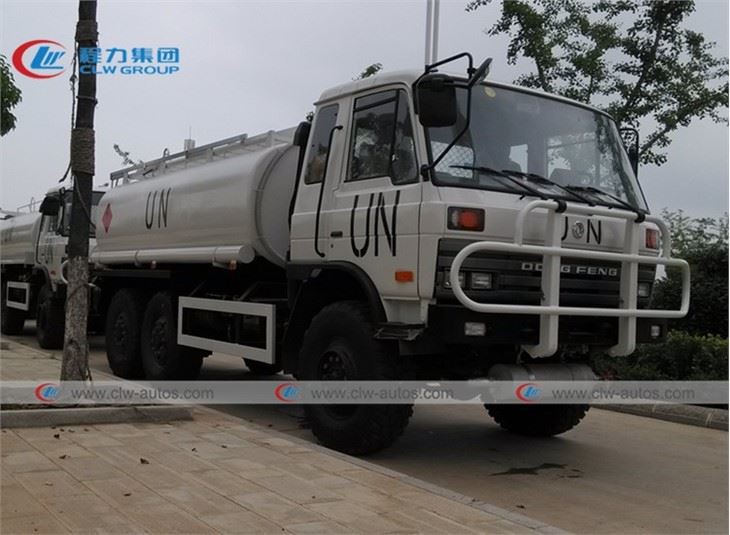

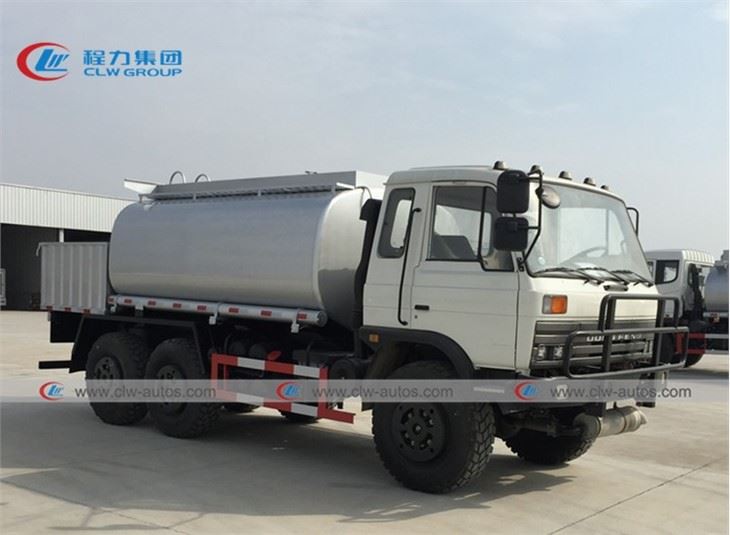

AWD Off Road Fuel Truck All Wheel Drive Fuel Tank Truck 12000Liters
1. Dongfeng Diesel Fuel tank Truck, it can transport Different fuel type by Independent compartment, with independent pipe and outlet/inlet.
2. Optional special Aluminium alloy manhole for each section.
3. with Pneumatic bottom valve for each compartment to prevent the tank body when accident.
4. with special inlet and outlet. Oil and gas recovery system.
5. Dongfeng Petrol Tanker Truck producted by Hubei Chengli CLW factory, in Suizhou City, Hubei Province China
6. All wheel drive Fuel tank truck, It can drive in roadless areas and adapt to road conditions such as desert, floating soil, Gobi, gravel, mud, mountain, rugged, ice and snow. Temperature resistance ±45℃
The detailed specification for AWD Off Road Fuel Truck All Wheel Drive Fuel Tank Truck 12000Liters:
driving typ | 6*6 |
net weight(kgs) | 8955 |
Dimension of Vehicle | 7800*2500*2840mm |
Wheelbase | 3475+1250mm |
Front/rear tread | 1876/1780 |
Min Distance from the ground | 305mm |
Motor | |
Model | B190-33 |
Type | Diesel, 6cylinder inline with water cooling |
Displacement | 5900cc |
Power( Kw/rpm) | 118/2800 |
Max. Torque( N.m/rpm) | 546/1700 |
Clutch | Ø350mm single dry, pneumatic booster, hydraulic contral |
Front axle | 4.5T |
Rear axle | 10.5T*2 |
Tyre | 12.5R10 6+1 |
Cabin | With one bed |
Max. braking distance | 8m |
Climbing gradient | 40% |
Vertical obstacle height | 700mm |
The trench width | 700mm |
Max. fording depth | 700mm |
Capacity of fuel tanker | Main fuel tanker: 145L |
fuel tank capacity(L) | 8000-12000Liters |
Material of tank body | Carbon steel Q235 4mm thickness |
Compartments | 1 sections |
Manhole | One manhole on the top of tank body，China standard |
Cabinet | One at the side of the tank covering the valve. |
With pump: | Chinese Brand gear Pump, Model: 80YHCB/60, Flux: 60m3/h, Working pressure: 0,6Mpa, efficiency:72%, Suction height:7m, Speed roration:960R/min |
