FOTON Poultry Day Chick Transport Truck

Chassis brand:FOTON AUMARK S5
Van length: 6800mm
Wheelbase: 5150mm
Horsepower: 220hp
Emission standard: Euro 2,Euro 3
Van base plate: Stainless steel plate

Send InquiryChat Now

Product Details

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of foton poultry day chick transport truck in China. If you're going to buy high quality foton poultry day chick transport truck, welcome to get more information from our factory. For price consultation, contact us.

6.8m FOTON AUMARK S5 4X2 Poultry Chick Transport Truck

We are Straight Manufacturer from China.

Quality First, Service Best, Welcome for Inquiry!

Products Description

Poultry Chick Transport Vehicle, also known as Chick Carrier, Hatchling Transport Van, Livestock Carrier, or Climate-Controlled Poultry Transporter, is a specialized vehicle designed for the safe transportation of live poultry hatchling including chicks, ducklings, goslings, quails, and pigeons.

Equipped with an integrated ventilation system, refrigeration units, heating mechanisms, and compartmentalization features, it maintains a precisely regulated thermal environment throughout transit.

This advanced system prevents hatching mortality caused by overcrowding, temperature extremes( heat stress or hypothermia), oxygen deprivation, and other transportation-related stressors, effectively minimizing economic losses associated with live poultry transportation.

key Words:

--Climate-controlled poultry transport vehicle

--6.8m livestock transporter for hatchlings

--Foton Aumark S5 Euro Ⅱ poultry truck

--Multi-zone ventilation livestock carrier

--Energy-efficient live poultry transportation

The Main Application Scenarios

Key

Application

Poultry Industry Logistics

Ideal for hatchling distribution from breeding farms to agricultural hubs, minimizing mortality rates

Supports cross-regional transport of chicks, ducklings, and quails, even in harsh climates.

Multi-Purpose Cold Chain Use

Adaptable for perishable goods: Pharmaceuticals, vaccines, seafood, and fresh produce via modular configurations.

Disaster/Epidemic Response

Equipped with sterilization spray systems for biosecure transport during disease outbreaks.

Products Parameters

Chassis Technical Parameters
Driving mode	4X2
Overall dimension	908025503850mm
Wheelbase	5150mm
Gross weight	18,000kg
Curb weight	8,800kg
Loading weight	9,070kg
Cabin	2200 one row and a half cabin; With air conditioning; Electrical doors and windows; Central control lock;
Engine	Engine model	CUMMINS, F4.5NS6B220
	Horsepower	220hp; 162KW
	Displacement	4500ml
	Emission standard	EUROⅡ/Euro Ⅲ
Transmission	FAST, 8 forward gears and 1 reverse
Tyre	11.00R25 18PR
Front axle loading	6,500kg
Rear axle loading	11,500kg
Max driving speed	100km/h
Approach/departure angle	18/11°
Front /rear overhang	1270/2660mm
Upper structure parameters
Van length	6.8m
Van dimension	680024002300mm
Van material	Fiberglass reinforced plastic
Thickness	8cm
Base plate	Stainless steel plate
Box body configuration	Side doors on both sides of the box body *2
	5 fans on each side; the number of fans can be adjusted as per the box size
	A single side door opens on the right side
Window design	Embedded window 8 Central Ventilation window on the top 5; 2 fans and 1 louver in front panel; 4 windows with fans at the rear door; 6 sliding windows on each sides.
Others	Stainless steel railing on both sides of box body ( Storage rack); Water heating and independent duel heating optionally installed as per the regional climate;
Optional	450L fuel tank; optional 450L fuel with dual fuel ports; Box body shape style; Refrigeration unit; Door opening style on both sides of the box; Compartment inside the box; Rear door and side door opening styles

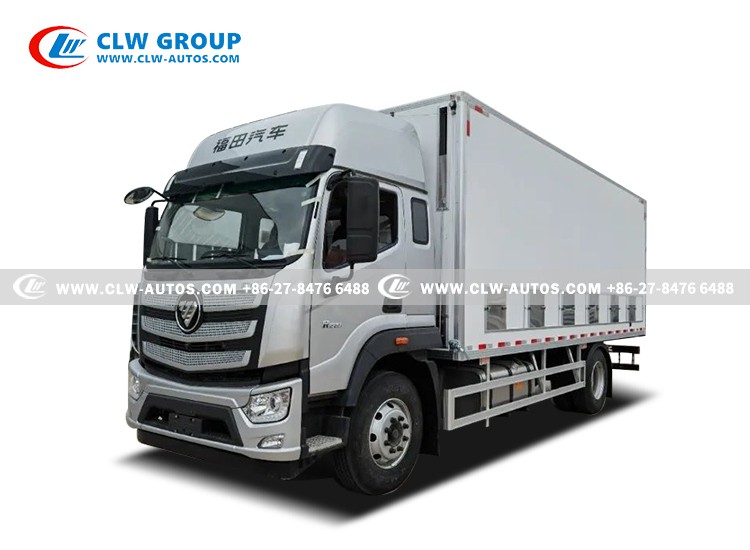

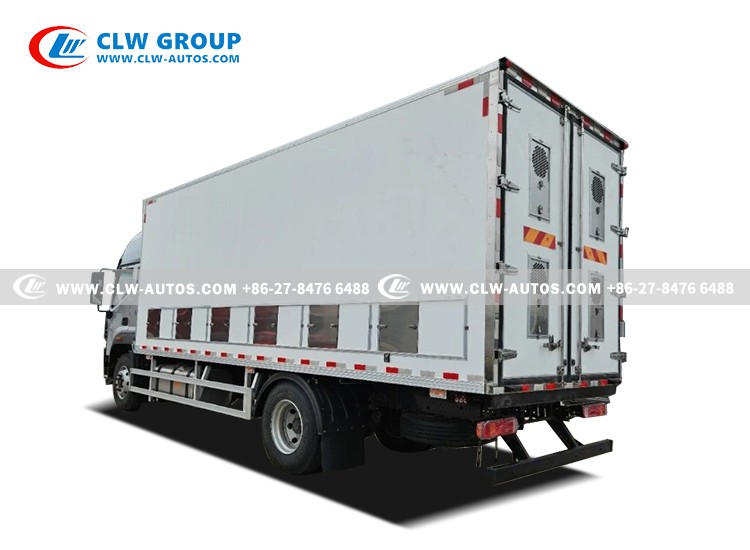

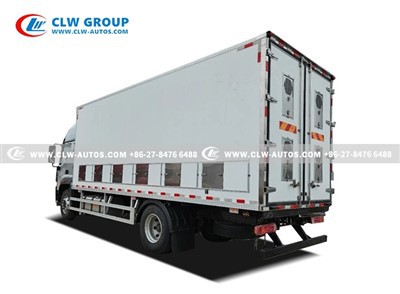

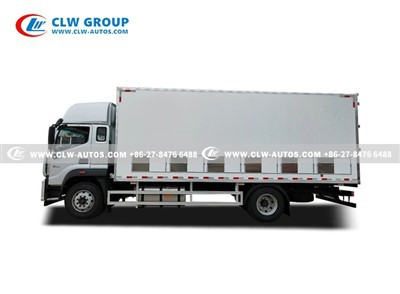

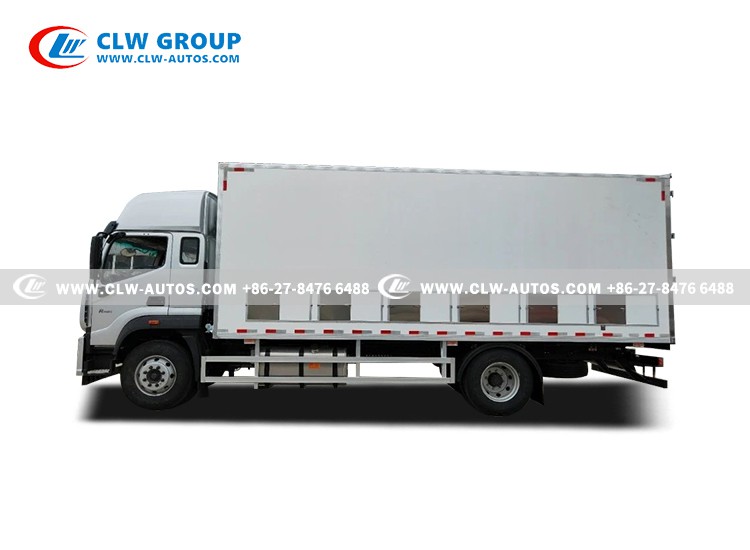

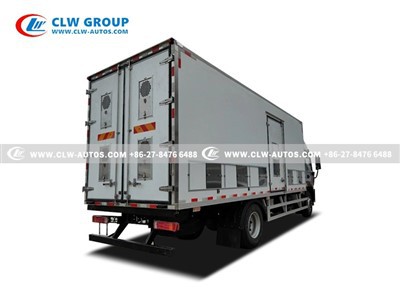

Reference Picture

Low Maintenance & High Resale Value

Corrosion-resistant components: Stainless steel hinges, locks, and aluminum alloy edges ensure longevity.

Recognized as a top-tier brand in China's logistics sector, with proven reliability over 400,000+ km in user testimonials

Precision Climate Control

Equipped with Kelly refrigeration units and hydraulic heating systems, the vehicle maintains a stable temperature range (-5°C to 30°C), adaptable to extreme weather conditions.

Reinforced flooring: Anti-slip aluminum tread plates and maze-style rubber seals enhance durability and hygiene.

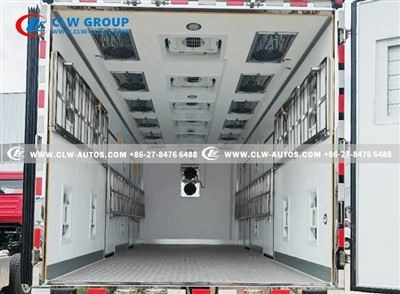

Multi-zone ventilation

Features 10 side vents, 6 roof exhaust skylights, 4 rear fans, and aluminum-floored air ducts to ensure optimal airflow and oxygen supply, preventing overcrowding-induced stress.

Durable & Insulated Cargo Body

Triple-layer composite structure: 8cm-thick XPS foam insulation sandwiched between corrosion-resistant fiberglass panels (2.5mm thickness) ensures A-grade thermal efficiency (thermal conductivity ≤0.045 W/m·K).

Animal Welfare Compliance

Stress-free environment: Reduced noise, vibration, and temperature fluctuations align with global livestock transport regulations.

Compartmentalized design: Adjustable partitions prevent injury during transit.

The FOTON AUMARK S5 6.8m Climate-Controlled Poultry Transport Vehicle is a specialized solution designed for safe and efficient transportation of live poultry hatclings (chicks, ducklings, quails, etc.) and other livestock. Engineered with advanced thermal regulation and animal welfare-focused features, this vehicle ensures minimal mortality rates during transit while meeting stringent industry standards.

Optional Upgrades:

1,Spraying/aeration systems for humidity control during aquatic livestock transport.

2,Hydraulic tailgates (1–2T capacity) and flip-up cargo racks for easy loading/unloading.

3,Dual-temperature zones or GPS-enabled temperature loggers for sensitive medical/agricultural cargo
