Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 30 tons refrigerator semi trailer in China. If you're going to buy high quality 30 tons refrigerator semi trailer, welcome to get more information from our factory. For price consultation, contact us.
Customized Trailer Service, 100% straight factory manufacturer since 2004

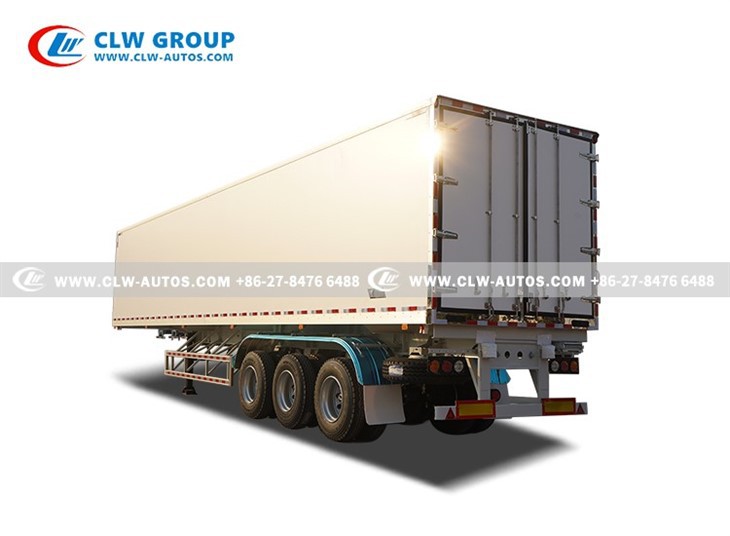

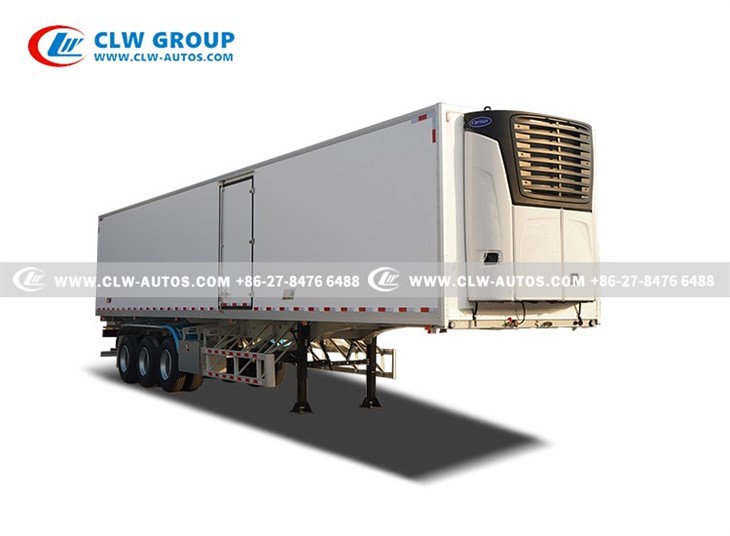

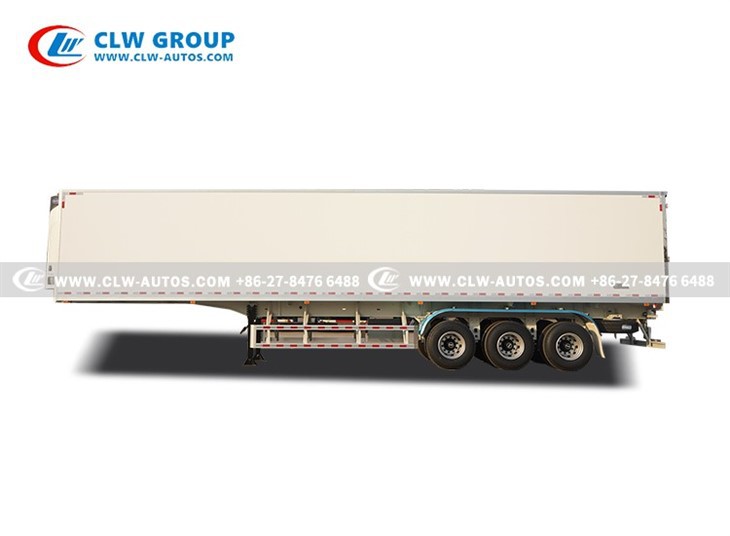

3-axle refrigerator semi trailer (also referred to as a refrigerated trailer, reefer trailer, cold chain trailer, or temperature-controlled trailer) is a great solution designed for the safe and efficient transportation of perishable goods. Built with advanced refrigeration technology, durable materials, and customizable features, this trailer is ideal for industries such as food and beverage, pharmaceuticals, floral, and retail.
With its lightweight design, high load capacity, and superior insulation, the 3-axle refrigerator semi trailer ensures that your cargo remains fresh and safe throughout its journey.3-axle refrigerator semi trailer is a reliable, efficient, and versatile solution for cold chain logistics. With its lightweight design, high load capacity, superior insulation, and customizable features, this trailer is designed to meet the demands of various industries. Partner with us for high-quality refrigerator semi trailers and exceptional service-your success is our priority!
Shirley Fu Sales Director
WhatsApp +86 135 4506 4324
Email: shirley@clw-autos.com
High Cost-Effectiveness:
Customized Production: Tailored to meet specific client needs, ensuring optimal performance and efficiency.
Lightweight Design: The trailer is designed with unique lightweight materials, reducing fuel consumption and increasing payload capacity.
High Load Capacity: With a payload capacity of over 30.7 tons, this trailer maximizes profitability for your business.
Versatile Applications:
Food Industry: Transporting fresh produce, dairy products, meat, seafood, and frozen goods.
Pharmaceuticals: Ensuring the safe delivery of vaccines, medicines, and other temperature-sensitive medical supplies.
Beverages: Distributing chilled drinks, beer, wine, and other beverages.
Floral Industry: Preserving the freshness of flowers and plants during transit.
Retail and Supermarkets: Efficient delivery of perishable goods to retail outlets.
Superior Configuration and Quality:
High-Strength Frame: The trailer frame is made from automotive-grade high-strength steel, ensuring durability and stability.
Laser-Cut Components: All metal parts are precision-cut using laser technology, ensuring accuracy and consistency.
Automated Painting Process: The entire frame is treated with an automated painting process, enhancing corrosion resistance and aesthetics.
Premium Insulation: The insulation material is sourced from leading domestic polyurethane manufacturers, ensuring excellent thermal performance.
Food-Grade Stainless Steel: All interior and exterior components are made from 304 food-grade stainless steel, ensuring hygiene and durability.
Advanced Ventilation System: The trailer is equipped with ventilation channels to ensure optimal airflow and temperature distribution.
Customizable Dimensions:
The trailer has a total length of 13.7 meters, making it suitable for transporting oversized cargo.
It can accommodate two 1.2-meter standard pallets, providing flexibility for various types of goods.
Excellent Insulation and Sealing:
The trailer uses SUS304 stainless steel hardware and triple-layer EPDM rubber sealing strips, ensuring superior insulation and airtightness.
The polyurethane insulation material provides exceptional thermal efficiency, maintaining the desired temperature for extended periods.
Design and Engineering:
The trailer is designed using advanced CAD software, ensuring precision and efficiency.
Material Selection:
High-quality materials, including automotive-grade steel, polyurethane insulation, and 304 stainless steel, are selected for durability and performance.
Laser Cutting and Welding:
All metal components are precision-cut using laser technology and welded using automated processes for consistency and strength.
Frame Assembly:
The trailer frame is assembled using high-strength steel and treated with an automated painting process for corrosion resistance.
Insulation Installation:
The insulation material is carefully installed to ensure optimal thermal efficiency and airtightness.
Interior and Exterior Finishing:
The trailer is finished with 304 stainless steel components and EPDM rubber sealing strips, ensuring hygiene and durability.
Quality Control and Testing:
Each trailer undergoes rigorous quality control and testing to ensure it meets industry standards and client specifications.
Food Industry: Transporting fresh produce, meat, seafood, and frozen goods.
Pharmaceuticals: Ensuring the safe delivery of vaccines, medicines, and medical supplies.
Beverages: Distributing chilled drinks, beer, and wine.
Floral Industry: Preserving the freshness of flowers and plants during transit.
Retail and Supermarkets: Efficient delivery of perishable goods to retail outlets.
|
Tare Weight |
8800 kgs |
|
Payload |
25,000 ~30,000 kgs |
|
Overall Length |
13580 mm |
|
Overall Width |
2600 mm |
|
Overall Height |
3995 mm |
|
Refrigerator System |
|
|
Brand |
Carrier X4-7300 |
|
Type |
Independent, with Diesel Engine and Battery |
|
Feature |
Cooling capacity: 2.2KW-10.8KW; Suitable for maximum 80-90m³ box Power: road 19345 watts backup 10260 watts; Weight: 730 kg Cooling capacity: 2℃ to 38℃ for 19345 (road unit W) Cooling capacity: -18℃ to 38℃ for 10260 (road unit W) Standby power cooling capacity: 6740 from -29℃ to 38℃ (road unit W) Condenser size: 1940×579×2176(mm) Air volume: 5180 m³\h Advantages of the cooling machine: 1. The cooling speed is 20% faster (large cooling capacity, early shutdown, fuel consumption) 2. 35% fuel savings (more efficient unit, especially at high load) |
|
Refrigerator Box |
|
|
Box overall size(outside) |
13580X2600X2435mm |
|
Box inner size |
13400X2430X2225mm |
|
Box inner Volume |
72.5 m3 |
|
Box color |
White |
|
Door |
1 side door at right side Dual-bit Split Rear Door |
|
Box meterial |
Fiberglass steel outside Thermoplastic board inside Polyurethane insulation middle |
|
|
Polyurethane insulation thickness |
Front Wall |
85 mm |
|
Side Board |
85mm |
|
|
Top board |
85 mm |
|
|
Floor board |
125mm |
|
|
Door board |
85 mm |
|
|
LED lamp |
5 pcs on top of ceiling |
|
|
Others |
1 pull-out ladder is installed at the rear end 1 handle for getting on the vehicle is installed on the right rear of the vehicle body; ventilation slots are fully welded on the bottom of the vehicle body, high-strength aluminum profile wear-resistant plates are installed around the vehicle body, 300mm high; 6 ventilation slots on the rear door of the vehicle body. 66 ventilation slots on the two side panels (with a spacing of 400m), made of stainless steel, 2 horizontal pipe cargo slots on the side panels of the vehicle body are installed in conjunction with the ventilation slots; 2 drainage holes in the bottom panel at the front and rear; the rear door opens in pairs, with four lock bars, stainless steel hinges, and stainless steel locks; 2 rear anti-collision blocks; curtains are installed on the rear door and side doors |
|
|
SPECIFICATION |
|
|
Chassis |
Heavy duty and extra durability designed I beam; high tensile steel Q355 for chassis and dumper body. Top Flange 14mm,width 140mm; Double Middle Flange 8mm ; Bottom Flange 14mm,width 140mm. |
|
Axle |
3 axles |
|
FUWA, 13 Ton with drum brake |
|
|
Suspension |
Heavy duty mechanical suspension |
|
Leaf Spring |
piece leaf spring 10X16X120 |
|
King Pin |
JOST brand 2" Bolt-in King Pin |
|
Landing Gear |
25 T,A400,JOST brand One-speed, manual operating, heavy duty landing gear |
|
Wheel Rim |
9.0-22.5 wheel rim, 12 pieces |
|
Tyre |
Triangle brand, 12R22.5 tubeless tire , 12 pieces |
|
Spare Tire |
One set of spare tire including 2 tire carriers |
|
Braking System |
WABCO RE 4 relay valve; T30/30+T30 Spring brake chamber; 40L air tanks |
|
Accessories |
1 pc of 1 meter Galvanized tool box Aluminum alloy wheel cover With Aluminum alloy side protection With carbon steel rear protection |
