Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of howo 6x4 heavy duty 12m3 concrete mixer truck in China. If you're going to buy high quality howo 6x4 heavy duty 12m3 concrete mixer truck, welcome to get more information from our factory. For price consultation, contact us.
Descriptions
1. Chassis: Sinotruk howo, Dongfeng, FOTON/ Forland, Faw, Shacman, etc.
2. High Tension Steel Q345 Tank Material in 5mm.
3. International Brand Motor, Pump, Reductor & Radiator.
4. 400Liter Water Tank with Pressure Water Filling.
5. Water Filling System to Keep the cement moisture.
6. Tank and hand Washing Device.
Specifications
| Cab | Driving type | 6x4 LHD/RHD |
| Model | SINOTRUK HOWO | |
| Cabin | HW76, 3persons allowed, 1 sleeper, with AC | |
| Overall size(mm) | 9200*2500*3800 | |
| Wheel base(mm) | 3825+1350 | |
| GVW(kg) | 31000 | |
| Engine | Brand | Sinotruk |
| Model | WD615.47 | |
| Type | 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
| displacement | 9.726L | |
| Bore*Stroke | 126*130mm | |
| Hose Power (HP) | 371 | |
| Emission standard | Euro 2 | |
| Max speed | 102km/h | |
| Tire | 12.00R20, 295/80R22.5, 12R22.5, 315/80R22.5 optional | |
| Transmission | HW19710 transmission, 10 forward and 2 reverse | |
| Front axle load capacity(kg) | 1*9000 | |
| Rear axle load capacity(kg) | 2*16000 | |
| Oil tank | 400L | |
| Mixer Volume | 12,000LITERS/12CBM | |
Thickness | End plate | 6mm high tensile strength steel |
| Mixer body | 5mm high tensile strength steel | |
| Hydraulics | Motor,pump | Italian or American brand |
| Gearbox | Italian brand | |
| Brake system | Service brake:dual circuit compressed air brake | |
| Parking brake (emergency brake): spring energy, compressed air operating on rear wheels | ||
| Auxiliary brake:engine exhaust valve brake | ||
| Electrics | Operating voltage:24V,negative grounded | |
| Batteries:2x12 V,165 Ah | ||
| horn,headlamps,fog lights,brake lights,indicators and reverse light | ||
| Options | Vertical Muffler; ABS; Automatic Break Clearance Adjusting Arm; Traveling Data | |

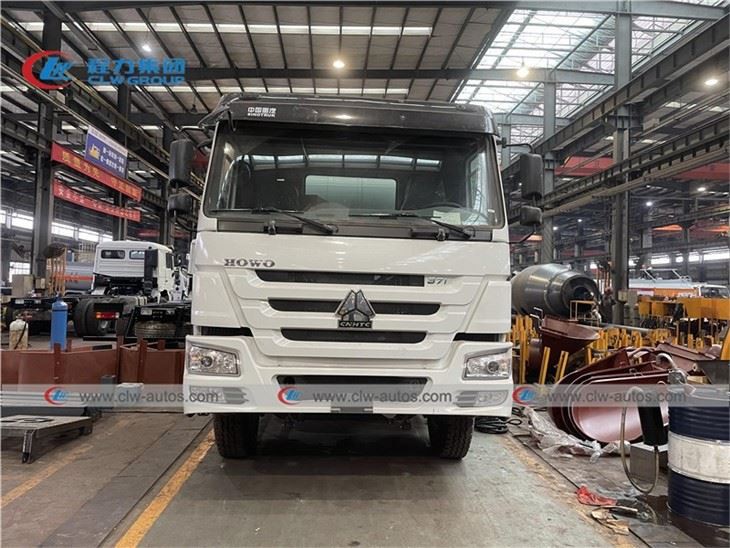

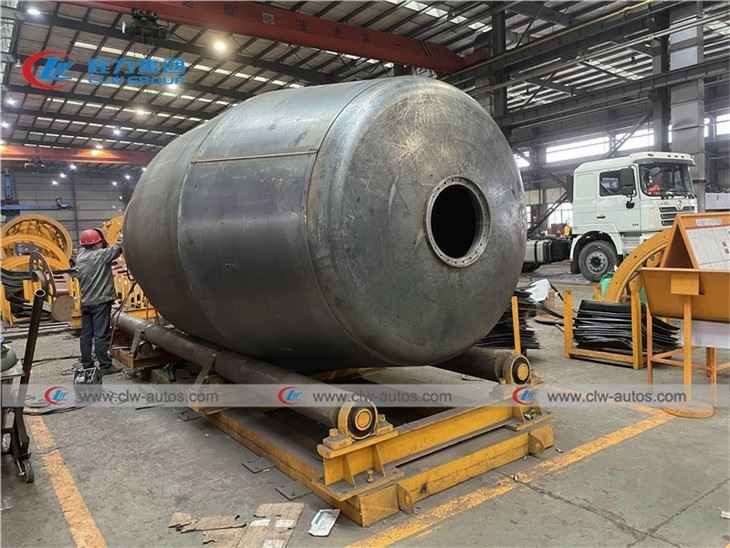

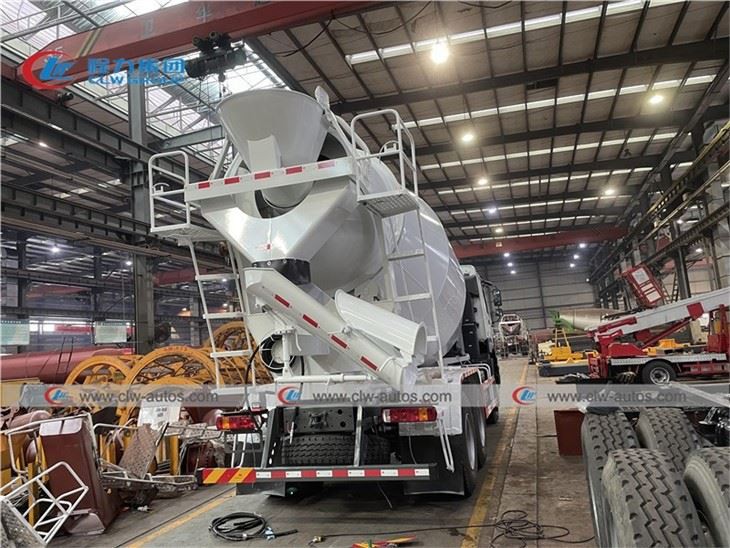

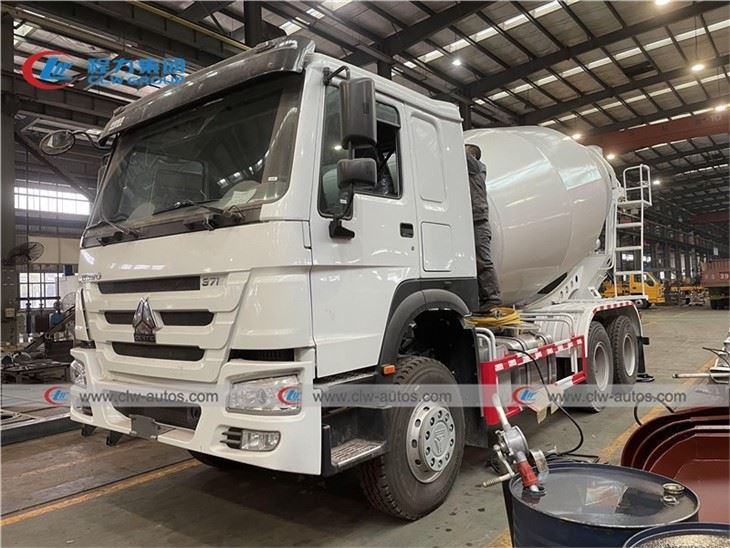

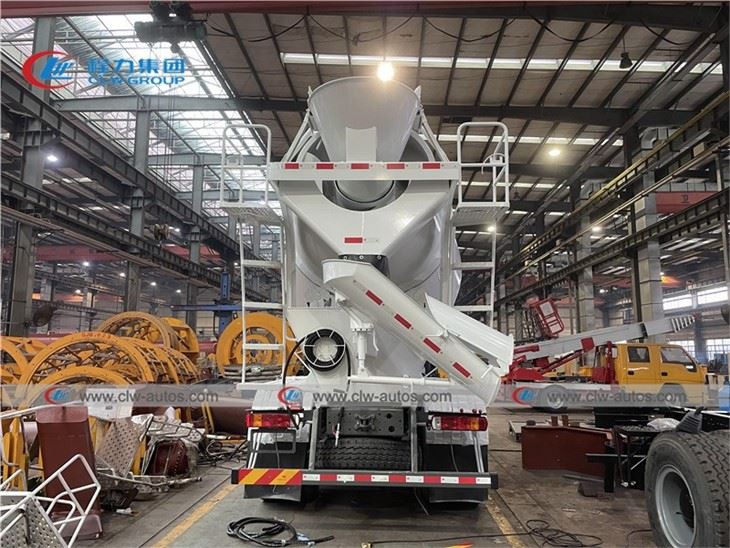

Product pictures
