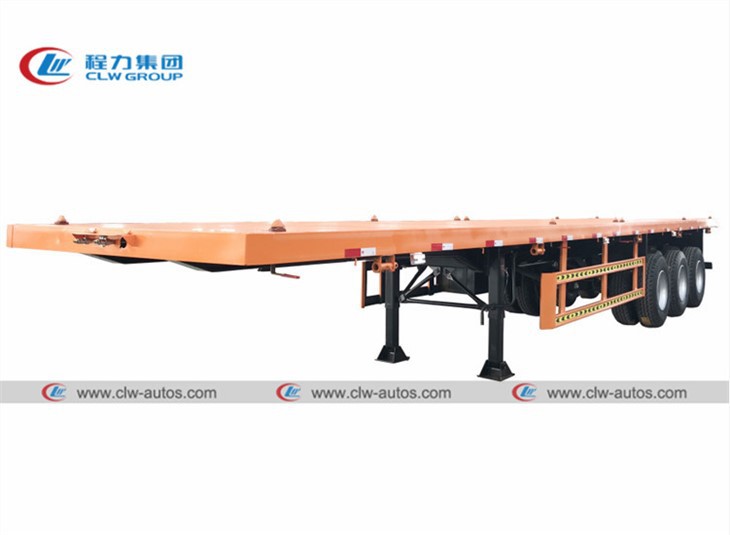

40FT 50Tons Container Loading Flatbed Trailer
40FT 50Tons Container Loading Flatbed Trailer Loading capacity: 40Tons, 45Tons, 50Tons, 50Tons. Loading:2 * 20GP, 1*40HQ container. Axle brand: BPW, FUWA, L1, HJ, YORK brand for option.
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 40ft 50tons container loading flatbed trailer in China. If you're going to buy high quality 40ft 50tons container loading flatbed trailer, welcome to get more information from our factory. For price consultation, contact us.
Product Description
Manufacturer 2 Axles 3 Axle 4 Axles 40ft Flatbed Container Truck Semi Trailer 30~100 tons
CLW flatbed truck semi trailer with multi-function . It's designed to carry long log , tube , 20ft 40ft container or bulk cargo. Our flatbed trailer can be match with SHACMAN , HOWO , FAW , BENZ , VOLVO , HINO , MAN and other brand tractor truck well. In this case , CLW truck semi trailer makes the transportation much more flexible .
Customized. CLW flatbed truck semi trailer is popular in African and American market. flatbed trailer was designed according to the overseas local road condition . We can also supply customized semi trailer solution according to customer's transportation demand . So, it can makes the transportation much more easier .
Transportation
We can offer kinds of transport solutions (3 trailers/ stack, 2 trailers/40ft high container, 3 trailers/40ft high container, CKD.etc) according to your business mode.
For more information, please feel free to contact: Ms. Helen Jiang, WhatsApp: +8613554195719. Chengli Special Automobile Co., Ltd.

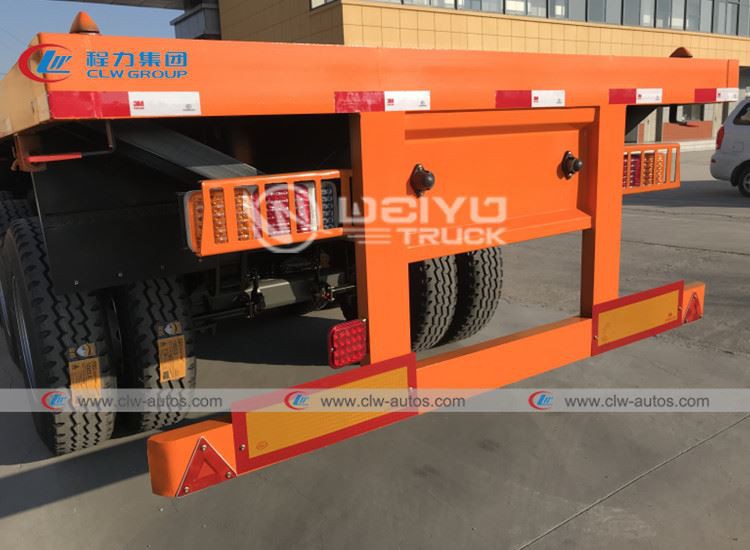

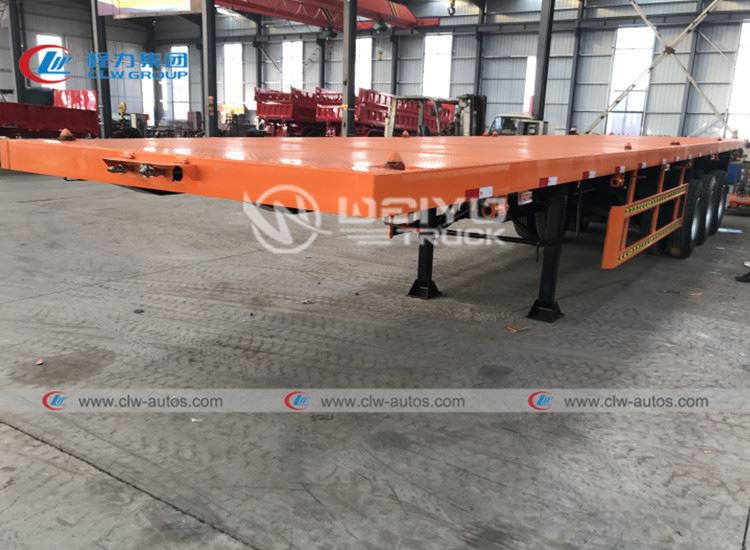

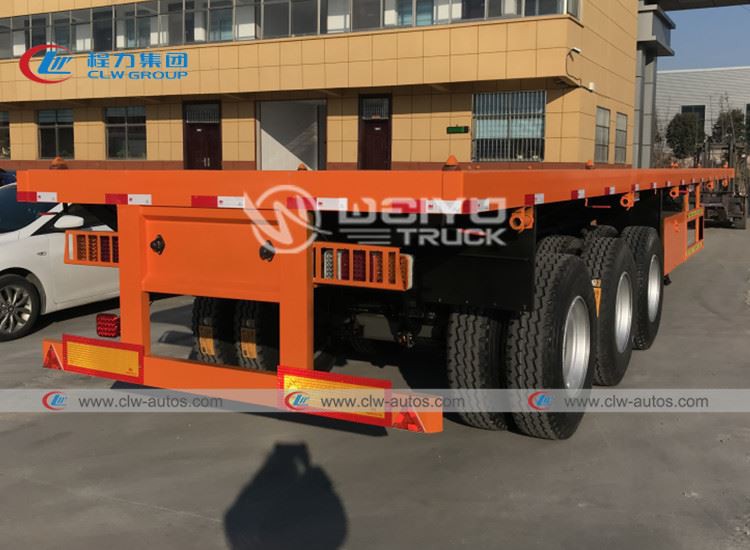

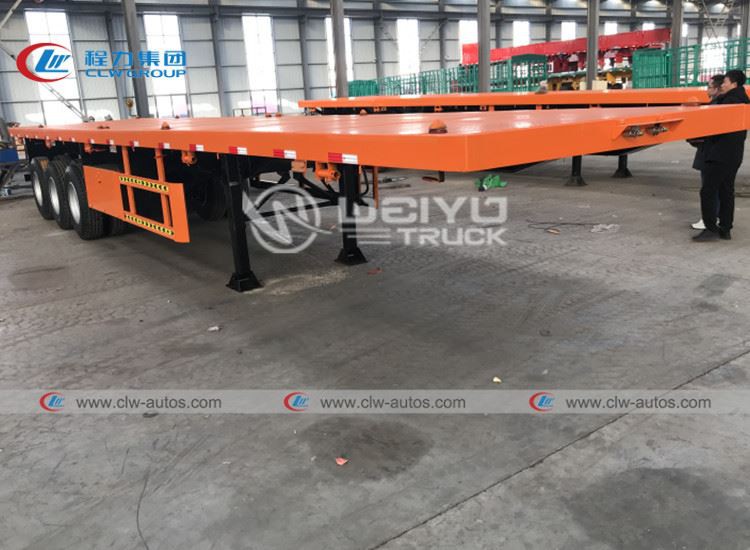

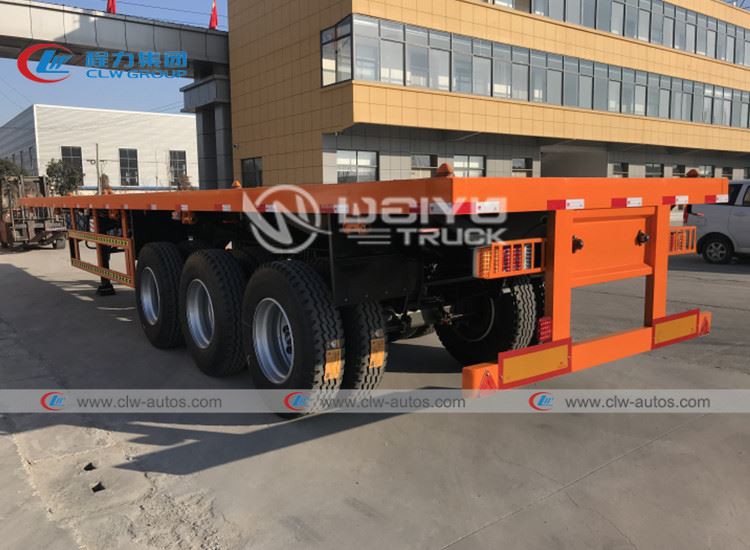

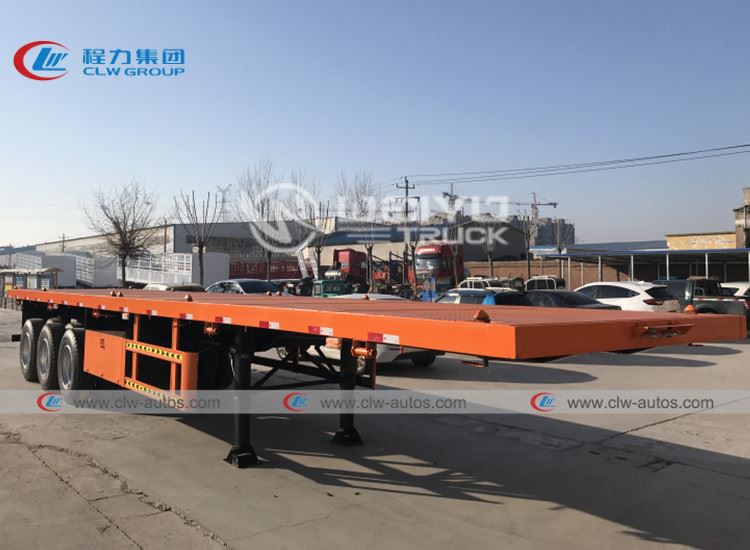

More pictures for CLW 40FT 50Tons Container Loading Flatbed Trailer
Parameters for CLW 40FT 50Tons Container Loading Flatbed Trailer:
| Tare Weight | About 7.1T |
| Dimension(mm) | 12500x2500x1550mm |
| Loading capacity(ton) | ≤60T |
| Axles | 3 axles, 13T/16T ,FUWA/ BPW/ HJ/L1/YORK Brand |
| Tire | 12 units with , 12R22.5 or 315/80R22.5 |
| Rim | 9.00-22.5 or 9.75-22.5 |
| Suspension | Mechanical suspension(Germany or America type) or Air suspension(China brand or BPW brand) |
| Spring Leaf | 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets) |
| King Pin | JOST brand 2.0 or 3.5 inch (bolted or welded) |
| Landing Gear | JOST brand D200T or Chinese brand 28tons(double-speed) |
| Main Beam | Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel |
| Side Beam | 16mm or 18mm steel channel (material: Q235 steel) |
| Platform | 3mm-thick checkered plate |
| Brake Chamber | WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank |
| Twist Locks | 4,8,12 sets (lifting or screw type) (specially intended for oversea market) |
| valve | WABCO valve (specially intended for oversea market) |
| ABS | Optional |
| Light | LED light (specially intended for oversea market) |
| Voltage | 24V |
| Socket(Receptacle) | 7-pin Socket (for 7 wire harness) |
| Tool Box | 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs) |
| Painting | Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats |

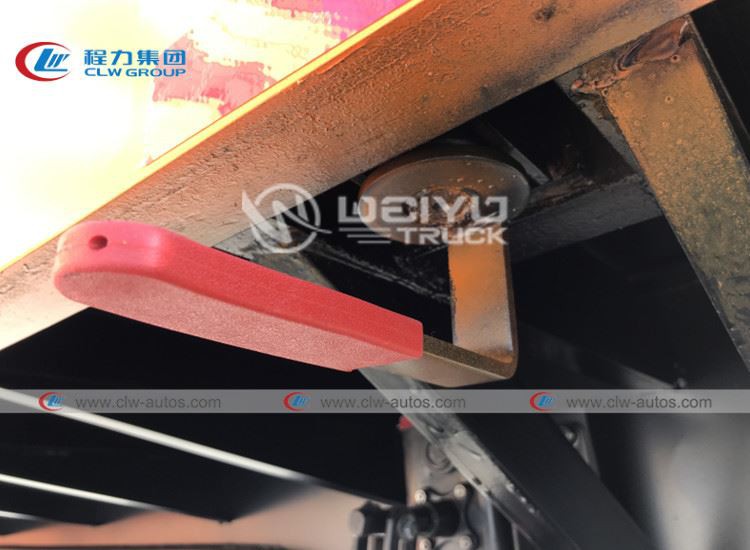

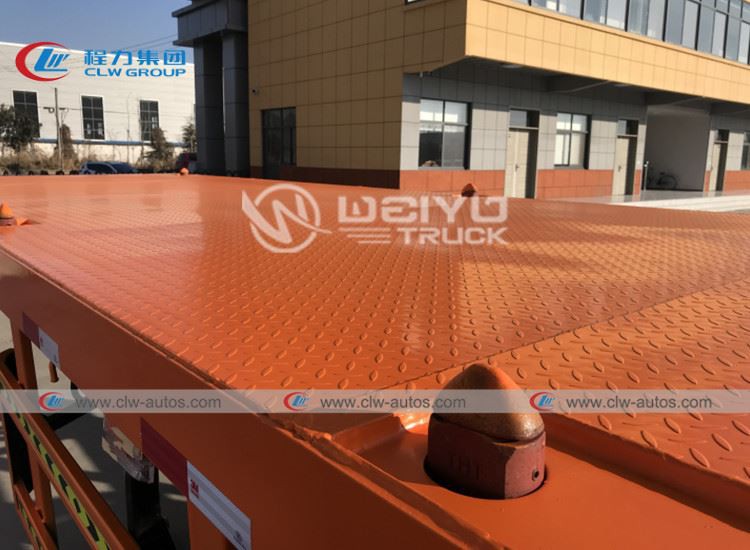

12 Nos Twist Locks for Container Loading:

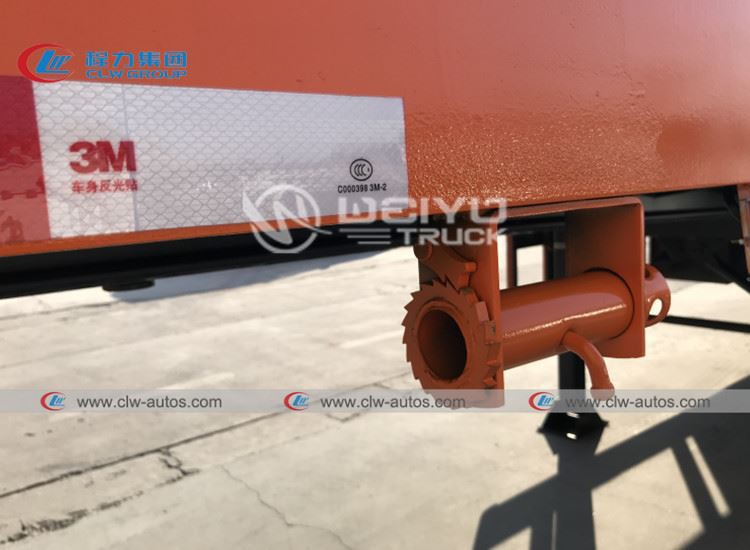

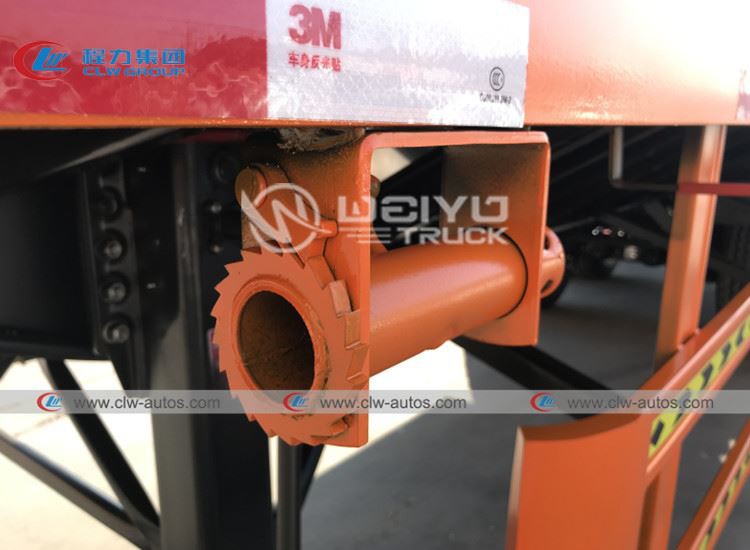

Rope tightener:
Light / lamps Protective:
