Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 4x2 swing arm garbage truck in China. If you're going to buy high quality 4x2 swing arm garbage truck, welcome to get more information from our factory. For price consultation, contact us.
Product Description
1. Dongfeng Chassis of waste recycling truck: Fast Gearbox 5Forward & 1 Reverse,2. Garbage Bin with different size options of waste recycling truckk: 4cbm to 10cbm
2. Hydraulic Control Loading & Unloading System
3. Different shapes of waste recycling truck bins such as trapzoid,boat-shape,square shape and so on and divided into above-ground and under-ground type.
4. high-tensile steel chains:imported hydraulic oil cylinder and sealing material
5. Lifting oil cylinder:double oil cylinder under garbage box,so garbage box can be lifted and self-dumped.
6. Double rear landing leg controlled by hydraulic multi-way valve to stablise truck
7. Best Choice for Garbage collection and transportation Inside City.
Specification
|
Drive type |
4*2, New condition, LHD |
|
|
Vehicle Main Dimensions |
(L x W x H)mm |
6800×2000×3000 |
|
Wheel base (mm) |
3800 |
|
|
Track front/rear mm |
2500/4500 |
|
|
F/R Axle-Load |
2500/5000 kg, |
|
|
Approach/departure angle |
20/13 |
|
|
|
Curb weight |
5100 kg |
|
GVW |
8275 kg |
|
|
Max. driving speed(km/h) |
90 |
|
|
Engine |
Brand |
Chaochai,Brand,Diesel ENGINE |
|
Type |
4 -stroke direct injection, 4cylinder in-line with water cooling, turbo-charging and inter-cooling; |
|
|
Horse Power(HP) |
156 |
|
|
Emission standard |
Euro III |
|
|
Gearbox |
6 forwards& 1 reverse |
|
|
Clutch |
Reinforced diaphragm clutch |
|
|
Tire |
8.25 Nylon tyre,7 pc including 1 spare tire |
|
|
Steering Gear |
power steering, hydraulic steering with power assistance |
|
|
Upper Body |
||
|
Garbage Box Material |
Carbon Steel Q235 |
|
|
Garbage Box Volume |
5 CBM |
|
|
Remarks |
1. Color is optional |
|
Truck Diagram

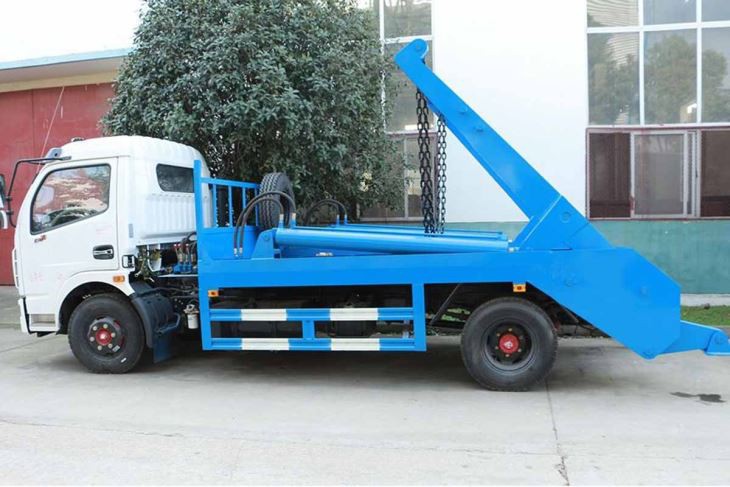

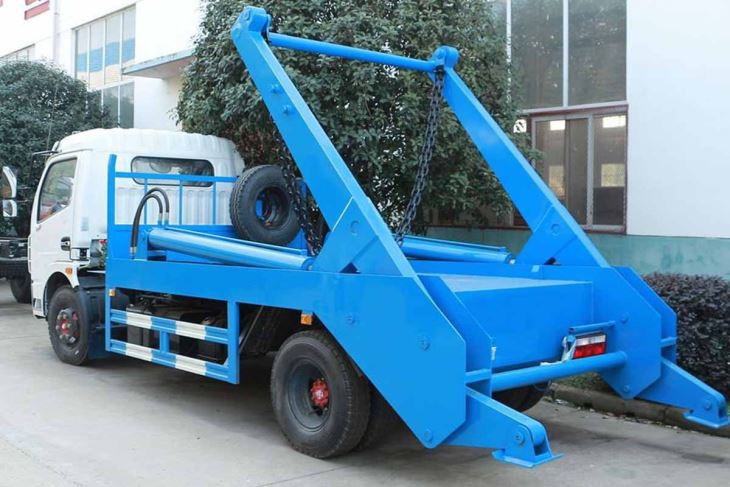

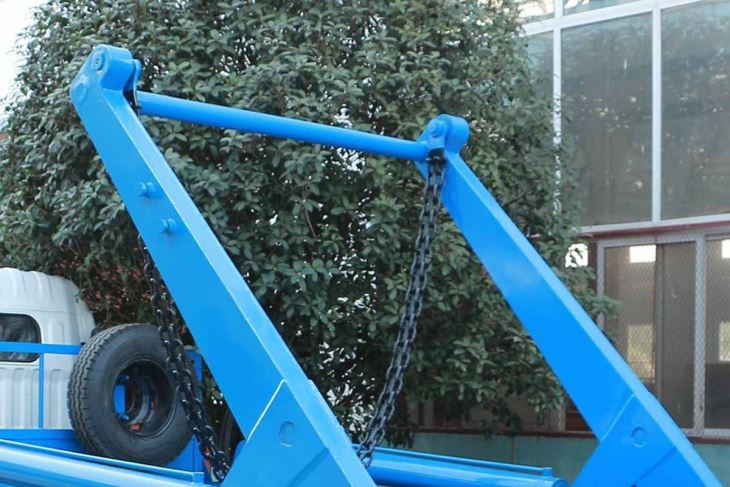

Swing arm garbage truck details
Working Show
Overseas Exhibition and Local Support
Customer Visiting
Our Advantage
① The truck and garbage hopper can be completely separated.
② One truck can work with many hoppers, which can fit for city sanitation easily.
Packaging
1. Nude packed by RO-RO ship or bulk ship
2. As customers' requirements
Sales Service
① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
