Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of hydraulic auger bulk feed delivery trailer in China. If you're going to buy high quality hydraulic auger bulk feed delivery trailer, welcome to get more information from our factory. For price consultation, contact us.

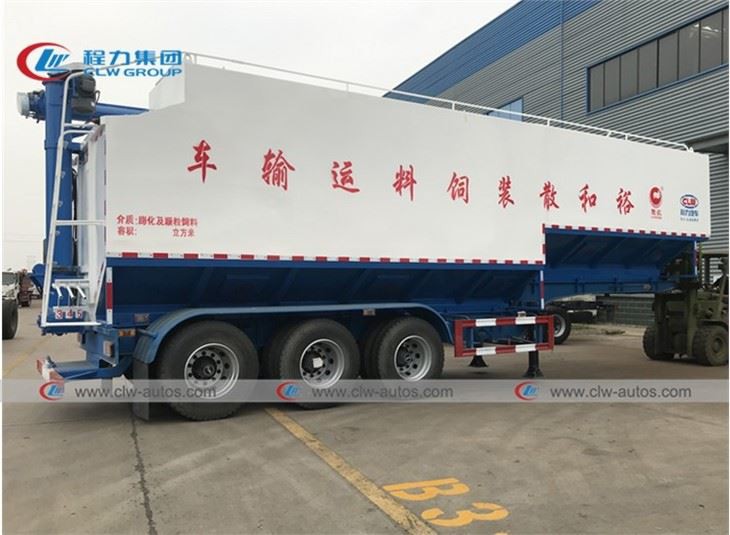

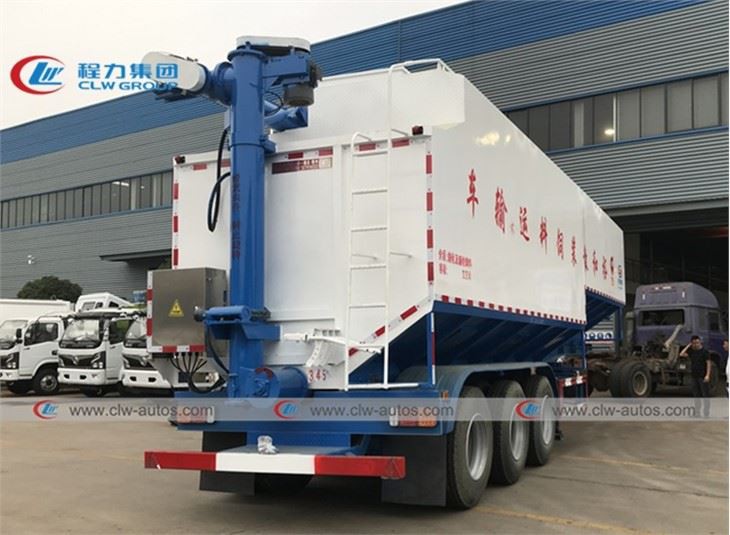

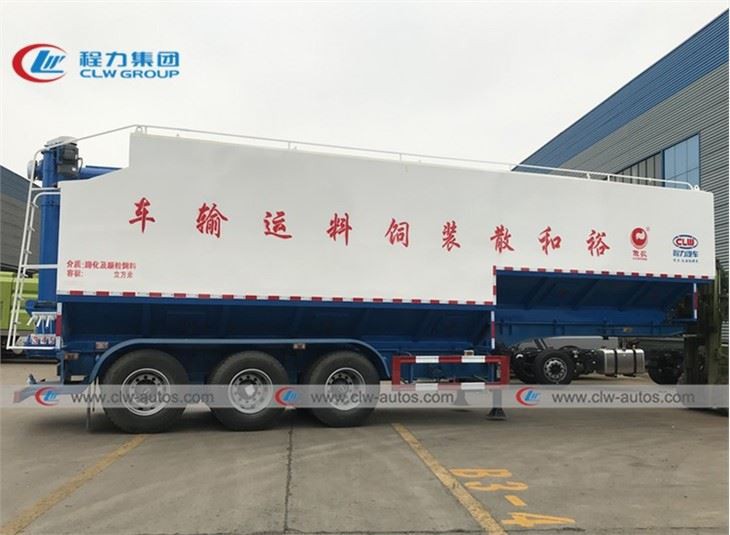

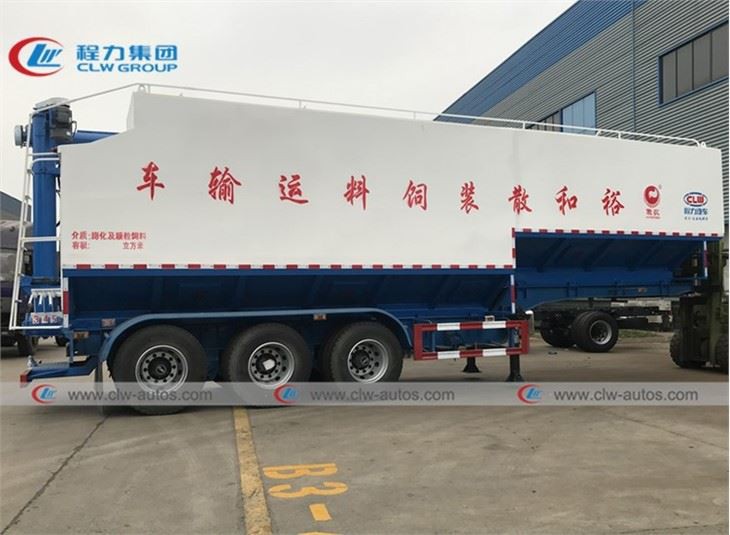

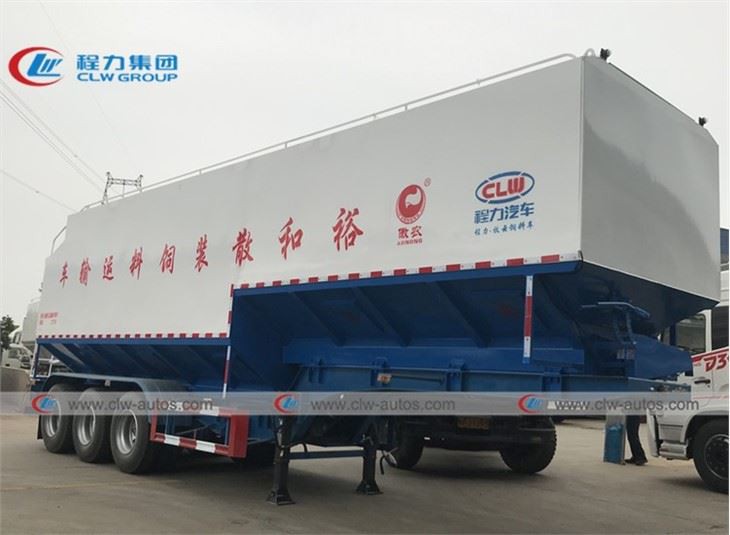

3 Axle 40,000Liters Hydraulic Auger Feed Delivery Transport Tank Truck Trailer
product Specification
| Specification of Bulk Feed Trailer | |||
| Condition | New condition. | ||
| Walking Mechanism | Axles | 3 Axles, FUWA. | |
| Overall Dimension(mm) | 12955×2550×3980 | ||
| Wheelbase(mm) | 7050+1310+1310 | ||
| Curb weight(kg) | 12350 | ||
| Loading weight(kg) | 34000 | ||
| Approach/departure angle(°) | -/13 | ||
| Front /rear overhang(mm) | -/2310 | ||
| Wheel track(front/rear)(mm) | 1840/1840/1840 | ||
| Axle loading(front/rear) (kg) | -/23600 | ||
| Suspension | Mechanical suspension with 8-pcs leaf spring | ||
| Braking System | Drum braking system, ABS, WABCO Emergency Relay Valve; T30/30+T30 air chamber. | ||
| Rim & Tire | Quantity | 12+1 | |
| Specification | 11R22.5 | ||
| Body | |||
| Loading Medium | Bulk feed, grain,powder, etc. | ||
| Tank size | 40' x 96" x153''(12.1x2.4x3.9 m ) | ||
| Bulk Capacity | 47 cbm | ||
| Material | Carbon steel | ||
| Thickness: 4mm | |||
| Rust Resistance | Anticorrosive paint | ||
| Compartments | Quantity: 6 (customized) | ||
| Color | As your request | ||
| Logo | As your request | ||
| Accessories | 1. Mobile conveyor 2. Vertical conveyor 3. Wire cabinets 4. Conveyor maintenance port 5. Horizontal conveyor 6. Discharging operation handle 7. Ladder 8. Electric motor (Wireless remote control is optional) | ||
