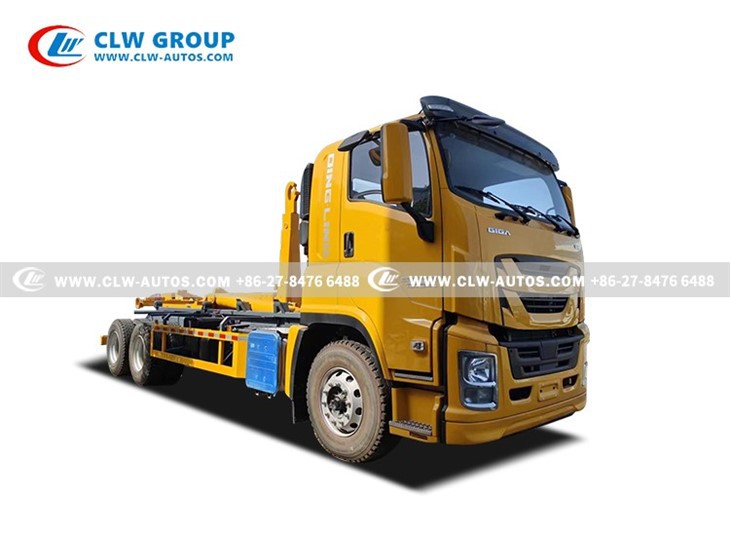

Japanese Brand ISUZU FVZ 5X 10 Wheels 6x4 20m³ Hook Arm Lift Garbage Truck
The Arm-type Garbage Truck, also known as the hook-arm garbage truck, is a detachable garbage truck. The whole vehicle adopts full hydraulic operation. The garbage bin and the chassis can be completely separated. The sanitation workers can complete all operations in the cab.

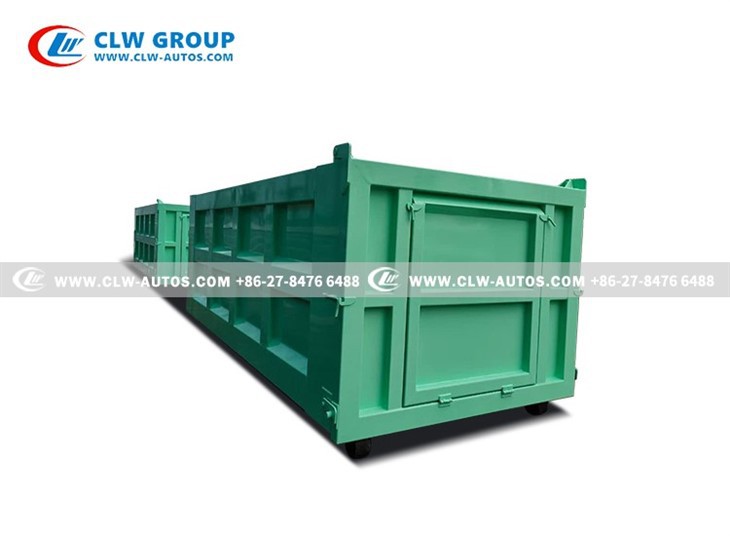

The Garbage Bin is a fully sealed design to prevent secondary pollution. The garbage bin has a self-unloading function, which makes garbage dumping more convenient. One vehicle can be equipped with multiple garbage bins. One vehicle can complete all garbage collection work, effectively reducing sanitation costs!
Applications: Schools, factories, logistics parks, markets, streets, rural areas, communities, etc. to collect domestic garbage and scattered garbage. In many urban areas with narrow roads abroad, small hook-arm garbage trucks are also widely loved.
The main components of the hook-arm garbage truck are: hook arm mechanism, hydraulic system, and control system. The mechanism is simple, and one vehicle can have multiple bins.

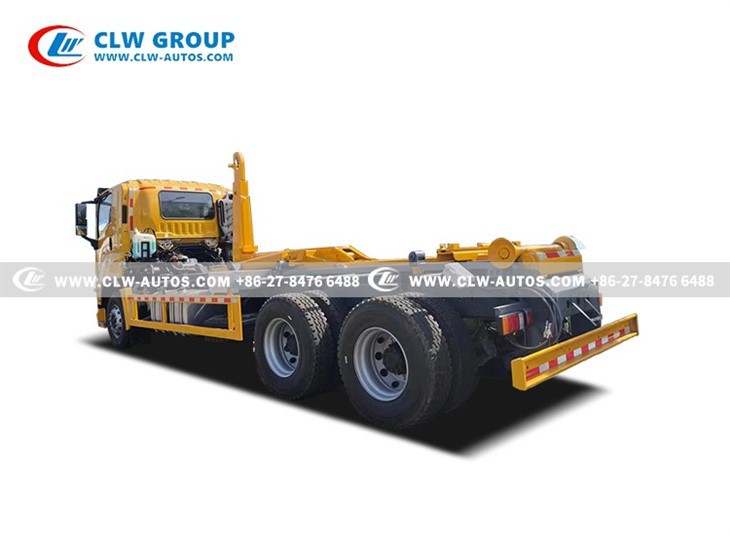

Arm Pulling Mechanism
It is mainly composed of hook arm, hook arm frame, sub-beam, hydraulic system, operating system and rear support system. The sub-beam is mainly used to fix and support the garbage bin with the chassis, and serves as the installation connection frame for other parts. The pull arm and hook arm frame are mainly used to lift, unload the garbage bin and dump the garbage. The hydraulic cylinder is the driving component of each action.
Hydraulic System
The system is composed of a hydraulic gear pump, a multi-way valve, a cylinder, a hydraulic oil tank, etc. The system provides hydraulic power for the arm pulling mechanism.
Control System
Through the multi-way valve handle, the corresponding hydraulic actuator is controlled to work, and the action requirements required for the garbage truck operation are realized.
|
ISUZU 20m³ Hook Arm Garbage Truck |
|
|
Chassis Model |
QL125 |
|
Driving Model |
6 x 4 |
|
Cab |
|
|
Wheel Base |
4650+1370 mm |
|
Axle Loading (front/rear) |
7000 / 10000x2 kg |
|
External Dimensions (L x W x H) |
10260×2550×3280 mm |
|
Net Weight |
9870 kg |
|
Approach / Departure Angle |
20/12° |
|
Max. Driving Speed |
105 km/h |
|
Engine |
Model: 6HK1 |
|
ISUZU diesel engine, 6 cylinders in a line, Water cooled,turbocharged,after cooled , cold start. |
|
|
Horse Power: 300Hp |
|
|
Emission standard: Euro 6 |
|
|
Displacement: 7790 ml |
|
|
Gearbox |
Manual type 9 forwards & 1 reverse |
|
Clutch |
Reinforced diaphragm clutch |
|
Tire |
295/80R22.5 18PR |
|
10 Pcs with 1 spare tire |
|
|
Fuel Box |
400L /steel material |
|
Garbage Truck Body(20m3) |
|
|
Tanker Body Material |
Quality high tensile carbon steel |
|
Thickness |
Side 3mm, Bottom 4mm |
|
Garbage Container Size |
20 CBM |
|
Straight Arm Hooking Capacity |
16000 ~ 18000 kg |
|
Telescopic Arm Hooking Capacity |
18000 ~ 20000 kg |
|
Max. Pressure Hydraulic System |
16 Mpa |
|
Operation and Control |
Both Automatic(Electrical) and Manual (hydraulic) |
|
Optional Configuration |
|
Working principle
◆ Hook loading and unloading of the garbage bin: the cylinder piston rod extends, the arm hook rotates backward to unload the garbage bin, and the cylinder piston rod retracts, the arm hook rotates forward to realize the hook loading operation of the garbage bin.
◆ Operation of the garbage bin: after completing the hook loading operation of the garbage bin, turn the locking soft shaft handle to the locking position, complete the locking of the garbage bin, and then operate the operation.
◆ Lifting the car to unload: drive the car to the unloading position, open the rear door of the car, make sure the arm locking soft shaft handle is in the locking position, operate the hydraulic system to drive the cylinder to move, then the garbage bin, arm hook and flip frame rotate together, lift the car to the maximum tilt angle, and unload the garbage. Operate the solenoid valve handle, lift the cylinder back to its original position, and drive the car to return to its original position to realize the garbage self-unloading function.
