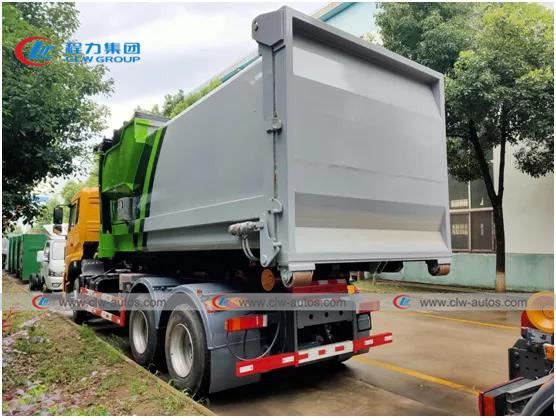

【Aug 5th,2020】Dongfeng 6X4 Roll On Roll Off Garbage Truck With Compressed Waste Container
The roll on roll off garbage truck also known as hook arm garbage truck .The sleeve arm (also called telescopic arm) of the garbage truck has strong lifting power, low dead weight and stable performance;
Unique cushioning design improves equipment and floor protection during hook box and unloading.
The vehicle is equipped with rear legs to enhance the stability of the vehicle during loading and unloading. The unique hydraulic lock design is adopted. The key components are imported high quality parts to maximize the safety and stability of the arm hook.
Its main performance characteristics are as follows:
1. Movable hook arm can be used for a variety of boxes of different lengths.
The box body and chassis can be completely separated, according to user requirements can be configured with a number of equipment boxes, to achieve a multi-purpose vehicle, circular transport.
2. The boom hook pair beam is designed with high-strength steel plate, and the control system adopts air control mode, which can be operated wirelessly inside and outside the cab. It has the characteristics of simple operation, strong reliability and stable performance.
3. The arm hook is designed and manufactured according to European standards, and the product has high reliability.
Equipped with mechanical self-discharging lock mechanism and hydraulic box lock structure, effectively guarantee the safety of box transportation and self-discharging.
4. The vehicle can be equipped with optional rear roller support mechanism or bridge support mechanism to avoid turning the head when operating the vehicle and improve the safety of the vehicle.
5. Safety, reliability and easy operation are fully considered in the design. The sequence and safety considerations of the actions of car body support and locking hook are all reasonable in the design.
6, standard with imported high pressure plunger pump and four-digit air control pilot valve, with enlarged oil tank and other accessories.
Pressure resistance of high pressure tubing for hydraulic system: ≥450 BAR.
Stable and reliable operation, easy to maintain.
The system total pressure and the unit valve block are equipped with overload protection.
Lifting oil cylinder, sliding oil cylinder, rear box locking oil cylinder and rear stabilizing device are equipped with load retaining valve.
7. Hydraulic interlocks are set between functional loops such as hook arm sliding, box self-discharging, loading and unloading box and rear box locking to avoid misoperation.
