Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of dongfeng 6000liters 6cbm fecal suction truck in China. If you're going to buy high quality dongfeng 6000liters 6cbm fecal suction truck, welcome to get more information from our factory. For price consultation, contact us.
We are a 12 years professional manufacturer of special trucks,supply different kinds of trucks, sewage suction truck, Septic tank truck, Fecal Suction truck etc. can be customized as customer requirements.
(1). Capacity: 3-16m3(3000 liter- 16 000 liter) suction sewage truck,vacuum sewage truck,sewage tanker truck.
(2). Steering wheel: both left and right hand drive,meet the needs of different countries.
(3). Emission standard: option Euro 1,Euro 2,Euro 3,Euro 4,Euro 5 septic truck
(4). Truck chassis: option HOWO,FOTON,DONGFENG,JAC,ISUZU,etc
Fecal suction truck is also called septic tanker truck,vacuum septic truck, septicsuction truck,septic tank truck,septic pump truck, septic pump truck,etc.
Get the latest quotation,contact Ms.Helen Jiang WeChat and WhatsApp: 0086-135 5419 5719.
Product Desscription:
Chassis configuration: Dongfeng Duolika chassis, wheelbase 3800mm, YUCHAI 160 horsepower engine, eight speed gearbox, 700-16 tires with spare tires, air brakes, and direction assistance.
Top configuration: tank volume 6000-8000 liters, WISCO Q345 automatic welding, wall thickness 5mm, head 6mm, standard SK-15 water ring vacuum pump, optional 8 tons two oil pump, large suction power, long suction range, self-priming and self-discharging.
Standard anti-overflow valve, fecal window, 1 spout at the rear of the tank, hand-washing device beside the tank, 360°rotating boom on the top of the tank, and a 8 meter fecal suction tube.
Optional configuration: optional float level controller, optional full electronic alarm, optional full automatic stop.

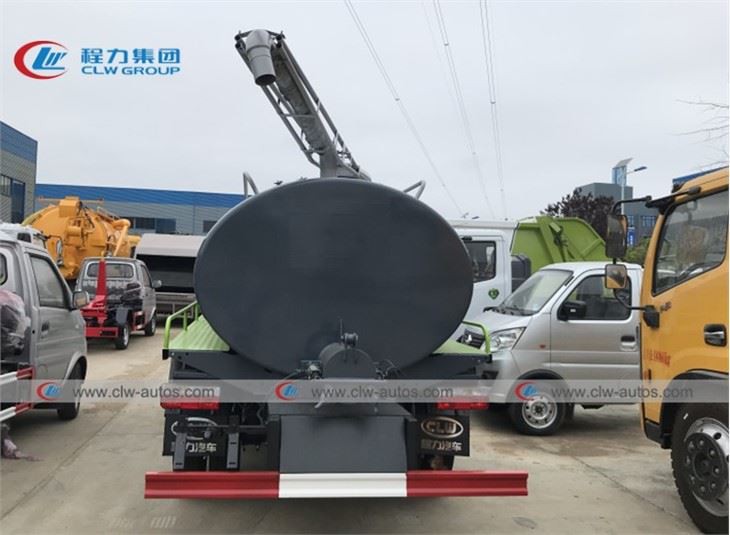

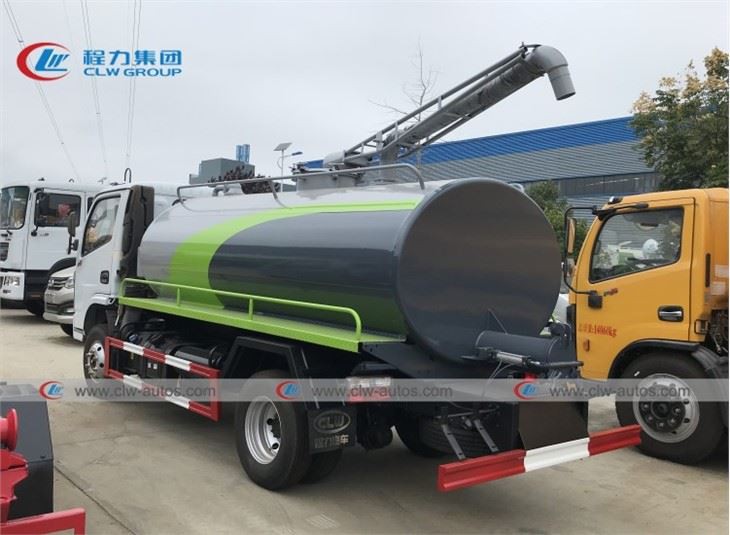

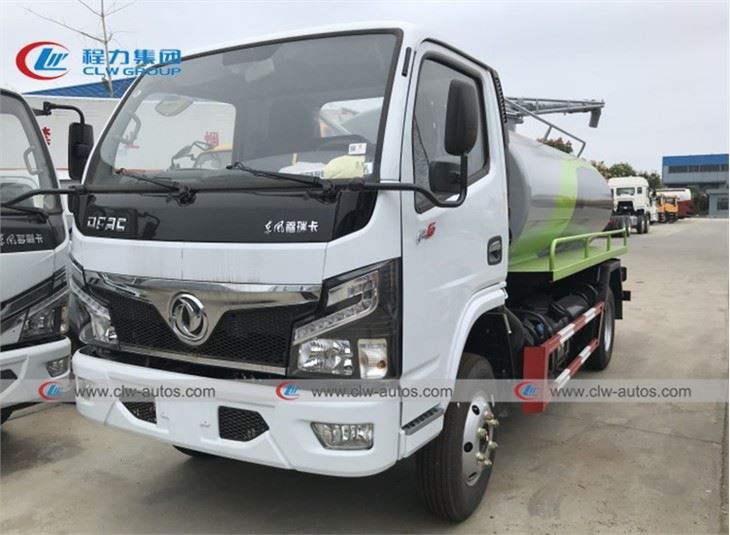

Working pictures for reference:
Detailed Specification for Dongfeng 6000Liters 6CBM Fecal Suction Truck:
ITEM | UNIT | DESCRIPTION |
Vehicle | DONGFENG septic tank truck | |
Overall dimensions | mm | 7250x2390x2950 |
Septic tank | L | 6000 |
GVW | kg | Appro×7300 |
Curb weight | Appro×3605 | |
Loading | Appro×3565 | |
Wheel base | mm | 3800 |
Front/Rear overhang | 1032/1663 | |
Approach/departure angle | ° | 19/15 |
Max speed | km/h | 95 |
Standard configuration | 1. Septic tank volume 6m3, 6000Liters 2. Tank thickness : 5mm carbon steel. 3. Looking sewage window. 4. Self flow exit. 5. Cleaning device. 6. Fecal suction pipe 5m. 7. Vacuum pump. 8. Oil water separator, overflow valv. | |
Chassis Parameter | ||
Cabin | Single row cabin, with air conditioner, power steering, 2 passengers. | |
Drive type | 4×2 | |
Engine | Brand : YUCHAI diesel engine. Model : 160hp Fuel type : diesel. Displacement : 3856ml Emission standard : Euro 3 | |
Transmission | 5-speed, manual | |
Tire model | 7.00-16 | |
No.of tire | 6pcs | |
