Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of howo carbon steel fuel dispenser truck in China. If you're going to buy high quality howo carbon steel fuel dispenser truck, welcome to get more information from our factory. For price consultation, contact us.
Product Description
1. Oil punp: gear pump, self-absorption (centrifuge) pump, chemical pump, heavy, oil pump, stainless steel pump are optional.
2. Tank shape: shape of tank body can be designed to square round, round,Heat insulation device such as heating pipes, insulation.
3. Refueling machine: the refueling machine we use are tax controled oiling machine with accurate figure of volume, sum of money,etc.
Specification
| |
Product Name | HOWO fuel tank truck |
Driving Type | 4×2,right/left hand drive |
| |
Max.Payload (kg) | 5000 |
Curb weight(kg) | 3500 |
| |
Wheelbase (mm) | 3360 |
Overall Dimension (mm) | 5995×1980×2300 |
Tank dimension | 5000liters |
| |
Engine | 116hp |
Engine type | 4 stroke water-cooled, Inter-cooling,Turbocharged |
Displacement (L) | 3.856L |
Rated power Rev ((Kw/rpm) | 88kw/2800rpm |
Max Torque (N*m)/Rev (rpm) | 392N.m/1400-1800rpm |
Emission standard | EURO 2 |
| |
Transmission | WLY6T100,6 forwards, 1 reverse gear, manual operation |
Steering | With power steering |
Brake system | Air brake |
| |
Cab | Single row, Howo cabin, A/C optional |
Axles | |
Front axle | 2 tons |
Rear axle | 3.5 tons |
| |
Tire specification | 7.00R16 standard tire,6 tires+1 spare tire |
| |
Tank capacity | 5000liters,one compartment |
Tanker material | Q235, carbon steel |
Manhole | 1 pcs manhole fixed on top of tank |
Outlet and inlet | 1 pcs outlet and 1 pcs inlet |
Oil rope | 2 pcs oil rope |
Fire extinguisher | 2 pcs 4kg fire extinguisher |
Anti-static devices | Including ground towing, static line plate |
Pump | Equipped Oil pump (driven from gearbox by PTO) |
Model:60YHCB-30 | |
Flow:30m3/h | |
Pressure :0.4Mpa | |
Rotate Speed:970r/min | |
Fuel dispenser | This dispenser can use for diesel and gasoline |

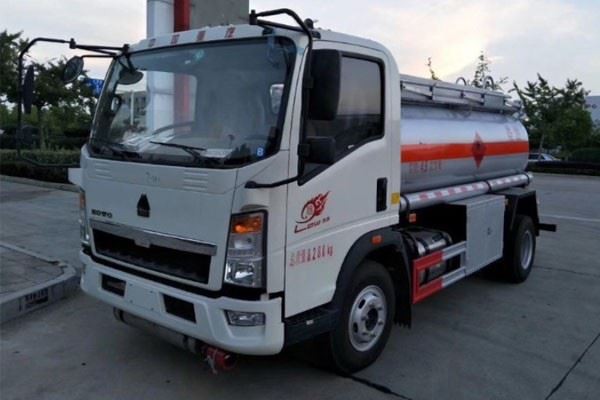

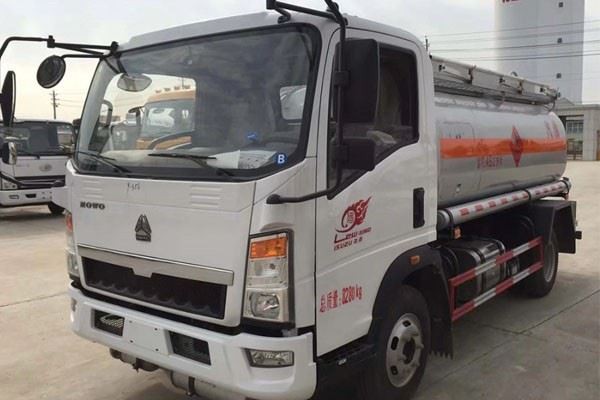

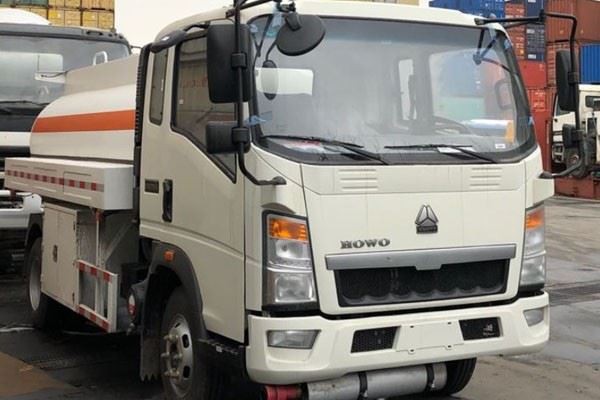

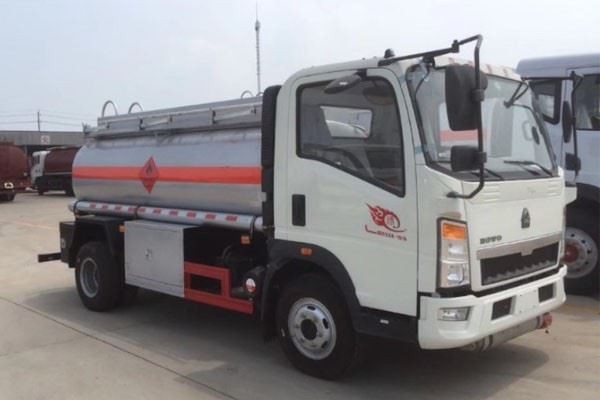

Reference Picture
Packing and Shipping
We have exported more than 50 countries and regions and have rich export experience.
Successful Case
Customer Inspection
Overseas Exhibition
Our Service
1. We can product the fuel dispenser truck accroding the customer's requirments (color,size,logo and so on)
2. We can send our technician to arrive the customer's country to provide the service .
3. Our warranty for fuel dispenser truck: 12 months. We can provide the parts at factory price.
FAQ
Q1: How do you control the quality of the fuel dispenser truck?
A: Our Factory has standard production workshop, gets ISO CCC certificates, our workers are well trained. Every unit of product undergoes a rigorous inspection process.
Q2: Do you accept custom order? What's is your MOQ order?
A: Yes, we do, our MOQ is 1 unit.
Q3: What kinds of fuel dispenser truck I can order from your company?
A: We can supply different size refueling truck as client's request. Basically speaking, we can supply 5CBM to 20CBM type. Pls contact with us for more technical details and discussion.
