Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of dongfeng kinland 20, 000liters 6x4 aluminum alloy oil tank truck in China. If you're going to buy high quality dongfeng kinland 20, 000liters 6x4 aluminum alloy oil tank truck, welcome to get more information from our factory. For price consultation, contact us.
Dongfeng kinland 20,000liters 6x4 Diesel & Gasoline Transport Aluminum alloy Oil Tank Truck
Product Description:
1. Tank material: we can provide carbon steel tanks, stainless steel tanks, manganese steel tanks, aluminum tanks, steel with plastic (or rubber) tanks and plastic tanks.
2. Good welding: tank body is adopted an advanced automatic vertical welding techniques and head arc butt welding technology, as well as the whole- steel forming a composite.
3. High safety: equip with active and passive emergency protection devices, to provide full closure remote manipulation of materials handing functions. Equip separators (Baffle) to prevent surging of liquid towards bulk head
4. Function: The tank body is suit for loading light fuel oil, heavy oil, sulfuric acid, hydrochloric acid, nitric acid, caustic soda hydrogen peroxide, alcohol, benzene, cooking oil and so on.
5. Oil punp: gear pump, self-absorption (centrifuge) pump, chemical pump, heavy, oil pump, stainless steel pump are optional.
6. Tank shape: shape of tank body can be designed to square round, round,Heat insulation device such as heating pipes, insulation.
7. Refueling machine: the refueling machine we use are tax controled oiling machine with accurate figure of volume, sum of money,etc.
8. Optional: reading meter for outlet and inlet,self-discharge valve at rail or side of tank body, compartment quantity according to the demand.
Product Specification
Item name | Unit | Parameter | ||||||||
Model | Dongfeng brand Oil Tank Truck | |||||||||
Dimension | mm | 9700*2490*3450 | ||||||||
Sample Tank Dimension | mm | 7100*2460*1700 | ||||||||
Litter | 20,000 | |||||||||
material | Aluminum alloy, 5 mm thick | |||||||||
Option~ Stainless steel, Carbon Steel | ||||||||||
Curb Weight | kg | 9805 | ||||||||
G.V.W | kg | 30000 | ||||||||
Wheel Base | mm | 4350+1300 | ||||||||
F/R track base | mm | 1245/2755 | ||||||||
F/R Axle-Load | Kg | 5000 / 13000 / 13000 | ||||||||
Type | Steel Spring Type | |||||||||
Approach/Departure angle | ° | 27/12 | ||||||||
Traction system | Type | 6*4 | ||||||||
Max speed | Km/h | 90 | ||||||||
Tire Specification/Number | Model | 10.00-20 / 10 pcs+1 Spare tire | ||||||||
Engine model | Model | B210-33 | ||||||||
Emission/Ps | 5900ml, 155 Kw | |||||||||
Horse Power | 210 Hp | |||||||||
Power | 700 N.m - 1500 r/min | |||||||||
Type | Diesel, 6 cylinder, turbocharge, water cooling | |||||||||
manufactuere | Dongfeng Cummins Engine | |||||||||
Gear box | Type | 9F&1R, Manual | ||||||||
Electric system | V | 24 | ||||||||
Cab | Person | 3 | ||||||||
Type | Reversable, Manual | |||||||||
Steering | Powering , LHD or RHD | |||||||||
Installing | Mp3, Radio | |||||||||
Air Conditioner | Heating/cooler | |||||||||
Equipment | Installed | Top Installing human foldable ladder, Rear climbing ladder, Top Aluminum type Human port diameter 500mm. Bottom Output and input port with ball valve,Bottom urgent cut off valve, Tool box. | ||||||||
Option | Refueling device, fuel dispenser | |||||||||
Option | API Standard | |||||||||

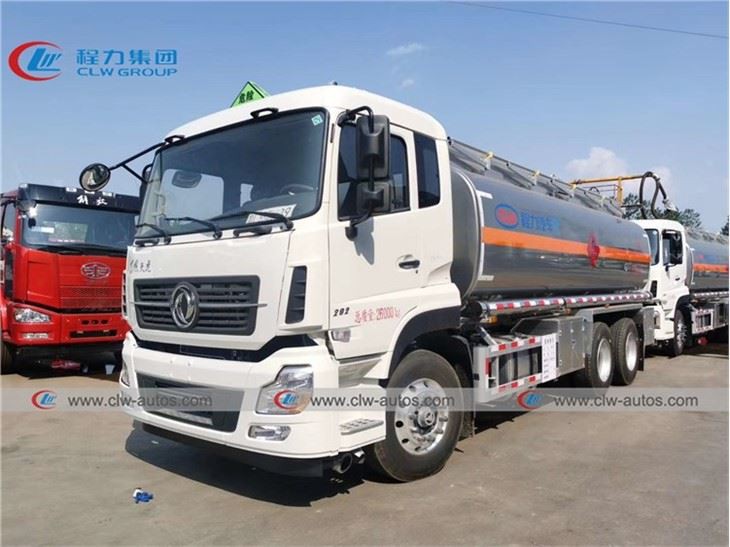

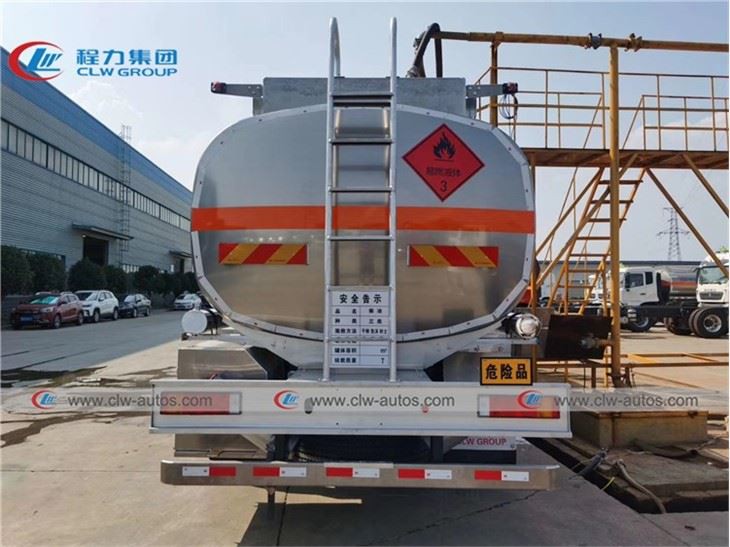

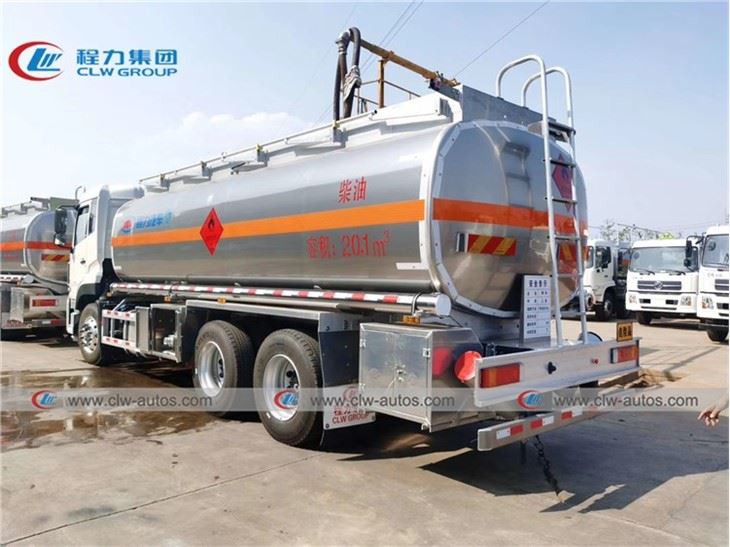

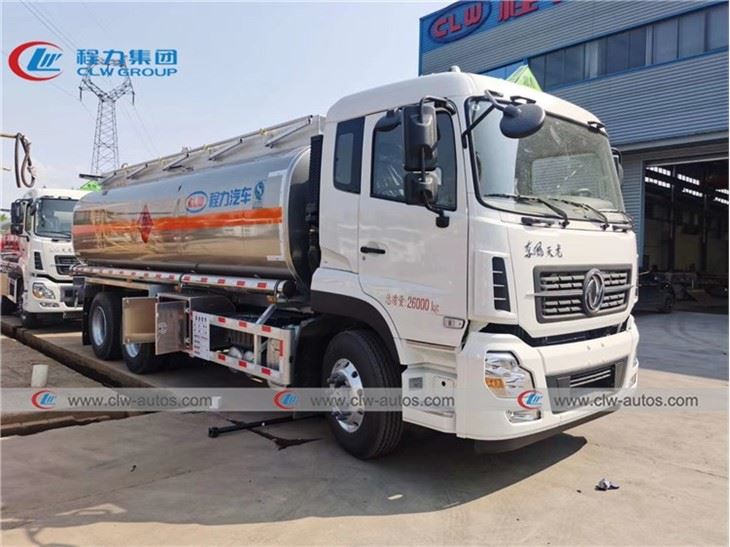

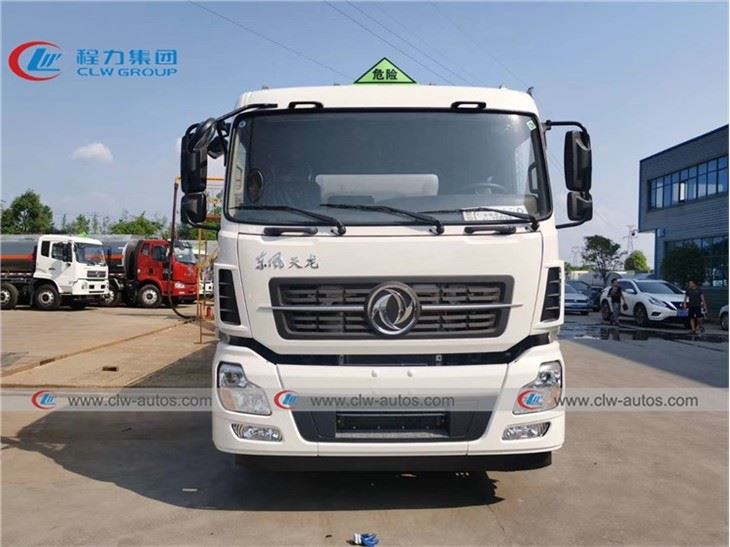

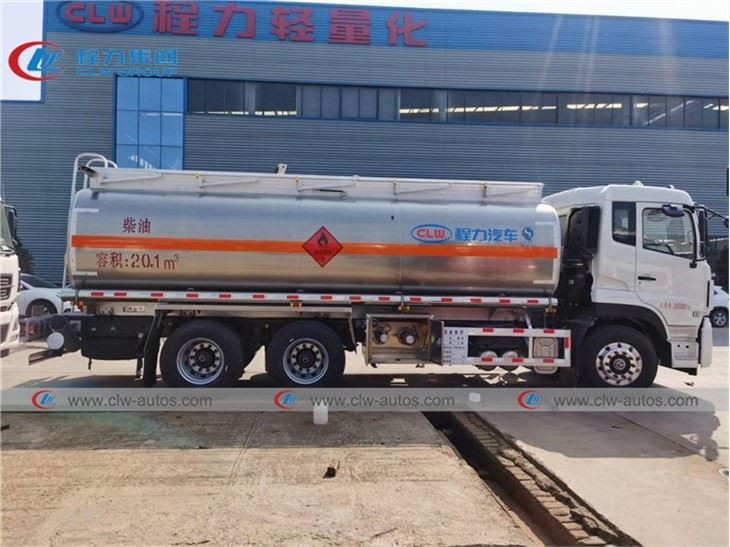

Product pictures
