Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 40cbm lpg storage tank 20tons propane gas tanker in China. If you're going to buy high quality 40cbm lpg storage tank 20tons propane gas tanker, welcome to get more information from our factory. For price consultation, contact us.
1. Storage medium of lpg gas plant tank : LPG, Liquid ammoina,Dimethyl ether,Iso-butane,Pentane and etc.
2. Available tank capacity of lpg gas plant tank : 5m³~200m³,2ton~100tons
3. Manufacturing standards of lpg gas plant tank : GB-150, ASME VIII Division I U STAMP, CCC, ISO9001 : 2008
4. Optional for lpg gas plant equipments as follows, lpg pump and motor,lpg compressor,volume flow meter,filling scales and lpg dispenser,ball valves,check valves,non-return valves,glass valve,strainer,by-pass valve and so on.

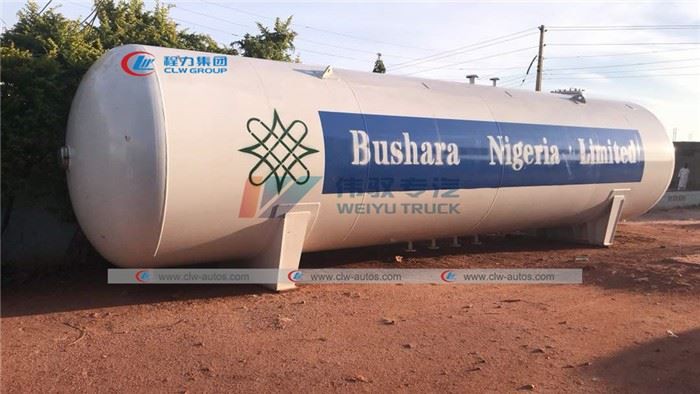

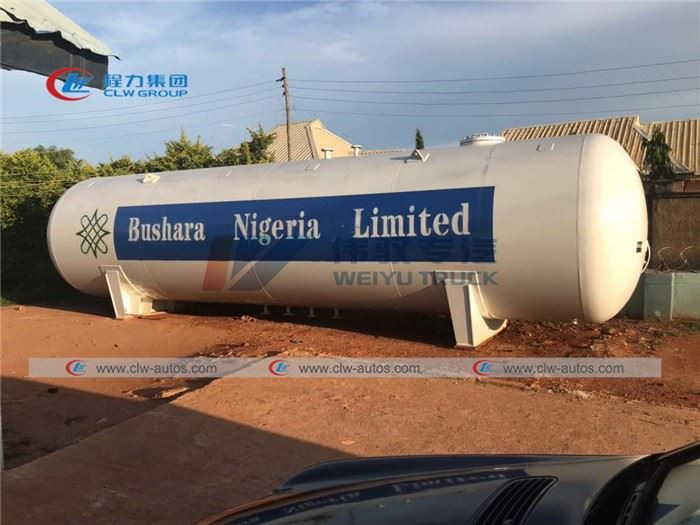

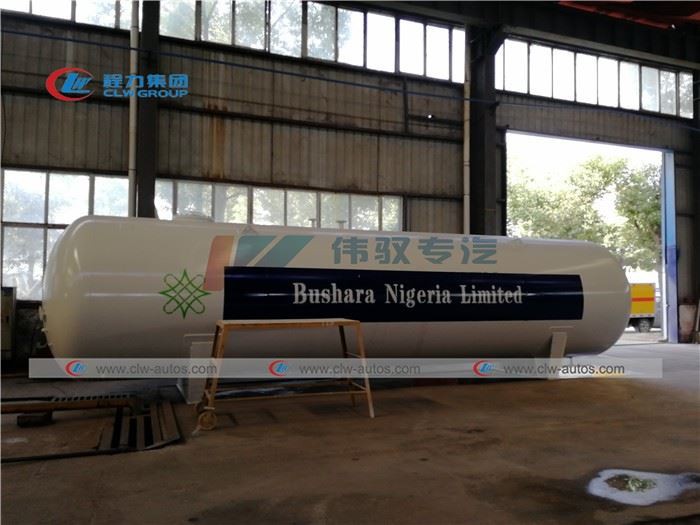

40,000Liters LPG storage tank | |||
Volume of Tank | 40,000Liters | ||
Filling Weight | 15960 kg | ||
Tank Weight | 9380 kg | ||
Thickness of Shell (mm) | 12 mm | ||
Thickness of Head (mm) | 14 mm | ||
Tank Diameter | 2400 mm | ||
Overall Size | 9270*2428*3018(mm) | ||
(length x width x height) | |||
Material of Tank | Carbon Steel Q345R | ||
Design Pressure | 1.77 MPa | ||
Hydraulic Test Pressure | 2.21 Mpa | ||
Design Temperature | -20ºC~50ºC | ||
Heat Treatment | Bulk | ||
Corrosion Allowance | 1 mm | ||
Medium Density | 580 kg/m³ | ||
Vapor Outlet | DN50 | ||
Gas Outlet | DN50 | ||
Life Time | 15 years | ||
Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. | |||
Standard Accessories of LPG Tank | |||
Model | Item | Qty | Junction Surface |
A42F-25-100 | Safety Valve DN100 | 1 | RF |
J41N-2.5-50 | Stop Valve DN50 | 6 | RF |
J41N-2.5-25 | Stop Valve DN25 | 2 | RF |
J41N-2.5-100 | Stop Valve DN100 | 1 | RF |
J24W-320-DN6 | J24W Needle Valve M20*1.5 | 1 | / |
HG21584-95 | Magnetic plate level Gauge UZFAL-2.5RF-3040-0.5 | 1 | RF |
Y-100T | Pressure Gauge M20*1.5 1.5degree 0~4Mpa | 1 | / |
WTQ-280 | Thermometer M33*2 2.5 degree | 1 | -40ºC~60ºC |
