Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of howo 5 tons wrecker truck with 5 tons crane in China. If you're going to buy high quality howo 5 tons wrecker truck with 5 tons crane, welcome to get more information from our factory. For price consultation, contact us.

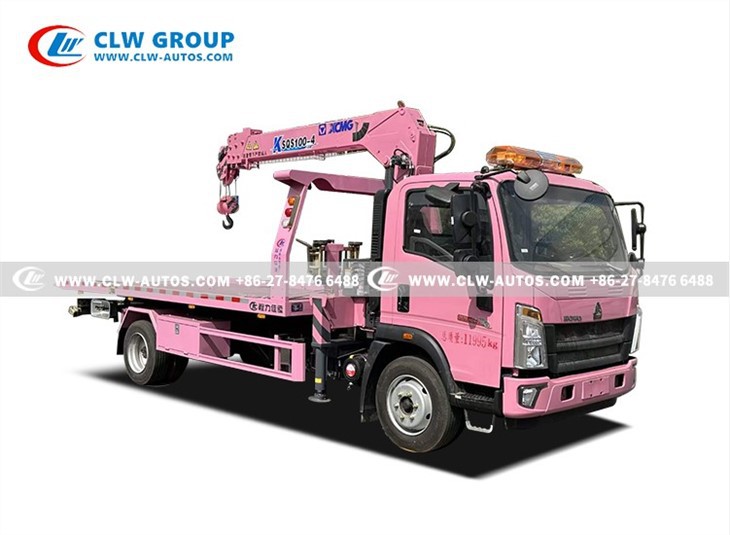

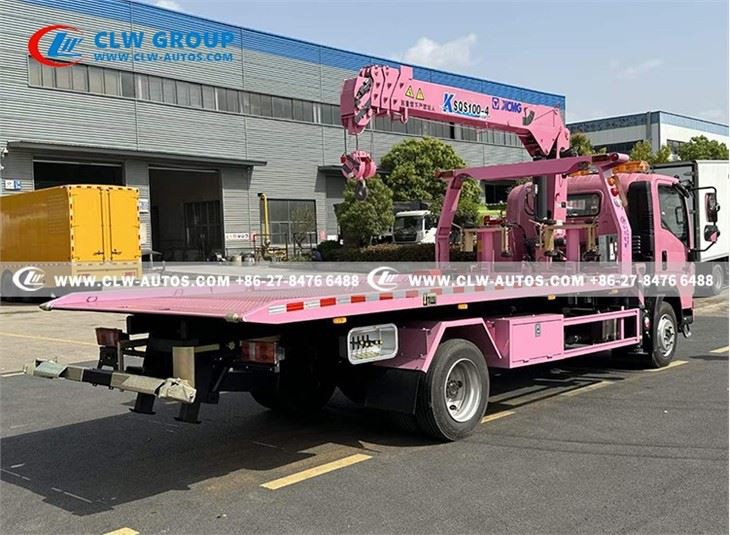

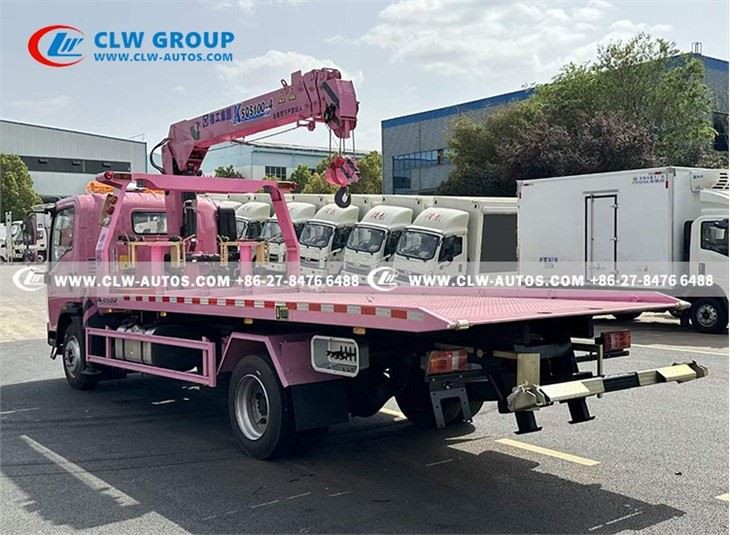

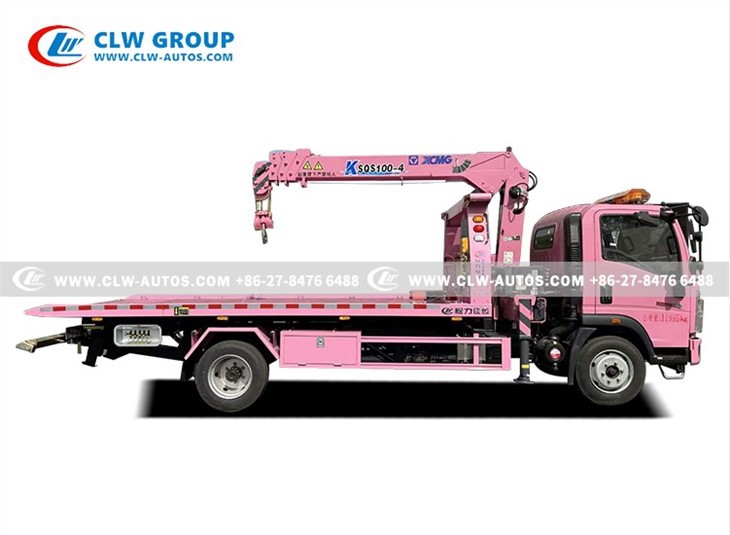

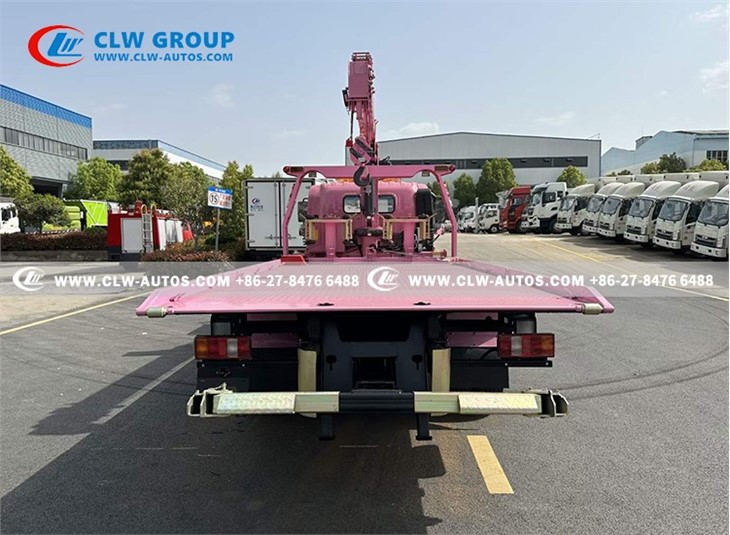

HOWO 5 tons flatbed wrecker(also called tilt tray road wrecker, platform tow truck,breakdown tow truck,recovery truck with crane, howo flatbed road wrecker,under lift tow truck,emergency rescue tow truck,platform recovery truck) is used to move disabled,breakdown cars,vehicles,bus,improperly parks vehicles or acts as a car carrier temperarily.
Multifunctional flatbed wrecker truck with XCMG straight arm 5 tons crane has both function of road wrecker/recovery/towing truck and truck mounted crane.
whatsapp for quick inquiry +86 135 45064324
Main technical details is as follows,
|
Drive Model |
4x2,right hand drive or left hand drive |
|
|

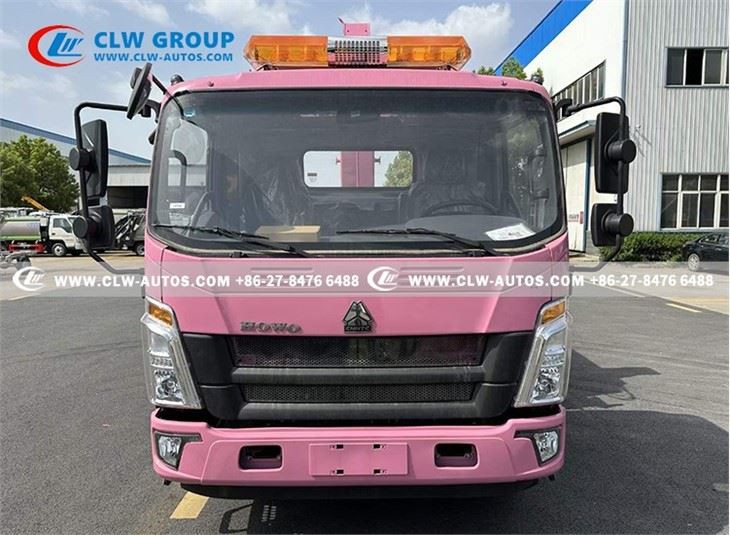

Cabin |
HOWO 2080 CABIN with one sleeper or without With A/C |
|
|
Vehicle Main Dimensions |
Dimensions(L x W x H)mm |
7450/7850/8460×2480×3290 |
|
Wheel base (mm) |
3800/4200/4500 |
|
|
Overhang (front/rear) (mm) |
1180/2780 |
|
|
Axle load (kg) |
3200/8000 |
|
|
Approach/Departure angle(°) |
18/22 |
|
|
Weight in KGS |
Curb Weight |
8670 |
|
GVW. |
12000 |
|
|
Max. driving speed(km/h) |
90 |
|
|
Engine |
Model |
YC4E160-33 |
|
Type |
4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
|
|
Horse Power(HP) |
160HP |
|
|
Emission standard |
Euro III |
|
|
Gearbox |
DC6J65TC,6 forwards & 1 reverse |
|
|
Clutch |
Reinforced diaphragm clutch |
|
|
Steering Gear |
Power steering, hydraulic steering with power assistance |
|
|
Tire |
8.25R20 , 6pcs + 1 spare tire |
|
|
UPPER BODY OF 5 TONS FLATBED TOW TRUCK |
||
|

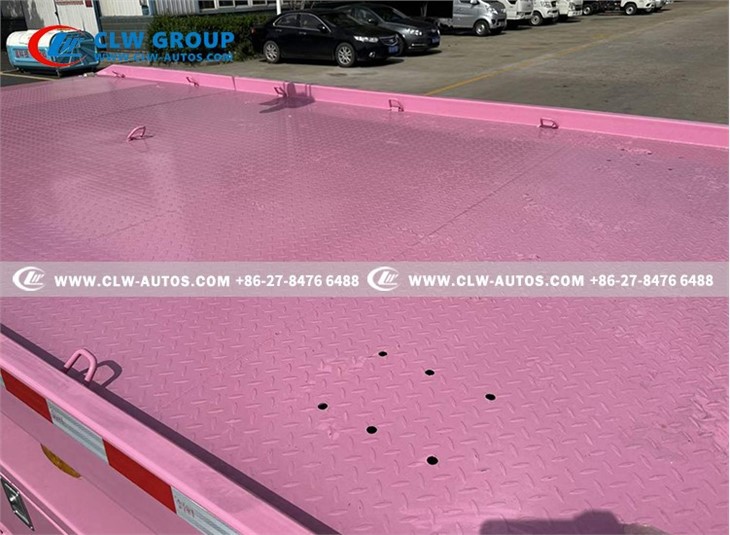

Platform |
LXW(mm) |
5600x2260 |
|
Material |
Carbon Steel/checked plate/4 mm |
|
|
Ground clearance |
1200 mm |
|
|
Max loading capacity(kg) |
6000 |
|
|
Winch rating pulling capacity(kg) |
5000 |
|
|
Length of steel(m) |
25 |
|
|
Under lift boom |
Max under lift capacity(kg) |
3500 |
|
Fully extended max under-hoisting capacity(kg) |
|
|
|
Crane |
XCMG/CLW 5 tons crane with 4 section boom |
|
