Foton 5 Tons Freezer Truck

Engine:diesel engine;
Driving model:LHD or RHD
Van box capacity:5 tons
Tire:7.50R16
Box Size:4200*2250*2300 mm

Product Details

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of foton 5 tons freezer truck in China. If you're going to buy high quality foton 5 tons freezer truck, welcome to get more information from our factory. For price consultation, contact us.



Seperate Line


Product Description

--Refrigerated trucks are often used to transport frozen food (freezer trucks), dairy products (dairy trucks), vegetables and fruits (fresh goods trucks), vaccine drugs (vaccine trucks), etc. A refrigerated truck is a special refrigerated transport vehicle equipped with a refrigeration unit with a refrigeration unit and a polyurethane insulation compartment. The refrigerated vehicle can be classified according to the carrying capacity of the chassis, the type of the compartment, and the refrigeration unit.


--Refrigerated truck can be divided into various types as follows,

1) according to truck brands,there are dongfeng,faw,howo,isuzu,shacman,iveco,camc,jac refrigerated truck;

2) according to driving model:4X2,4X4,6X4,6X6,8X4,10X4 refrigerated truck;

3) according to temperature request during delivery,there are fresh transport refrigerated truck with temperature request around -5 ℃ and frozen cargo(meat,seafood,icecream) transport with temperature request around -16 ℃ .


--The freezer box is with high quality temperature preservation material.The surface is optional for fiberglass,color plate,aluminum alloy or stainless steel and 80mm PU foam in middle to ensure perfect insulation.


--The refrigerated unit brand is optional,such as: themo king,carrier,chinese brand hanxue,huatai, etc.

--According to power supplying method,one type is vehicle engine powered refrigerated unit through PTO and another is powered by seperately carried power unit.


whatsapp Flora +86 13971508969



Reference Photos

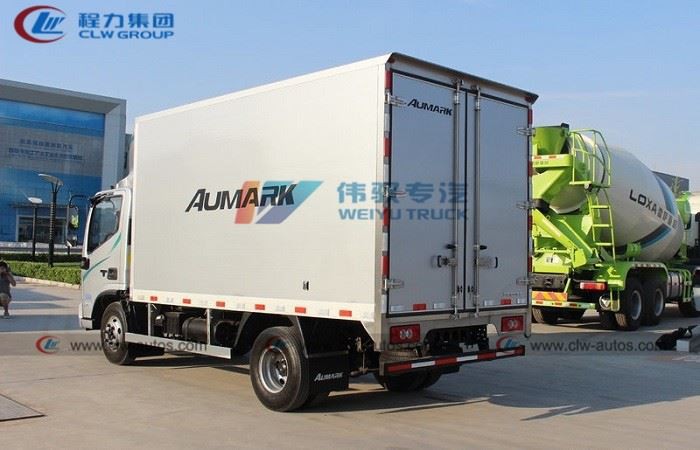

Foton Aumark refrigerator truck

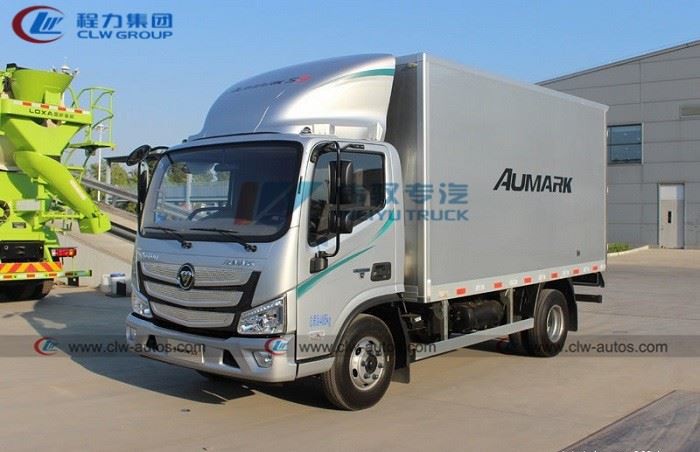

Foton 5t refrigerated van truck

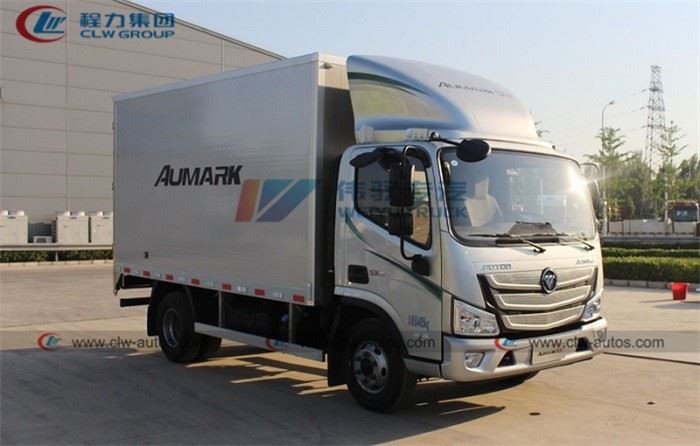

5tons freezer truck

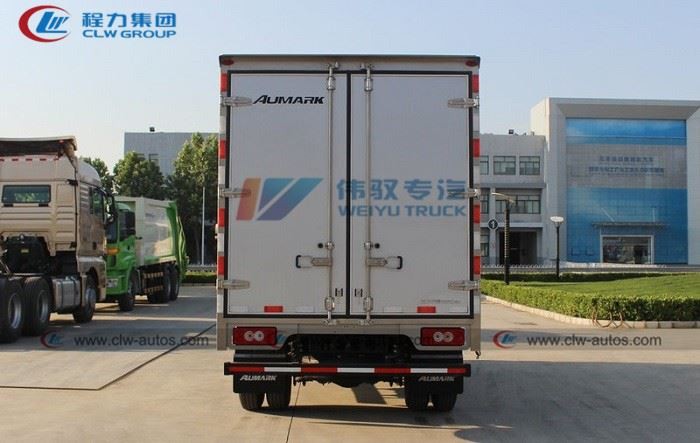

5T Foton fresh food  freezer


Product Specification

Technical Specification
ChassisFOTON
Cabin3 Passengers
Drive4*2 Left hand drive or right hand drive
Wheelbase3360 mm
Rated Loading weight5000 kg
TyreSize7.50R16
Quantity6+1 Spare
BrakeServiceFront drum/Rear drum hydraulic brake
ParkingCentral drum brake
AuxiliaryExhaust brake
SystemABS (anti-lock brake system)
TransmissionGear8-Speed (manual)
SteeringPower-assisted
AuxiliaryClutch booster
EngineFuelDiesel
IntakeTurbocharged
FormWater cooling
Cylinder4 (In-line)
Max. Power120 hp
Upper Body
Refrigerated VanDimension (internal)4200*2250*2300 mm (L*W*H)
ThicknessRoof80 mm
Wall80 mm
Floor80 mm
MaterialInnerGlass fiber reinforced plastics (GFRP)
Outer
InsulationMaterialPolyurethane foam (PUF)
Thickness8 mm
AssemblyFloorNon-slip checkered plate
Door/lockStainless steel
SealIndustrial-purpose rubber
Refrigerator unitBrandthermo king, can be optional.
ModelKL700
 Temprature-15~0ºC
Refrigerator UnitModelR404-A
Charge4.5 kg
Refrigerator Capacity
Driven by Truck engine0ºC-15ºC
4950 w2870 w
Compressor
 Air volume2850 m³/h
Weight
 Evaporator16.5 kg
 Condenser26.9 kg
Dimension
 Evaporator985*585*180 mm (L*W*H)
 Condenser925*430*300 mm (L*W*H)
Accessories
 DefrostingHot gas defrost (Automatically)
 Adjustment deviceElectronic digital display
 Safety protectHigh and low pressure switch
