Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of shacaman 12cbm asphalt sprayer truck in China. If you're going to buy high quality shacaman 12cbm asphalt sprayer truck, welcome to get more information from our factory. For price consultation, contact us.
Description
1) Spraying asphalt and bitument:heated asphalt,hot modified asphalt,cutback asphalt,emulsified asphalt
2) System of 12000liters bitumen distributor truck
manual/automatic control of spraying volume and working width,control of single spraying nozzle
control in cabin or rear working platform
automatic controling system of measuring driving speed and adjust pump rotation number after input asphalt kind and spraying width.
Heating system(10~15ºC/h) to improve heating efficiency
3) Imported brand of key parts such as hudraulic pump,hudraulic motor,asphalt pump,Proportional Valve,automatic control system
4) Italy burner for automatic fire and temperature control
Re

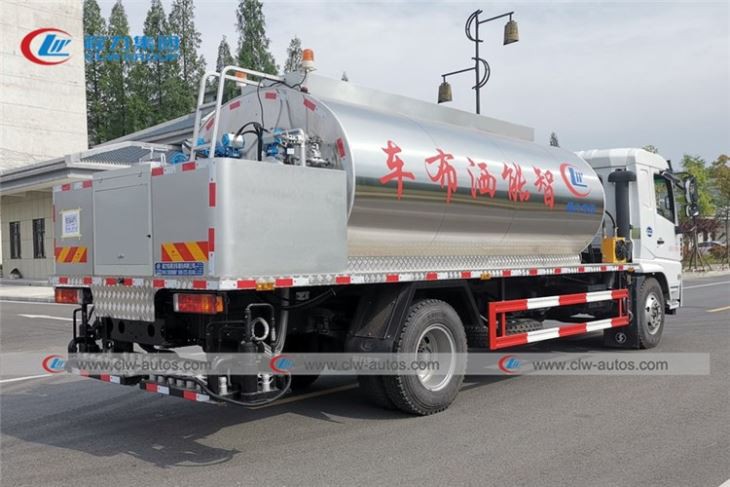

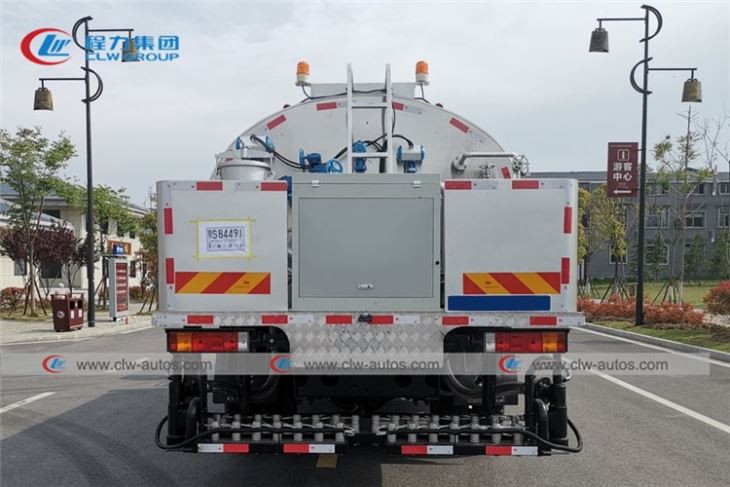

ference picture
Working Show
Specification
| |
| |
Overall Dimension | 8420x2500x3160mm |
Gross Vehicle Weight | 15800 kg |
Curb Weight | 9950 kg |
Loading Weight | 5655 Kg |
Wheel Base | 4600 mm |
Front/rear Tread | 1210/2320mm |
Approach/Departure Angle | 24/10 degree |
Front Axle | 5000kg |
Rear Axle | 10000kg |
| Diesel Engine, |
watering cooling, four stroke, 6 cylinder in line | |
Engine horsepower | 118 HP EURO III |
Max Driving Speed | 90 km/h |
Carbin | 3 Passenger allowed, Left Hand Driving, with Air Conditioner |
Tire | 9.00R20 (6 pieces+1piece spare tire) |
| |
|
|
Outside Material | Stainless plate |
Insulation layer | ≤20ºC/8h |
Bitumen pump | QGB950; 950L/min |
| |
Hydraulic pump | CBQ550-L |
Driving Motor | 05-110-BD31 |
Proportional Valve | EFBG-03-160-HF/Taiwan brand |
Shuttle Valve | Shanxi Yuci brand |
Overflow Valve | Shanxi Yuci brand |
| |
Control System | CLW-30-01/Germany Siemens |
Control Method | Manual and computer control |
Smart asphalt nozzle | 36 pcs |
