Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of sinotruk howo 20ton 20000liters water sprinkler truck in China. If you're going to buy high quality sinotruk howo 20ton 20000liters water sprinkler truck, welcome to get more information from our factory. For price consultation, contact us.
Description
--Water sprinkler truck(also called water cart,water sprinkler,water bowser,water truck,spraying vehicles, multi-functional sprinkler, landscaping sprinkler, water tanker, water truck is suitable for all kinds of road surface washing, trees, green belt, lawn greening, road, factory and mining enterprises construction, high-altitude building washing.
--Functions of water sprinkler is sprinkling water, dusting, high and low spraying, pesticide spraying, guardrail washing, etc. and also functions of water transport, drainage, emergency fire fighting and so on.
1. Optional chassis brand of Water sprinkler truck : Dongfeng, Sinotruk, FOTON/Forland, Faw, Shacaman;
2. Material of Water sprinkler truck :High Tension Steel Q235/Q345,stainless steel 304 for option;
3. Sprinking Width of Water sprinkler truck :>14M;
4. Rear working platform with water cannon range of Water sprinkler truck :28M;
5. Reliable and high quality water pump.
Truck diagram

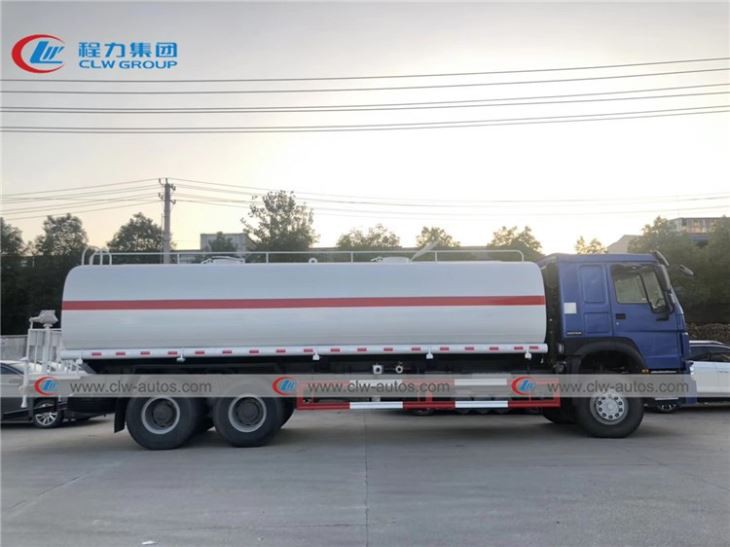

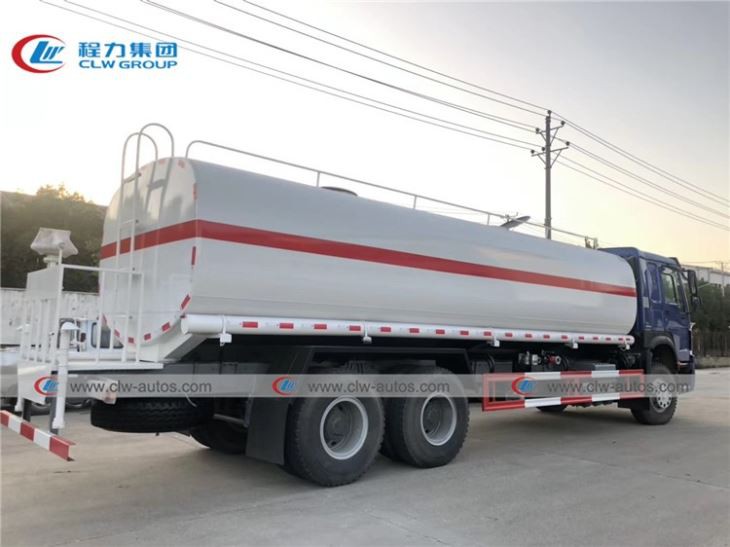

Reference picture
Specification
General Technical Parameters | |||
Overall Dimension | 9650x2500x3000(mm) | ||
Gross Vehicle Weight | 25000(Kg) | ||
Curb Weight | 10900(Kg) | ||
| |||
Chassis Brand | Sinotruk Howo | ||
Drive model | 6X4,10-wheel | ||
Cabin | HW76 cabin,with one sleeper, Left Hand Driving or right hand drive,With A/C | ||
Number of Passengers | 2~3 persons | ||
Engine | Model | WD615.87, 4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
Power | 213KW/290HP | ||
Emission standard | EURO II | ||
Displacement | 9726(ml) | ||
Fuel type | Diesel | ||
Gearbox | HW19710 10Forwards & 2Reverse with HW70 PTO | ||
Steering | ZF8118 | ||
Brake System | Air break | ||
Wheel Base | 4600+1350(mm) | ||
Front/Rear Axle Loading | 7000/16000(Kg) | ||
Tire | 12R22.5, 10pcs + 1 spare tire | ||
Max Driving Speed | 100(km/h) | ||
Fuel box | 400L | ||
Water tank material | Carbon steel or stainless steel | ||
Water tank size | 20,000L/20,000liters | ||
Thickness of water tank | 4mm | ||
Water pump | Chinese top brand weilong | ||
How to operate water sprinkler truck?
(1) The sprinkler should be as close as possible to the operating point and parked.
(2) Open the side door of the walking platform box, take out the water-absorbing hose, and make it swing backward without bending.
(3). Pump the water-absorbing hose into the water as deep as possible to ensure that the pipe end is always less than 300mm from the liquid surface during the operation.
(4). Push the four-way valve handle perpendicular to the ground.
(5). Put the transmission into neutral, then start the engine, disengage the clutch, pull the power take-off switch backward to take power, and the pump starts to run.
(6) The operator can pass the sight glass on the upper part of the rear head. When the liquid level reaches the middle of the sight glass, the driver should be notified. Colleagues should quickly pull the suction hose away from the water surface or close the four-way valve.
(7) After retracting the hose, put it back in the box and close the side door.
(8) Drive the sprinkler away from the pumping location.
