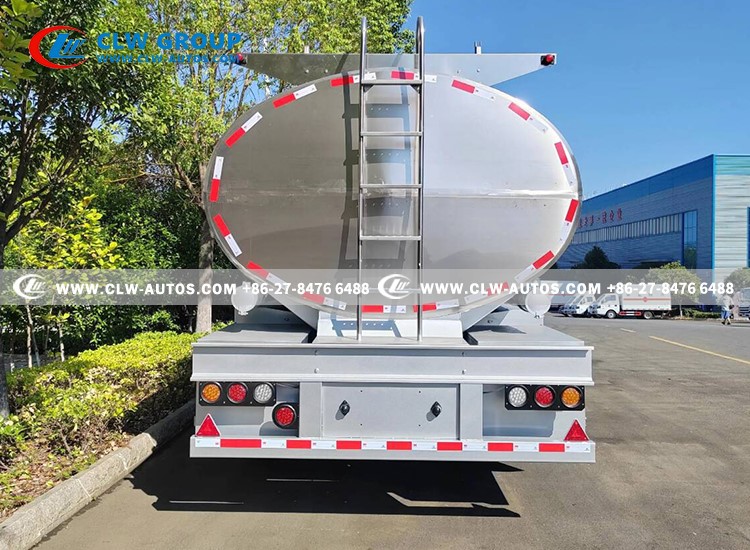

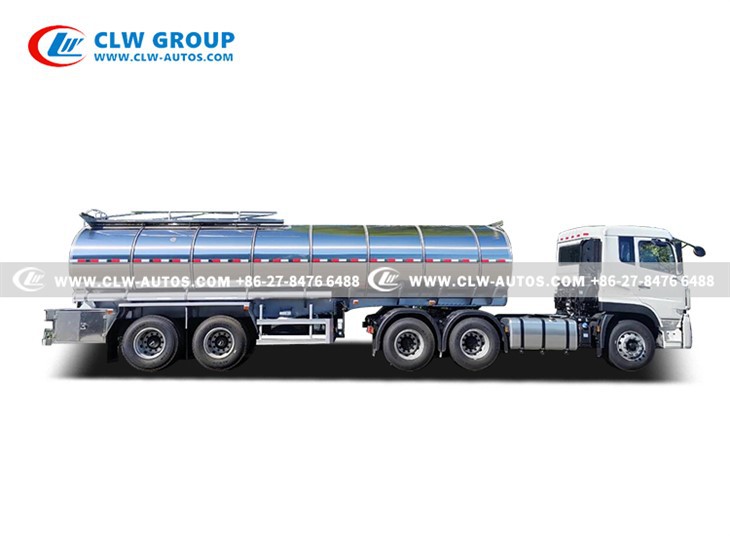

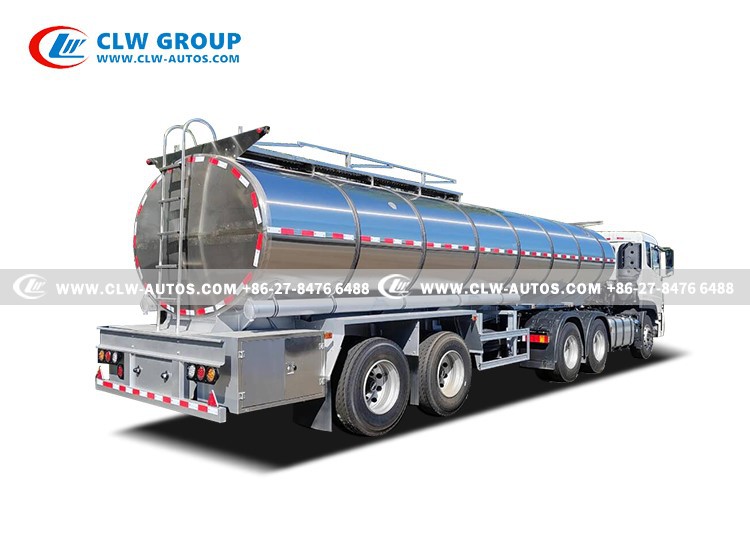

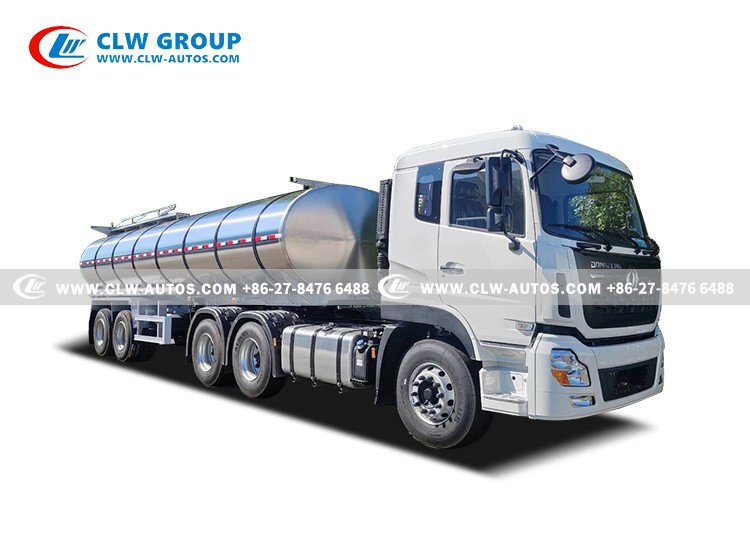

27cbm 2axles Milk Tank Semi-trailer

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 27cbm 2axles milk tank semi-trailer in China. If you're going to buy high quality 27cbm 2axles milk tank semi-trailer, welcome to get more information from our factory. For price consultation, contact us.







This 2-axle 27,000-litre (27 m³) fresh milk transport semi-trailer is designed for high-efficiency and hygienic transportation of liquid food products. The tank is constructed with food-grade SUS304-2B stainless steel (3mm thickness), ensuring corrosion resistance and compliance with strict sanitation standards. Equipped with FUWA axles (13-ton capacity), ABS, and a JOST landing gear, the trailer offers reliability and safety. The tank features multiple compartments for flexible transport of different products simultaneously.



Its advanced insulation (80-120mm polyurethane foam + 10mm rubber sponge) maintains a temperature variation within 1°C over 24 hours, preserving milk freshness. An internal cleaning system with two automated spray balls ensures 360° CIP (Clean-in-Place) coverage for optimal hygiene.









1. Daily fresh milk collection from dairy farms to processing plants.
2. Transport of liquid food products (e.g., milk, juice, liquid eggs) requiring temperature control.
3. Regional distribution where narrow roads or weight restrictions apply (2-axle design enhances accessibility).
4. Operations requiring mixed loads (e.g., different milk grades or non-reactive liquids via separate compartments).
5. Dairy-rich areas with medium-distance transport needs (e.g., regional collection networks).
6. Countries with strict food safety regulations.
7. Regions with temperate to cold climates where thermal efficiency is critical.



Overall dimension	8800x2500x3650mm
Loading capacity	27,000 litres
Tank dimension	8310x2470x1950mm
Gross weight	34,670kg
Net weight	8400kg
Tank shape	Oval shape
Tank material	SUS304-2B food grade
Inner thickness	3.0 mm
Outer wrap thickness	1.0 mm stainless steel
Milk outlet diameter	Φ 51mm GB
Insulation thickness	80-120 mm Polyurethane foam/ 10mm rubber sponge
Thethermal insulation performance	the internal temperature difference changes by 1 degree within 24 hours
Tank end plate	3mm
Clean system	CIP automatic cleaning, guaranteed 2.2 meters equipped with 2 auto matic cleaning balls to meet the 360 ° cleaning requirements
Remarks. 1. The milk discharge switch and the cleaning switch are made into a cluster structure, and each milk bin number is marked, 2. The rear operation box adopts a gas spring hatchback opening and is equipped with an opening handle; 3. Each manhole cover and rear tool box are equipped with a lead sealing device to facilitate management during loading and unloading of fresh milk by the milk truck; 4. Provide a movable ladder for personnel to enter and exit the tank; 5. The tank body can realize the separation and through-separation of warehouses, and can be divided into warehouses according to customer requirements to transport different types of products at one time. 6. Each bin has 2 automatic cleaning balls, controlled by 4 valves, with a valve interface of Φ 51mm.
Chassis
Axle	2 FUWA axles,13 Tons ,with ABS
Landing Gear	JOST brand Two-speed, manual operating, heavy duty landing gear
King Pin	JOST brand,50# or 90# bolt-in king pin
Suspension	heavy duty mechanical suspension
Wheelbase	4700+1310mm
Rear track base	1840/1840mm
Steel plate springs	8/8, 4/4
Tire	12R22.5 12PR tubeless tire including one spare tire, 9 pieces
Painting	Customized logo
