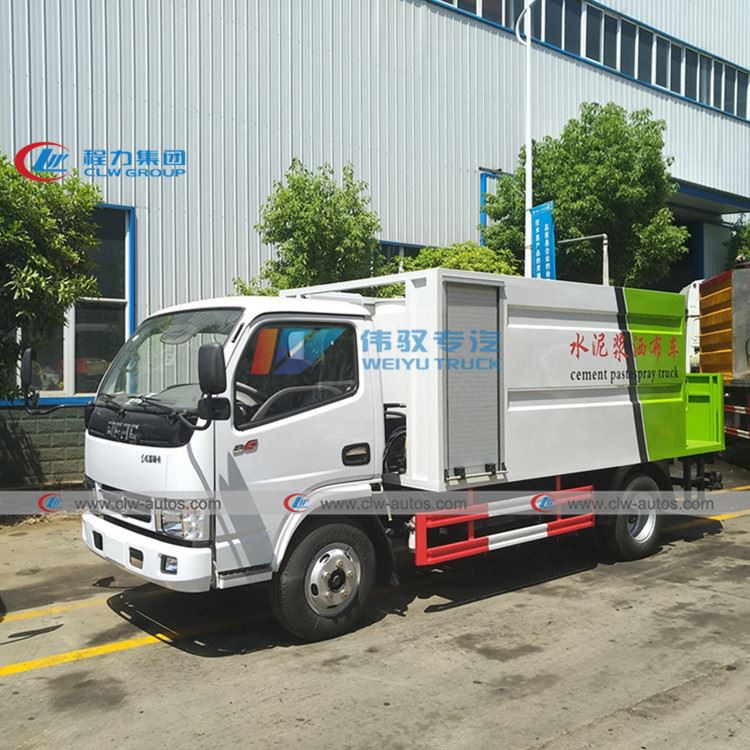

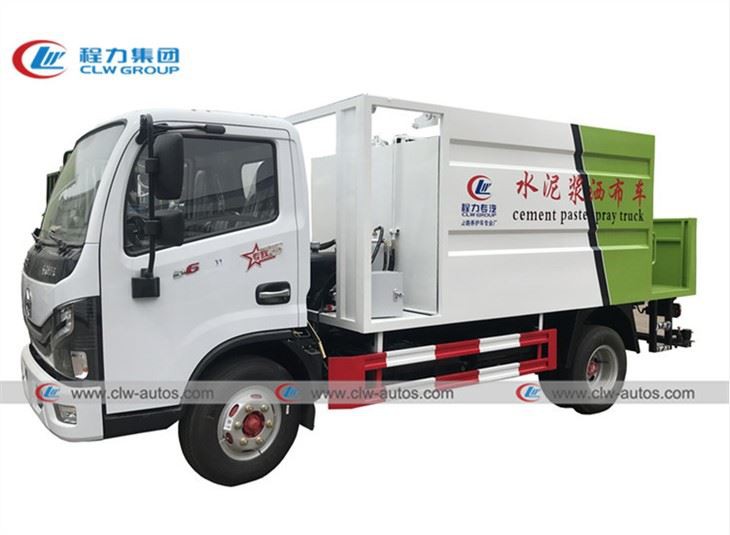

Dongfeng 5M3 Concrete/Cement Paste Spray Truck

Dongfeng Concrete/Cement Paste Spray Truck Tank Volume:3M3-5M3 With Spray Nozzle.

Product Details

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of dongfeng 5m3 concrete/cement paste spray truck in China. If you're going to buy high quality dongfeng 5m3 concrete/cement paste spray truck, welcome to get more information from our factory. For price consultation, contact us.

The detailed Specification of Dongfeng 5M3 Concrete/Cement Paste Spray Truck:

Item	Concrete/Cement Paster Spray Truck		Chassis Brand	Dongfeng
Vehicle parameters	GVW(kg)	7360	Overall Dimension (mm)	6580×2100×2520
	Curb weight (kg)	5380	Steering Wheel	LHD
	Wheelbase (mm)	3360	Driving Type	4*2
Engine parameters	Engine Brand	Dongfeng
	Model	CY4100Q	Emission Standard	Diesel, Euro 3
	Horse Power(hp)	82	Displacement	3700ml
	4 stroke,4-cylinders in line, water cooling
Gear Box	6 speed, Manual
Performance Parameter	Max Speed (km/h)	90	Front Axle	1503
	Cab Seat	3,2	Rear Axle	1494
	Leaf Spring	6/6+5	Front Suspension	1040
	Tire No.	6+1	Rear Suspension	2010
	Tire Specification	7.00-16	Approach Angle	19
	Axle No.	2	Departure Angle	11
Upper Structure	Tank Volume	5CBM
	Tank Material	Carbon steel

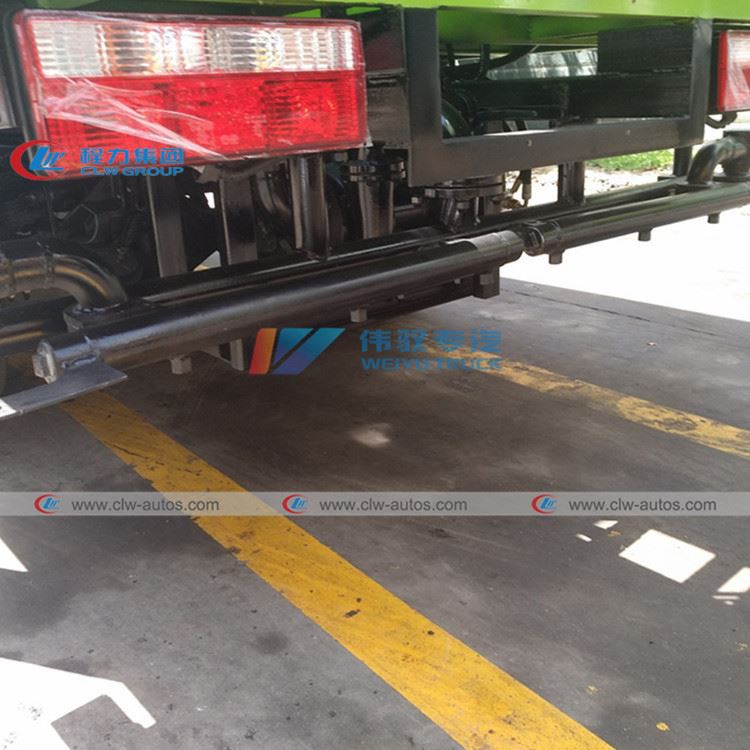

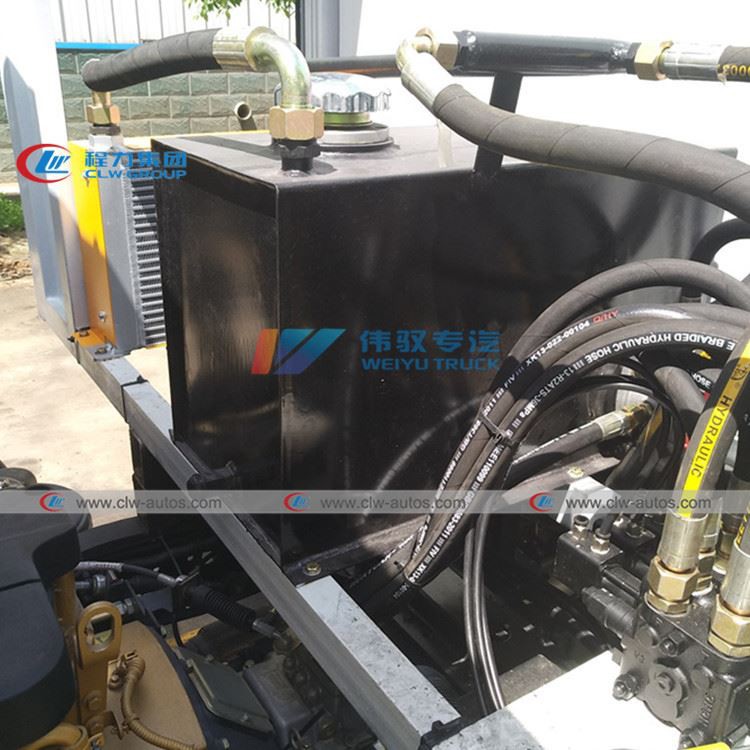

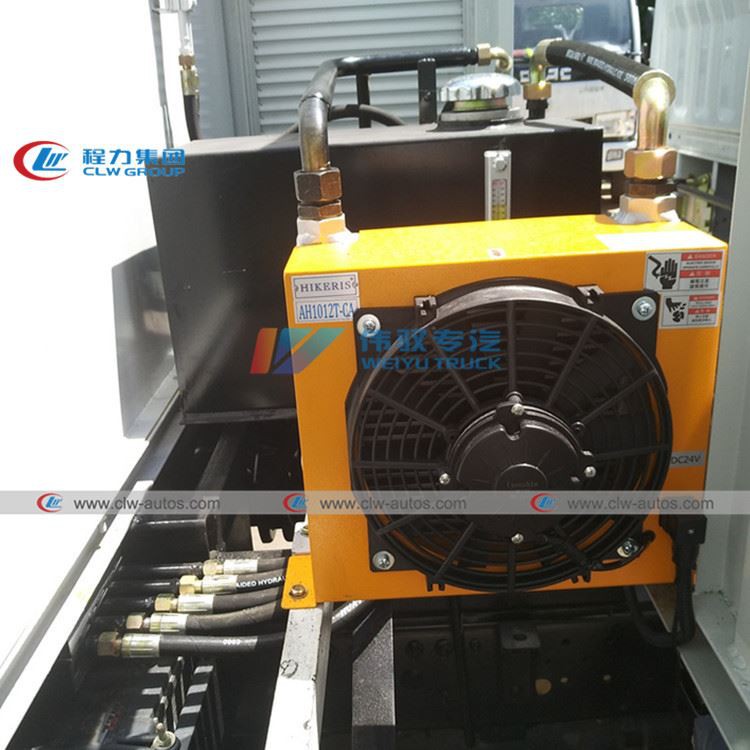

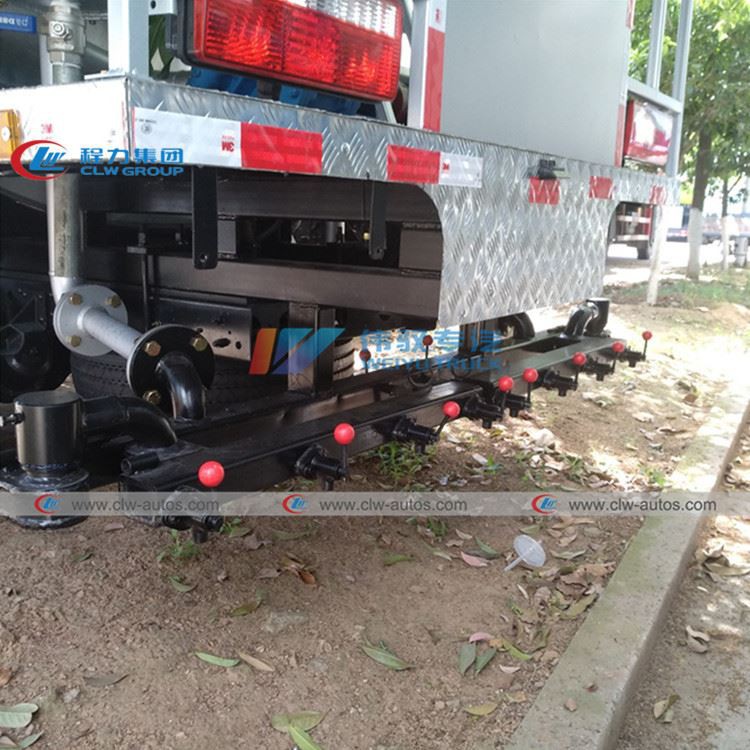

	Equiped	Spray Nozzle, Hydraulic pump &motor etc.
