40ft 50Tons Fence Dropside Cargo Semi Trailer
40ft 50Tons Fence Dropside Cargo Semi Trailer 40ft 45ft contailer loading sizes can be customized. Loading capacity: 40Tons 45Tons, 50Tons, 560Tons
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 40ft 50tons fence dropside cargo semi trailer in China. If you're going to buy high quality 40ft 50tons fence dropside cargo semi trailer, welcome to get more information from our factory. For price consultation, contact us.
Goods Description:
The cargo's carring part of the stake truck is store house bar style designed, the beam wears through the longitudinal beam which is welded as a space frame structure, making the frame strength, stiffness, flexibility an equilibrium, a strong carrying capacity without permanent deformation.
Our CLW Group, Chengli Special Automobile Co., Ltd. can customize each trailer as customer's requirement, and give you a good solution.
According to client's speical requests for trailer, we can design full set drawings for clients.
(1) .The material of trailer frames is high quality and strength steel that can extend the using life of trailer.
(2). It has been designed appropriately according with clients requirements, such as dimension, payload, main beam and so on.
(3). Brake system and Electric system are well-known brand in the world.
(4). Shot blasting twice and particular coat painting can guarantee the quality of trailer surface.
(5). All componenet/configuration (OEM parts) can be arranged based on clients detailed requirements and meet clients need.
For detailed information, Please contact: Ms. Helen Jiang WhatsApp: +86 135 5419 5719.

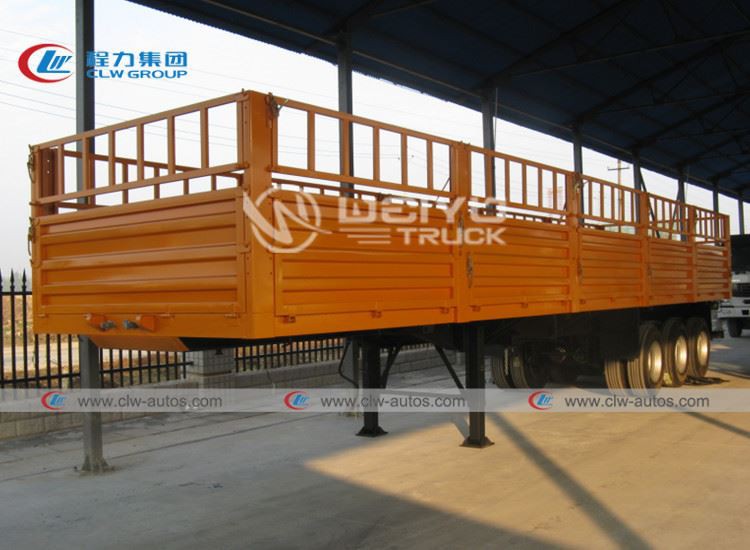

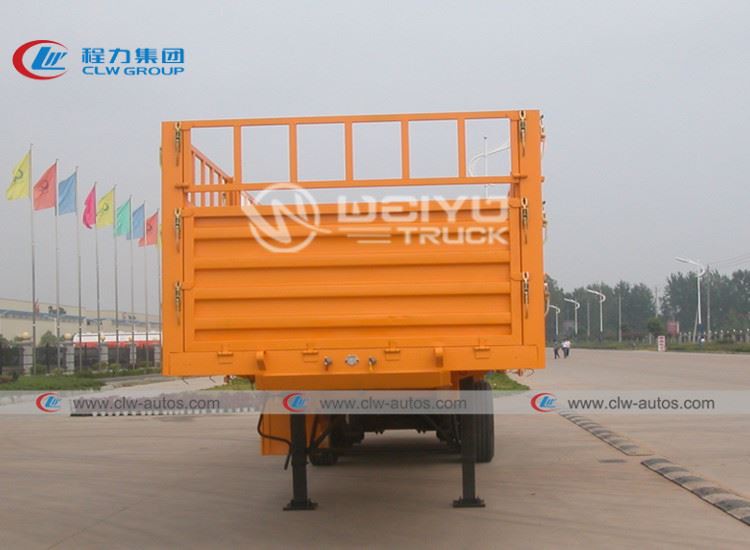

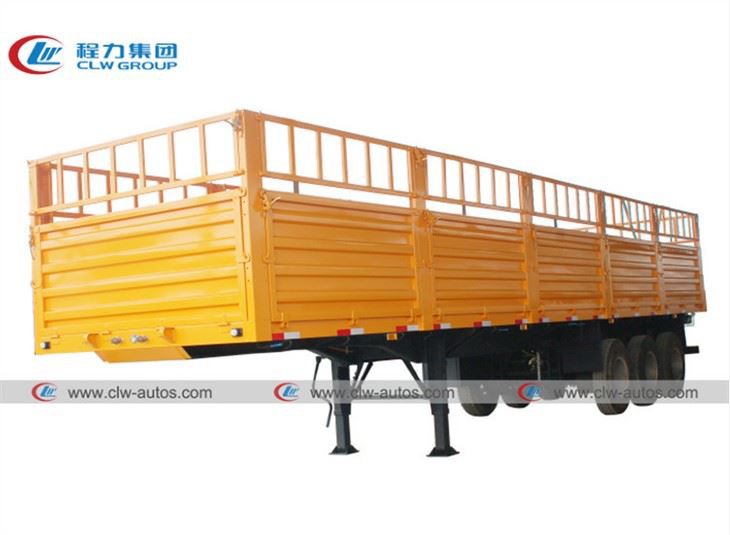

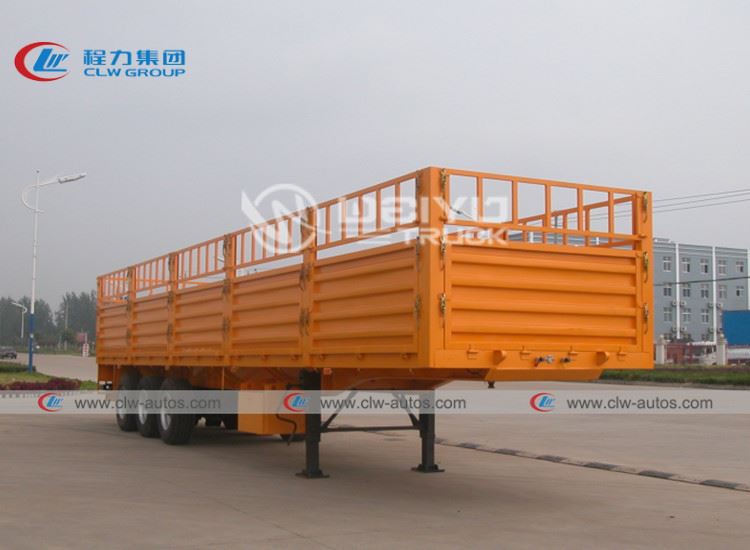

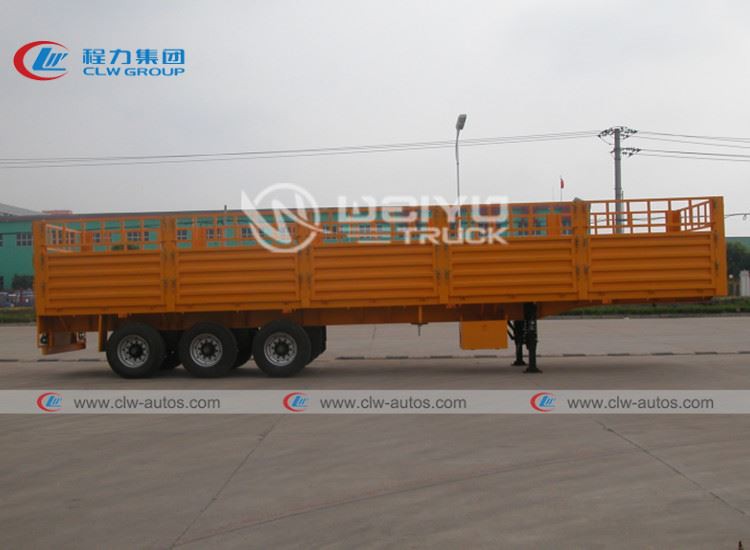

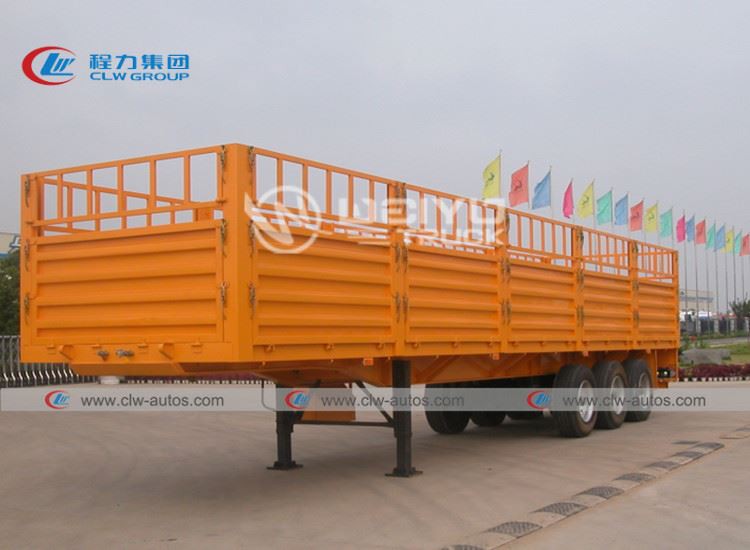

More detailed pictures for 40ft 50Tons Fence Dropside Cargo Semi Trailer:
The detailed specification for 40ft 50Tons Fence Dropside Cargo Semi Trailer:
| DIMENSIONS | ||
| Tare Weight | 9900kg | |
| Overall Length | 12400mm | |
| Overall Width | 2480mm | |
| Payload | 45000kg | |
| Photo for reference. Final products can be made according to exact requirements | ||
| SPECIFICATIONS | ||
| I Beam& Chassis | Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 16mm,width 140mm; Middle Flange 8mm,Height 600mm, Bottom Flange 18mm,width 140mm. | |
| Axle | 3 axles | |
| HJ Brand 13 ton | ||
| Suspension | German Style Heavy duty mechanical suspension | |
| Floor | 3mm checker plate | |
| Leaf Spring | 13 piece Leaf spring for heavy loading | |
| King Pin | JOST brand 2" Bolt-in King Pin | |
| Landing Gear | JOST brand Two-speed, manual operating, heavy duty landing gear | |
| Wheel Rim | 9.0-22.5 wheel rim ,13 pieces | |
| Tire | 12R22.5 tire with one spare tire, 13 pieces | |
| Twist Lock | 12 nos. of ISO twist lock for 1x20ft, 2x20ft; 1x40ft container, the retractable central locks can be laid down. | |
| Spare Tire | One set of spare tire including a carrier | |
| Braking System | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks | |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint | |
| Accessories | One standard tool box | |
Product advantage:
1.Scientific design and quality assurance:The design in performed in accordance with the actual parameters of
the tractor and trailer in the design process,ensuring to reach best level of whole vehicle transport performance.
2.Characteristic overall camber structure of longitudinal beams ensures lifetime downward bending-free of crossbeams:As per the mechanical analysis,the unique overall camber structure of the longitudinal beam
is adopted to ensure lifetime downward bending-free of crossbeams and effective save fuel consumption under same bearing load and build maximum economic
value for users.
3.Quality steel material and OEM parts ensure quality and condition of products.
4.Characteristic suspension system eliminates uneven and abnormal wear of tires.
5.Special steel and characteristic railing structure feature deformation-free and lighter dead weight.
6.Welding procedure:Frame and top-bottom welding are all compressed tightly with pneumatic-hydraulic clamping,automatic transmission and other large tools welding,effectively control welding deformation
and guarantee the smoothness and technical requirements.The turnover model makes the welding strength;
The electric tilting system controls the manufacture process spare part distortion.Mixes gas welding ensures the welded
joint quality.
7.Painting craft:Using the baking varnish craft,primer twice,top coat twice and detection is made strictly according to
the national standard for film thickness to guarantee the paint quality and brightness.
8.Humanized design:
→The limiter is added to the spin lock to ensure safer transport;
→The design of spin lock handle features beautiful and elegant and easy operate;
→The operating handle of front enclose spin lock is located within the front enclosure frame,in order to prevent the handle from scratching the accessories of main unit.
→Two positioned three-way valve is added to the brake system to improve the safety of parking brake.
9.Electric system:The electric system adopts the genuine fully sealed harness from domestic renowned brands.The lamps adopt new LED lamp,featuring high illumination intensity and light perception,high mist penetration,stale working performance and long service life.
