20Metric Ton LPG Gas Cylinder Filling Tanker Station Niger
20Ton LPG Gas Station
50,000L Gas Tank
Corken Pump 2" 3"
Blacker Gas Compressor
Digital Filling Scales
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 20metric ton lpg gas cylinder filling tanker station niger in China. If you're going to buy high quality 20metric ton lpg gas cylinder filling tanker station niger, welcome to get more information from our factory. For price consultation, contact us.
Description:

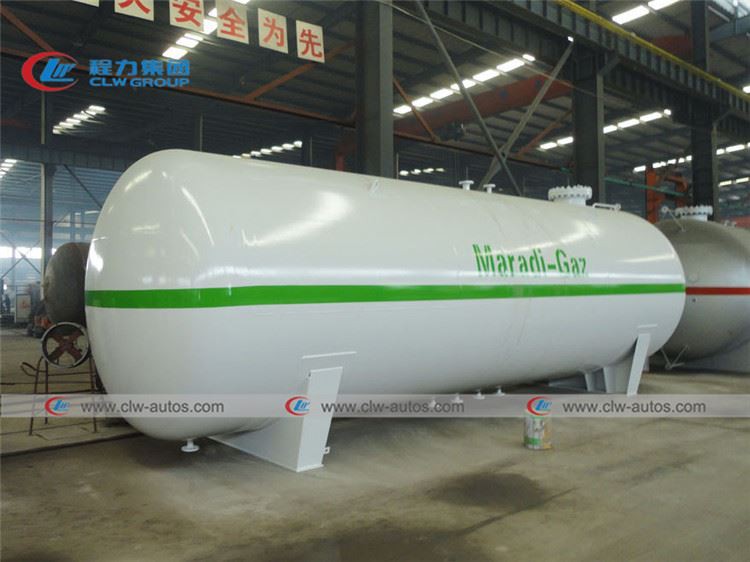

LPG Tank: 20Ton / 50,000Liters
Tank Material: Q345R, 14mm body, 16mm End Plate.
Tank Shape: Cylinder Type with Elliptical End.
Tank Pressure: 17.7Bar / 1.77Mpa
Test Pressure: 21.0Bar / 2.10Mpa
Design Stardard: GB150-2013,
Full Station Equipment:

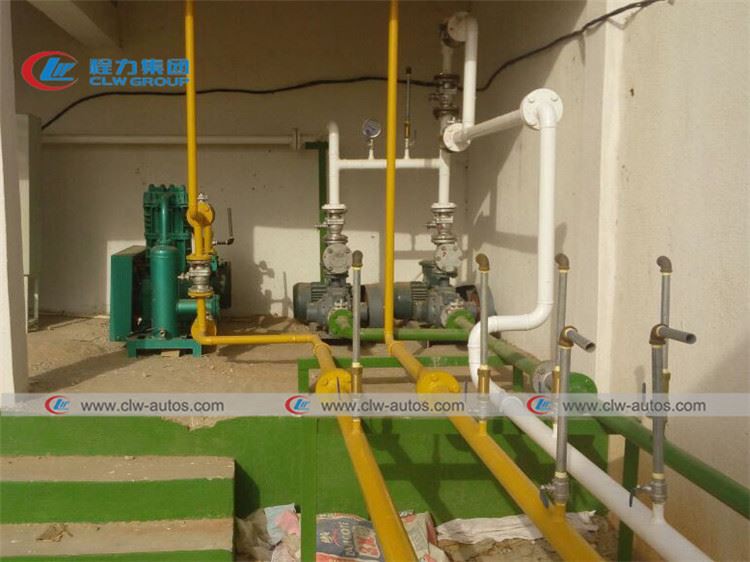

LPG Pump: 2”or 3 " Corken/Blackmer Pump, or Chinese Brand
Gas Compressor: For truck discharging

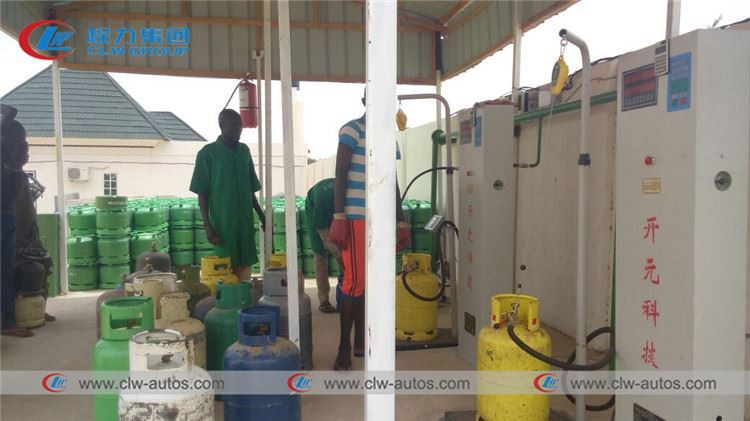

Digital Filling Scale: Auto Filling, Auto Cut-off,
Leakage Detector: to warning possible leakage danger
Tank Accessories: Gauges, Safety Relief Vavle

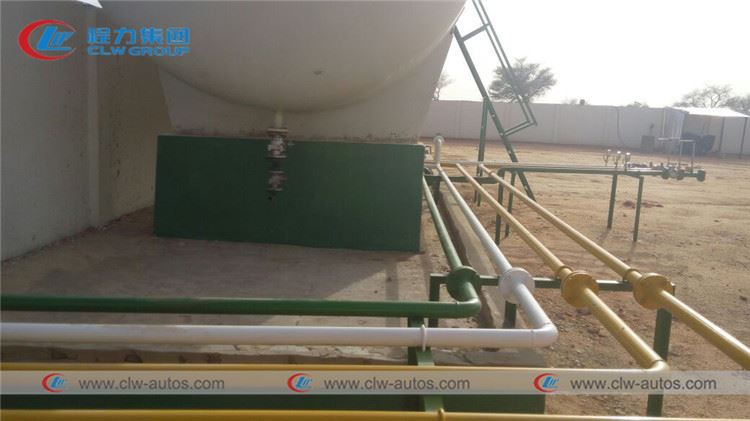

Pipeline System: Pipe, Vavles, line safety valves,

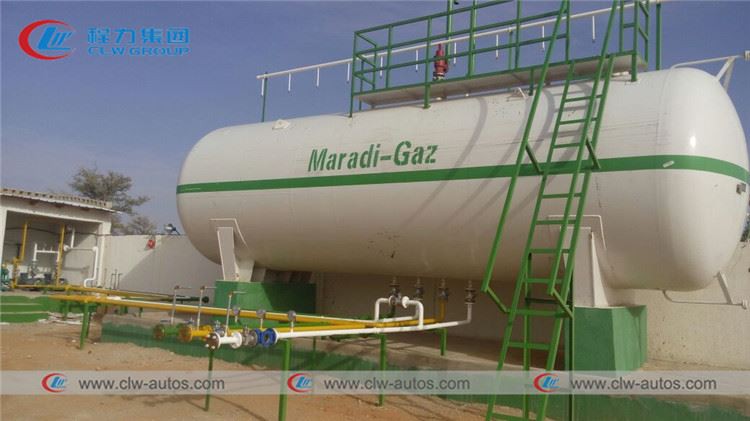

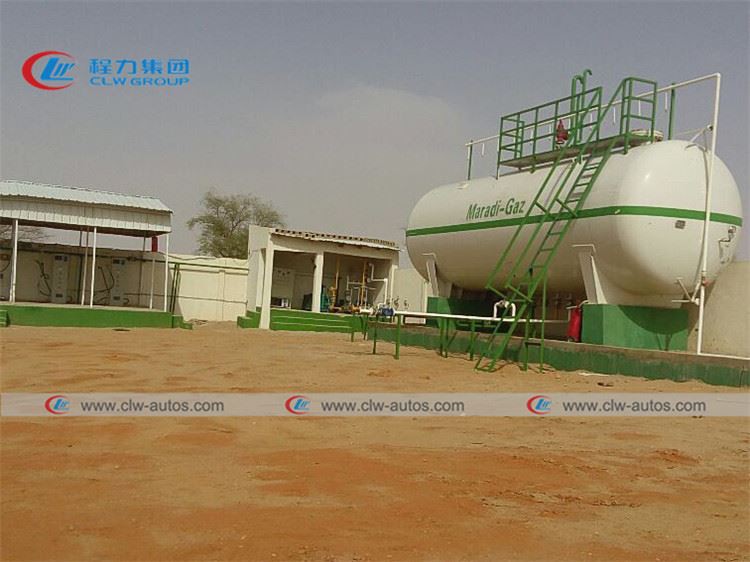

Reference Photos:
Specification of Tank:
50 CBM LPG TANKER DIMENSIONS | |||
Volume of Tank | 50 CBM | ||
Filling Weight | 25,000 kg | ||
Tank Weight | 10640 kg | ||
Thickness of Shell (mm) | 14 mm | ||
Thickness of Endplate (mm) | 16 mm | ||
Tank Diameter (mm) | 2700 mm | ||
External Dimensions (mm) (length x width x height) | 9182 x 2728 x 3318 mm | ||
Material of Tank and Main Pressure Parts | Carbon Steel Q345R | ||
Filling Medium | Liquefied Petroleum Gas ( Propane) | ||
Design Pressure | 1.77 MPa | ||
Corrosion Allowance | 1 mm | ||
Medium Density | 420-590 kg/ cbm | ||
Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. | |||
Main parts of LPG Tank | |||
Item | Specification/ mm | Quantity | |
Discharge Pipe | DN50 | 1 | |
Inflow Pipe | DN50 | 1 | |
Outlet | DN50 | 1 | |
Gas phase balance pipes | DN50 | 2 | |
Manhole | DN450 | 1 | |
Drain Hole | DN50 | 1 | |
Other accessories：Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge. | |||
