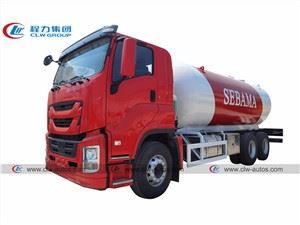

ISUZU GIGA 6X4 350HP 10MT 20,000L LPG Tanker Truck
ISUZU LPG truck
10 tons LPG truck ISUZU
20,000 LITERS LPG TRUCK
ISUZU GIGA LPG TRUCK
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu giga 6x4 350hp 10mt 20,000l lpg tanker truck in China. If you're going to buy high quality isuzu giga 6x4 350hp 10mt 20,000l lpg tanker truck, welcome to get more information from our factory. For price consultation, contact us.
Details
lpg tanker truck(also called lpg truck,propane truck,lpg bridger truck,lpg bobtail,lpg dispenser truck,lpg delivery truck,propane delivery truck,gas dispenser truck,lpg tank truck,propane tanker truck) is used to transport lpg/propane/cooking gas/liquified petroleum gas and it can refill cylinders or mini station skid when lpg tanker truck is equipped with dispenser machine.
★Truck Brands of LPG tanker truck :ISUZU/DONGFENG/HOWO/FOTON/JAC/SHACMAN...
★Available size of LPG tanker truck : 5000liters/8000liters/10,000liters/15,000liters/20,000liters/24000liters/34500 liters and so on.
★ Function of LPG tankerTruck : mobile propane or Butane Gas Delivery/ Refilling/bottling/filling
With different design,you can choose volume flow meter or lpg dispenser for your truck. propane truck is widely used for filling home cylinders.It can be measured by filling weight or filling volume and it can offer receipt in english,french or spanish as required. With above lpg bobtail,you can start lpg filling business easily.

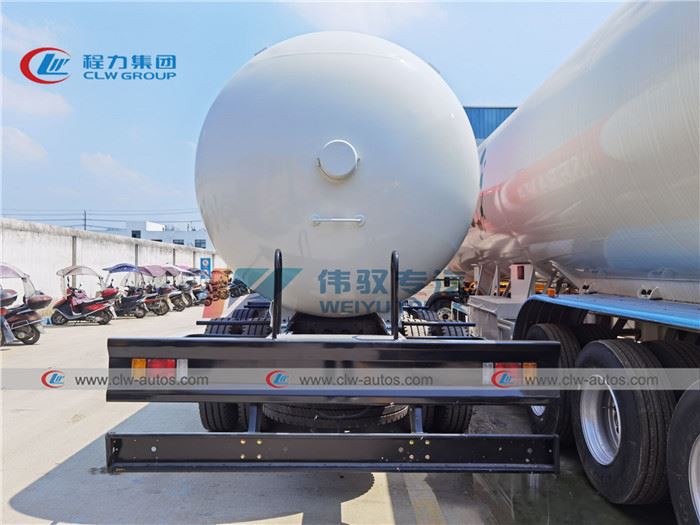

rear view of ISUZU 10tons lpg tanker truck

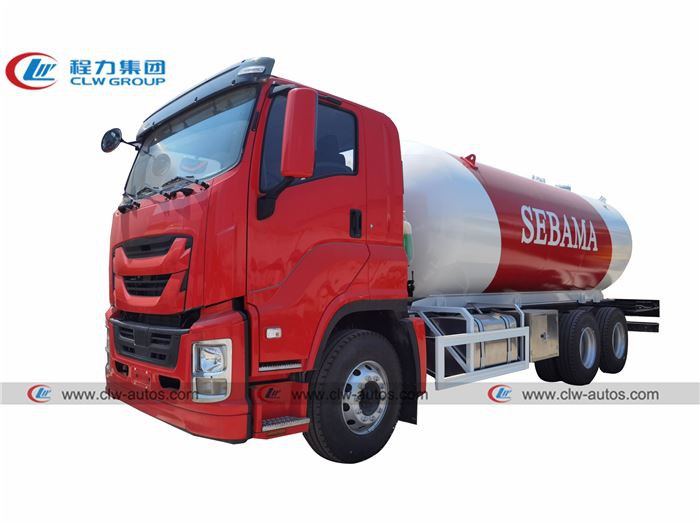

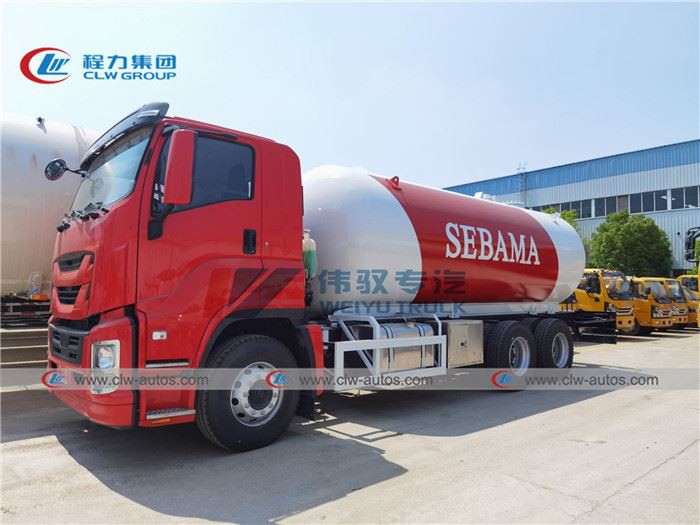

front side view of ISUZU 10tons lpg tanker truck

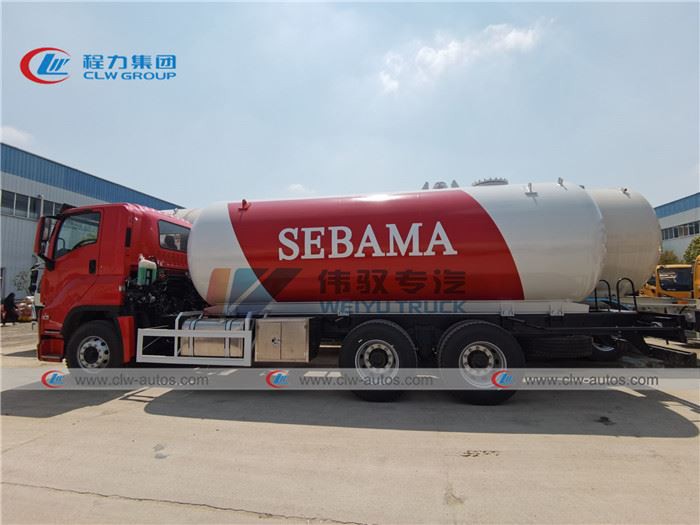

side view of ISUZU 10tons lpg tanker truck

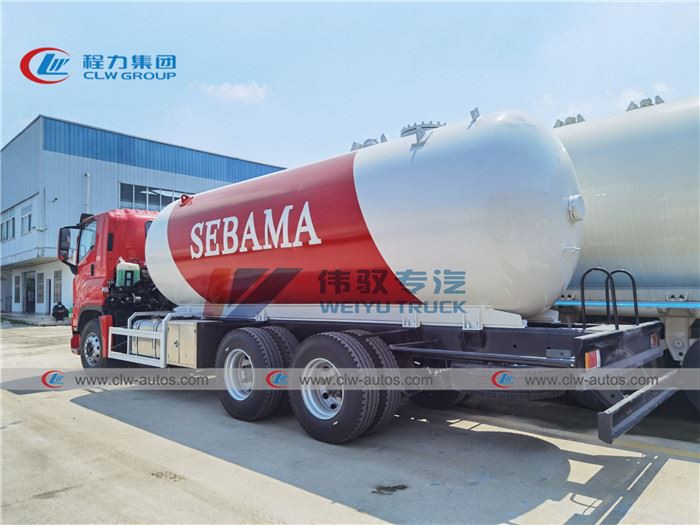

rear side view of ISUZU 10tons lpg tanker truck

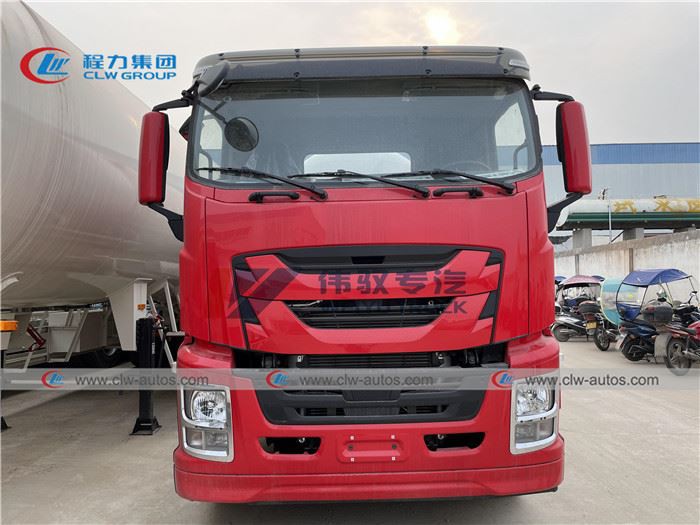

beautiful GIGA cabin of ISUZU 10tons lpg tanker truck
Item No. | Parameters | |
Overall Dimension | 9100*2500*3450mm | |
Driving Model | left hand drive | |
Payload | 10,000 kg | |
Wheel Base | 4565+1370 mm | |
Front Axle | 7000kg | |
Rear Axle | 13000kg*2 | |
Engine | ISUZU 6UZ1-TCG51 engine | |
Engine horsepower | 350 HP EURO V | |
Displacement | 9839 mL (Diesel) | |
Max Driving Speed | 80 km/h | |
Cabin | 2~3 Passenger allowed, left hand driving,with A/C | |
Tire | 12.00R22.5 or 315/80R22.5 (10 pieces with one spare) | |
LPG tank | ||
Volume: | 20cbm | |
Tank material: | Q345R | |
Tank diameter: | 2050mm | |
Tank thickness: | 10mm for tanker shell and 12mm for end plate | |
Tank length: | 6445mm | |
Filling gas | Propane(LPG) | |
Design Pressure: | 1.61Mpa | |
Accessory | ||
Safety Valve | No. | 1 |
Type | A412F-2.5-16 | |
Nominal pressure | 2.5Mpa | |
Opening pressure | 1.86-1.94Mpa | |
Closing pressure | >1.67Mpa | |
Level gauge | Float-ball type/at rear of LPG tanker | |
Tool Box | 1 | |
Valve Box | 1 with flange vapour phase and liquid phase | |
Thermometer | 1 | |
Pressure Gauge | 1 | |
Emergency Valve | 1 | |
Fender | Steel | |
Fire Extinguisher | 2 | |
Anti-static Tape | 1 | |
Painting | As required | |
Key word:lpg tanker truck,ISUZU lpg truck,10tons lpg truck,10mt lpg truck,lpg bobtail truck,lpg bobtail,20,000liters lpg truck,20,000L lpg tanker truck,lpg dispenser truck
