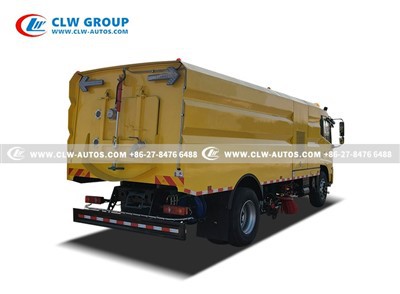

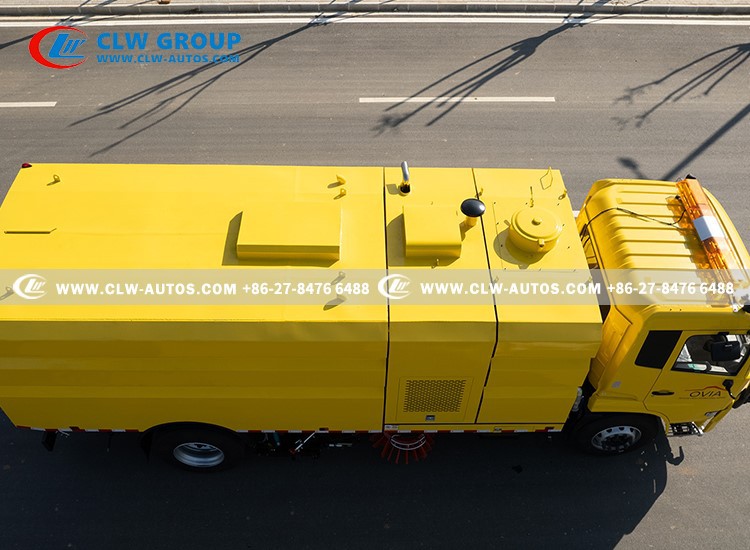

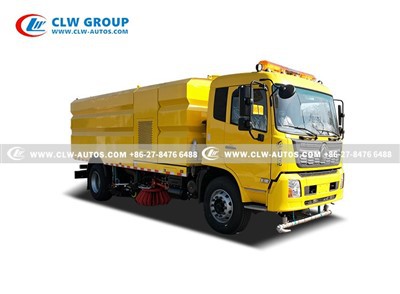

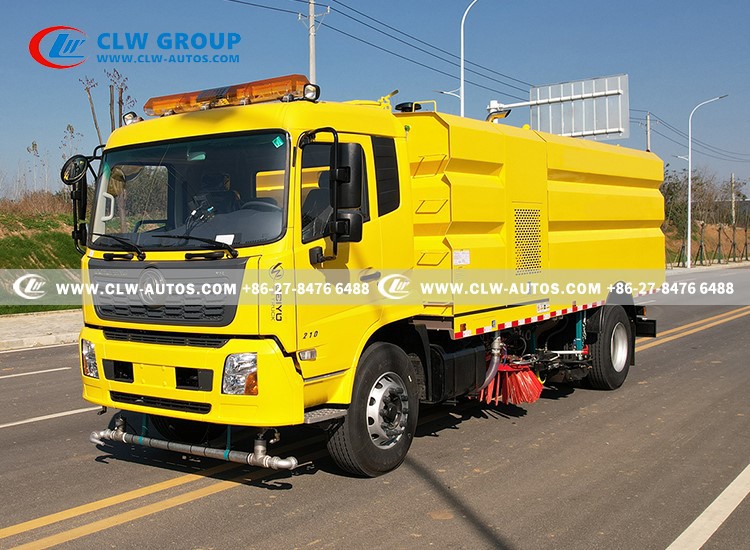

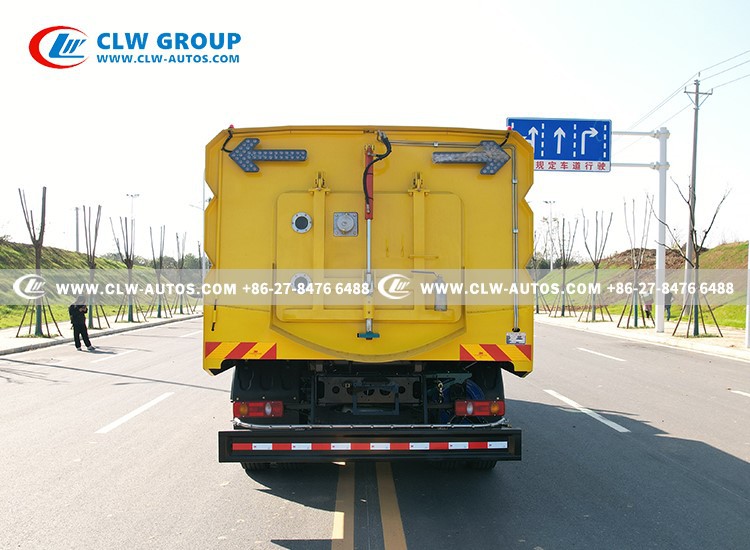

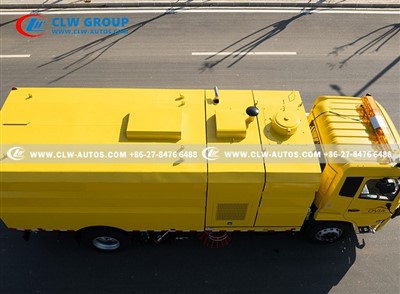

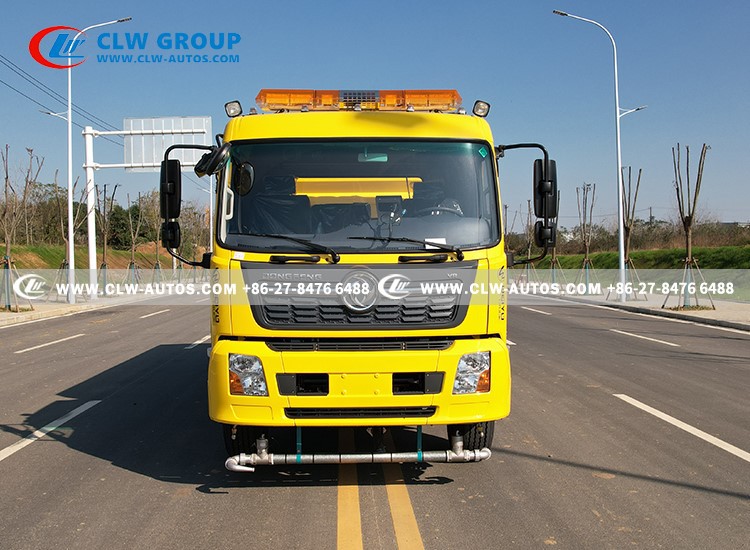

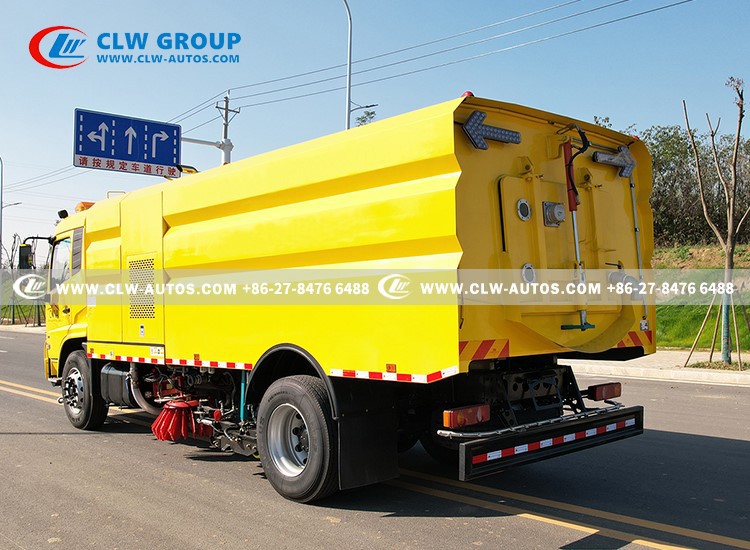

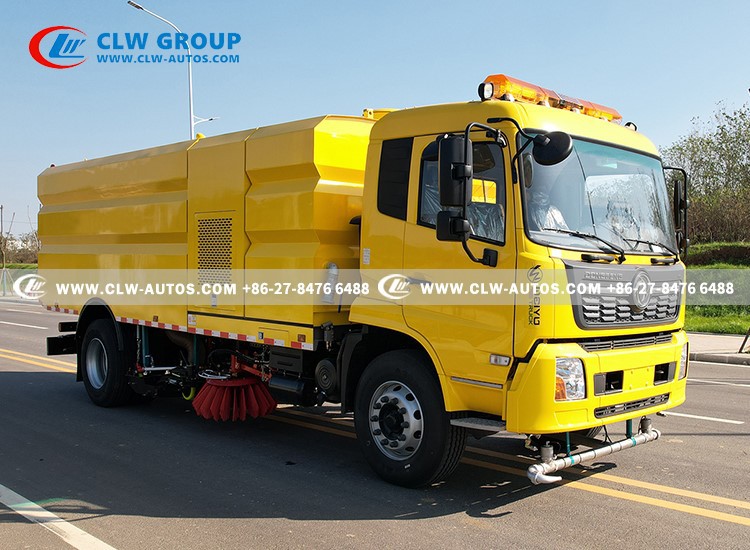

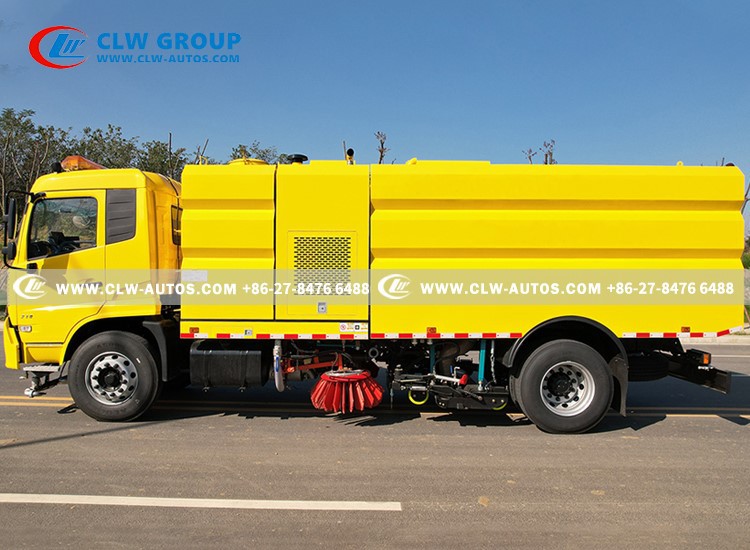

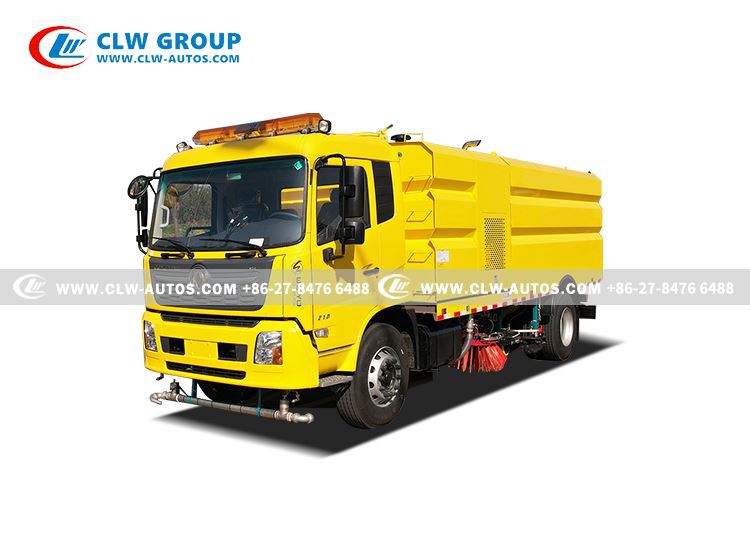

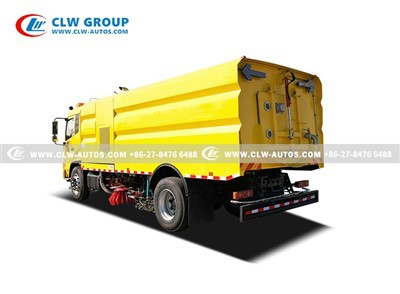

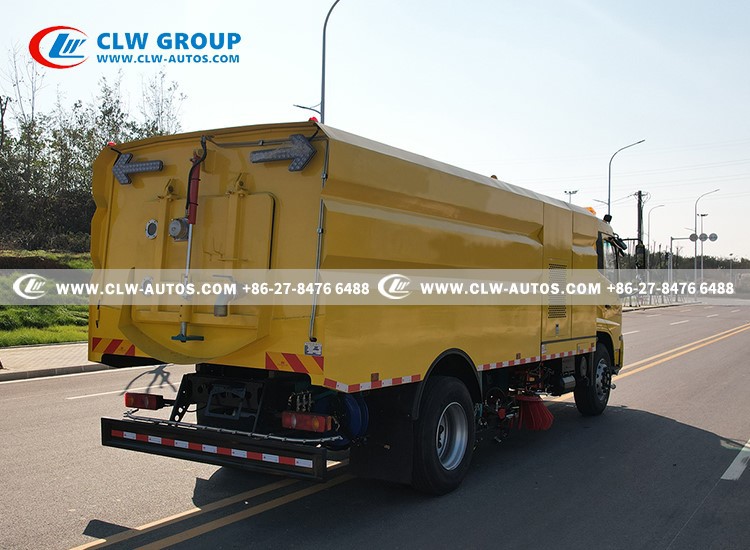

Dongfeng City Road Sweeper Washing Truck



Dongfeng 16cbm City Road Sweeper Washing Truck Cummins 210HP



We are professional special vehicle manufacturer in China since 2004 | Brand new truck factory price for sale













The Dongfeng KR 16 Cubic Meter Road Sweeper Washing Truck, also called as street sweeper truck, road cleaning truck, sanitation truck, is a premium, multi-functional cleaning vehicle engineered for superior performance, durability, and operational efficiency. Combining sweeping, high-pressure washing, garbage collection, and dust suppression into one intelligent system, it is the ideal choice for municipal sanitation, highway maintenance, airport cleaning, industrial park upkeep, and large public area maintenance.



Key Features & Advanced Design:



 High-Capacity & Durable Construction

 Water Tank: 9 cubic meters, constructed from robust carbon steel.

 Garbage Tank: 7 cubic meters, made of 4mm 304 stainless steel for exceptional corrosion resistance and long service life.

 Powerful Engine: Powered by a reliable Cummins 210 HP main engine and a Cummins 170 HP auxiliary engine, ensuring ample power for both driving and all cleaning operations.



This versatile truck integrates multiple cleaning modes to handle any task:



 Road Sweeping & Scrubbing

 High-Pressure Cleaning & Low-Pressure Rinsing

 Curbstone Cleaning

 Garbage Collection & Sewage Recovery

 Spray Dust Suppression

 Road Barrier & Wall Cleaning

 Small Advertisement (Graffiti) Removal



Working show of Dongfeng 16m3 City Road Sweeper Washing Truck by China Special Vehicle Manufacturer

For quick inquiry, contact Juniper Gong: Wechat/Whatsapp +86 139 2570 3918



【Engineered for Performance & Efficiency】



User-Centric Layout: Front-mounted water tank and rear-mounted sewage tank with a semi-enclosed auxiliary engine compartment allow for easy maintenance access.

Intelligent Side Brush System: Adjustable ground pressure and variable brush speed optimize cleaning for different road surfaces and reduce wear.



【Premium Pump Systems】



German Pumpe Brand High-Pressure Pump for powerful surface cleaning.

Weilong 50/110 Low-Pressure Pump provides ultra-wide washing coverage up to 8 lanes (24 meters).

Reliable Hydraulics: High-quality Taiwanese hydraulic valve blocks ensure smooth, responsive, and maintenance-friendly operation.

Smart Control & Fuel Savings: Features one-touch operation with 9 pre-set job modes managed by a Programmable Logic Controller (PLC). Manual auxiliary engine throttle control allows speed adjustment for optimal cleaning and reduced fuel consumption.



【Built-in Safety & Protection Systems】



Automatic Clutch Protection: Auxiliary engine includes an ECU-controlled automotive clutch that disengages during startup/shutdown to protect critical components.

Intelligent Reverse Protection: Automatically stops all operations and retracts brushes, suction plates, and side spray rods during emergency reversing.

Tip-Over & Maintenance Safety: Prevents garbage tank lift-over and includes safety interlocks (rear door must be open to lift tank, safety lock bar must be engaged to lower it).

Comprehensive Monitoring Suite: Includes voice alarms, fault self-diagnosis, anti-overflow/low-water alarms, and work/rearview cameras.











 Truck Chassis Parameters

Component	Specification
Cabin	Dongfeng Kingrun one-and-a-half row cab, left-hand drive, 2-3 seats with sleeper, air-conditioned, power steering.
Engine	Dongfeng Cummins B210 33, 210HP, 5.9L, 6-cylinder diesel, Euro 3 emission standard.
Gearbox	FAST manual transmission, 8 forward + 2 reverse speed.
Axle Loading	Front axle: 6,000 kg; Rear axle: 10,000 kg.
Tires	10.00R20 (7 pieces including spare).
Brake System	Full air brake system with parking spring brake and exhaust brake.
Fuel Tank	160-liter steel fuel tank.



Upper Structure Parameters

Parameter	Specification
Garbage Tank Volume	7.0 cbm (Stainless Steel 304)
Water Tank Volume	9.0 cbm (Carbon Steel)
Auxiliary Engine	Cummins, 125 kW / 170 HP
Sweeping Width	2800-3200 mm
Cleaning Speed	3-15 km/h
Max. Sweeping Efficiency	Up to 48,000 m²/h
Suction Pipe Diameter	Φ 200 mm
Vacuum Negative Pressure	380mm H₂O

Additional Features: Rear LED pilot lamp, self-discharging box body. Color and client logo are customizable.
