Product Details

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu p4 led truck 98hp in China. If you're going to buy high quality isuzu p4 led truck 98hp, welcome to get more information from our factory. For price consultation, contact us.

ISUZU P4 LED Truck 98HP Double Screen liftable,optional for Live stream display

We are professional LED truck manufacturer in China since 2004

Product Descriptions

ISUZU LED P4 LED truck,also called LED billboard truck,water proof LED screen truck, ISUZU truck mounted with led screens or mobile outdoor ISUZU LED screen truck or mobile ISUZU led display truck,digital LED truck is optional for EURO IV/EURO V/VI, vehicle model CLW5040XXC, chassis model: QL1040BUHAY, vehicle size 5995mm*2040mm*2990mm. The ISUZU led box is 4.2 meters long, with Qingling Isuzu (Chongqing) Engine Co., Ltd., engine 98HP/120 HP, wheelbase 3360mm, with ABS anti-lock braking system, oil brake, cab can seat 2 people, curb weight 4365KG, 7.00R16 8PR tires, high speed 115KM/H.

Why do you need ISUZU LED TRUCK?

Advertising has become an essential aspect of any successful business. The effective promotion of a brand or product can make a huge difference in its overall success. LED billboard trucks have become an incredibly popular and effective advertising solution.

These mobile digital advertising trucks have emerged as a powerful tool for companies looking to increase their brand awareness and reach a wider audience.

As an LED advertising vehicle, Isuzu is a well-deserved model in terms of detail workmanship. Equipped with Ouma ultra-quiet diesel generator set, the playback life and use time of the color screen are greatly improved, ensuring that the vehicle can be used for a long time.

Different design and option of LED truck

LED advertising vehicle display screen: one side/ two sides/ three sides
LED screen lifting: one side lifting,/two sides lifting LED display model:P6, P5, P4, P3 LED display
Powered by: Generator/outside electricty/Li battery
LED advertising vehicle screen is three-dimensional, vivid, clear and dynamic, and equipped with a light control system, which can adjust the brightness of the screen according to outdoor light. It is easy to move, and the location and information can be changed at any time without installation and disassembly process.
The body of the Isuzu LED truck is made of cold-rolled steel plate and aluminum patterned plate.
LED full-color screens can be installed on both sides of body (or the left side can be equipped with an LED screen and the other side is a scrolling light box advertisement).
The most popular choise of screen size is 3840x1760mm; one side of the screen can be lifted; a single screen is installed on the rear door, and the screen size is 1280x1440mm;

Can i use the truck for a live stream video playing?

Yes, the ISUZU LED truck can display live stream football games,movies and TV shows
Or you can diaplay Live camera video
Contact us to know more

Can you do seamless LED screen body design with naked 3D effect for ISUZU LED truck?

yes, You can check following YOUTUBE video for details of ISUZU LED billboard truck with 3D effect

Product Features

Excellent frame material, crafted with a composite steel frame.
Aluminum-designed non-slip floor.
Powered by a diesel/gasoline generator or Li battery during movement.
Can be connected to household power supply while parking
A large LED display integrated on three sides of the vehicle. You can also choose to have screens on one or two sides only.
High quality LED screens,options for P3/P4/P5/P6 varying high resolutions. Offers greater stability, smoothness, and color vibrancy compared to regular brands.
Outdoor waterproof display screen and sound column, impervious to weather conditions, enabling advertising at any time.
Optional for hydraulic stage(one side/two sides), Midea/Gree air conditioning, screen protection panel, advertising lightbox, etc.

*We can supply these truck chassis: FAW,HOWO,ISUZU,FOTON,DONGFENG,SHACMAN,JAC,JMC,KAMA,etc.

*We can also supply the LED box only if you have your own truck chassis.

Please check following video for the LED body box only.

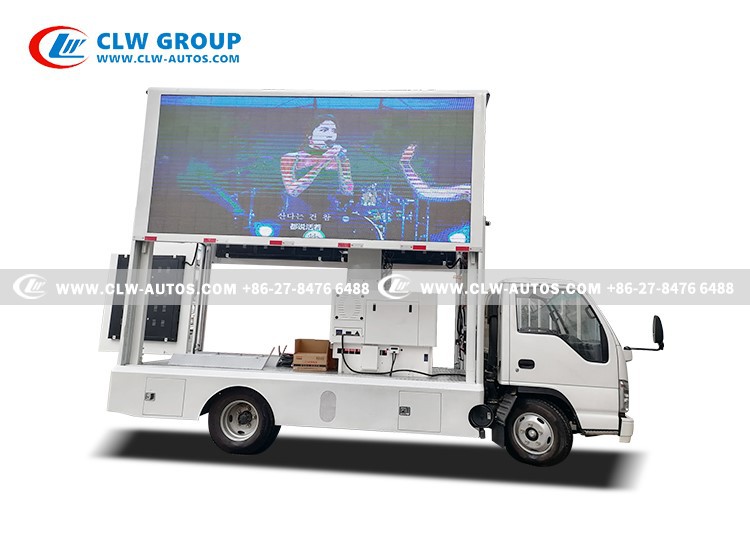

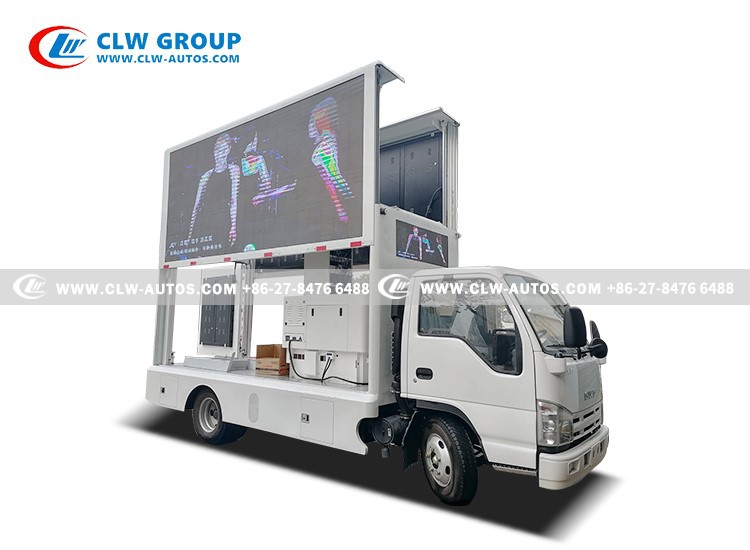

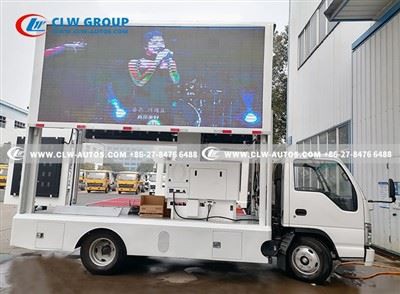

Reference Pictures

-Powered by electricity

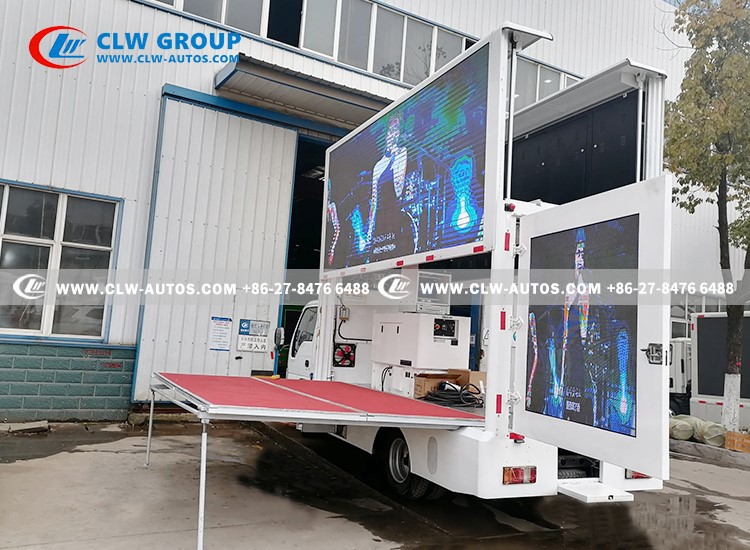

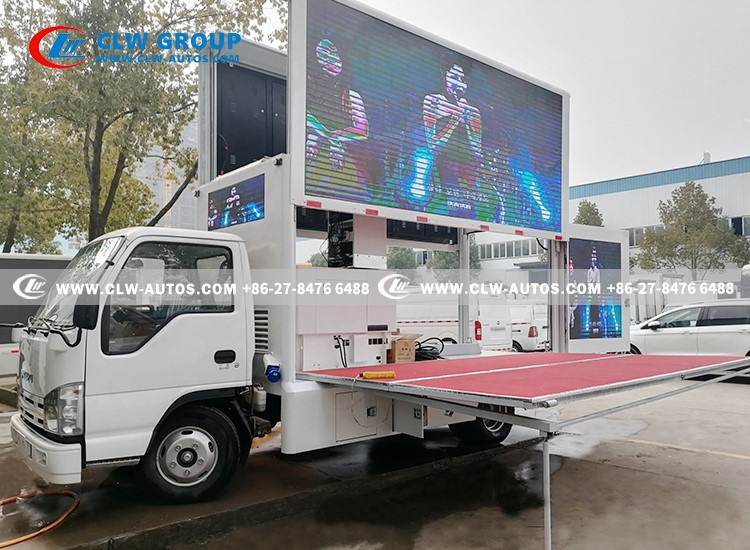

-Powered by generator and with stage

Products Parameters

General Technical Parameters
Overall Dimension	5995x2075x2990(mm)
Gross Vehicle Weight	4500(Kgs)
Curb Weight	4350(Kgs)
Chassis Specification
Chassis Parameters	Chassis Brand		ISUZU
	Cabin		Single row, Left Hand Driving, with A/C
	Engine	Model	4KH1CN6LB, 4 cylinders
		Power	88KW/120HP
		Emission Standard	EURO V/VI
		Displacement	2.99L
		Fuel type	Diesel
	Gearbox	Manual type, ISUZU gearbox, 5 forward gear, 1 reverse gear
	Front and Rear Axle load	2.5T/4.8T
	Wheel base	3365(mm)
	Brake System	Air brake or Oil brake
	Steering Gear	Power Assistant
	Tire	7.00R16, 6 Pieces with 1 Spare Tire
	Fuel tanker capacity	120L
	Maximum speed	98(km/h)
Superstructure
LED screen	Pixel	Outdoor full colour display screen
		Optional for P3/P4/P5/P6 full color screen or monochrome screen
	LED Screen Dimension(LxW)	Left/Right side: 4160*1920mm
		Rear:1760*1920mm
	Description	Waterproof, High temperature resistance
General Configuration	1. China famous OUMA brand 18kw silent diesel generator
	2. Industrial computer system
	3. 40W speaker x 4 units, public amplifier x 1 unit
	4. Internal and external electrical control switch
	5. Ventilation fan x 3 units and emergency exit x 1 unit
	6. 5CM composite steel frame body
	7. Aluminum checked floor
