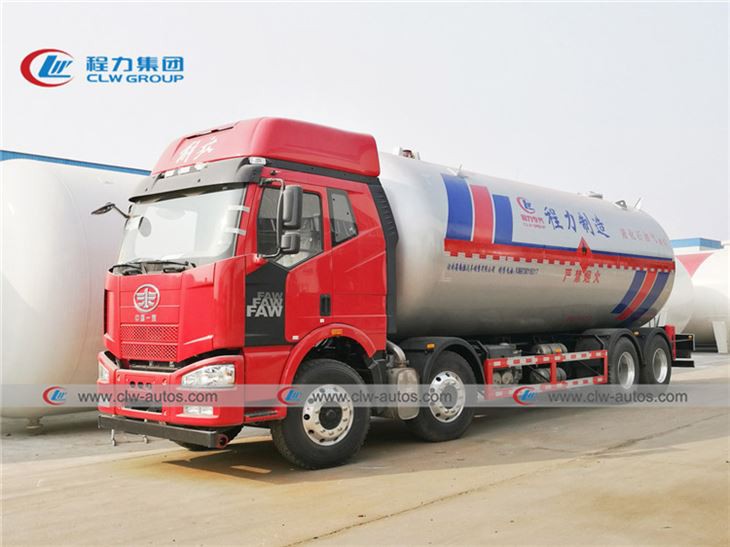

35000Liter FAW LPG Gas Liquid Transport Tanker Truck
17Ton Gas Tank for Long Distance Delivery
FAW Truck Chassis in Good Stability
Cylinder Tank Design in 16Bar Pressure
Dedicated Pressure Vessel Material
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 35000liter faw lpg gas liquid transport tanker truck in China. If you're going to buy high quality 35000liter faw lpg gas liquid transport tanker truck, welcome to get more information from our factory. For price consultation, contact us.
Description:
1. Truck Brand: FAW, J5, J6 etc
2. Tank Volume: 35,000 litres;
3. Loading capacity: 15,000kg;
4. Tank Design pressure: 1.61Mpa.
5. Steering: 8x4 left hand drive
6. Tyre: 12R22.5, 11 pieces, with one spare tyre;
7. Overall dimension: 10200x2500x3500 mm
Cabin | Faw LPG Trucks with LHD/ Top quality China Best 31ton Faw LPG trucks Faw heavy duty LPG tanker trucks used lpg tanker truck/ Full capacity 8X4 Faw LPG Truck 55cbm Faw LPG tanker trucks 12 WHEELS FAW LPG tank lorry | |
Drive Model | 8x4 | |
Vehicle Main Dimensions | (L x W x H)mm | 11705×2496×3690 |
Wheel base (mm) | 1900+4500+1350; | |
Wheel track (front/rear) (mm) | 1375/2575 | |
Weight in KGS | Tare Weight | 14000 |
Loading Capacity | 17000 | |
Max. driving speed(km/h) | 80 | |
Engine | Brand | Dachai |
Model | BF6M1013-28E3 | |
Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
Horse Power(HP) | 280 | |
Emission standard | Euro 3 | |
Gearbox | 10forwards& 2 reverse | |
Clutch | Reinforced diaphragm clutch, diameter 430mm | |
Tire | 11.00-20R,12.00-20R All steel radial tire, including 1 spare tire | |
Brakes | Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake | |
Steering Gear | ZF 8098,power steering, hydraulic steering with power assistance | |
Fuel tank (L) | 350 | |
Tank body | ||
Loading media | Liquid Petroleum Gas, liquid propane | |
Dimension | 8960 x DN2370mm | |
Material | Q345R carbon steel, | |
Thickness | 12mm End Plate, 12mm Tank Body | |
Volume | 30,000Liter ~ 35,000Liters | |

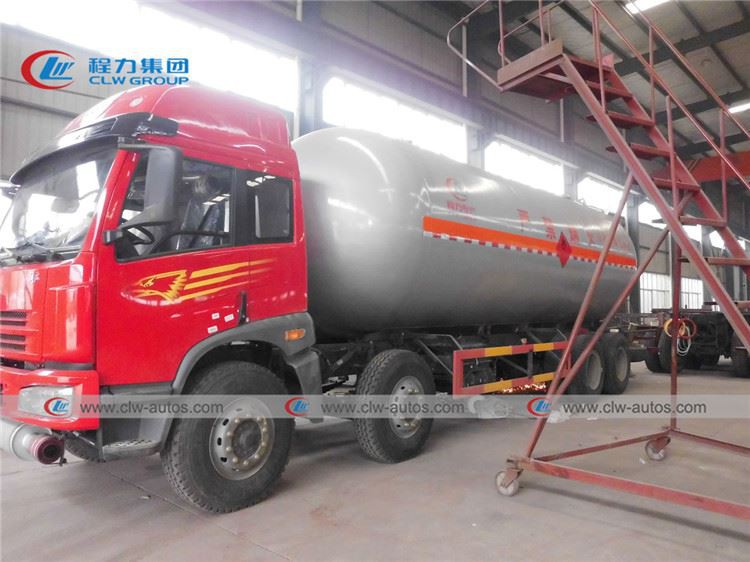

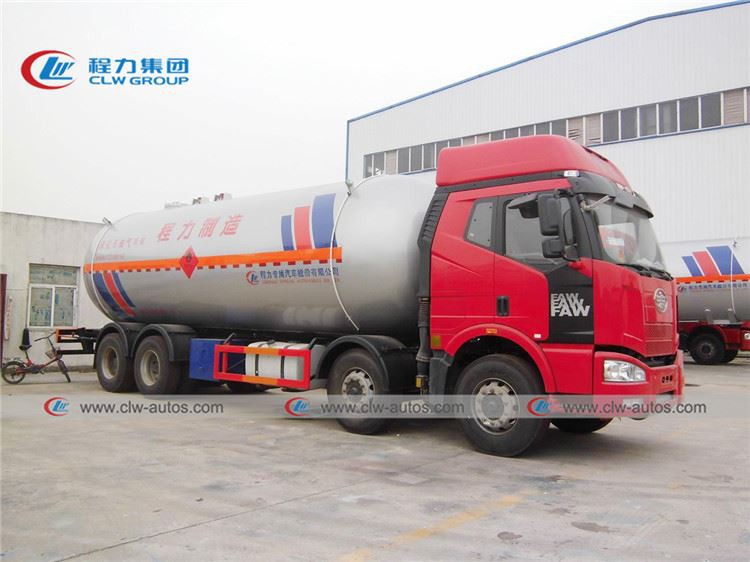

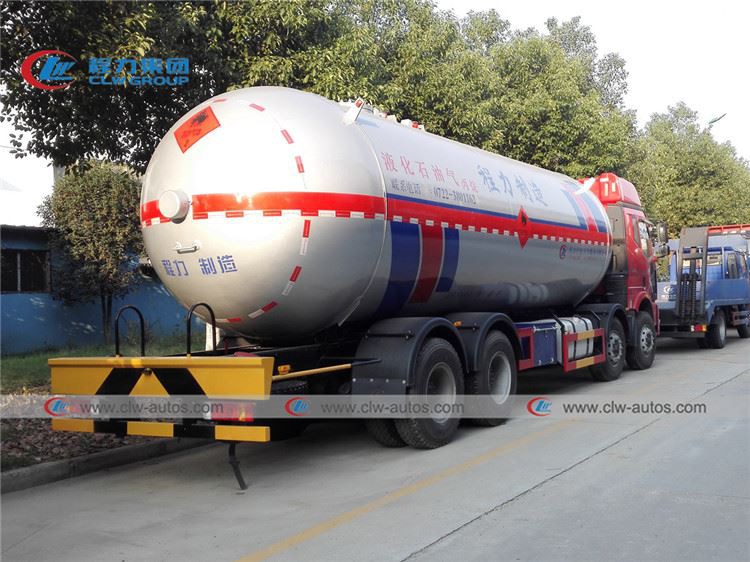

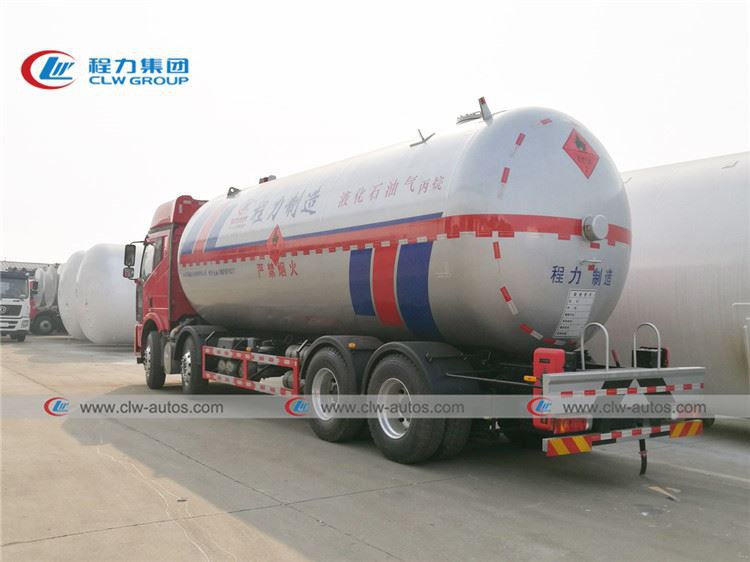

Reference Photos:
Key Words: FAW Truck Brand, Large Capacity Tank, Port to Inland Transport.
