HOWO 10tons LPG Dispenser Truck
Tank Material: Q345R,12mm in Endplate, 10mm body

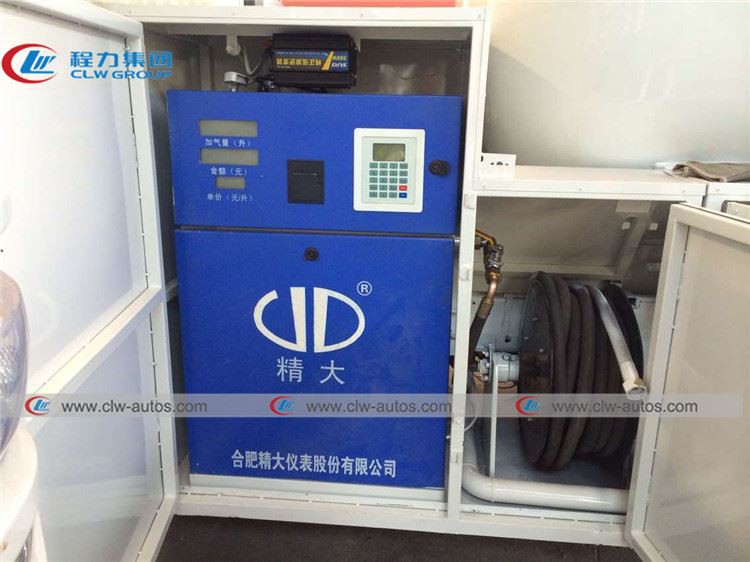

dispenser system: LPG pump with LPG dispenser

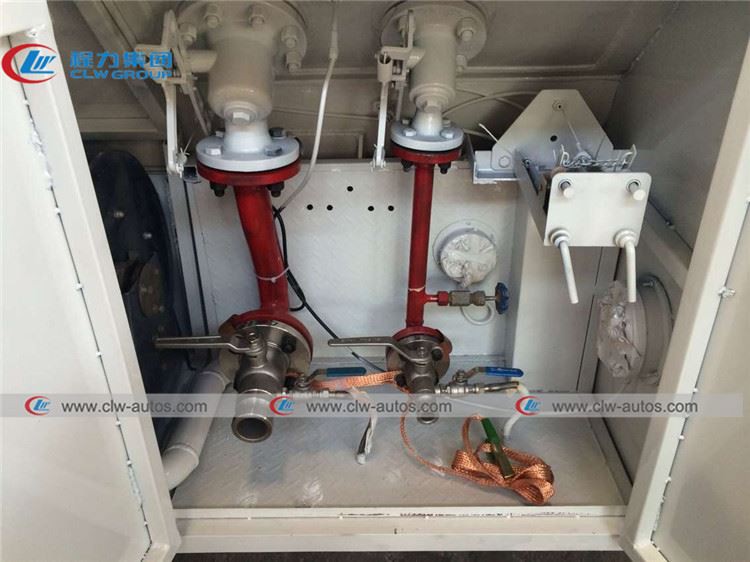

1Unit 2" Vapor Line, with Emgerncy Cut-off Valve
1Unit 2" Liquid Line, with Emergency Cut-off Valve
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of howo 10tons lpg dispenser truck in China. If you're going to buy high quality howo 10tons lpg dispenser truck, welcome to get more information from our factory. For price consultation, contact us.
Description
Brand: Sinotruk HOWO
Tank Capacity: 10Ton to 12Ton
Tank Volume: 20,000Liter to 25,000Liters
Engine: Sinotruk 336HP or 371HP, EURO 2 or others
Gearbox: 10 Forward Gear & 2 Reverse Gear
Corken or Blackmer Truck Pump with Hydraulic Driving,
Displacement LPG Flow Meter with 2"
15meter Rubber Hose with REGO Filling Nozzle.

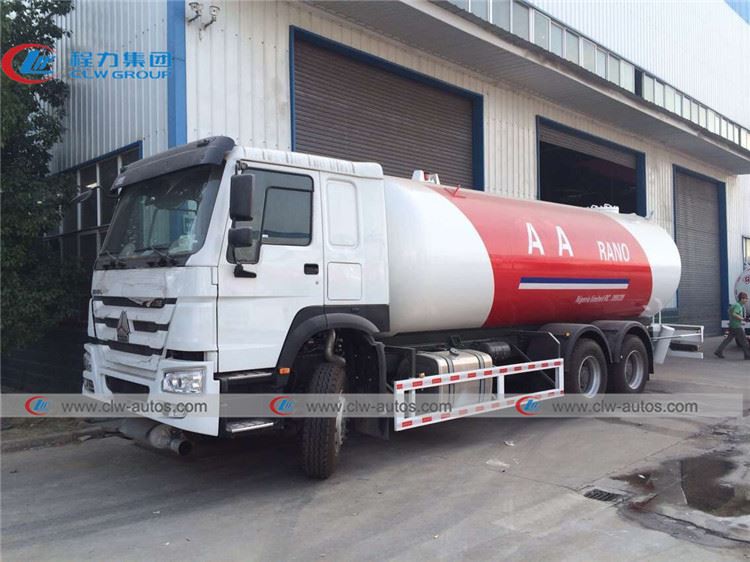

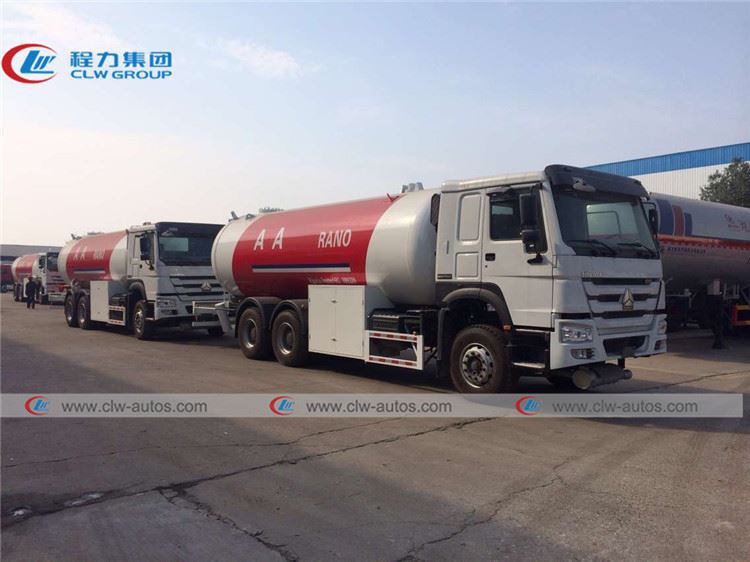

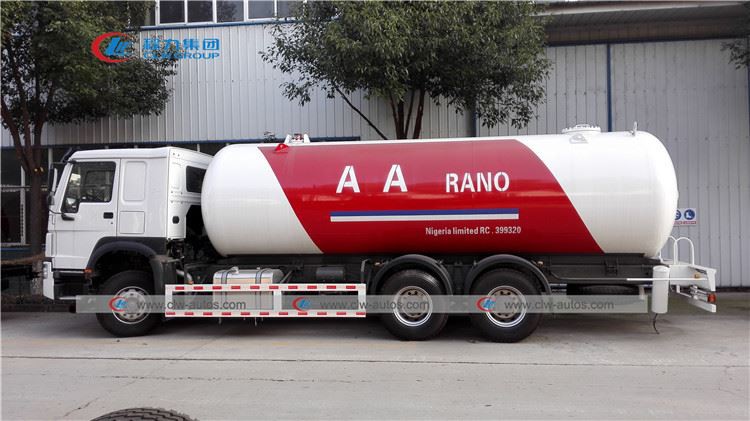

Reference picture
Specification
Item No. | Parameters |
Overall Dimension | 10720 x 2495 x 3420 mm |
Gross Vehicle Weight | 24,420 kg |
Curb Weight | 14,420 kg |
Wheel Base | 4500+1350 mm |
Cabin | Left Hand Driving, 3 Passengers Allowed, with Air Conditioner |
Engine | Sinotruk WD615. 69 Diesel Engine, Four Stroke, 6 Cylinder in line. |
Mechanical Engine Pump. | |
Engine horsepower | 336 HP Euro II |
Max Driving Speed | 90 km/h |
Gear Box | HOWO 10 Forward Gear & 1 Reverse Gear |
Tire | 11R22.5 Tubeless Tire (10 pieces with one spare) |
Tank Capacity | 20 CBM / 20,000 Liters |
Filling Weight | 10,000 kg |
Filling Content | Liquefied Petroleum Gas (Propane) |
Tank Material | Q345R high tension steel, 10mm Thick Tank Body. |
Standard Equipment | 2 Safety Valves,1 Rotor Level Gauge, 1 Rochester Level Gauge, |
1 Pressure Gauge, 1 Thermometer, 2 Emergency Shut-off Valve, 1 Tool Boxes, Anti-static Grounding Tape, with 1 valve boxes | |
Specification | Designed Pressure: 1.61Mpa / 16.1 Bar |
Hydraulic Test Pressure: 2.21 Mpa / 22.1 Bar | |
Air Tightness Pressure: 1.61Mpa / 16.1Bar | |
Medium Density: 500-590 kg/m3 | |
Working Temperature: under 50 centi-degree | |
Corrosion Allowance: 1mm | |
Filling System | Hydraulic Drive 2" Truck Pump. |
LPG Flow Meter to Record Filling Volume | |
LPG Filling Hose for Cylinder with mechanical Scale for Weigh | |
Filling Hose & Gun to fill small tanker. |
