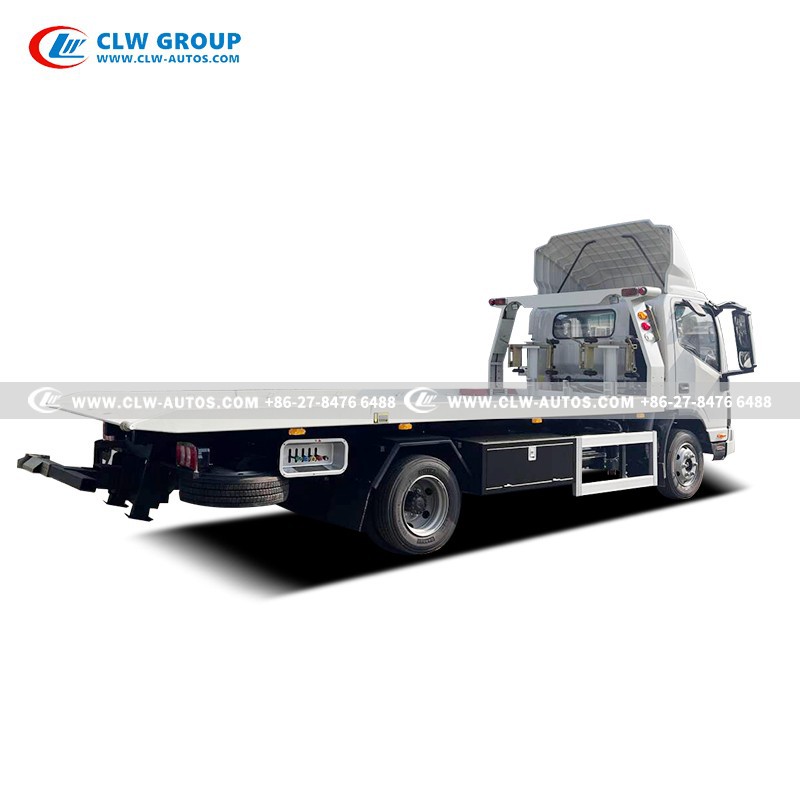

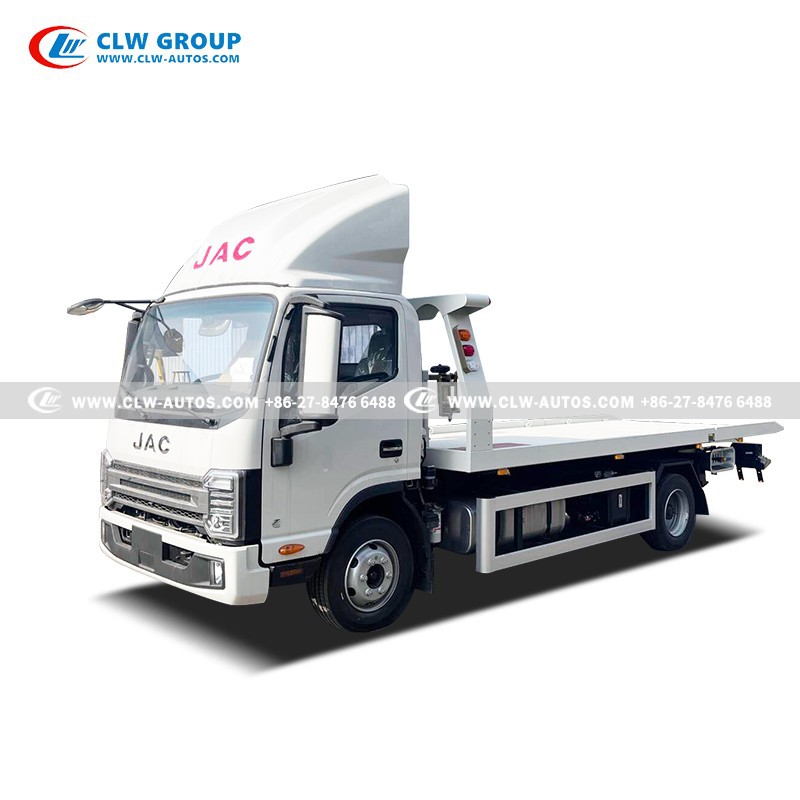

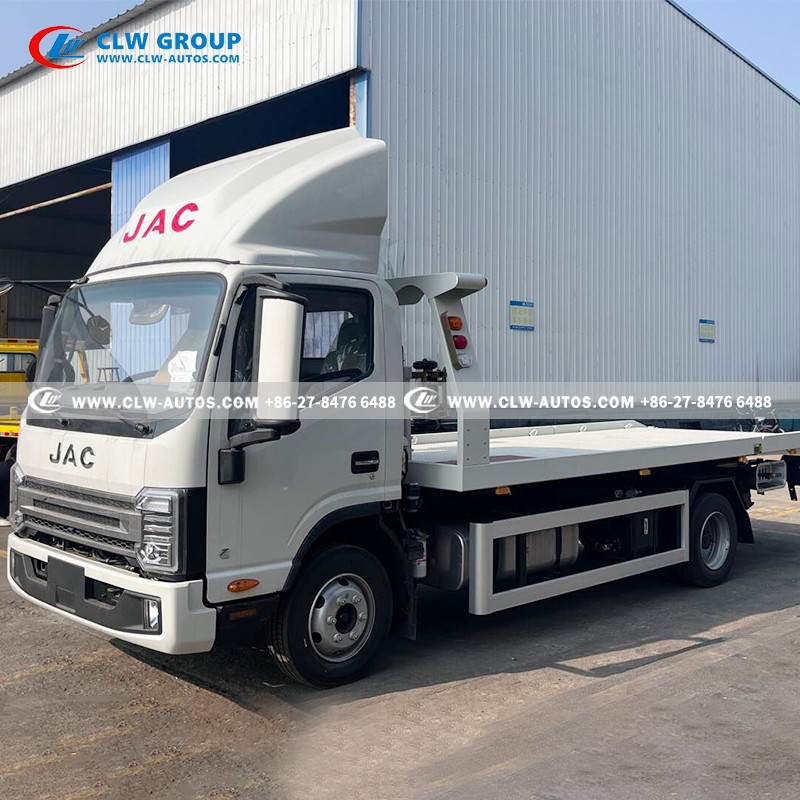

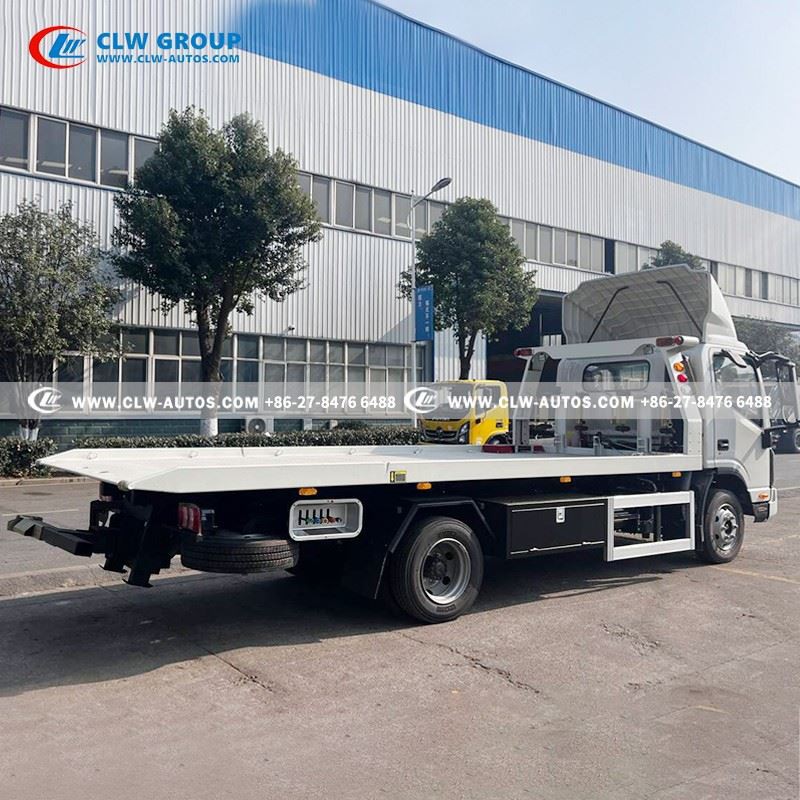

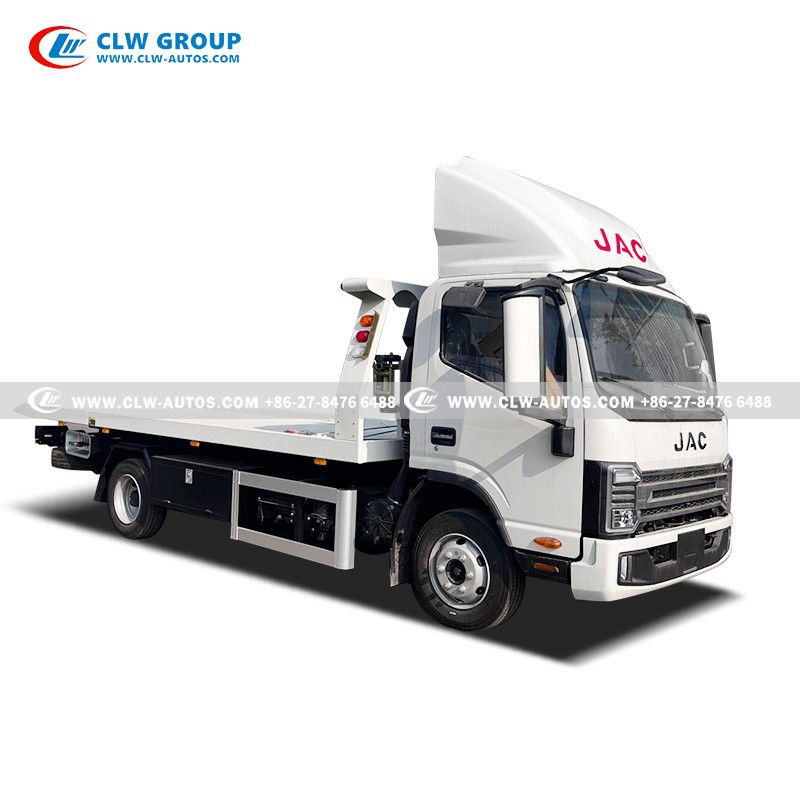

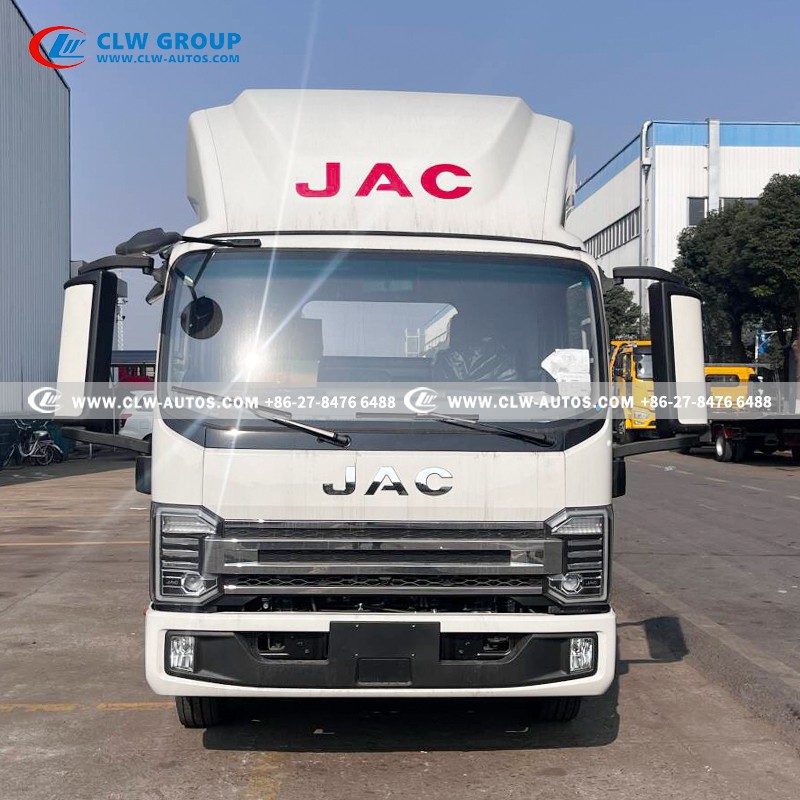

JAC 4-Tonne Flatbed Recovery Truck
Built on a JAC chassis with a 3.8 m wheelbase, this 4-ton flatbed recovery truck features a one-to-two superstructure for flexible vehicle transport. It is equipped with a 4-ton winch, a 2.5-ton towing arm, and a durable 4 mm patterned steel flatbed measuring approximately 5.5 × 2.3 meters. The entire vehicle is treated with electrophoretic coating and fitted with warning lights for safe and reliable recovery operations.
JAC 3.8m Wheelbase Semi-Land-Mounted Tow Truck
JAC Semi-Land-Mounted Recovery Truck
Wheelbase: 3.8 meters
Overall dimensions: approx. 5.5 m (L) × 2.3 m (W)
Emission standard: China National VI
Fuel tank: 200L aluminum alloy
Suspension: Front 8-leaf / Rear 6+7-leaf springs
Tires: 215/75R17.5
Product infos
This JAC semi-land-mounted tow truck is engineered for efficient vehicle recovery and roadside assistance, combining robust performance with reliable safety features. Built on a 3.8-meter wheelbase chassis, it complies with the National VI emission standard, ensuring environmental friendliness and low emissions.
Product Features
Semi-land-mounted tow truck is engineered for efficient vehicle recovery and roadside assistance, combining robust performance with reliable safety features. Built on a 3.8-meter wheelbase chassis, it complies with the National VI emission standard, ensuring environmental friendliness and low emissions.
Product Features
Designed for heavy-duty operation, it features reinforced hydraulic cylinders, imported hydraulic valves, and a gantry frame flush with the cab, offering smooth towing performance and enhanced structural stability. The full-vehicle electrophoresis coating ensures superior corrosion resistance and long service life.
For driver comfort and convenience, the cab includes power windows and doors, central locking, air conditioning, cruise control, and hydraulic power steering. Additional features such as dual 80Ah batteries, a 200L aluminum alloy fuel tank, and warning light system further enhance reliability and operational efficiency.
|
Truck Chassis |
|||
|
Condition |
JAC |
||
|
Overall size(L*W*H) |
6995X2300X2430 mm |
||
|
Gross Vehicle Weight (kg) |
8840 |
||
|
Curb weight(kg) |
3650 |
||
|
Loading Weight (kg) |
4995 |
||
|
Approach/Departure angle(°) |
27/13 |
||
|
Front/Rear overhang(mm) |
1110/2110 |
||
|
Cabin |
Left hand drive 4X2/2 axles in total JAC cabin,SINGLE Air conditioned Electric doors and windows |
||
|
Engine |
Model |
CA4DB1-13E6 |
|
|
Type |
4 cylinders |
||
|
Power |
95KW/130HP |
||
|
Emission standard |
EURO VI |
||
|
Displacement |
2200 (ml) |
||
|
Fuel type |
Diesel |
||
|
Wheelbase |
3800 mm |
||
|
Transmission |
Manual type,6 forward gears & 1 reverse |
||
|
Front Axle load and rear Axle load |
2500 /5000kg |
||
|
Steering system |
power assistance |
||
|
Brake System |
Air brake |
||
|
Tire |
215/75R17.5, 6pcs with one spare |
||
|
Fuel Tank Capacity |
200L |
||
|
Upper Structure Body |
|||
|
Flatbed |
Dimension |
5500*2300mm |
|
|
Plate thickness |
4mm |
||
|

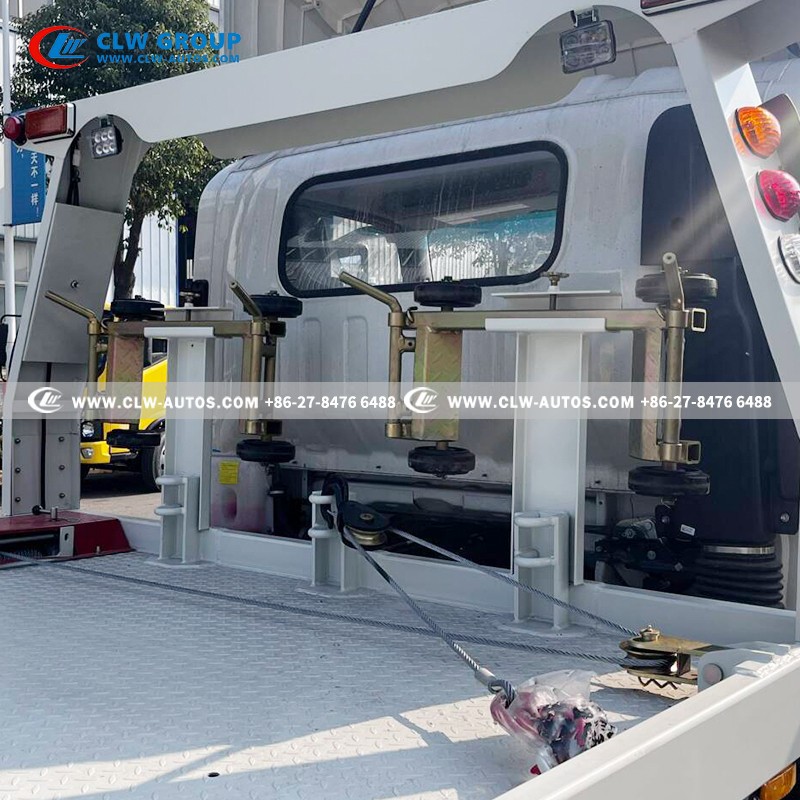

Winch |
Quantity |
1pcs |
|
|
Winch rating pulling capacity |
4tons |
||
|
remarks |
1.Imported valves |
||
|
|
2.with warning lights |
||
|
|
3.full vehicle electrophoresis |
||
|
4.With fairing |
|||
