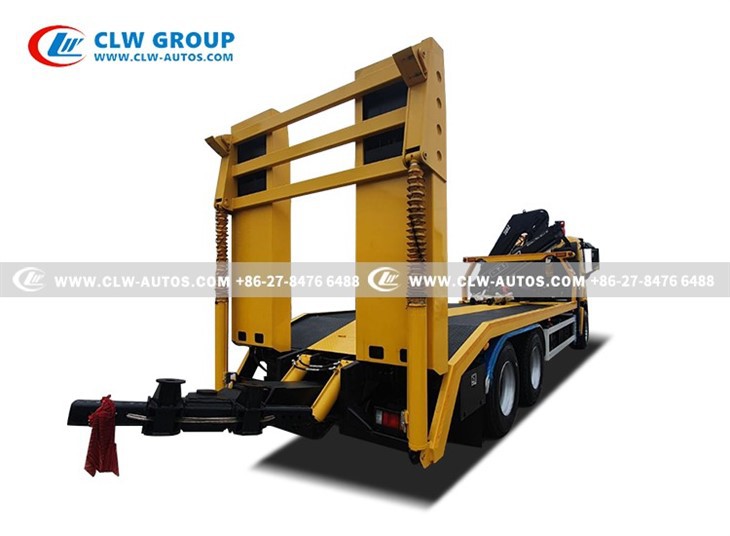

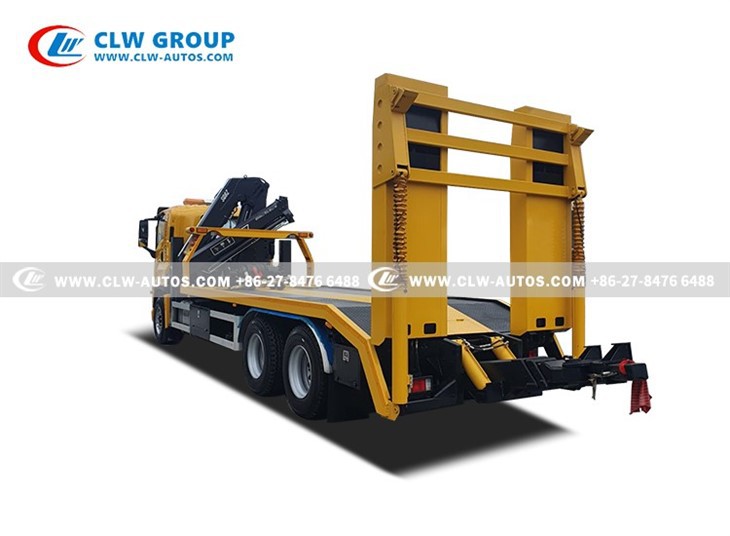

ISUZU GIGA 6x4 15Tons Flatbed Tow Truck With XCMG 10Ton Folding Boom Crane

Products Description

The Isuzu GIGA 6x4 recovery towing truck features a 5,200+1370mm wheelbase, ensuring superior stability and handling performance. This wheelbase configuration enhances the vehicle's ability to navigate challenging road conditions while maintaining excellent maneuverability.

For propulsion, the truck is equipped with the Isuzu 6WG1 engine-a high-performance, highly reliable diesel engine delivering a maximum output of 460 HP. Paired with a 12-speed manual transmission, it ensures smooth power delivery and responsive gear shifting, making it well-suited for demanding operational environments.

The recovery truck's design features a manually adjustable width as its key highlight. The base dimensions of the platform measure 8,000 mm in length and 2,500 mm in standard width, yet its advanced telescoping mechanism significantly enhances loading flexibility and cargo adaptability.

The spacious platform accommodates various oversized loads, such as machinery, construction materials, and more. To facilitate efficient loading/unloading and cargo securing, the flatbed is equipped with a 15-ton winch, enabling effortless towing and load stabilization to ensure safe and stable transport.

Furthermore, the material selection and manufacturing processes of the flatbed undergo rigorous scrutiny and precision control, ensuring long-term durability and structural integrity.

6ISUZU GIGA 6X4 Recovery Truck With 10Ton Crane

Loading/Unloading: It acts as a ramp to safely winch and load disabled vehicles onto the truck's deck.

Towing Preparation: It extends and lowers to the ground to allow for the easy attachment of the truck's under-lift towing equipment to the disabled vehicle.

Products Parameters

Chassis Specification
Chassis Model	QL5350
Driving Model	6X4
Cab	ISUZU GIGA VC66 Cabin, with one sleeper Left Hand Drive With Air Conditioner With Pneumatic Seat Electric doors and Windows
Dimension	11500 x 2500 x 3900 mm
Wheelbase	5200+1370 mm
Gross vehicle Weight	35000 kg
Front Axle Loading Capacity	9000 kg
Rear Axle Loading Capacity	13000 kg x2
Axle Number	3
Engine	ISUZU diesel engine 6 cylinders in a line, Water cooled, turbocharged, after cooled, cold start.
	Model: 6WG1-TCG61
	Horse power: 460 HP
	Displacement: 15681 ml
	Emission standard: Euro 6
Transmission	Model: FAST Manual Type
	12 Forward & 2 Reverse
Tire	Front: 385/65R22.5 Rear: 315/80R22.5
	10 Pcs with one spare tire
Fuel Tank Capacity	400L
Brakes	Air brake, With ABS
Upper Body Specifications
Flatbed Platform		Size: 8000 x 2500 mm
		Thickness : 6mm checked plate
		Loading Capacity: 20 Ton
		Frame: 16 mm Thick manganese plate
Winch		15 Ton
Rear Lifting Arm		10 Ton
Box Plate		Material: Aluminum Alloy
Hydraulic Back Platform		2400 x 2500 mm
10Ton Folding Boom Crane Specifications
Working Platform		360°turning (left or right), H-shape legs 360°
Max. Lifting Capacity		Effectively: 4000 kg at 2.5 meters
Max. Working Radius		12.4 meters
Max. Lifting Height		15.4 meters
Outrigger		2 Pcs hydraulic outrigger With lifting function
