Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu 6.3ton recovery truck with crane in China. If you're going to buy high quality isuzu 6.3ton recovery truck with crane, welcome to get more information from our factory. For price consultation, contact us.

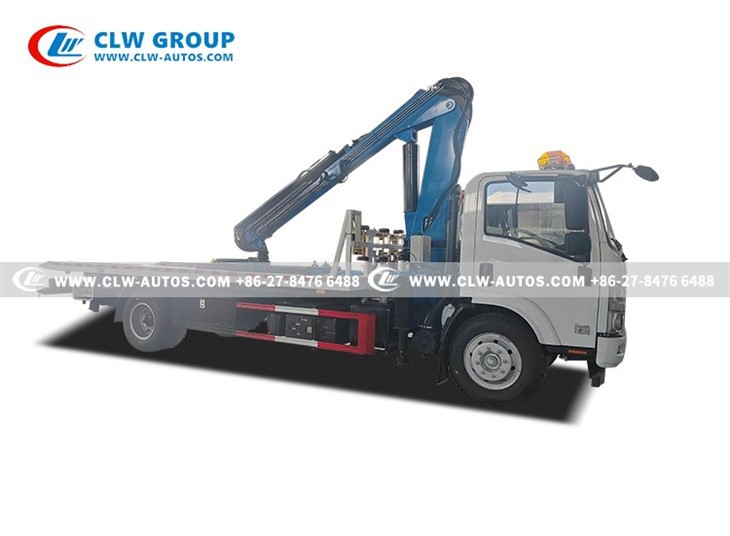

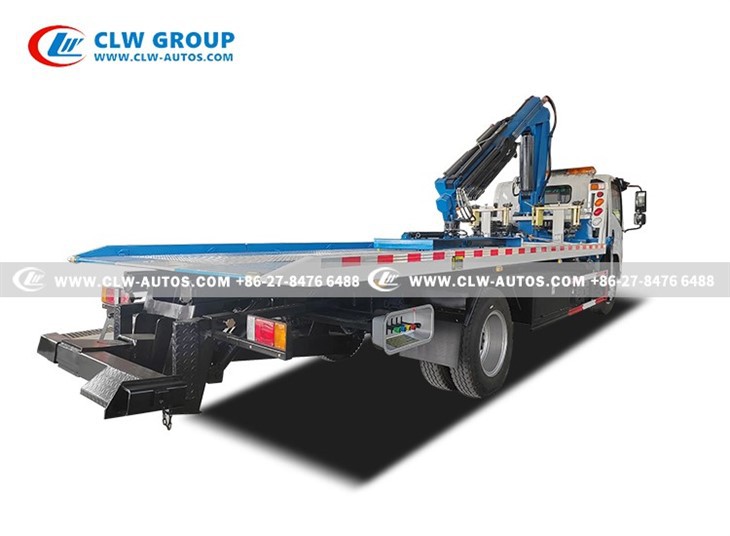

ISUZU 700P 4X2 8Tons Flatbed Tow Truck With XCMG 6.3Ton Folding Boom Crane
1. Road Rescue and Vehicle Recovery
2. Versatile Operations
3. Agile Maneuverability
1. High Efficiency and Cost-Effectiveness
2. XCMG 6.3-Ton Folding Boom Crane Performance
3. Integrated Towing and Lifting Capability
4. Superior Adaptability
5. High Cost Performance




|
Chassis Specification |
|
|
Condition |
Brand New |
|
Chassis model |
QL1110 |
|
Driving model |
4x2 |
|
Dimension |
10000×2500×3500 mm |
|
Cab |
|
|
Overall Weight |
10000 kg |
|
Net Weight |
4950 kg |
|
Wheelbase |
5200 mm |
|
Axle No. |
2 |
|
Front Axle Loading Capacity |
4,000 kg |
|
Rear Axle Loading Capacity |
7,000 kg |
|
Engine |
|
|
Model: 4HK1 |
|
|
Horse power: 190 HP |
|
|
Displacement: 5193 ml |
|
|
Emission standard: Euro Ⅵ |
|
|
Transmission |
Manual type, 6 Forward & 1 Reverse |
|
Tire |
235/75R17.5 18PR |
|
6 wheels with 1 spare tire |
|
|
Fuel Tank Capacity |
100L |
|
Upper Parameters |
|
|
Under Lift Boom |
Max. Under Lift Capacity: 8000 kg |
|
Max. Under Lift Capacity at Full Extension: 5000 kg |
|
|
Under Lift Boom Effective Length: 1700 mm |
|
|
Under Lift Telescopic Stroke: 1360 mm |
|
|
Ground Clearance when Under Lift Fully Retracted: 800 mm |
|
|
Flatbed |
Ground Clearance: 1100 mm |
|
Flatbed Plate Size(length*width): 6500x2550 mm |
|
|
Min. Tilt Angle: 8° |
|
|
Moving Range: 3760 mm |
|
|
Max. Loading Capacity: 8000 kg |
|
|
Winch |
Number: 1 |
|
Rated Towing Capacity: 80~150KN for option |
|
|
Diameter of Steel Rope: Φ16~Φ22 for option |
|
|
Length of Steel Rope: 50m |
|
|
Min. Line Speed: 4.52m/min |
|
|
Crane Parameters |
|
|
Brand |
XCMG SQZ6.3 |
|
Max. Lifting Capacity |
6,300 kg |
|
Max. Lifting Height |
15 meters |
|
Max. Working Radius |
12.2 meters |
|
Max. Lifting Moment |
132 KN.m |
|
Max. Pressure of Hydraulic System |
25 Mpa |
|
Oil Tank Capacity |
100L |
|
Rotation Angle |
360° All rotation |
For quick inquiry, please contact Ms. Hedy He:
WhatsApp/ Wechat: +86 188 2740 1066
Email: hedy@clw-autos.com.
Hubei ChengLi Special Automobile Co.,Ltd,one of branches of CLW group, which was appointed by the Development and Reform Committee of China. Hubei Chengli is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.
