China Kama 5 Cubic Meters Garbage Compactor Truck
1. Vehicle brand: CLW 2. Chassis brand: China Kama 3. Function: garbage compactor truck 4. Tank volume: 5000Liters/5cubic meters
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of china kama 5 cubic meters garbage compactor truck in China. If you're going to buy high quality china kama 5 cubic meters garbage compactor truck, welcome to get more information from our factory. For price consultation, contact us.
China brand KAMA 3tons 5000Liters 5CBM garbage compactor truck compressed waste truck for environmental services and sanitation services
Product Description
Garbage Compactor is the machinery of choice for door to door waste collection. Waste is simultaneously compacted and eventually transported to the dumping site. Waste is covered and there is no chance of "spillage" of waste during transportation. Continuous compaction allows more waste to be stuffed onto a truck which reduces the number of round trips to the dumping site. This results in significant fuel saving. Waste collected inside the compactor is pushed out of the container through a hydraulically powered Ejection Plate. Two men are required to perform the entire functionality of the compactor namely, driver and operator. Manufactured according to European standards Reliable high-quality components effectively reduce maintenance and maintenance costs. K.E. manufactures compactors with various capacities depending on the type of truck chassis and user requirement.
1. Garbage Bin with different size options of waste collection truck: 3cbm to 18cbm.
2. Hydraulic Control Loading & Unloading System.
3. Different shapes of roll on roll off waste truck bins such as trapzoid,boat-shape,square shape and so on and divided into above-ground and under-ground type.
4. High-tensile steel chains: imported hydraulic oil cylinder and sealing material.
5. Lifting oil cylinder: double oil cylinder under garbage box,so garbage box can be lifted and self-dumped.
6. Double rear landing leg controlled by hydraulic multi-way valve to stablise truck.
Product Specifications
| Product Name | Kama Diesel Engine and Turbo charger Type 5000L garbage compactor truck | ||
Chassis brand | China KAMA | Wheel base (mm) | 3300 mm |
Overall Dimension(mm) | 5850*2000*2300 | Driving type | 4*2, left hand drive |
Gross weight (kg) | 4495 | Number of Leaf Springs | 8/9+5,6/8+4 |
Curb weight(kg) | 3465 | Rated loading capacity(Kg) | 5000 |
Transmission | 5 speed forward with 1 reverse manual | Axle number | 2 |
Fuel type | Diesel oil | Braking system | Air brake |
Approaching/Departure Angle(°) | 19/15(°) | F/R Axle load(kg) | 1785/2710 |
Passengers in cab | 2 | Maximum speed(km/h) | 90 |
Number of Tyres | 6 (with1 spare tire) | Tyre type | 7.00-16 |
Front/Rear suspension(mm) | 1032/1518 | Front/Rear track base (mm) | 1506/1442 |
Engine parameters | |||
Engine Brand | Dongfeng Chaoyang | Engine Model | CY4102-C3F |
Displacement (L) | 3.856 L | Emission Standard | EURO 5 |
Power (kw/hp) | 70/95 | Maximum torque | 365N/m |
Number of cylinders | 4 | Cylinder spread pattern | In-line |
Operation control system | Electrically hydraulic control | Rated rotation(rpm) | 3200 |
Equipment | |||
Refuse Container capacity | 5m3/5000Liters | Rubbish Discharging Time | <= 30 s |
Loading Circulation Time | 12- 30s | Compressed Proportion | 1:3 / 1:2 |

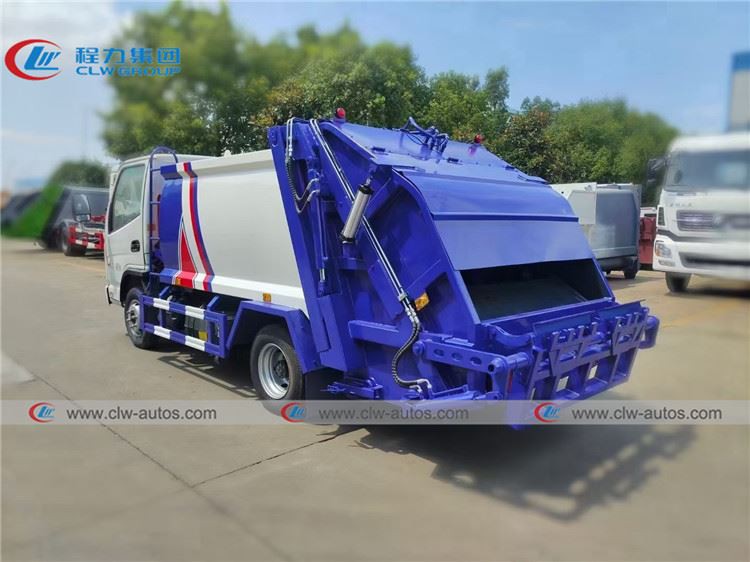

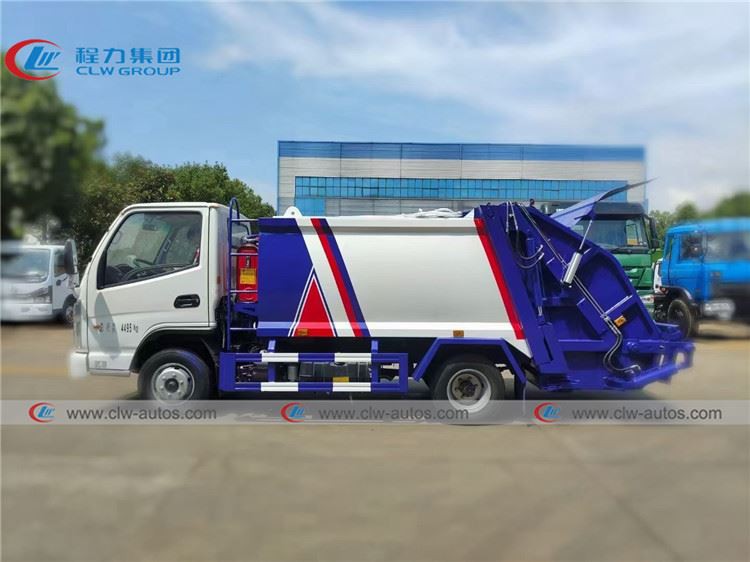

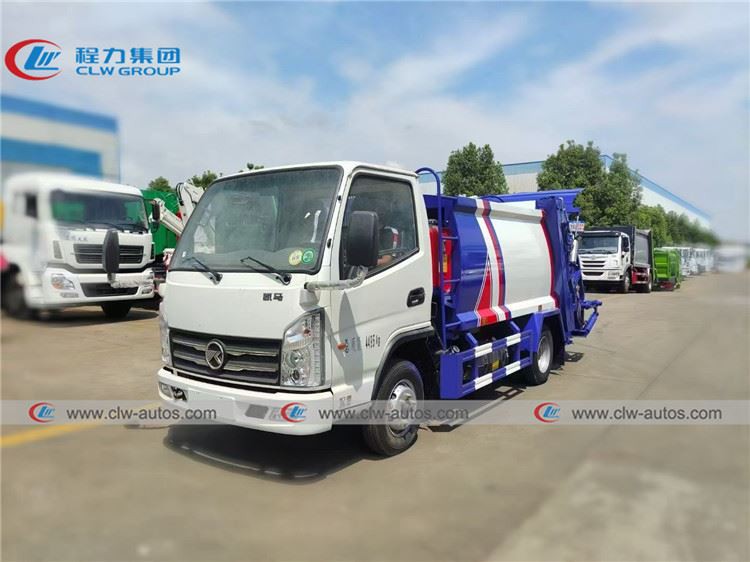

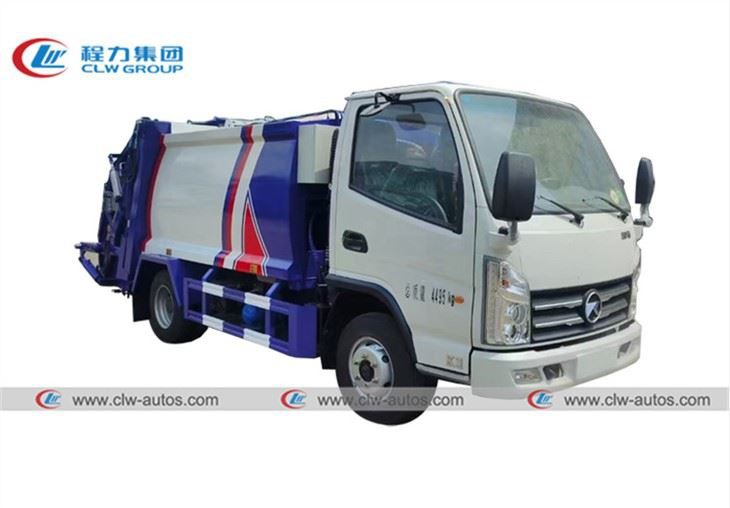

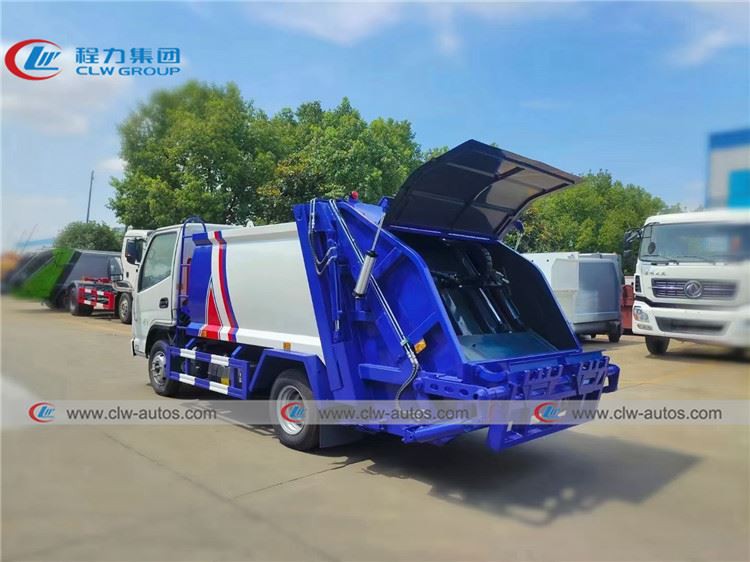

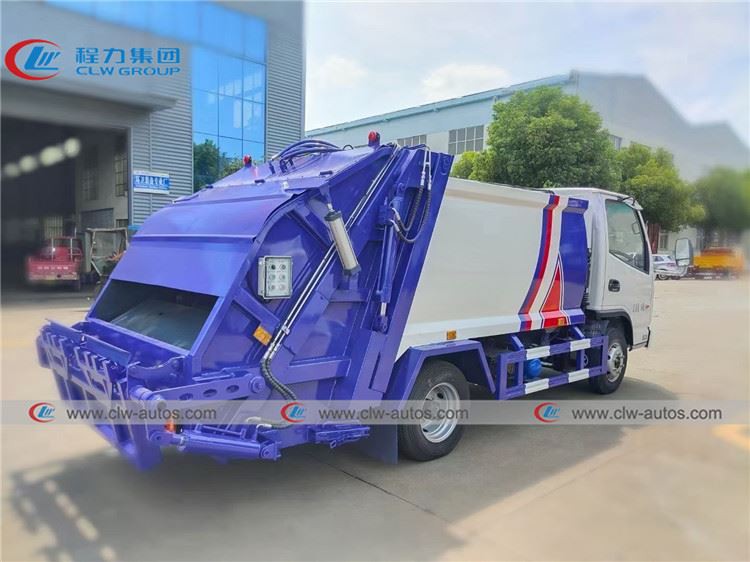

Product pictures
Key words: Kama truck, garbage compactor truck, compression garbage truck, waste removal truck, rubbish truck
