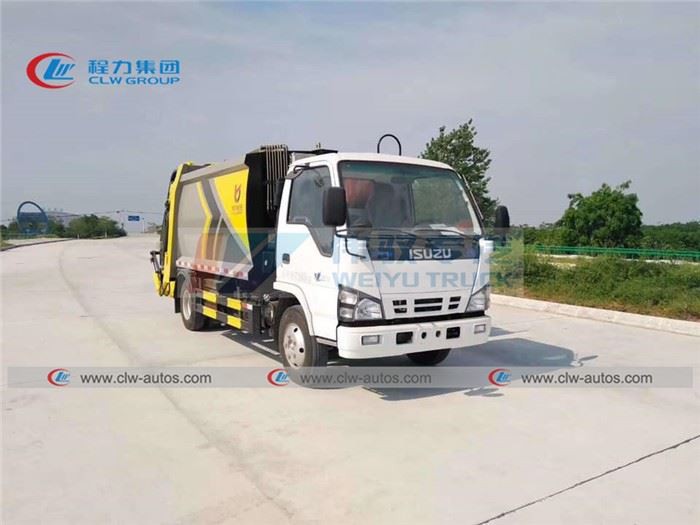

ISUZU 600P 120HP 5tons Compressed Garbage Truck

Loading capacity: 5tons
Gear box:5-speed forward and 1 reverse
Tank Size:7 or 8 CBM
Garbage Compact Ratio:1/3-1/4
Remote control Panel for option

Send InquiryChat Now

Product Details

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu 600p 120hp 5tons compressed garbage truck in China. If you're going to buy high quality isuzu 600p 120hp 5tons compressed garbage truck, welcome to get more information from our factory. For price consultation, contact us.

We are 15 years professional manufacturer of special trucks,the truck can be customized as customer requirements. Garbage truck is also called compact garbage truck,compactor garbage truck,compression garbage truck,garbage compactor,etc
(1). Volume : 3-20m3 garbage truck.
(2). Steering wheel: both left and right hand drive,meet the needs of different countries.
(3). Emission standard: Euro 1,Euro 2,Euro 3,Euro 4,Euro 5 garbage trucks
(4). Truck chassis: ISUZU,DONGFENG,SINOTRUK HOWO,JAC,FOTON,etc.

Feature

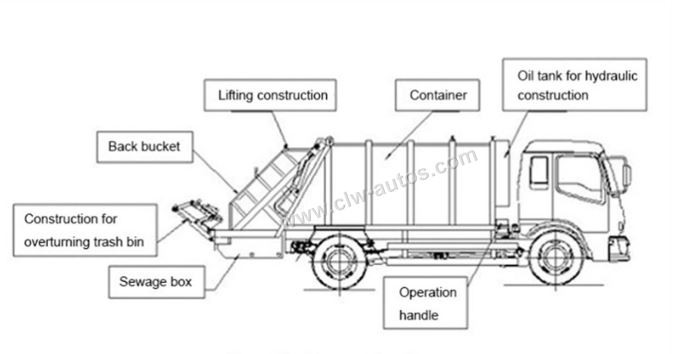

The compressed garbage truck is composed by sealed garbage van, hydraulic system, operating system. The vehicle is fully sealed type, compression and dumping by self. When it working, the sewage is all into the sewage box, so that thoroughly solved the problem of secondary pollution in the process of garbage transport, to avoid the inconvenience to people. The key parts adopt imported parts, it has great pressure, good sealing, convenient operation and safety etc. Rear hanging garbage barrel and overturned garbage bucket are optional.

Reference picture

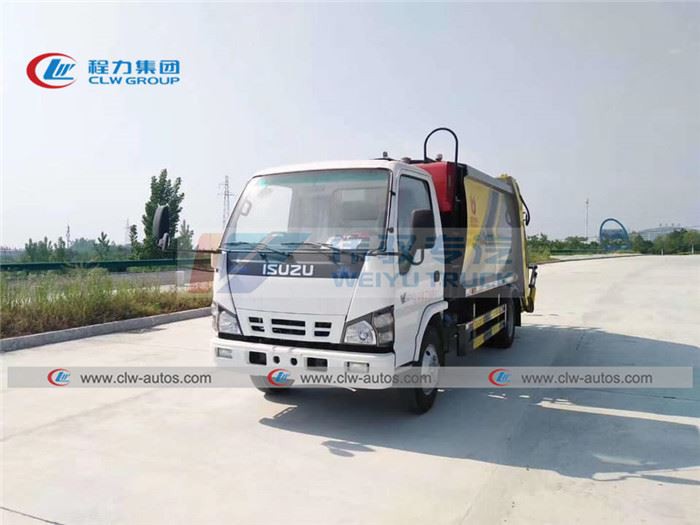

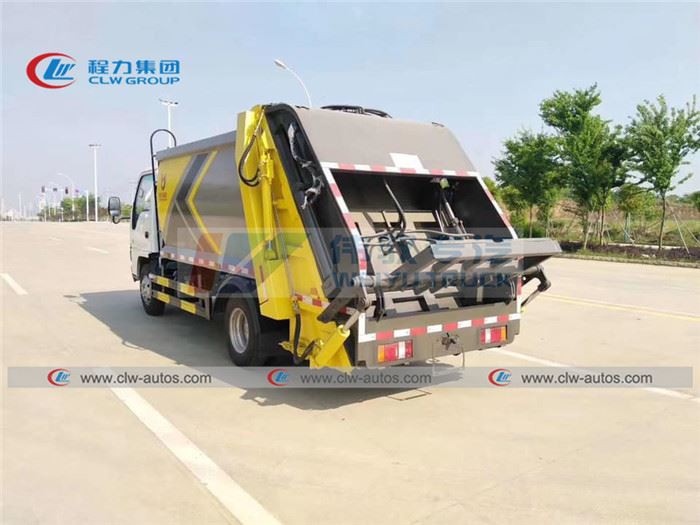

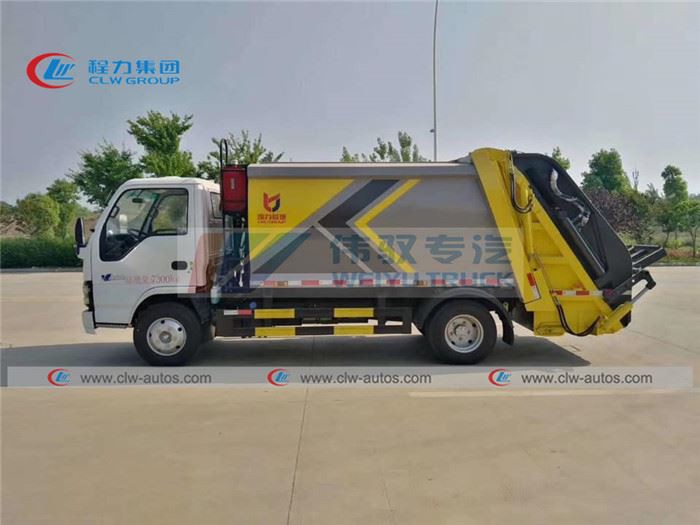

compactor garbage truck06 compactor garbage truck02 compactor garbage truck03

Specification

ISUZU 600P 120HP 5tons Compressed Garbage Truck
Overall Dimension	8490×2470×3030 mm	Gross Vehicle Weight	16000 kg
Curb Weight	6095 kg	Loading Weight	6700 kg
Wheel Base	3815 mm	Front / Rear Axle	2500/4800 kg
Cabin	Left Hand Driving, 2 Passengers Allowed, with Air Conditioner, Radio,
Engine	ISUZU brand
Engine horsepower	120HP, EURO IV/EURO V
Max Driving Speed	90 km/h
Gear Box	5 Forward Gear, 1 Reverse Gear,
Tire	6.50-16 6 pieces with one spare)
Garbage Bin	Capacity	7cbm or 8CBM
	Material	4mm Carbon Steel for Garbage Bin Body
	Design	Whole unit with Leakage Proof Design
Ways of Loading	Rear Loading with optional Bucket Lifting System
Garbage Compact Ratio	1/3 - 1/4
Control System	One control Panel on the back, One Control system in back of Cabin
Dispensing System	1. Equipped with air-tight dustbin, hydraulic system and operating system.
	2. Automatic loading, compressing and discharging, all handled by 1 person
	3. Sewage water collection tank to avoid any pollution during handling.
	4. Large Pressure, Good Leakage Proof, Convenient Operation
	Dependable Security
	5. Electrical Control Panel for compacting system.
	6. Cycling time<14~18s
Remarks	1. Color is optional
	2. Customized LOGO painting as per customer request
