Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of dongfeng duolica 4x2 6000liters 4tons garbage compactor truck in China. If you're going to buy high quality dongfeng duolica 4x2 6000liters 4tons garbage compactor truck, welcome to get more information from our factory. For price consultation, contact us.
Dongfeng Duolica 4X2 6000liters 4tons Garbage Compactor Truck
Product Description
1. Garbage collection is simple, with high compression ratio and large loading capacity: the loading capacity is two and a half times of that of the same ton uncompressed garbage truck
2. Job automation: imported computer control system is adopted. Only one driver is required to operate all the filling and discharging operations
3. Good economy: when the special equipment works, the computer control system will automatically control the throttle
4. Turnover mechanism: choose to install the turnover mechanism with garbage cans (or buckets) to lift the garbage cans with multiple capacities. It can be equipped with the national iron hanging drums or plastic hanging drums to forcefully load the garbage into the car and compost and evade
5. Change the dirty appearance of the city and eliminate the secondary pollution
6. High compression ratio and large loading capacity which is 2 times larger than usual garbage truck
7. Easy Full Automatic Operation: electrical control system for loading and unloading operations
8. One Person Operation: Reducing sanitation work, greatly improves the working efficiency
9. Double Operation System: electrical control system and manual operation greatly improves the vehicle usage rate.
Product Specifications
| Truck Specification | |||
| Chassis model | CLW5144 | ||
| Cab | Dongfeng Duolica single row cab | ||
| Driving Type | 4*2 Left hand driving | ||
| Max Speed (km/h) | 115 | ||
| Overall dimension(mm) | 6865×1870×2200 | ||
| GVW( kg) | 8200 | ||
| Mass in working order ( kg) | 2460 | ||
| Wheelbase(mm) | 3800 | ||
| F/R track base (mm) | 1569/1530 | ||
| F/R overhang (mm) | 1068/1997 | ||
| Approach/Departure Angel | 22/25 | ||
| Tire | 7.50-16LT 14PR | ||
| Clutch | Single-plate dry diaphragm spring clutch | ||
| Steering | Hydraulic steering with power assistance | ||
| Gear box | 5-speed | ||
| Bridge | Front axle | 3T | |
| Rear axle | 5T | ||
| Enging | Model | YC4E140-33 | |
| Fuel Type | Diesel fuel | ||
| Type | Water-cooled four-stroke, direct injection , turbocharged | ||
| Exhaust(ml) | 4257 | ||
| Max output power/rotate speed (hp /rpm ) | 140/2800 | ||
| Braking system | Service Brake | Compressed air brake | |
| Park Brake | Spring energy | ||
| Auxiliary brake | engine exhaust brake | ||
| Eletric system | 24v | ||
| Upper-Body specification | |||
| Material of tank | material : Q235,Thickness :4(mm) side /4(mm) rear | ||
| Dirty tank volume | 6m³/6000Liters | ||
| Filler volume | 500L | ||
| Filing time(s) | 8~10s | ||
| Filling cycle time(s) | 50~60s/once | ||
| Discharge type | Dumping | ||
| Time for dumping | 30-40S | ||
| Hydraulic pressure | 16Mpa | ||
| Controlling way | Manualy and electrical control | ||

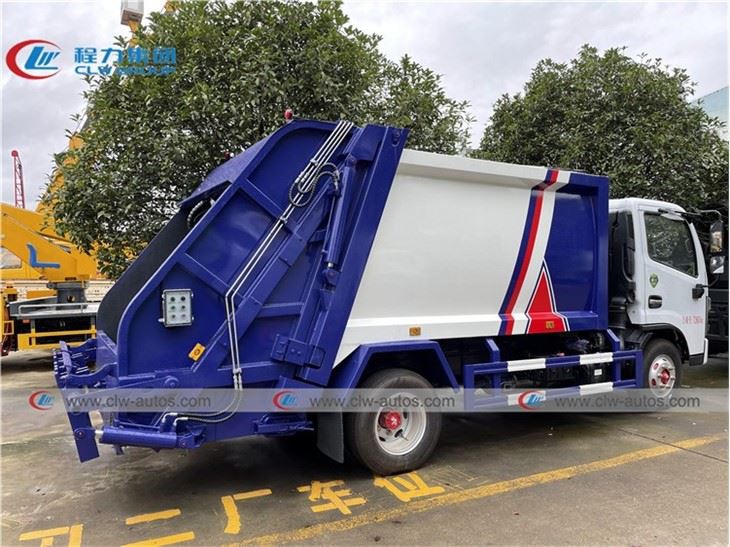

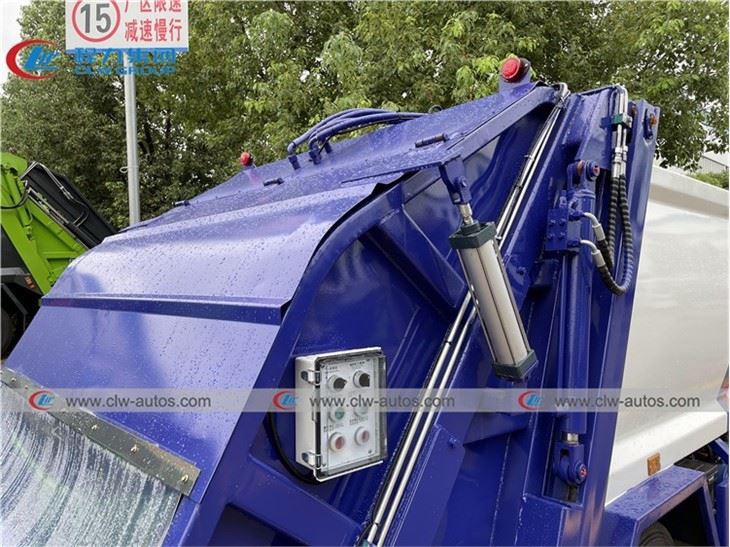

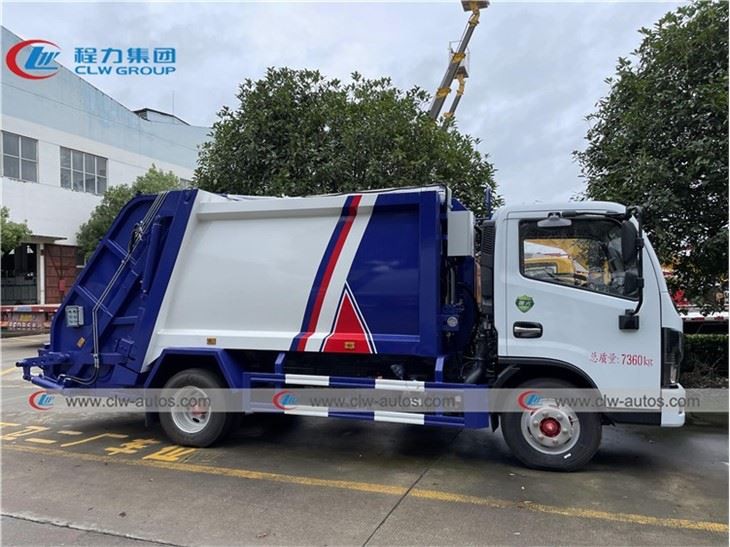

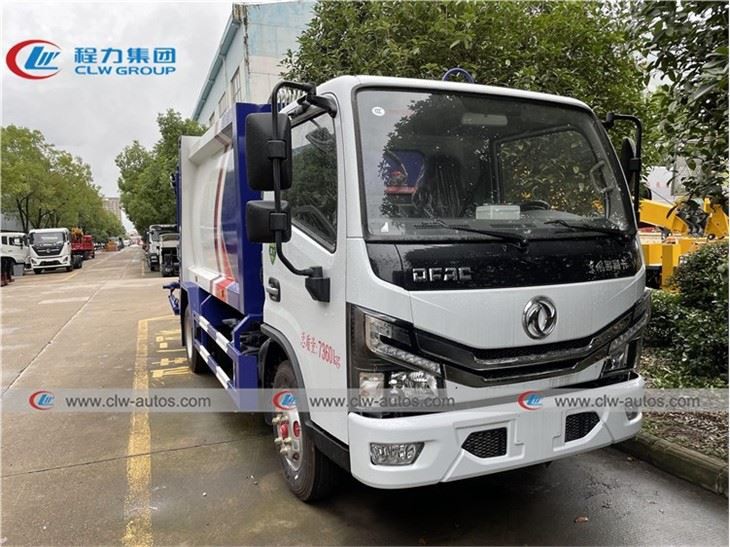

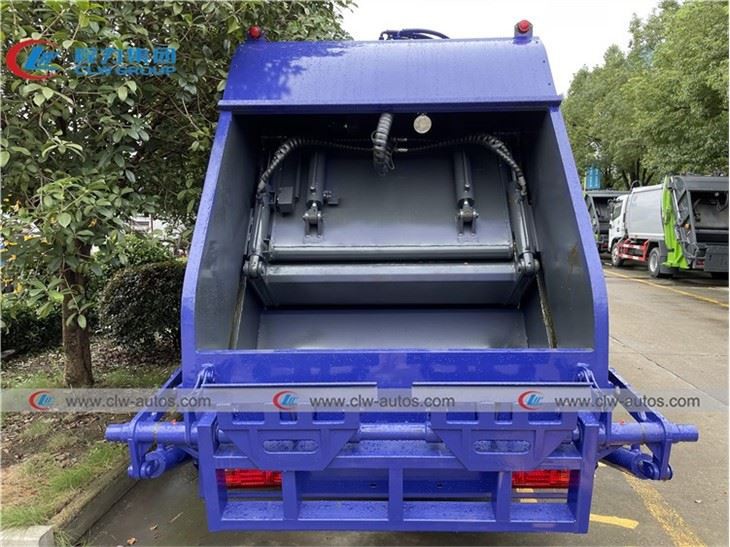

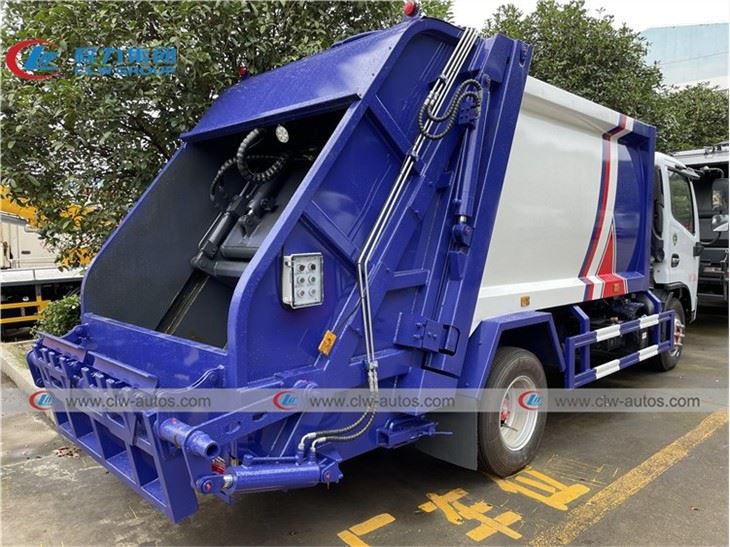

Product Pictures
