Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu 600p 120hp 5tons compressed garbage truck in China. If you're going to buy high quality isuzu 600p 120hp 5tons compressed garbage truck, welcome to get more information from our factory. For price consultation, contact us.
We are 15 years professional manufacturer of special trucks,the truck can be customized as customer requirements. Garbage truck is also called compact garbage truck,compactor garbage truck,compression garbage truck,garbage compactor,etc
(1). Volume : 3-20m3 garbage truck.
(2). Steering wheel: both left and right hand drive,meet the needs of different countries.
(3). Emission standard: Euro 1,Euro 2,Euro 3,Euro 4,Euro 5 garbage trucks
(4). Truck chassis: ISUZU,DONGFENG,SINOTRUK HOWO,JAC,FOTON,etc.
Feature
The compressed garbage truck is composed by sealed garbage van, hydraulic system, operating system. The vehicle is fully sealed type, compression and dumping by self. When it working, the sewage is all into the sewage box, so that thoroughly solved the problem of secondary pollution in the process of garbage transport, to avoid the inconvenience to people. The key parts adopt imported parts, it has great pressure, good sealing, convenient operation and safety etc. Rear hanging garbage barrel and overturned garbage bucket are optional.

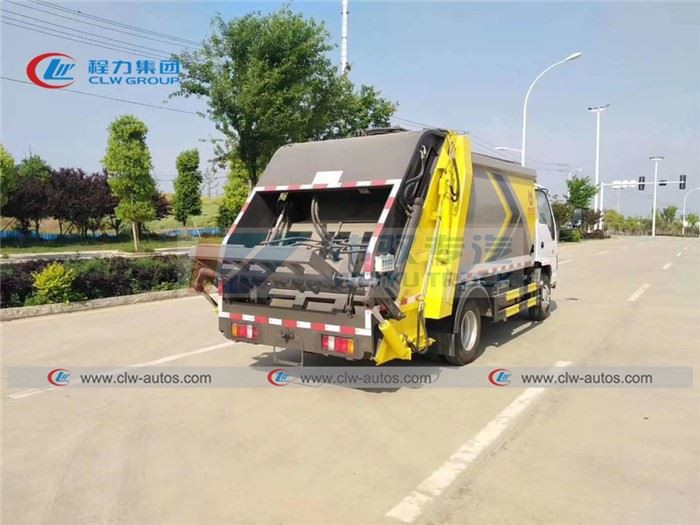

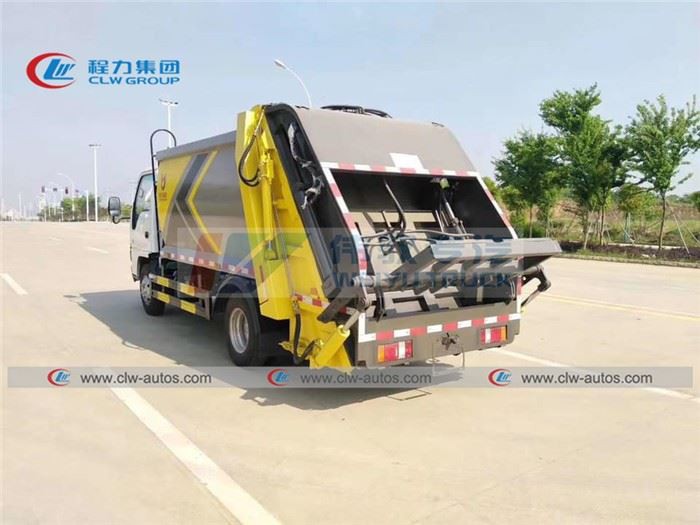

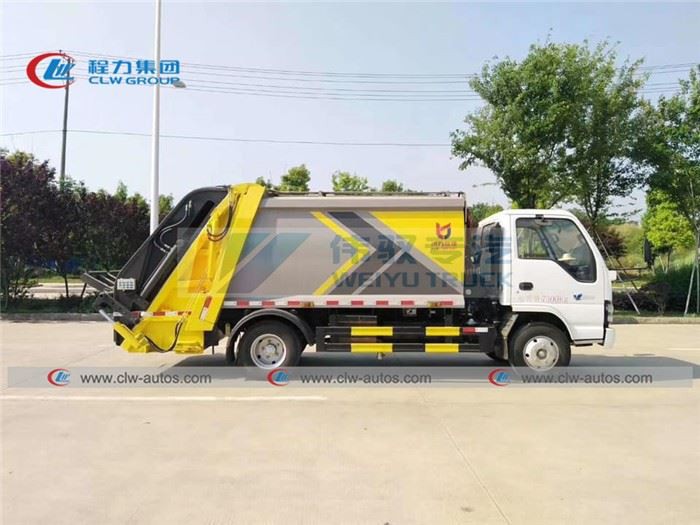

Reference picture
Specification
| ISUZU 600P 120HP 5tons Compressed Garbage Truck | |||
Overall Dimension | 8490×2470×3030 mm | Gross Vehicle Weight | 16000 kg |
Curb Weight | 6095 kg | Loading Weight | 6700 kg |
Wheel Base | 3815 mm | Front / Rear Axle | 2500/4800 kg |
Cabin | Left Hand Driving, 2 Passengers Allowed, with Air Conditioner, Radio, | ||
Engine | ISUZU brand | ||
Engine horsepower | 120HP, EURO IV/EURO V | ||
Max Driving Speed | 90 km/h | ||
Gear Box | 5 Forward Gear, 1 Reverse Gear, | ||
Tire | 6.50-16 6 pieces with one spare) | ||
Garbage Bin | Capacity | 7cbm or 8CBM | |
Material | 4mm Carbon Steel for Garbage Bin Body | ||
Design | Whole unit with Leakage Proof Design | ||
Ways of Loading | Rear Loading with optional Bucket Lifting System | ||
Garbage Compact Ratio | 1/3 - 1/4 | ||
Control System | One control Panel on the back, One Control system in back of Cabin | ||
Dispensing System | 1. Equipped with air-tight dustbin, hydraulic system and operating system. | ||
2. Automatic loading, compressing and discharging, all handled by 1 person | |||
3. Sewage water collection tank to avoid any pollution during handling. | |||
4. Large Pressure, Good Leakage Proof, Convenient Operation | |||
Dependable Security | |||
5. Electrical Control Panel for compacting system. | |||
6. Cycling time<14~18s | |||
Remarks | 1. Color is optional | ||
2. Customized LOGO painting as per customer request | |||
Diagram for compressed garbage truck
Production for compressed garbage truck
