Australian 30000L Adr Side Tipper 3 Axles Water Cart Grain Semi Trailer
Australian 30000L Adr Side Tipper 3 Axles Water Cart Grain Semi Trailer Product Description 1. earth-moving side tipper;2. end tipper;3. grain end tipper;4. water tanker;5. quad-axle lowloader deck-widener;6. tri-axle lowloader deck-widener;7. 45ft dropdeck extendable;8. 45ft flatdeck extendable;9. 45ft sliding lowloader;10. dolly trailer;11. pig trailer/Tagalong Truck...
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of australian 30000l adr side tipper 3 axles water cart grain semi trailer in China. If you're going to buy high quality australian 30000l adr side tipper 3 axles water cart grain semi trailer, welcome to get more information from our factory. For price consultation, contact us.
Product Description
We are specilized in designing and building many kinds of OZ ADR standard trailers, such as:
1. earth-moving side tipper;
2. end tipper;
3. grain end tipper;
4. water tanker;
5. quad-axle lowloader deck-widener;
6. tri-axle lowloader deck-widener;
7. 45ft dropdeck extendable;
8. 45ft flatdeck extendable;
9. 45ft sliding lowloader;
10. dolly trailer;
11. pig trailer/Tagalong Truck, etc.
Product Specification
| Tare weight | 9460kg |
| Overall Length | 10600mm |
| Overall Width | 2480mm |
| Overall Height | 2980mm |
| Volume | 30000L |
| Axle | K-Hitch ADR axle, 3 axles |
| Suspension | K-Hitch ADR with 9 leaf springs |
| Kingpin | JOST 2inch or 3.5inch,assembly type |
| Landing Leg | JOST brand, two speed,by manual |
| Tire | 11R22.5 tubless 10 studs |
| Compartment No. | 2 compartments,isolated |
| Top filler hole | 1 or 2 as your required |
| Top handrill | Air operated type with Collapsible handrill |
| Pump and Motor | Quality pump and motor |
| Valves and outlets | 1x 4inch and 1x6inch outlets fitted with handy butterfly valve, 1x6inch drill out flange with handy butterfly valve at the bottom of rear; 2X8 inch bottom flanges with handy butterfly valve in the middle right and left; 1x 6 inch front flange with handy butterfly valve; 3 x 3inch air operated top spray head, two rear gravity fan feed by air-operated butterfly valve each, air-operated rear bottom dribble fitted with flanges in both ends, top middle spray head fitted with separate air operated butterfly valve. Fitted with hydraulic pump and motor; |
| Lightings | Orion brand ADR LED side marker; rear combination lamp and rear small lamp on the tanker; Wire: ADR required thickness of electronic 7-pin wire and 7-pin |
| Finshing | flap discs jobs and Sandblasted ; 2 times of Primer and Painted in 2-Pack to required color; inside of primer; |
| Toolbox | 1 pcs of 600x900 Toolbox and 2 pcs of hose tray |
| Mud Guard | Spring Tension Rubber over Tri Group |
| Others | Road train Spec. Available Brackets for tanker body mounted rear lamp and beacon as well as Road train signs |

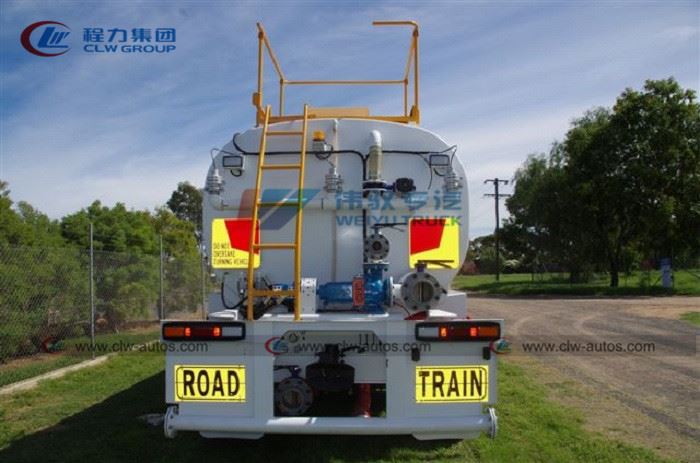

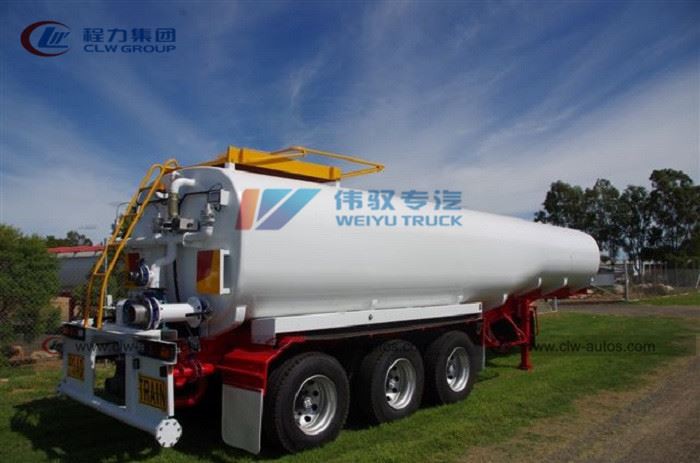

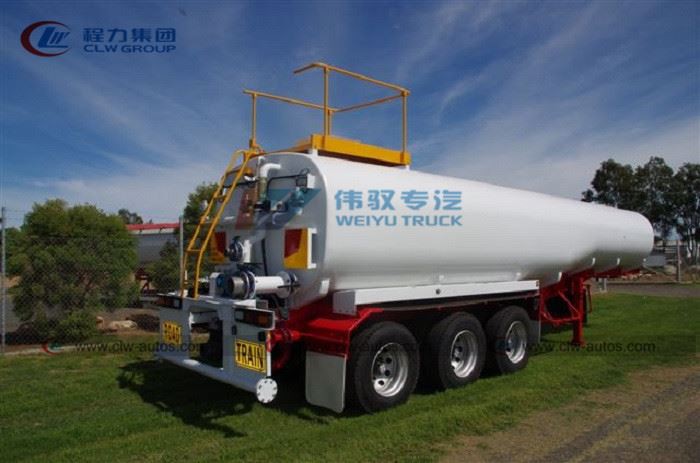

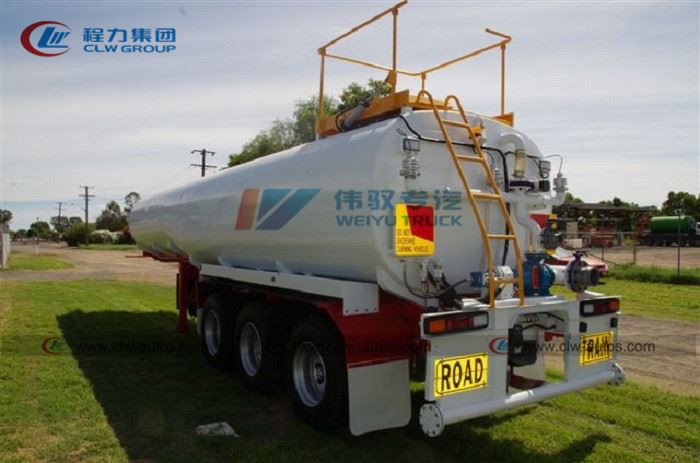

Reference Photos
