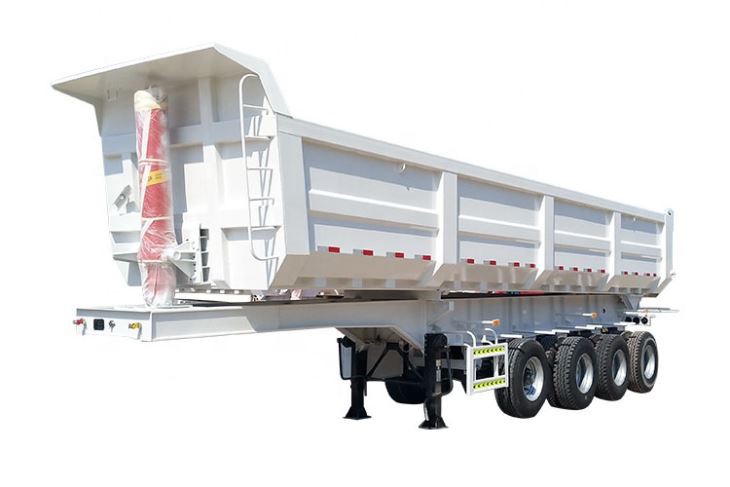

4 Axles Dump Semi Trailer
1. Automatic Steel Sheet Welding
2. Computer Controlled Submerged arc welding Main Beam
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 4 axles dump semi trailer in China. If you're going to buy high quality 4 axles dump semi trailer, welcome to get more information from our factory. For price consultation, contact us.
Product Description
1. Automatic Steel Sheet Welding
2. Computer Controlled Submerged arc welding Main Beam
3. Chassis Reversal by Machine Handling
4. Shot blasting for rust cleaning
5. Welding by experienced worker
6. Final cleaning welding slag
7. Dust-free painting
Specification
|
|
According to the desgin-9200mm*2350mm*1700mm |
|
|
|
10120 |
|
|
|
2550mm |
|
|
|
||
|
|
|
|
|
|
Heavy duty and extra durability designed I beam;Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes.Top Flange 14mm,width 146mm;Middle |
|
| Flange 8mm;Bottom Flange 16mm,width 146mm | ||
|
|
4 |
FUWA-16T |
|
|
12 |
Domestic12.00R20 |
|
|
12 |
Domestic8.5-20 |
|
|
6 |
100 width*10pieces*16thickness |
|
|
3 |
Standard type |
|
|
2 line air braking system with air tank ,emergency relay valve WABCO,braking chambers and mechanical slack adjusters.Domestic ABS 4S/2M |
|
|
|
24 volt electrical system.7 pin electrical connector.Parking .Stop,reverse,number plate and indicator lights.Rear lights conform to European standard,rear front and side reflectors |
|
|
|
Chassis is comletely shotblasted to SA 2.5 grade,and painted with first layer of international Zinc Epoxy primer(30 Microns DEF),second layer international high built polyurethane under coat(40 microns DFT),THIRD AND FORTH LAYERS INTERNATIONAL alkyd FINISH TOP coat.Total 80-100 microns.Waxed |
|
|
|
1 |
28T double operation Domestic |
|
|
1 |
90# welded type |
|
|
1 |
5TG-F120*7500 |
|
|
1 |
Standard |
|
|
Side 6mm ,floor 8mm.Carbon steel |
|
|
|
Standard type |

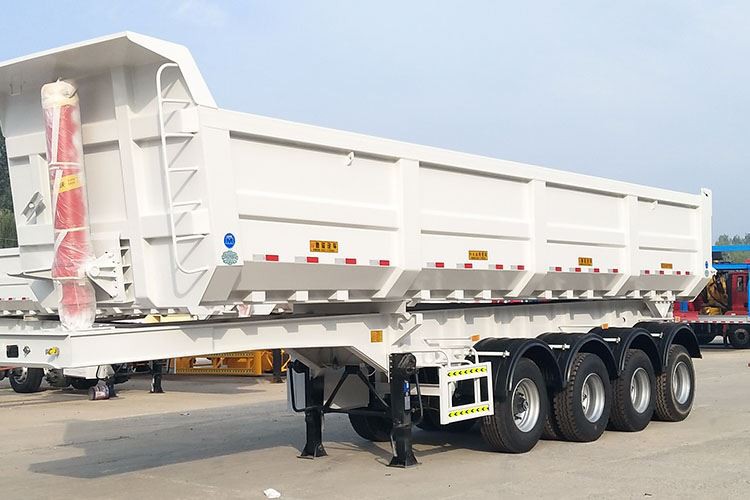

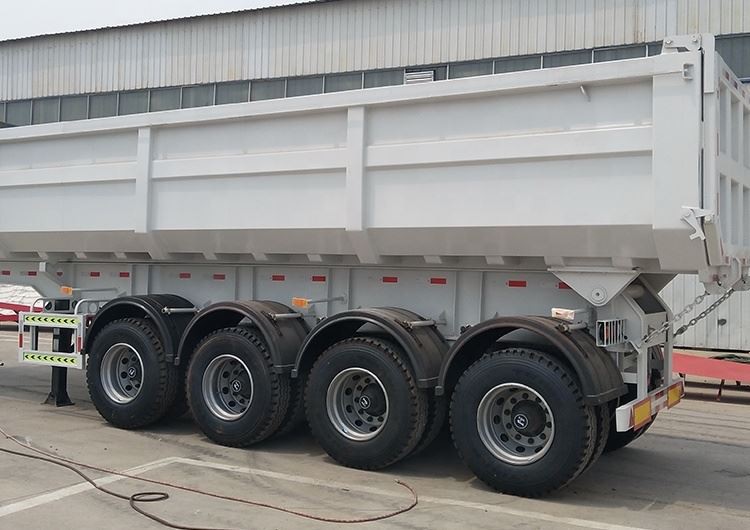

Reference Picture
Our Advantage
Tipper trailers for Construction and Mining transport:
1. To transport all kinds of construction waste & Mining stones.
2. Optional "U" Shape designed as per requirements of national standard to improve the operation safety.
3. The OEM parts from from domestic and foreign renowned brands are adopted, featuring elegance, durability and reduction of operation cost and repair cost.
4. The "U"TYPE semi-traile are light dead weight and low gravity center of whole vehicle.
5. The traveling mechanism of semi-trailer products adopts high strength national standard steel to guarantee the resistance against distortion, vibration and bump and meet the loading requirements on different roads.
6. The Box body adopts the shot blasting, phosphatin and degusting processes and high polyester powder coating, featuring high paint adhesion and elegant, shining, and lasting performance.
7. The whole vehicle adopts special electric harness with explosion-proof and contamination-proof to guarantee circuit safety.
Successful Case
Customer Inspection
Overseas Exhibition and After-sales Service
Buying Guides:
1**You please send us your enquiry;
2**We shall reply you with the quotation within 12 hours;
3**We negotiate on the configuration that you need;
4**Confirmation of the tech data → sign contract (P/I) → 30% deposit (or L/C issuing)→ production;
5**Manufacturing process updated news → completing production;
6**Balance payment → ex works → shipment → custom clearance → A/S service for 1 year.
Service Promise
1. 24-hours hot line at your service, available for quality and extending service.
2. Lifelong free technical guidance service can be provided.
3. For Customers who buy bulk quantity for the first time, we can send service technicians to offer site instruction service
And short- term stationary point service.
4. Free technical training can be provided to help customers use and maintain the trucks and trailers quickly and correctly.
