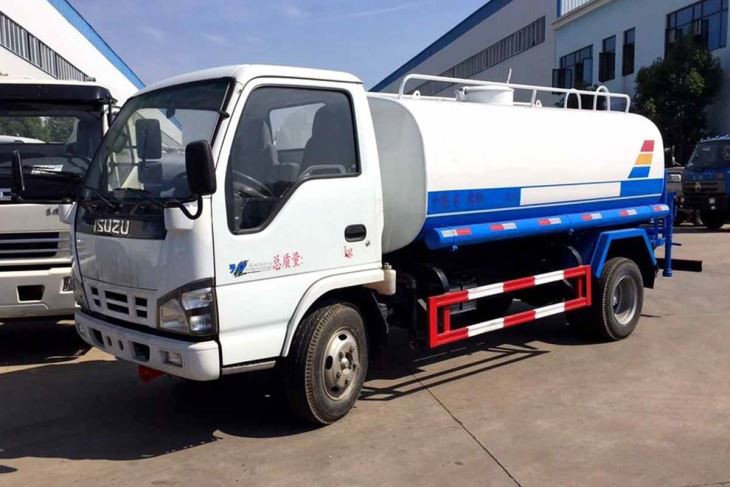

5ton Water Boswer Truck
Optional chassis brand of portable water truck : Dongfeng, Sinotruk, FOTON/Forland, Faw, Shacaman.
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 5ton water boswer truck in China. If you're going to buy high quality 5ton water boswer truck, welcome to get more information from our factory. For price consultation, contact us.
Product Description
1. Optional chassis brand of portable water truck : Dongfeng, Sinotruk, FOTON/Forland, Faw, Shacaman,
2. Material of portable water truck :High Tension Steel Q235/Q345,stainless steel 304 for option.
3. Sprinking Width of portable water truck :>14M
4. Rear working platform with water cannon range of portable water truck :28M
5. Reliable and high quality water pump
Specifications of 5,000 liters water tank truck
|
Condition |
New condition/Left hand drive/4x2 |
||
|
Chassis |
Brand |
ISUZU |
|
|
Curb weight(kg) |
3325 kg |
||
|
Loading weight(kg) |
5000 kg |
||
|
Gross weight(kg) |
8280 kg |
||
|
Wheelbase(mm) |
3360mm |
||
|
Dimensions(mm) |
6900*2200*2700 mm |
||
|
Front Loading Capacity (Ton) |
1.8 |
||
|
Rear Loading Capacity (Ton) |
4 |
||
|
Max. driving speed(km/h) |
90 km/h |
||
|
Clutch |
Reinforced diaphragm clutch |
||
|
Brakes |
Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels |
||
|
Auxiliary brake: engine exhaust valve brake |
|||
|
Steering Gear |
Power steering, hydraulic steering with power assistance |
||
|
Tire |
Quantity |
6 pcs with one spare tire |
|
|
Specifications |
7.00R16 |
||
|
Transmission |
Manual type,5 Forwards and 1 reverse |
||
|
Cabin |
Single row seat, Tiltable. It can accommodate three people. With air conditioner. |
||
|
Engine |
Brand |
ISUZU |
|
|
Fuel type |
Diesel |
||
|
Power(kw) |
88 kw |
||
|
Horsepower(HP) |
120 |
||
|
Cylinder number |
4 |
||
|
Emission standard |
Euro IV |
||
|
Upper |
|||
|
Water tank |
Capacity(cbm/tons) |
5/5 |
|
|
Tank Dimension(mm) |
3400*1600*1100 |
||
|
Tank material |
Q235 carbon steel |
||
|
Thickness(mm) |
4 |
||
|
Water pump |
China local brand |
||
|
Suction Height |
7M |
||
|
Function |
1, Front Side Rear Sprinkling width≥14m |
||
|
2, Water cannon range≥28m |
|||
|
Remarks |
1. AM/FM radio |
||
|
2. 2pcs water hose. |
|||
|
3. Color is optional |
|||

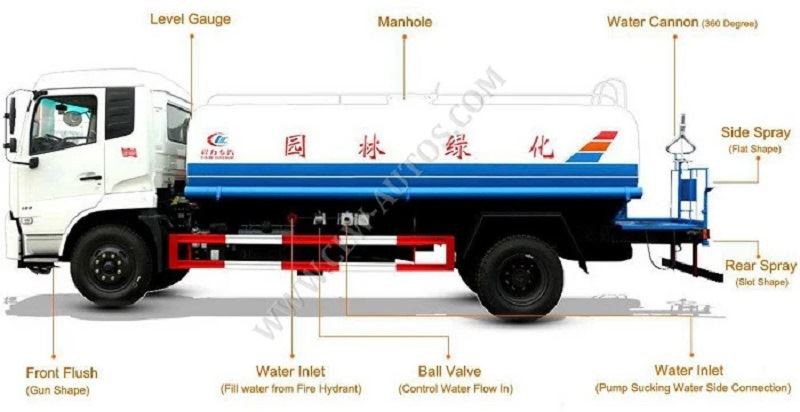

Water Tank Truck Diagram

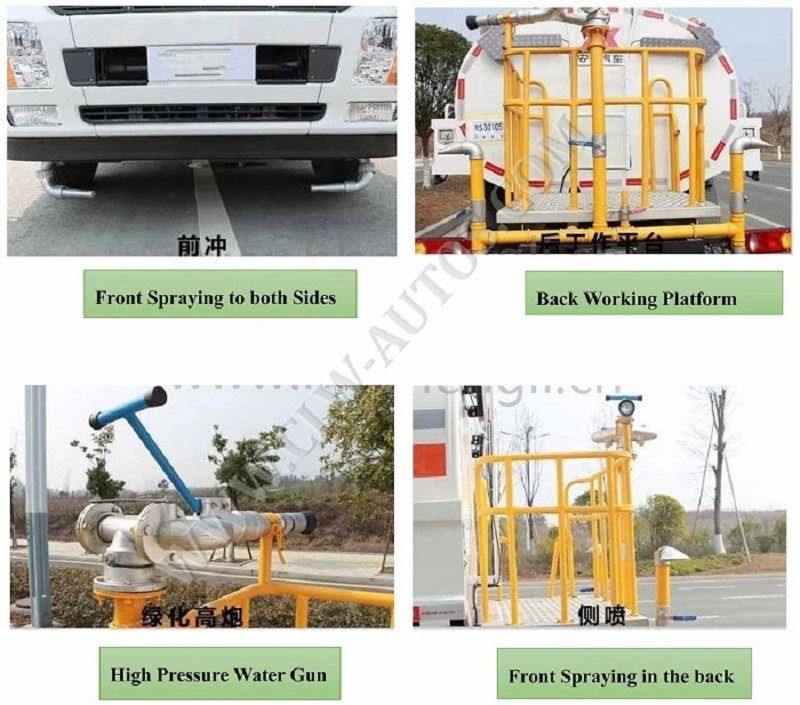

Parts Photos

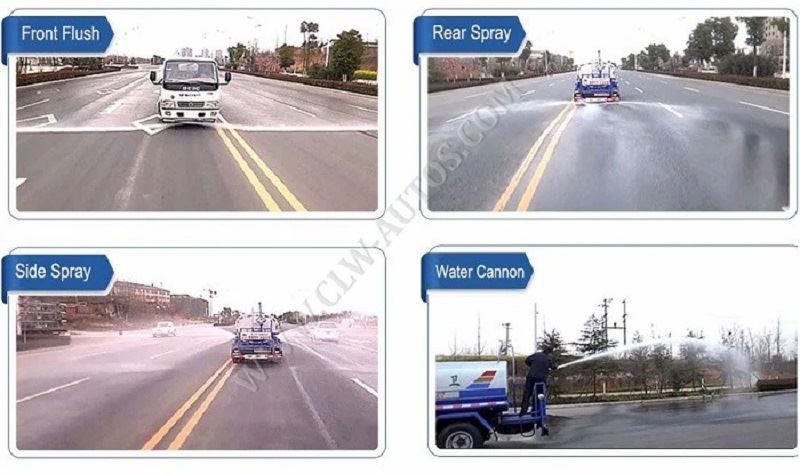

Working Show

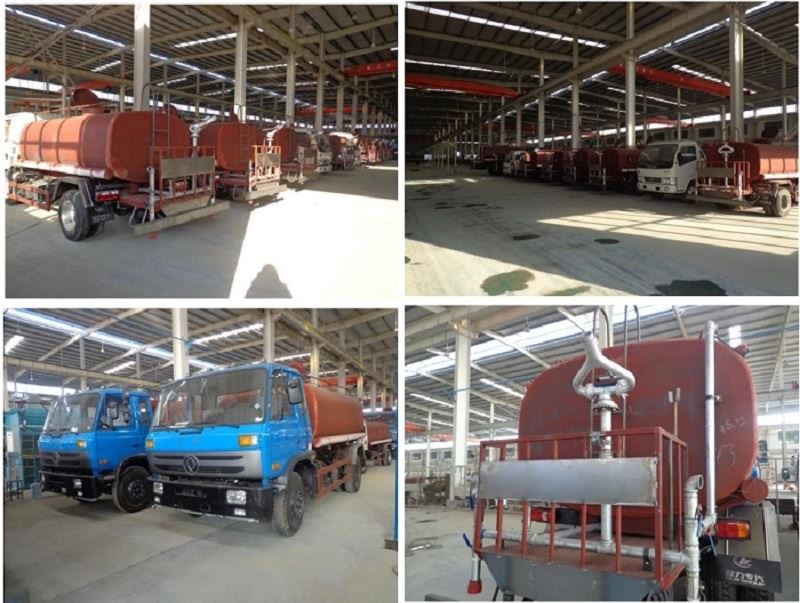

Production line for water truck
Overseas Exhibition and Local Support
Customer Visiting
Water Bowser Truck Application
① Cool down. Sprinkling water on the pavement during hot weather will reduce the temperature and protect the pavement, because the temperature will cause the pavement to crack.
② Dust removal. Dust on the road is heavy. Sprinkling water can moisten the dust and effectively prevent the dust from rising, thereby reducing air pollution.
③ Greening and horticulture. The shape of the water column of the sprinkler can be adjusted to be straight, heavy rain, moderate rain, drizzle, etc., which can be used to irrigate roadside flowers and trees or wash away the dust on trees.
④ Use as a fire truck in emergency. The sprinkler comes with a high-pressure water cannon with a range of 40-50 meters, so it can be used to extinguish fires in emergency situations. Its built-in fire interface also provides greater convenience for its water intake.
Sales Service
1. We can product truck according the customer's requirements(color,size,logo and so on)
2. We can send our technician to arrive the customer's country to provide the service .
3. We can train customer's workers for free.
4. Our truck warranty:12 months.we can provide the parts for free at the first year.
FAQ
1. You are factory or trading Company?
Yes, we are oversea sales department of Chengli automobile. And you are always welcomed to visit our factory.
2. Could your company modify the standard product depends on my request?
Yes. Our company is specialized in researching and designing various of special purpose vehicle and spare parts. We can provide any product according to your demand.
3. Could your company totally customize products for me?
We can provide the customized-designing product meeting with any of your demand.
4. Could you provide certification that we need?
We can provide various certifications associate with trailer and truck. Such as DOT, ADR, SASO and so on.
5. How long could we receive our goods?
It depends on the product that you have ordered. If the goods are prepared, we will deliver your goods as soon as possible.
