HOWO 6X4 Asphalt And Gravel Synchronous Sealer Truck
Chassis brand and model: howo 6x4 drive Overall Dimension:10200×2500×3563mm Asphalt tank volume: 8cbm Macadam tank volume: 12cbm
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of howo 6x4 asphalt and gravel synchronous sealer truck in China. If you're going to buy high quality howo 6x4 asphalt and gravel synchronous sealer truck, welcome to get more information from our factory. For price consultation, contact us.
Product Description
1.Compact structure, short turning radius, applicable to road construction in mountainous and rural areas, widely applicability
2.Materials fall independently due to gravity, how height to be easily operated in height-limited areas including tunnels and culverts
3.Diesel oil burner heats up asphalt via heat-conducting oil, temperature controlled automatically
4.Automatic control, excellent human-machine interface
5.Recycling and spraying of asphalt are automatically controlled by the cab, easy to operate
6.Built-in stirring device, not only spray the emulsified asphalt, cutback asphalt, base asphalt and modified asphalt, but also rubber (power) asphalt
7.Independent external power driving force system to ensure scratch spray
8.Efficient oil heating system, improve the heating efficiency, reduce construction auxiliary time
9.All nozzles and pipes are used oil heating, insulation, ensure asphalt cycle smoothly
10.The computer can automatically control the spray amount of work based on the input parameters and radar data, spray gun can also be used manually.
11.The manual / automatic are both implemented independently controlled each nozzle, with the easy to adjust spraying width
12.Good thermal insulation ensure static performance index ≤12 ºC / 8 hours
13.After sprayed,high-pressure air can be used to empty the pipeline pitch; and the machine equip with a diesel fuel filler neck, can be added to an appropriate amount of diesel fuel, combined with high-pressure air more thoroughly emptied of residual bitumen
14.Stainless steel plate packaging, corrosion and durable
Product Specification
Product Model | HOWO 6X4 asphalt and gravel synchronous sealer truck | Overall Dimension(L*W*H)(mm) | 10200×2500×3563 |
Wheelbase(mm) | 4600+1350 | Asphalt TankDimension(L*W*H)(mm) | 2400*2350*2020 |
F/ R suspension(mm) | 1500/2725 | Front/Rear tread(mm) | 2022,1830/1830 |
Gross weight (kg) | 25000 | Number of Axles | 3 |
Curb weight(kg) | 17370 | F/R axle load(Kg) | 7000/16000/16000 |
Approach/ departure angle (° ) | 16/14 | Max Speed (km/h) | 90 |
Cab capacity | 3 persons | Cab Type | Flat proof, single sleeper, air conditioner |
Chassis Parameter | |||
Chassis Model | ZZ1257 | Chassis manufacturer | CNHTC Jinan Truck Co., Ltd |
Transmission type | Manual | Gear Box | 10 forward and 2 reverse |
Steering Type | LHD/RHD, power steering | Traction Type | 6x4 |
Brake System | Air brake | Tire size/type | 12.00R22.5 |
Engine Technical Parameter | |||
Engine Model | WD615.69 | Engine manufacturer | CNHTC |
Fuel type | diesel | Displacement( ml) | 9726 |
Emission stand | Euro 2 | Power/Horse power(KW)/(HP) | 247kw(336hp) |
Equipment & Performance | 1. Asphalt Tank volume: 8m3 with 80mm insulation layer, Macadam Tank Volume: 12m3 | ||
2. Transport medium: emulsified asphalt. | |||
3. All pipes can be held thermal insulation by conducting oil | |||
4. Control system is imported PLC from Germany, burners is imported from Italy | |||
5. Asphalt spraying width: 0.3-4m, spraying quantity: 0.3-3.5L/m2, Stone spraying width:0.3-4m, | |||
6 Asphalt heating way: automatic diesel oil burners | |||
7 Main parts of hydraulic system is imported | |||

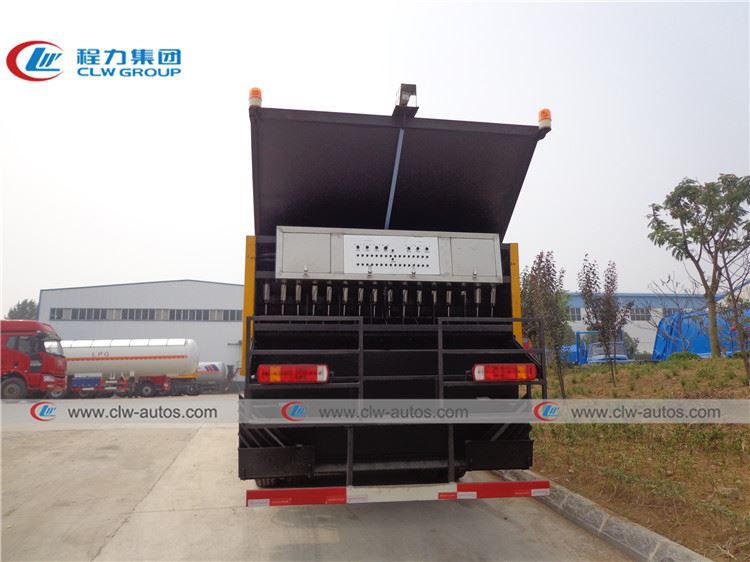

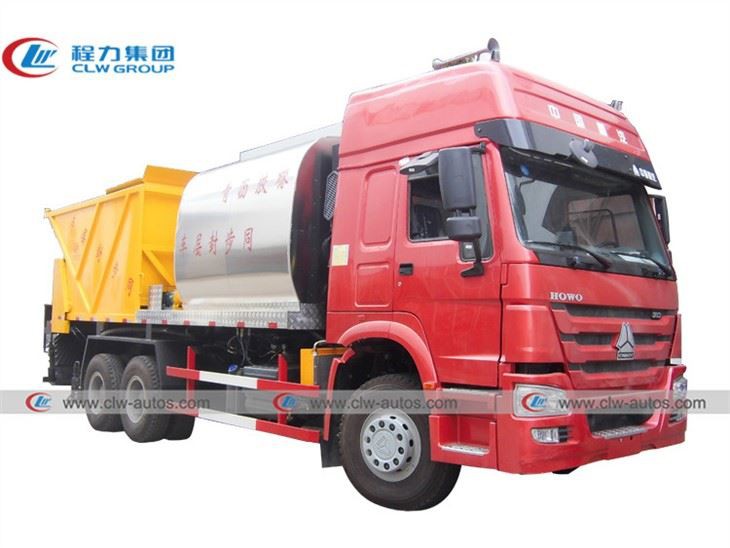

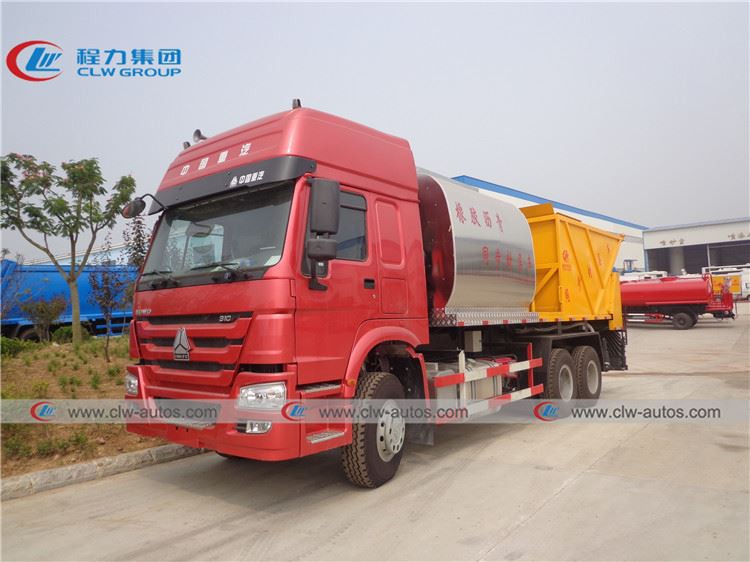

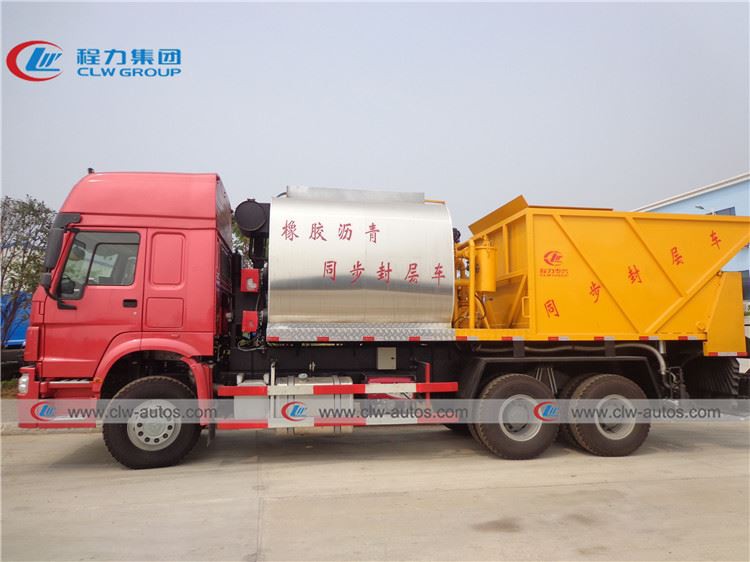

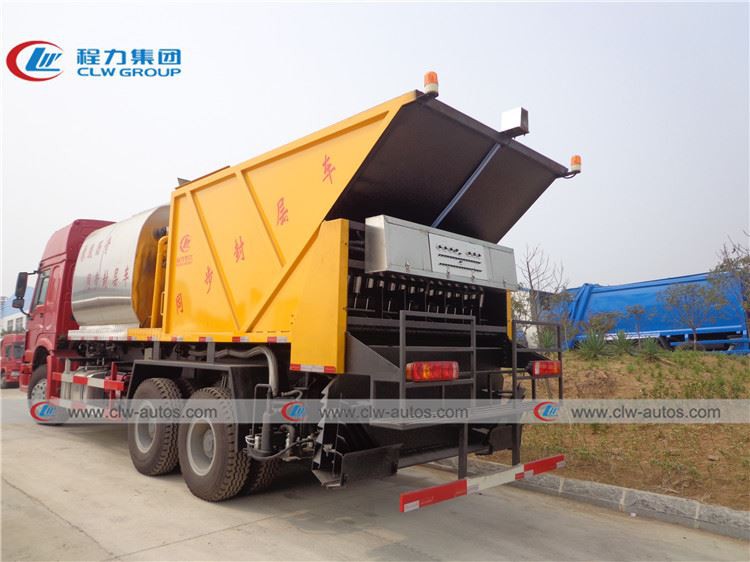

Product pictures
Key words: asphalt truck, bitumen truck, synchronous sealer truck, asphalt distributor truck
Hot Tags: howo 6x4 asphalt and gravel synchronous sealer truck, China, manufacturers, suppliers, factory, price
