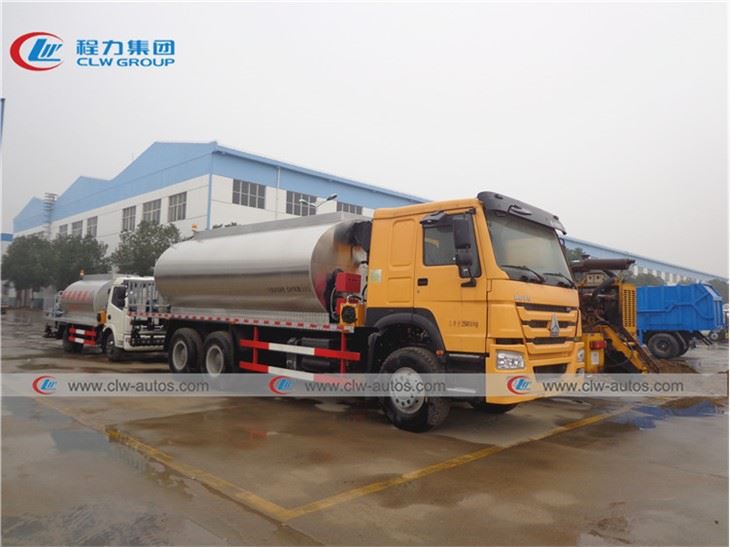

Howo 6X4 16CBM Interlligent Asphalt Distribution Truck

Truck cabin:Howo HW76 cabin
Engine:336hp/371hp
Wheelbase:4600+1350mm
Steering:LHD or RHD
Asphalt tanker:16,000Liters

Product Details

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of howo 6x4 16cbm interlligent asphalt distribution truck in China. If you're going to buy high quality howo 6x4 16cbm interlligent asphalt distribution truck, welcome to get more information from our factory. For price consultation, contact us.

Description

--Asphalt distributor truck(also called asphalt distribution truck,bitumen distribution truck,bitumen distributor truck,interlligent asphalt distribution truck) is a kind of road construction machinery and the main equipment of highway, city road, airport and port terminal construction widely used in highway construction and highway remaintenance engineering.

--It can also be used for asphalt overlay and spraying in highway maintenance as well as for the construction of county and township level highway oil road for the implementation of layered pavement technology.The intelligent asphalt distributor truck is composed of vehicle chassis, asphalt tank body, asphalt pumping and spraying system, thermal oil heating system, hydraulic system, combustion system, control system, pneumatic system and operating platform.

Feature

★Spraying asphalt and bitument types:heated asphalt,hot modified asphalt,cutback asphalt,emulsified asphalt,rubber asphalt;

★Asphal tanker:3-layer insulation tanker body;

★Spraying width:4500mm;

★Asphalt spraying volume:0.25~4.0L/m2;

★Spraying nozzle number:36 pcs of interlligent spraying nozzles and indepent controlled;

★manual/automatic control of spraying volume and working width,control of single spraying nozzle

★control in cabin or rear working platform

★automatic controling system of measuring driving speed and adjust pump rotation number after input asphalt kind and spraying width.

★Heating system(10~15ºC/h) to improve heating efficiency

★Imported brand of key parts such as hudraulic pump,hudraulic motor,asphalt pump,Proportional Valve,automatic control system

★Italy burner for automatic fire and temperature control

Reference Picture

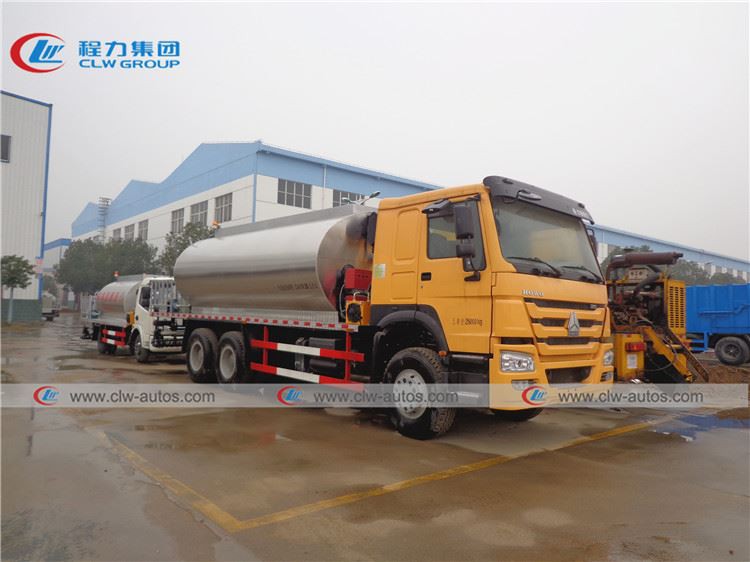

asphalt distributor truck6

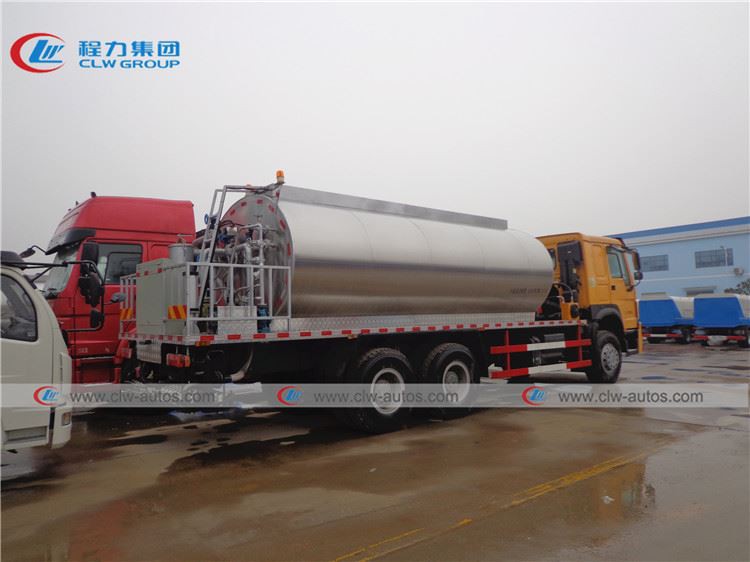

asphalt distributor truck7

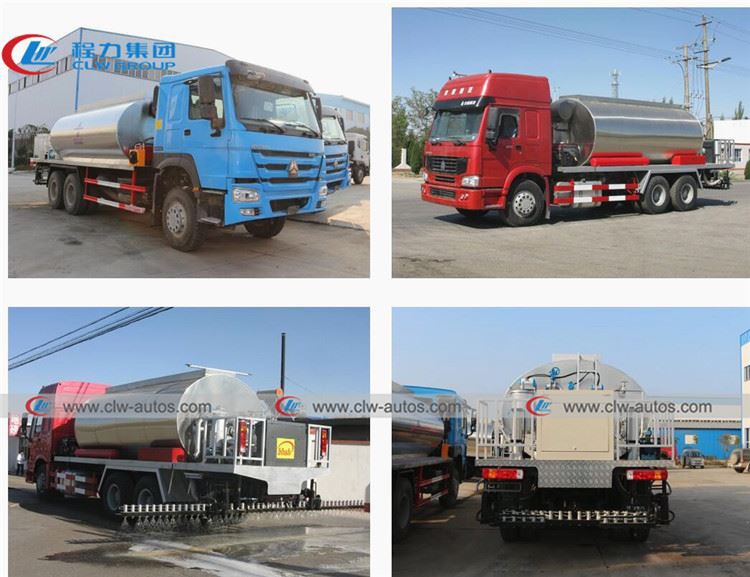

asphalt distributor truck3

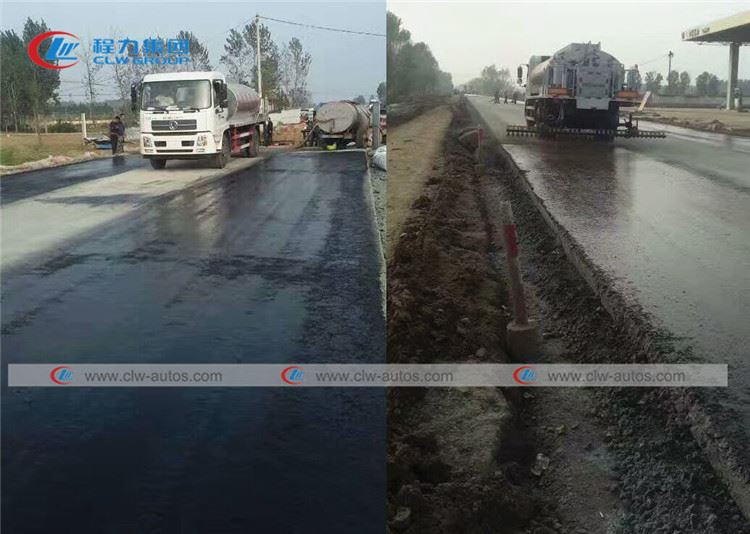

asphalt distributor truck4

★Main equipment of asphalt distributor truck

asphalt distributor truck9

Specification

Item No.	Parameters
Chassis
Overall Dimension	10200x2500x3450mm
Gross Vehicle Weight	25000 kg
Curb Weight	16000 kg
Loading Weight	8870Kg
Wheel Base	4600 +1350mm
Front/rear Tread	1500/2750 mm
Approach/Departure Angle	16/16 degree
Front Axle	7000kg
Rear Axle	18000kg
Engine	WD615.62,Weichai Diesel Engine, watering cooling, four stroke, 6 cylinder in line
Engine horsepower	266HP EURO II
Displacement	9.726L (Diesel)
Max Driving Speed	90 km/h
Cabin	HW76,2~3 Passenger allowed, Right Hand Driving, with Air Conditioner
Tire	12R22.5 (10 pieces+1piece spare tire)
Asphalt Tank	16cbm
Outside Material	1.2mm Stainless plate
Insulation layer	40mm rock wool insulation layer,≤20℃/8h
Asphalt pump	QGB950,950L/min
Driving Motor	05-130-BD31(NING BO TILORMS)
Hydraulic System
Hydraulic pump	CBQ550-L from Tianjin
Proportional Valve	EFBG-03-160-HF/Taiwan brand
Shuttle Valve	Shanxi Yuci brand
Overflow Valve	Shanxi Yuci brand
Control System
Control System	CLW-32-01/Germany STW
Control Method	Computer control
Smart asphalt nozzle	36 pcs intelligent nozzles
Temperature sensor	2 pcs from Zhejiang China
Speed sensor	2 pcs from Germany
Heating System
Heating method	Automatic heating by oil
Burner	G20/Italy brand
Radiator	RISEN brand
Heat transfer oil pump	40-25-160(Hebei province,China)
Gasoline Engine	LUTIAN brand,6kw
Spreading Width	6m
Spreading Speed	0.3~3.5L/min
Spreading Precision	±2%
