Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 55CBM Aluminum Bulk Feed Trailer in China. If you're going to buy high quality 55CBM Aluminum Bulk Feed Trailer, welcome to get more information from our factory. For price consultation, contact us.

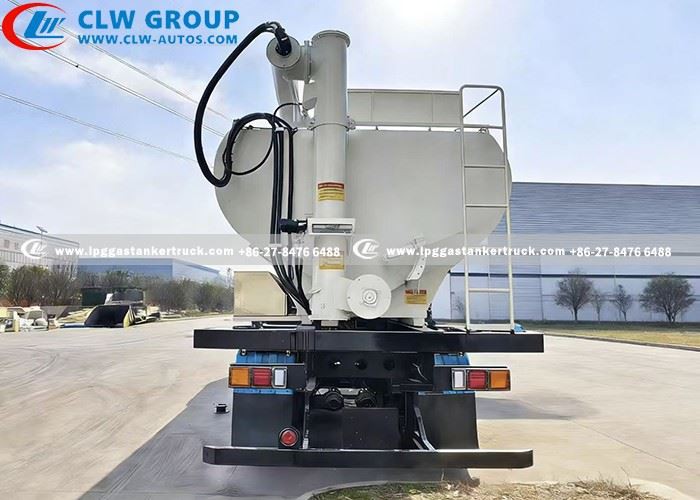

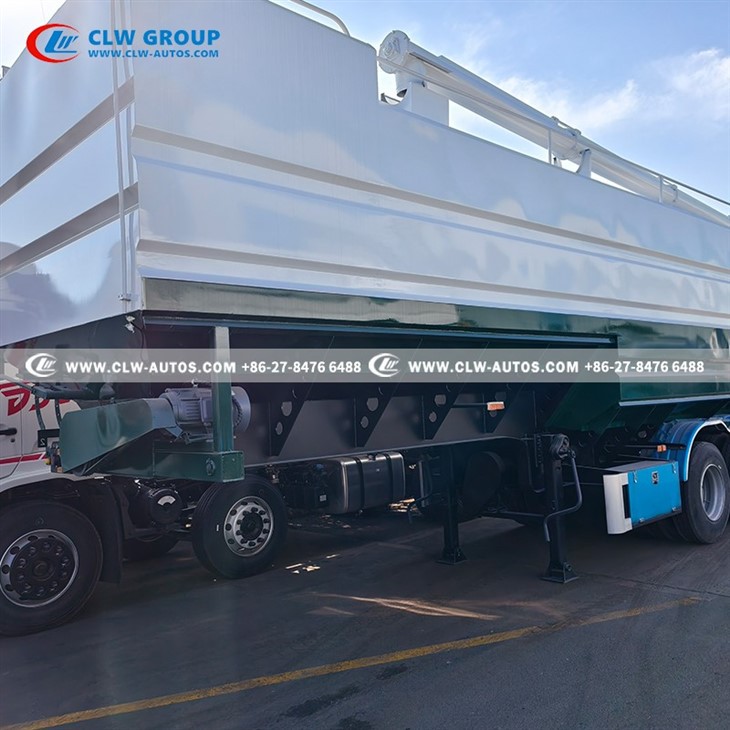

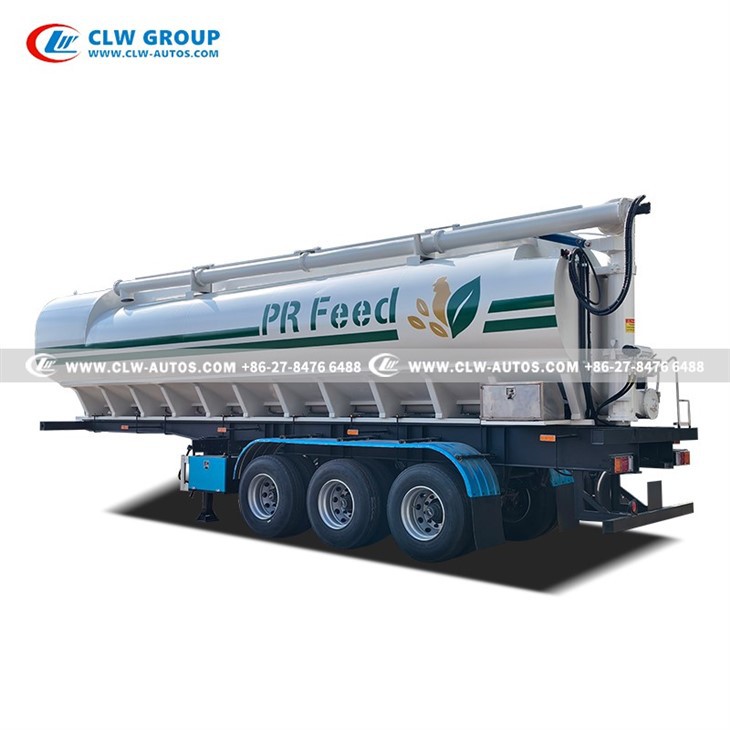

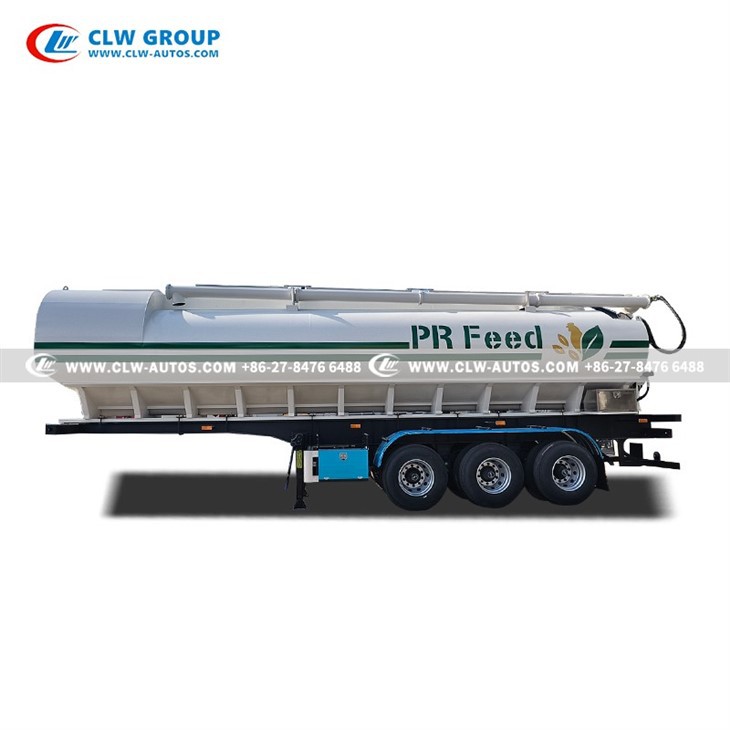

3 Axles 55m³ Bulk Feed Aluminum Semi-Trailer
Revolutionize Your Agricultural Logistics with the CLW Group Feed Bulk Feed Semi-Trailer!
Key Specifications & Construction:
Dimensions: 13000L x 2550W x 3995H (mm)
High-Strength Chassis: Features a 960mm wide main beam with 200/450mm high, 6mm thick web longitudinal girders (high-tensile steel) for exceptional anti-bending and deformation resistance.
Reliable Running Gear: Equipped with 3 x 13T FUWA axles with ABS, low-pressure alarms, and automatic slack adjusters. The 10+13 leaf spring suspension ensures stability on all terrains.
Optimized for Payload: A lightweight yet durable design with a 55m³ capacity, capable of carrying up to 30 tons of powdered feed or 33 tons of pellets.
Overall Size: 13000x2550x3995mm
Effective Volume: 55 Cubic meters.
Loading Capacity: 30 Tons
Tank Material: Light weight aluminum alloy
Compartments: 5 Independent Compartments
Discharge System: Top auger lifts 7.5m and rotates 180°
Hydraulic System: Hydraulic pump and motor drive for high-speed unloading (up to 750 kg/min)
Suspension System: Mechanical leaf spring suspension
Discharge Rates: 650-750kg/min
Brake: With ABS and low-pressure warning system
Axles: Robust triple-axle chassis with 3 x 13 Ton FUWA axles
Tires: Durable 12R22.5 tires enhance load support.
Tool Box: Large capacity water-proof detachable tool box
|
Semi-Trailer Specification |
|
|
Trailer Overall Size |
13000x2550x3995 |
|
Tank Volume |
55 Cubic meters / 55m³ |
|
Tank Material |
4mm Aluminum alloy steel |
|
Gross Vehicle Weight(GVW) |
40000kg |
|
Curb Weight(kg) |
10400kg |
|
Loading Capacity(kg) |
29600kg |
|
Axle Brand & Capacity |
FUWA, 13 Tons x3 Axles |
|
Suspension |
Mechanical muti-leaf spring(10+13) |
|
Lifting Leg |
FUWA, 28tons |
|
Traction Brand & Size |
Jost, 90# |
|
Brake |
16tons brake pad |
|
Wheel Base(mm) |
7120+1310+1310mm |
|
Tires |
12R22.5 / 12pcs with one spare |
|
Compartment |
5 compartments |
|
Driving Form |
4pcs hydraulic motors, 1pc hydraulic pump, a set of hydraulic valves, and 1pc hydraulic oil tank |
|
Discharge Capacity |
400~500kg/min |
|
Auger Number |
3pcs hydraulic augers |
|
Discharging Distance |
Top auger (9 meters) is hydraulically controlled for lifting, and can rotate 180 degrees left and right |
|
Accessories |
Large capacity water-proof detachable tool box |
| Optional configurations | 1. Installation of remote control operation for the auger lifting and rotation; |
| 2. Installation of hydraulic auger; | |
| 3. Extension of the auger length | |
Choose Efficiency. Choose Reliability. Choose Capacity!
55 Cubic Meter tank
Payload up to 30 tons of feed
Curbside catwalk & rear ladder
The auger has high-performance spiral blades
Automatically unload bulk animal feed from production
Unique elliptical tank top and square tank body design
Cargo box is constructed with profiled steel from
Electrical interface
Dual-Purpose Air Supply & Brake Control
Centralized External Utility Hub
Standardized Tractor-Trailer Coupling
Fail-Safe Brake System Interface
Auxiliary Power & Lighting Circuit
Closed-Loop Air Return
Industry-Standard Compatibility
5 independent Compartments
Five internal compartments
Transporting multiple products at once significantly improves route efficiency
The discharging sequence and speed of each compartment can be independently controlled
Unload from the back towards the front
Control Box
3 augers,a set of hydraulic valves
4 hydraulic motors,1 hydraulic pump
a hydraulic oil tank assembly
low residue (less than 0.22T)
The top auger is hydraulically controlled for lifting
Can rotate 180° left and right.
Efficient unloading speed of up to 650-750 kg/min
Concrete Mixer Truck has a wide range of application!
Agricultural Farms
Direct, efficient delivery of bulk grains and feed.
Feed Production Plants
Reliable transport between factory and distribution points.
Export/Import Terminals
The high-speed discharge system supports quick loading and unloading operations at ports.
Logistics Companies
Offers stable, high-capacity transport for sensitive agricultural products.
