Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 45cbm 45,000liters lpg mobile filling plant 22.5tons 22mt 23mt lpg skid station in China. If you're going to buy high quality 45cbm 45,000liters lpg mobile filling plant 22.5tons 22mt 23mt lpg skid station, welcome to get more information from our factory. For price consultation, contact us.
Product Description
1--LPG Skid Station for cooking gas refilling in home use cylinder in different size;
2--One Station with 2 Function: Truck Discharging & Cylinder Refilling with 1 Pump;
3--Digital Filling Scale with Auto Filling Cut-off, Thousans of Record Keeping, net & Gross Filling;
4--Pump: Vane Pump & Coro-Flo Pump, Turbine Pump, Corken or Blackmer Brand;
5--Motor: ABB or SIEMENS Brand, Static-free, 380V 3 Phase, 5.5KW to 10KW;
6--Pipeline: 2" Steel pipe with safety return valve, strainer, one-way valve, cut-off valves;
7--Explosive Proof Central Control Panel for whole station system;
8--Other Equipment: Sunshade for filling area, Leakage Detector.
Product Specification
Specification of 22.5tons 45,000L lpg mobile filling plant | |
Volume of Tank | 45CBM(45,000liters) 22.5Tons |
Filling weight(Kg) | 15960 |
Thickness of Shell (mm) | 14 mm |
Thickness of Endplate (mm) | 12 mm |
Tank Diameter (mm) | 2400 mm |
Tank Dimensions (mm) (length x width x height) | 9270X2428X3018mm |
Material of Tank and Main Pressure Parts | Carbon Steel Q345R |
Filling Medium | Liquefied Petroleum Gas ( Propane) |
Design Pressure | 1.71 MPa |
Corrosion Allowance | 1 mm |
Medium Density | 500-590 kg/ cbm |
Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. | |
Specification of LPG Pump and Motor | |
Item | Specification |
Specification of the Motor | |
Model | Chinese famous brand |
Revolving speed | 1470 r/min |
Power | 5.5 kw |
Voltage | 380 V |
Protection grade | Anti explosive |
Specification of the hydrocarbon Pump | |
Model | YQB15-5 |
Medium | Liquid petroleum gas |
Speed | 15 m3/h |
Input and Output Diameter | 50 mm |
Working pressure | 2.0 Mpa |
Working temperature | -40ºC- 50ºC |
Material | carbon steel |

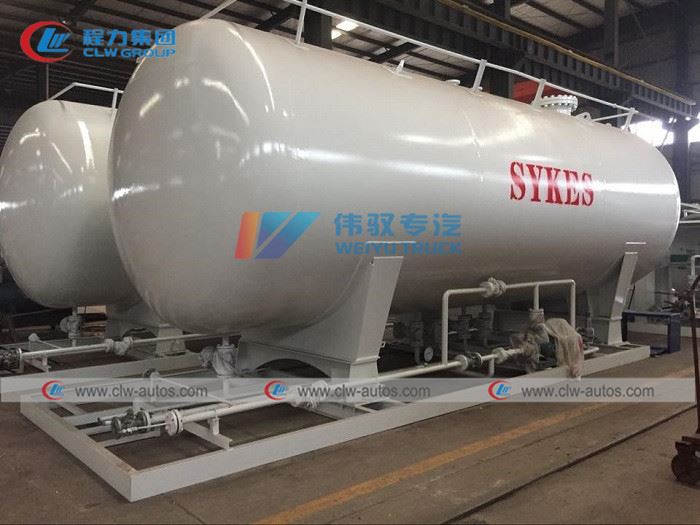

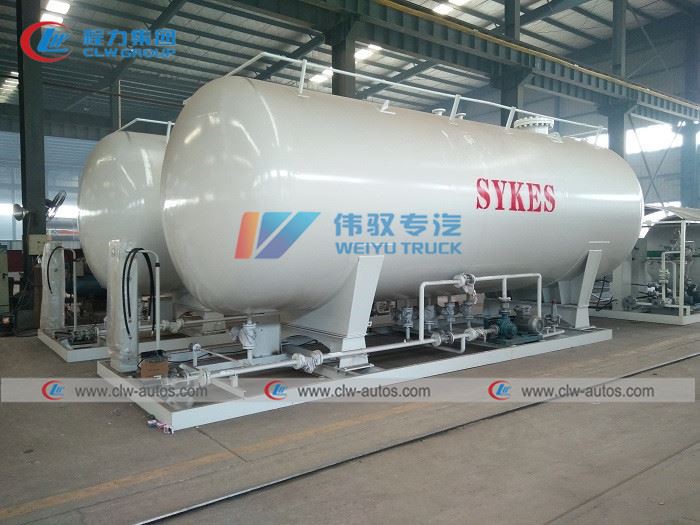

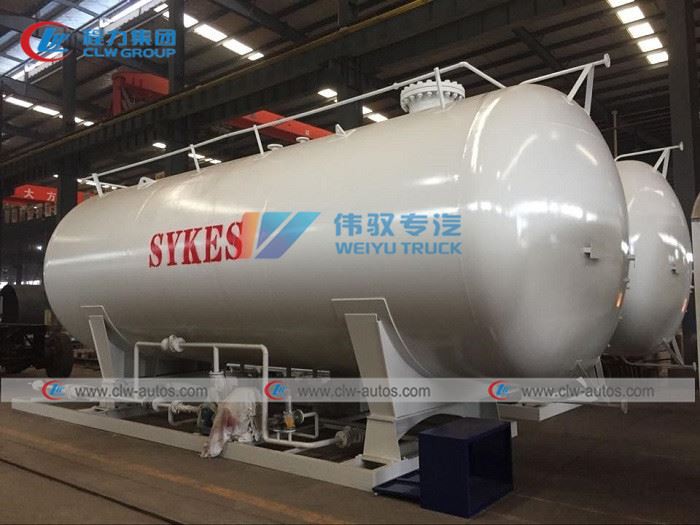

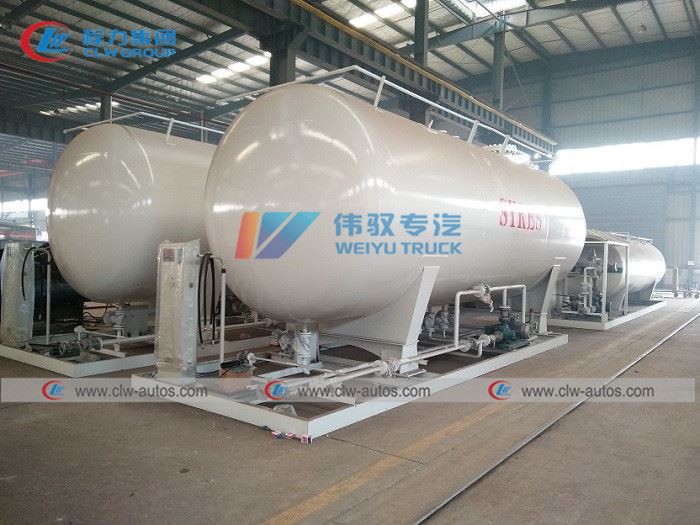

Reference Photos
Factory Introduction:
Hubei ChengLi Special Automobile Co., Ltd., which is appointed by the Development and Reform Commission of China, is a professional manufacturer of special automobiles for landscaping, petrochemical, and environment cleanness, etc. Our company has independent export authority, with good technology, flawless inspection, advanced equipment, reliable quality and flexible modes of operation, we have attracted a lot of customer from all over the world.
l More than 10 years' experience as a manufacturer
l CCC, ISO, BV, ASME certification
l Perfect after-sale service
l Trucks covering more than 50 countries and regions
l 300 kinds of trucks and trailers
l 100 Senior welder and 15 senior engineers
l Good cooperation with 30% regular customers
l Annual production value topped 240,000,000 US dollars per year
